Lantronix, one of the worlds most trusted brands of serial Ethernet converters (serial device servers), providing high quality and super reliable products ideal for even the most critical applications. Their newest device server called xDirect is one of the most versatile and interesting products we have seen in a long time.
Not only does the xDirect offer all the standard features of a good serial Etherent converter, it also has many advanced features, AES encryption, a small form factor and a fast 16-bit x86 processor just to mention a few features, and all this at a resonable price,... almost sounds too good to be true.

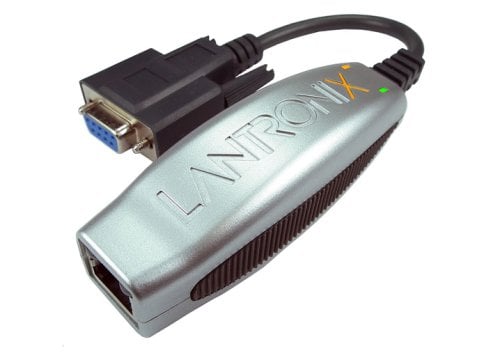

The Lantronix xDirect serial Ethernet converter has an inline form factor which makes it ideal for installation 'right on the wire', where it then can be powered either through the DB9 serial port or through a mini USB power supply.
It is designed around Lantronix's own CPU (DSTNI-EX) which features easy to use management with the included Virtual COM port re-director software (DeviceInstaller™). However, the server settings can also be configured through a standard web-browser, over Telnet, Serial login or SNMP.
Another feature of the xDirect is that it offers security in the form of 128/192/256-bit AES Encryption, which is a rare feature in this price class.
Built into the included Com Port Redirector software, TruPort® technology enables Windows-based applications to access and control serial ports on the xDirect as if they were actually local PC serial ports. The application can monitor and set hardware pins on the xDirect serial ports as well as access serial buffers for total Com port control. This allows existing applications to seamlessly transition from controlling local devices to true remote monitoring and control of devices around the world.
Please see our full line of Lantronix products for alternative solutions.
Overall features
- 1-port RS232, RS485 / RS422 to Ethernet device server
- Inline form factor
- High quality and reliable Lantronix brand
- 2 and 4-wire RS485 support
- Many advanced features and functions
- 128/192/256-bit AES Encryption
- Indication LED lights
- Virtual COM management software included
- Management: Web browser, Telnet, Serial
- Complete regulatory and agency approvals
|
Resources
|
| SPECIFICATIONS |
| Part number |
XDT4851002-01-S |
| Software |
Windows 8, Windows 7, Vista, XP, 2008 Server, 2003 Server (32-bit and 64-bit versions), DeviceInstaller™ configuration software, Com Port Redirector software and related utilities. |
| Processor |
Lantronix DSTni-EX Enhanced 16-bit x86 Architecture
Memory: 256 KB SRAM, 1 MB Flash |
| Serial interface |
Software-selectable RS232, RS422 or RS485 (2 and 4 wire support)
1 port DB9 female, DCE serial port |
| Configuration Options |
Web browser, Telnet client, Serial Terminal |
| Indication LEDs |
Power/Status, Link, Activity, Serial RX Activity & TX Activity |
| Serial signals |
RS232: TX, RX, DTR, DSR/DCD, GND
RS485 2-wire: Data+, Data-, GND
RS485 4-wire: Tx+, Tx-, Rx+, Rx-, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND |
| Baud rate |
300 bps to 921.6 Kbps |
| Parity |
Odd, even, none |
| Data Bits |
7, 8 |
| Stop Bits |
1, 2 |
| Flow control |
CTS/RTS (Hardware)
XON/XOFF (Software) |
| Network Protocols |
UDP, TCP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, Telnet Com Port Control |
| Power |
5V at mini-USB-B jack or 5-15 VDC at DB9F pin 9 |
| Power Consumption |
1.3W max w/o PoE |
| Electrostatic (ESD) protection |
Serial Port: 15 kV ESD protection on RS232 and RS422/485 transceivers.
Ethernet Port: 1500 VAC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection |
| Housing |
Plastic |
| Agency approvals |
UL 60950-1, 2nd Edition,
CAN/CSA C22.2 No. 60950-1-07, 2nd Edition,
CE,
VCCI,
C-Tick,
IEC 60950-1 2005, 2nd Edition |
| Regulatory compliance |
Emissions: FCC Part 15, Subpart B, Class B,
EN55022, Class B,
EN61000-3-2, EN61000-3-3,
ICES-003 Issue 4,
AS/NZS CISPR22
Immunity: EN55024,
EN61000-4-2, EN6100-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11 |
| Dimensions |
180 x 130 x 53 mm (LxWxH) |
| Weight |
0.068 Kg (0.15 lbs) |
| Operating temperature |
-40° to 85° C (-40° to 185° F) |
| Warranty |
5 years limited warranty |
