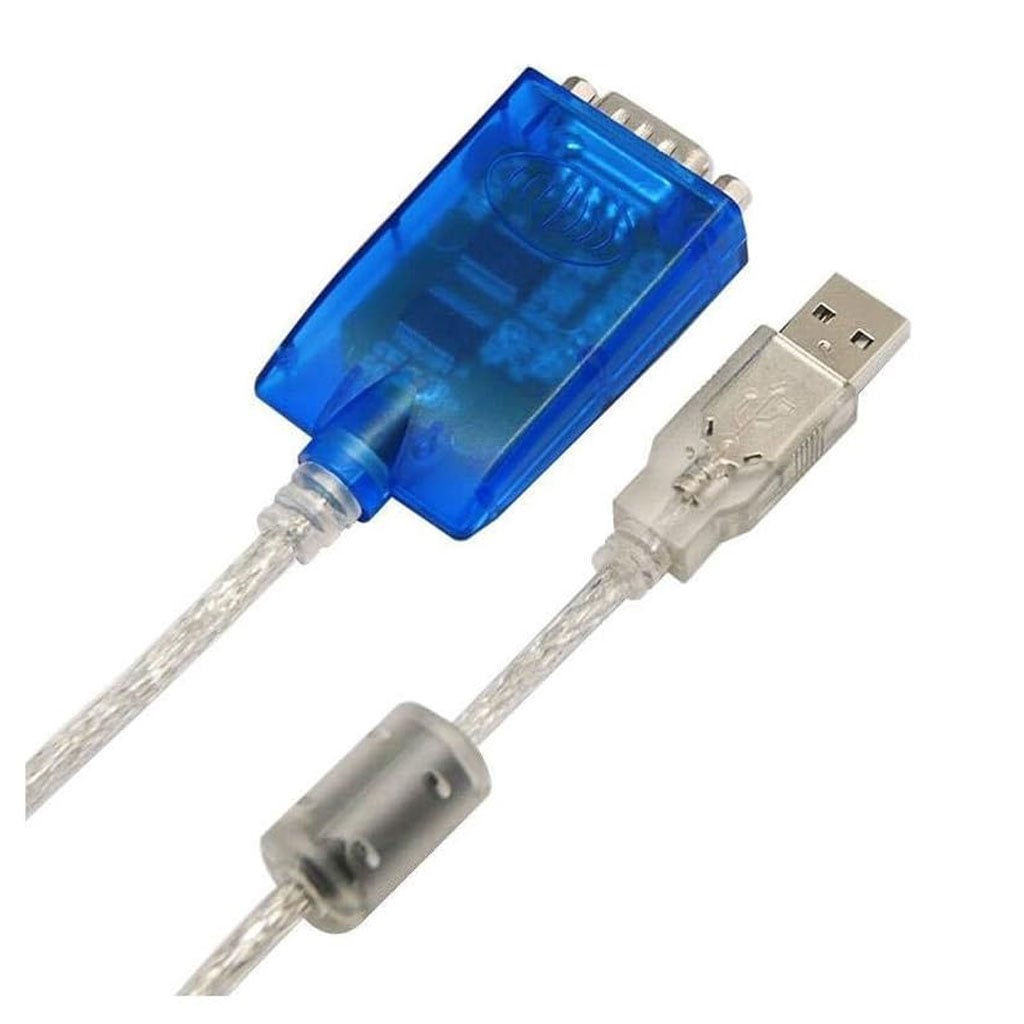

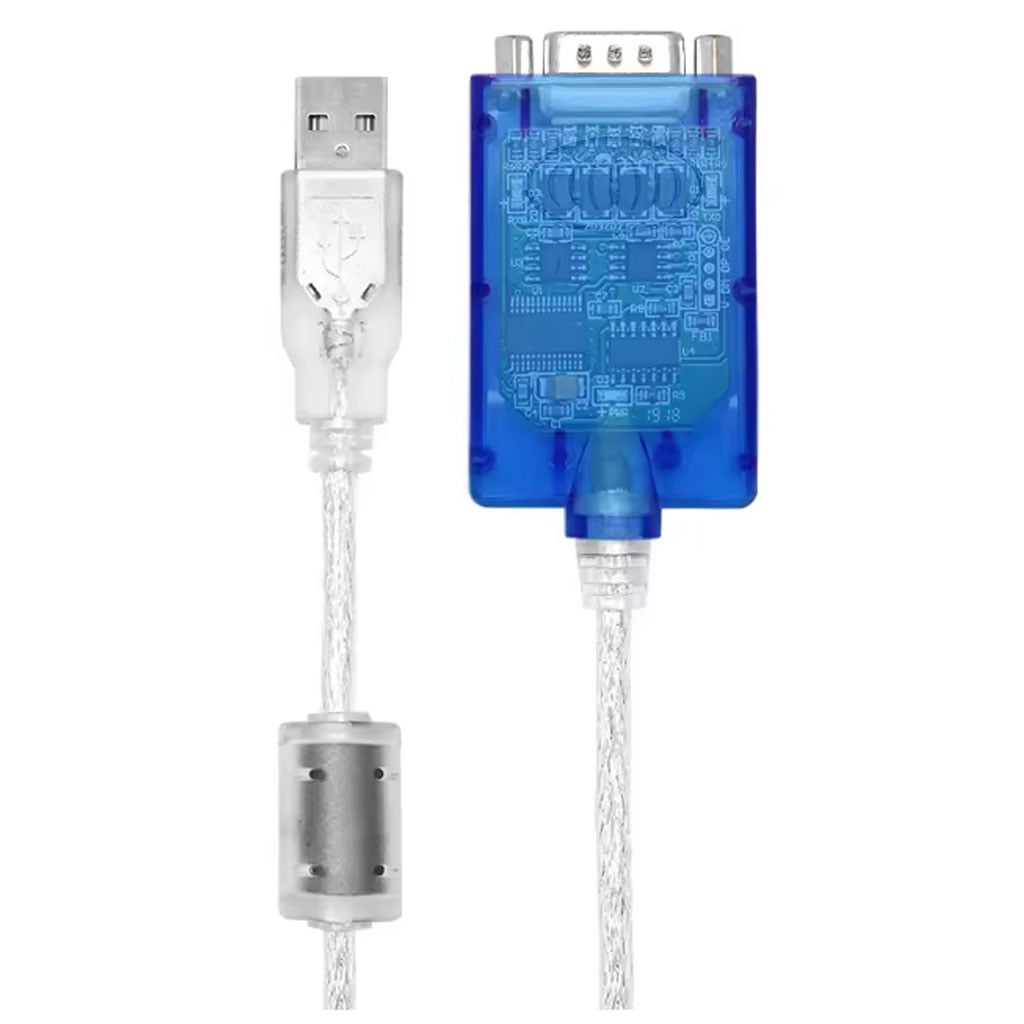

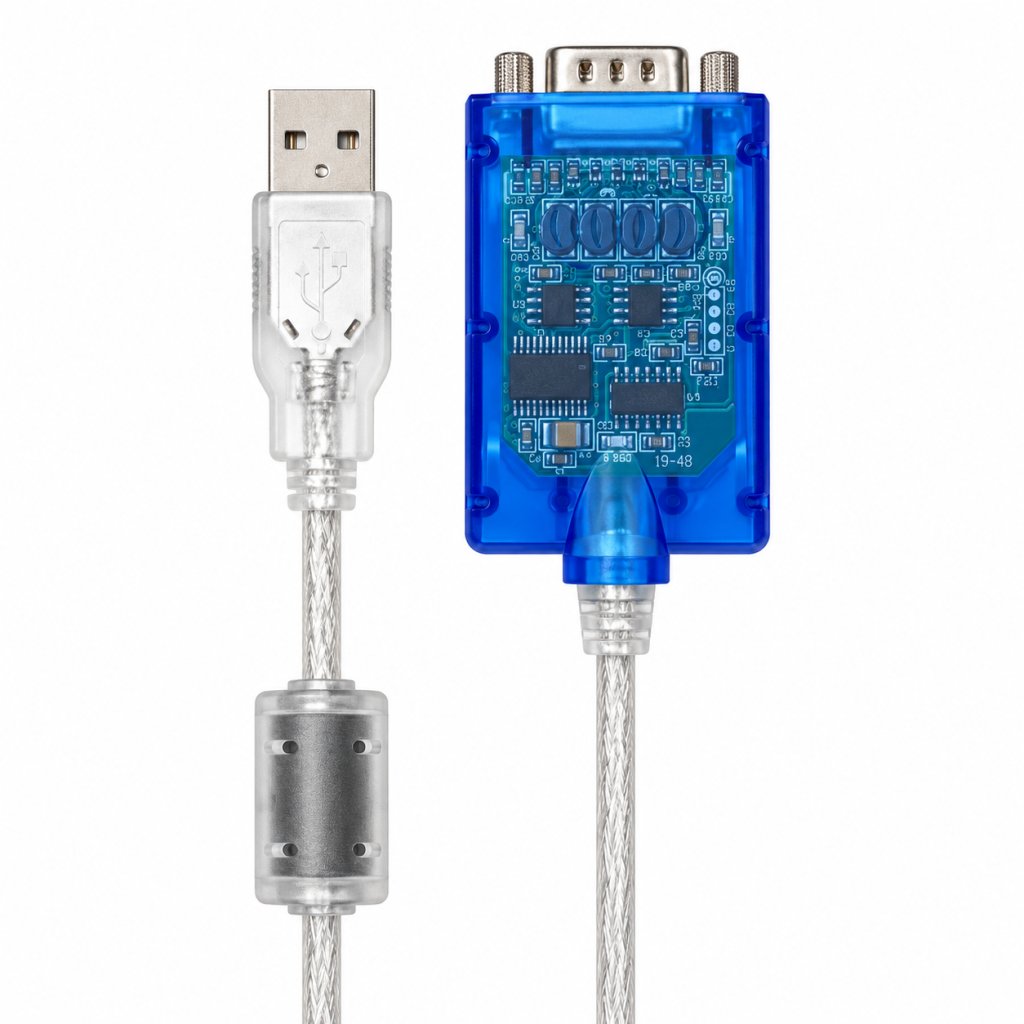

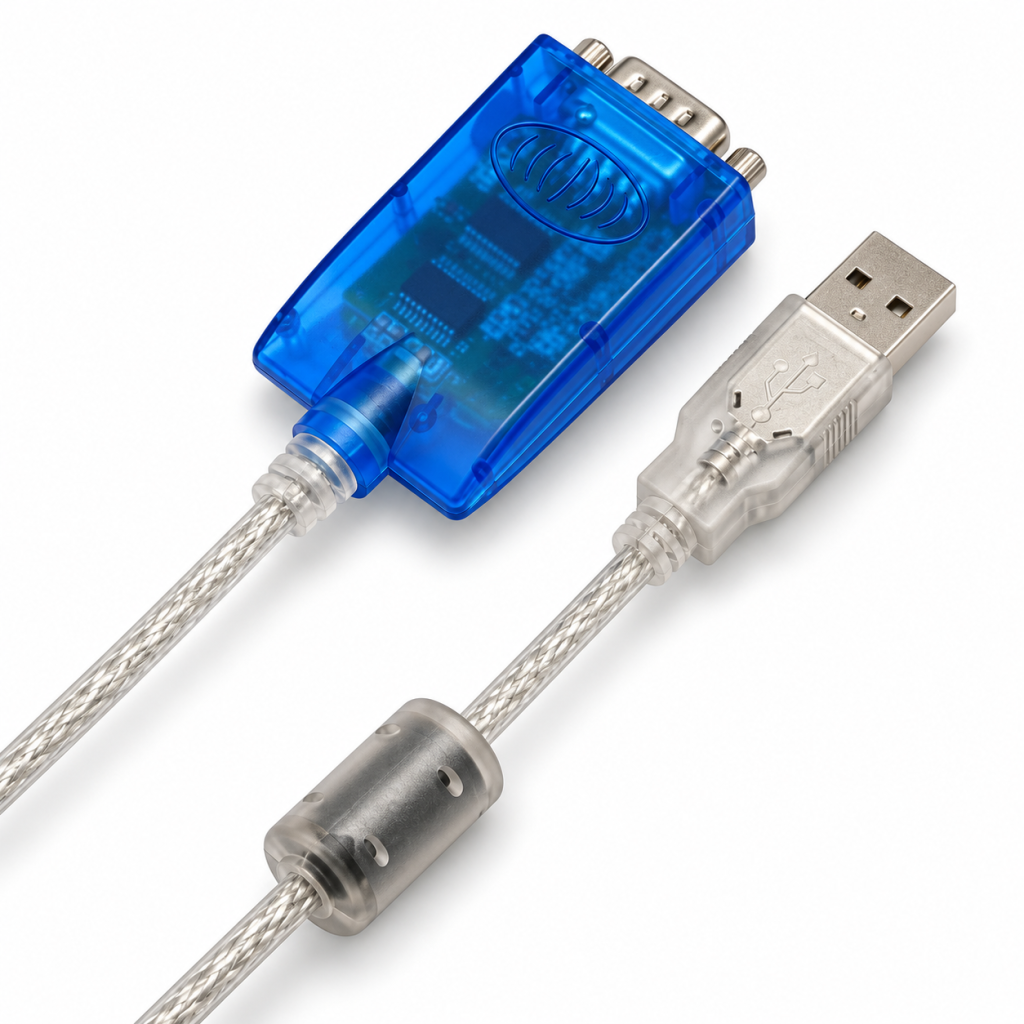

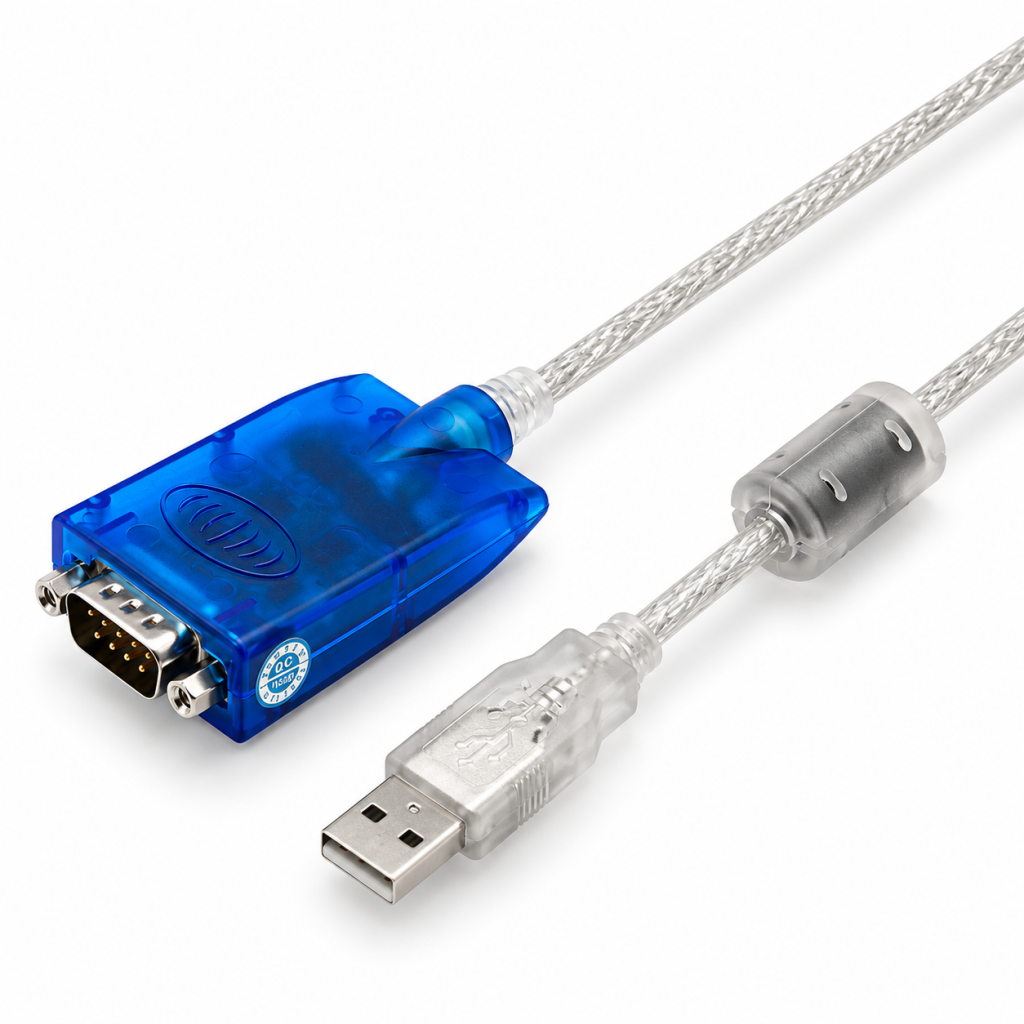

This is our high quality USB to Serial adapter. It is one of the most reliable, high performance and easy to use USB serial adapters on the market. It is optimized for Windows 11, Windows 10, Windows 8 and Windows 7 32 and 64-bit versions but will of course also work perfectly fine with older versions such as Vista, XP, 2000 and 98.

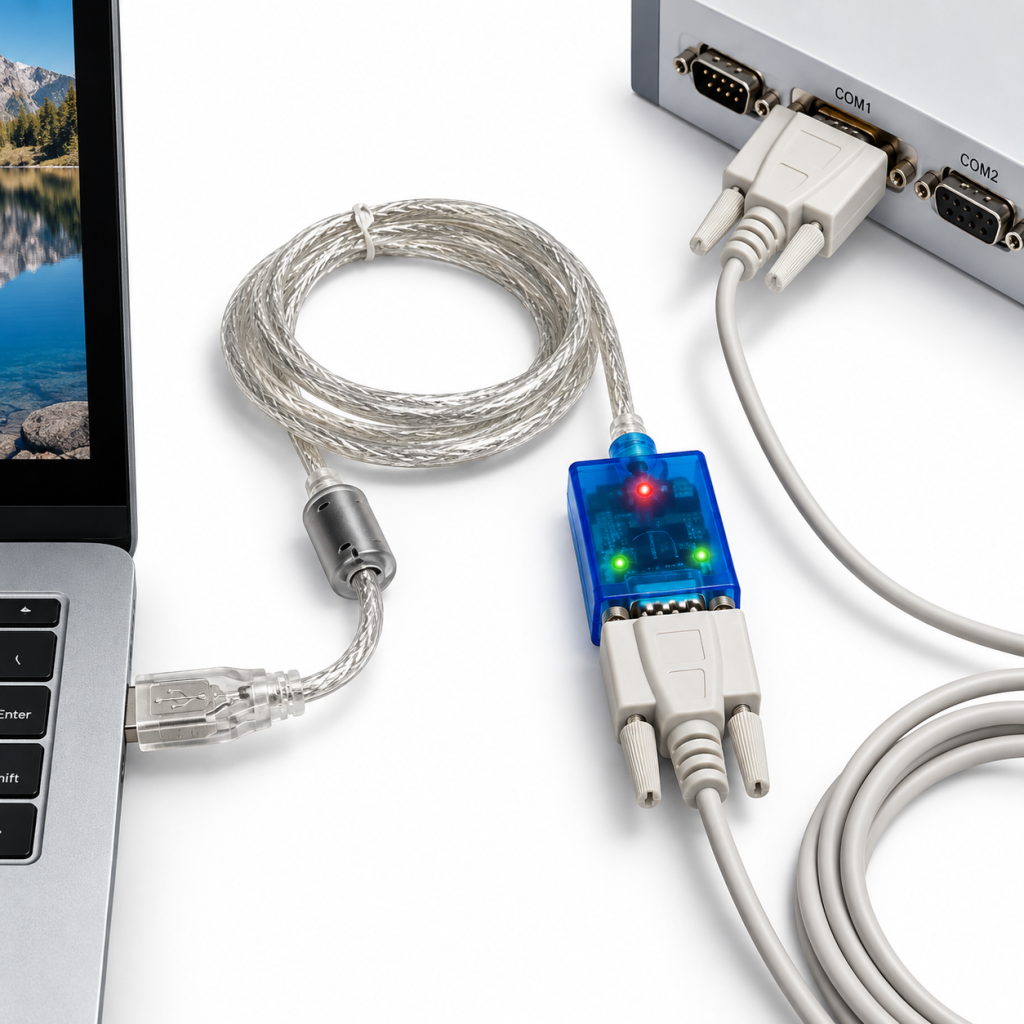

This USB serial adapter is suitable for most applications, including industrial, commercial and any general office computer device. It is designed with a high performance quality processor chip which makes this serial adapter one of the most reliable and professional adapters on the market. It easily lets you connect any RS232 device directly to your computer's USB port, without experiencing any troubles like computer freeze, IO problems or any other driver problems.

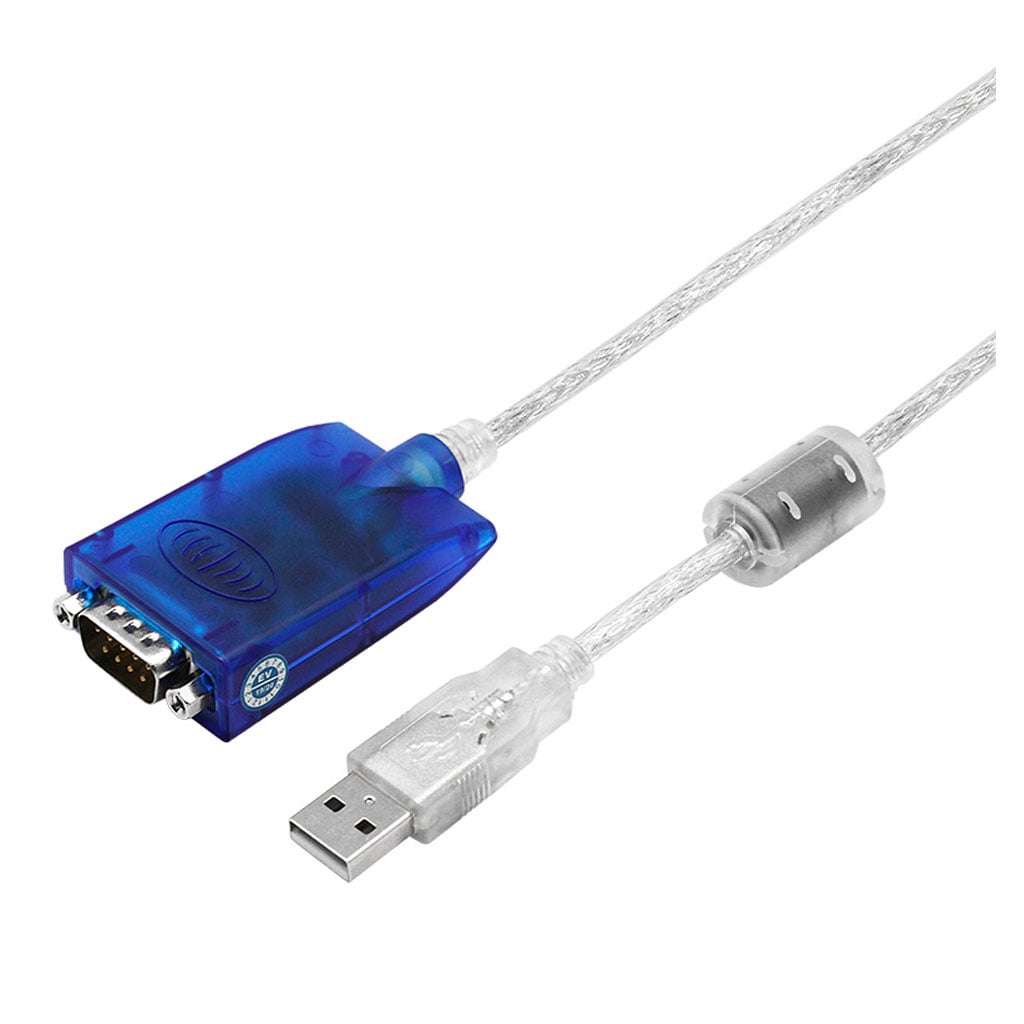

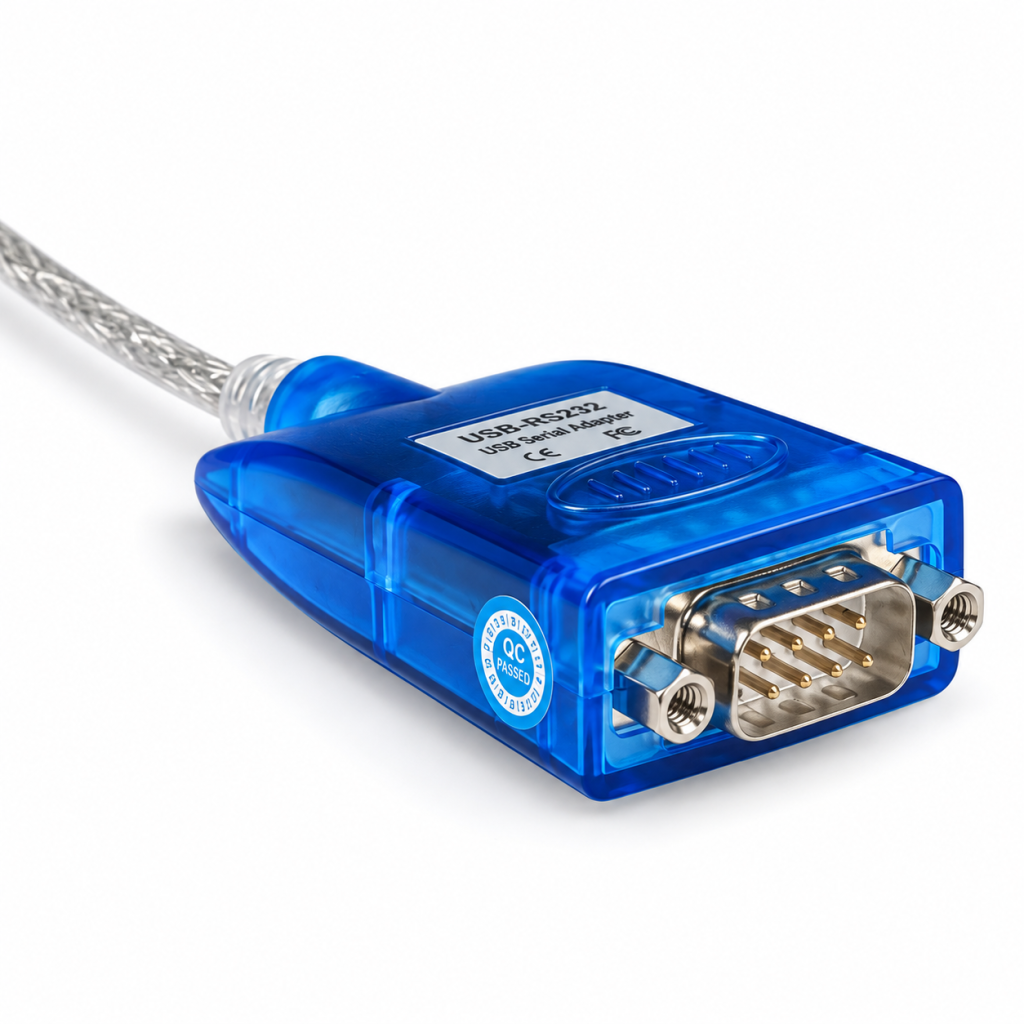

The adapter is powered from your computer's USB port so no additional external power source is needed. The RS232 end is a standard 9-pin D-sub connector for easy connection of all standard serial cables.
After installing the included drivers and connecting the Serial to USB adapter to your computer, it will show up as a virtual serial COM port in Windows Device Manager where you can manage and configure it as if it was a standard built-in serial COM port.

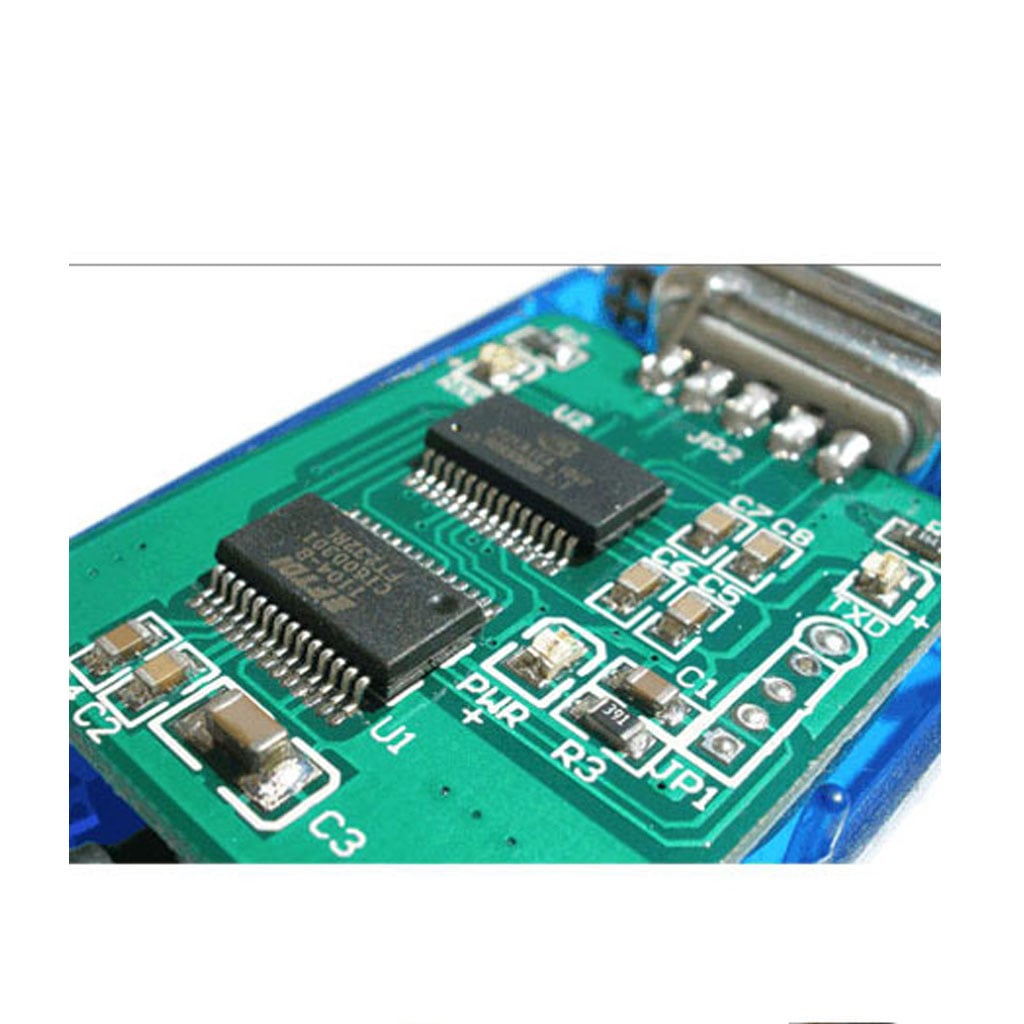

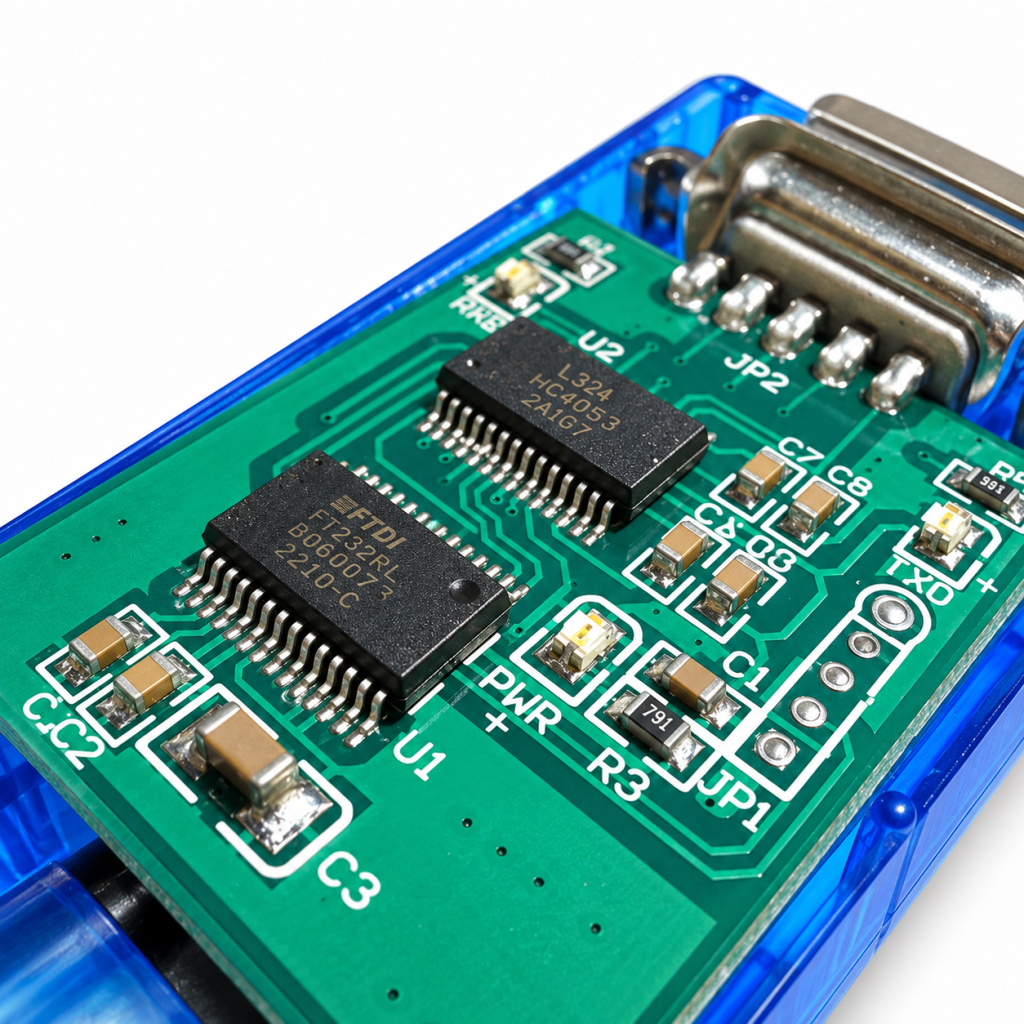

The processor chip in this adapter is the FT232RL from FTDI Semiconductors which is one of the best and most reliable Serial to USB adapter chipsets on the market. The processor is combined with a ZT213LEEA RS232 serial driver from ZyWyn USA, which has proven to work exceptionally well with the FTDI processor. Documentation is available in our download section.
Overall features
- Port powered USB to serial adapter

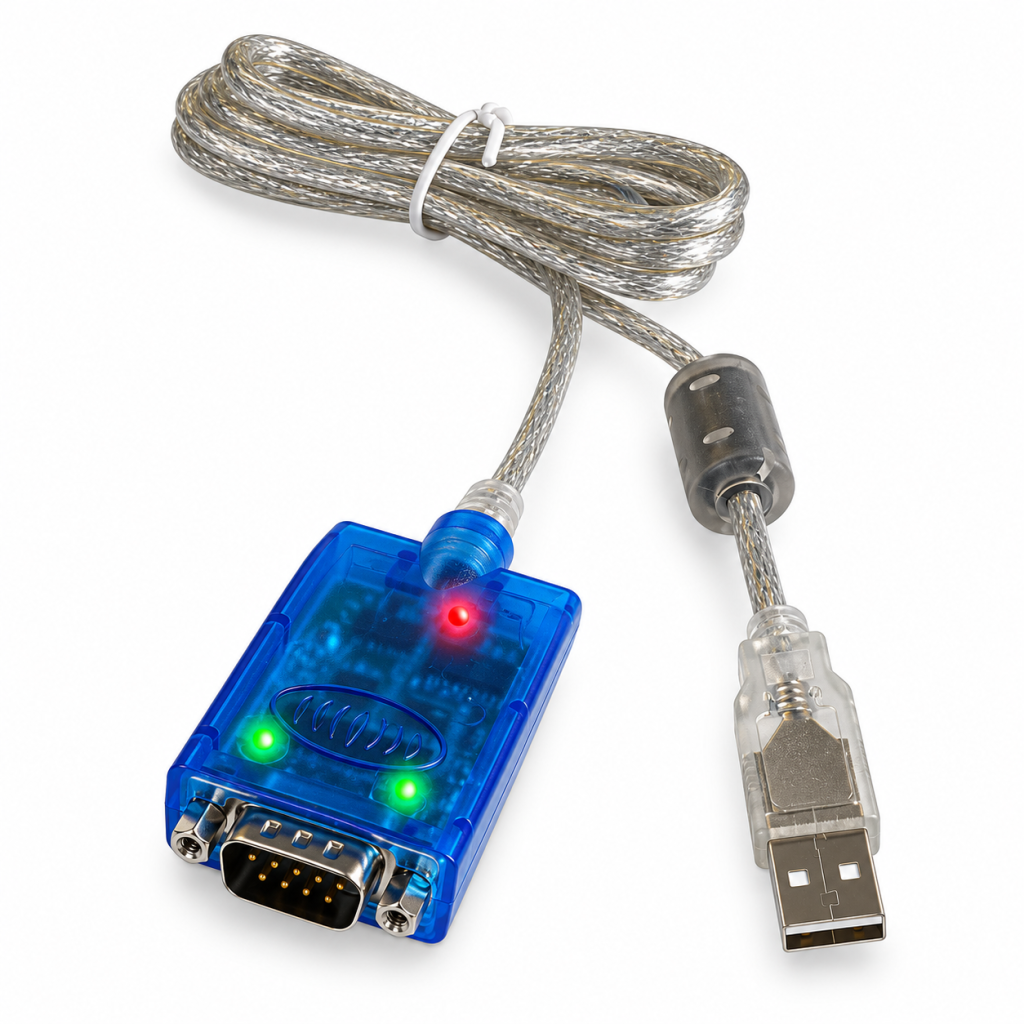

- Indication LED lights for TX and RX activity
- Guaranteed genuine non-clone FTDI processor chips
using Windows WHQL certified drivers (beware of clones)
- Full Handshaking and Modem Interface Signals
- Hexagonal nut stand-offs for connecting thumbscrews
- High performance FT232RL processor
- Auto detection of data speed
- Built-in electrostatic protection

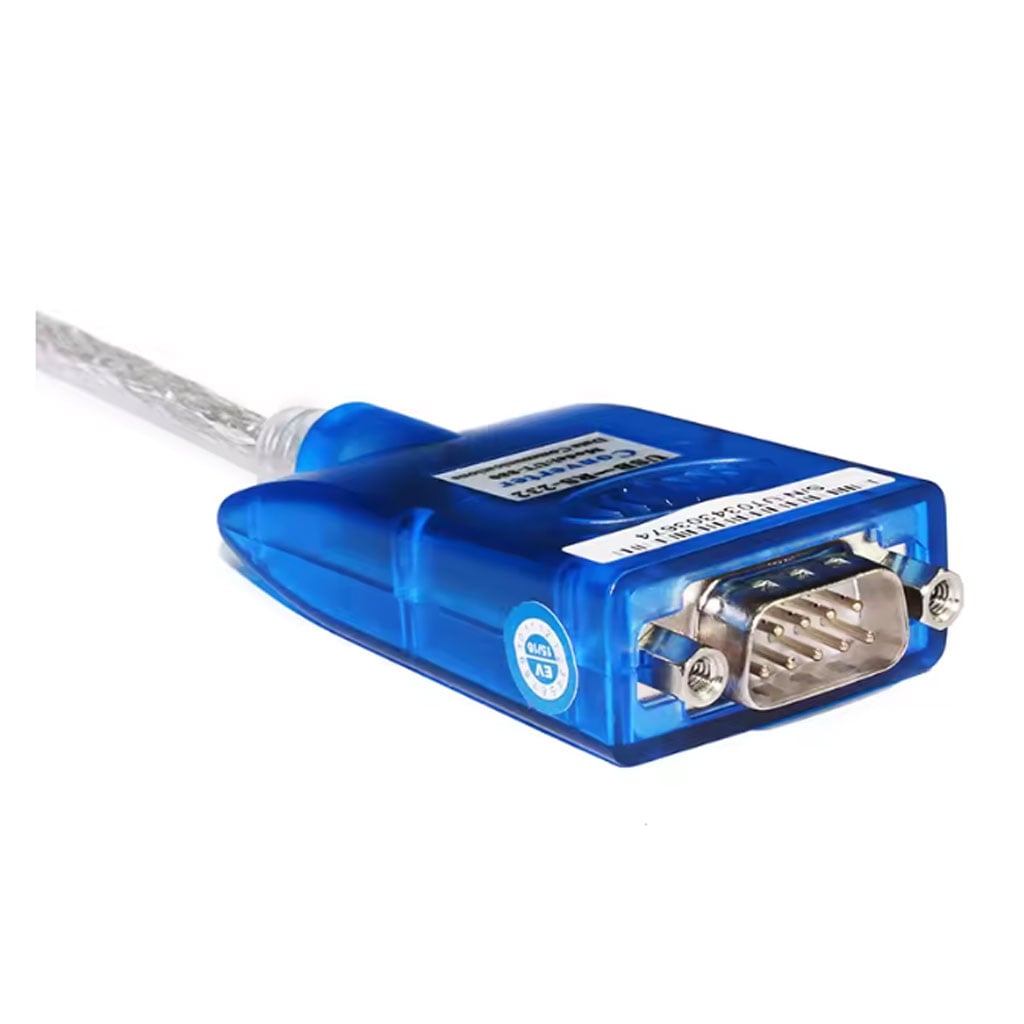

- This adapter has stand-off nuts on each side of the
DB9 connector, if you need an adapter with thumb-screws
please consider the XS8801
|
Resources
|
SPECIFICATIONS |
Part number |
XS880 |
Operating system |
- Windows 11, 10, 8.1, 8 (32/64-bit), Windows Server 2016, Windows Server 2012 / R2, Windows 7 (32/64-bit), Windows Server 2008 R2, Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP, Windows Server 2003 (32/64-bit), 2000, (all WHQL compliant). Windows RT as D2XX drivers only.
- Windows CE v4.2 - 5.2, 6.0, 7.0 and 2013 including: Windows Mobile 2003, 2003 SE, Windows Mobile 5, 6, 6.1 and 6.5
- Linux (built into kernel 3.0.0-19 and above)
- Mac OS 8, OS 9, OS X 10.3 to 10.9 and above
- Android
|
Processor |
FTDI FT232RL |
Serial driver |
Zywyn ZT213LEEA |
Unique chipID no. |
Yes, each converter has it own unique ID number which can be accessed by the user with the D2XX driver programmers guide. |
RS232 Interface |
RS232 DB9 Male |
RS232 output power |
~5.7VDC |

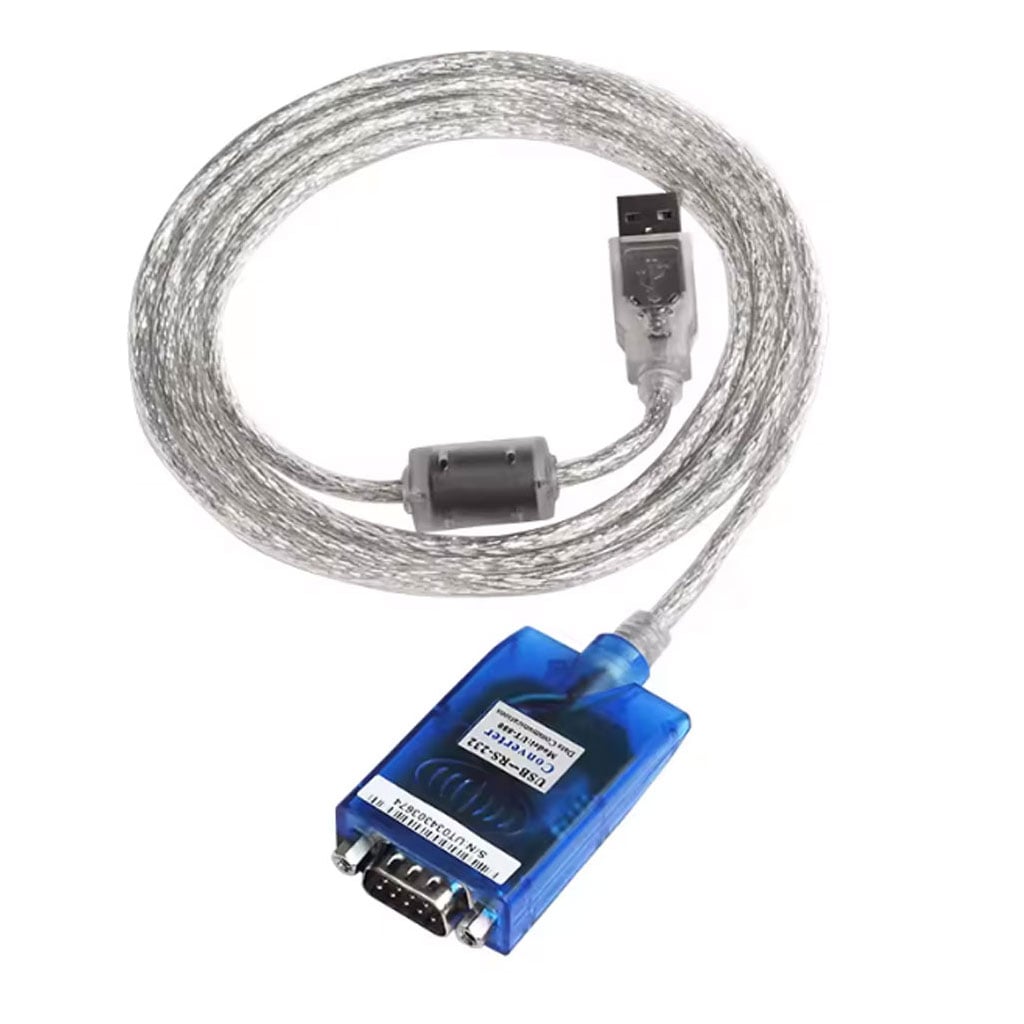

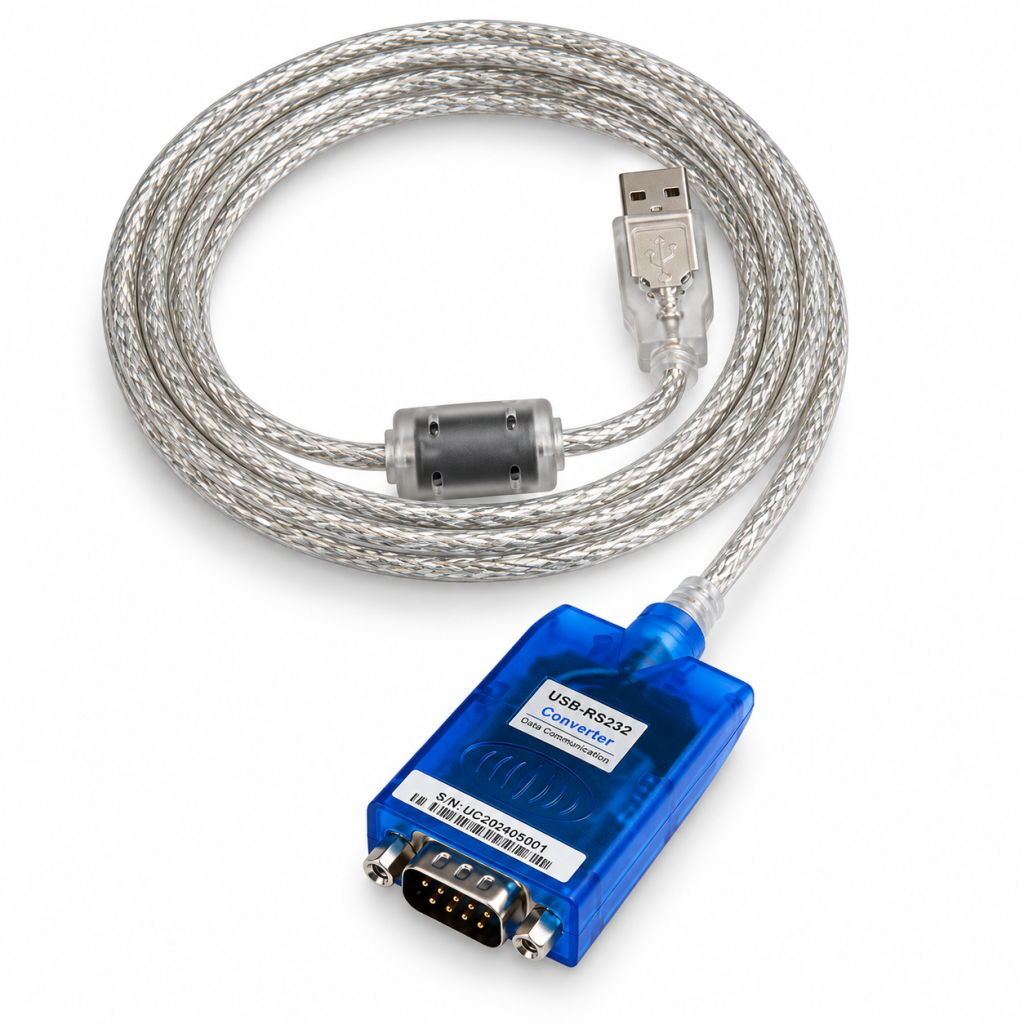

Cable length |
3 feet |
USB interface |
Standard Type A Male |
Indication LEDs |
TX, RX and Power |
Ports |
1-port |
Signals |
TX, RX, RTS, CTS, DTR, DSR, RI and GND |
Power on pin 9 |
No |
Baud rate |
Guaranteed up to 230.000bps |
Parity |
None, Odd, Even, Mark, Space |
Data Bits |
7, 8 |
Stop Bits |
1, 2 |
TX / RX buffer size |
256 Byte Transmit Buffer / 128 Byte Receive Buffer |
Adjustable USB transfer sizes for TX and RX |
From 64 bytes to 4096 bytes |
Adjustable latency timer |
1 to 255 msec |
Adjustable read and write timeouts |
0 to 10000 msec |
Flow Control |
None, Xon/Xoff, Hardware |
COM port accessible by |
Included virtual COM port drivers or FTD2XX.DLL |
Special features |
|
Electrostatic (ESD) protection |
600W surge protection, 15KV static electricity protection |
Current draw |
Static: less than 80mA. Dynamic average: less than 150mA |
Interface compliance |
USB1.1,2.0,3.0, EIA/TIA RS-232 |
Regulatory compliance |
FCC, CE and RoHS |
Temperatures |
Operating: -13°F to 158°F (-25°C to 70°C) Storage: -40°F to 185°F (-40°C to 85°C) |
Weight |
70g |
Warranty |
1 year limited warranty |
For alternative USB to serial solutions please see our full selection of USB to Serial RS232 adapters
