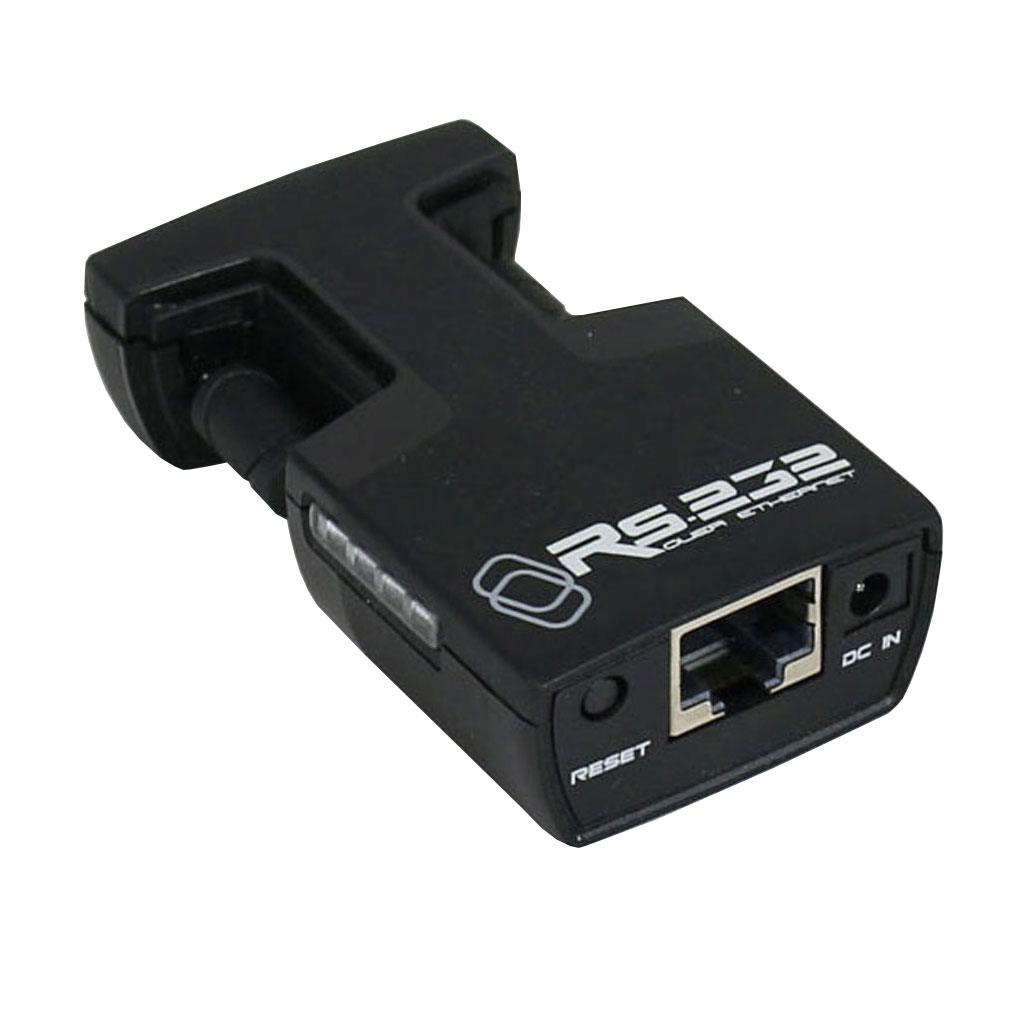

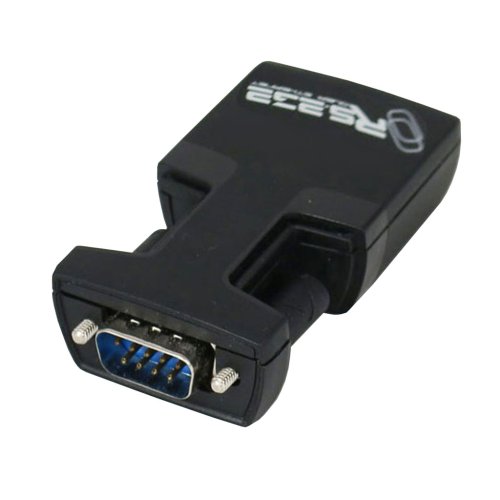

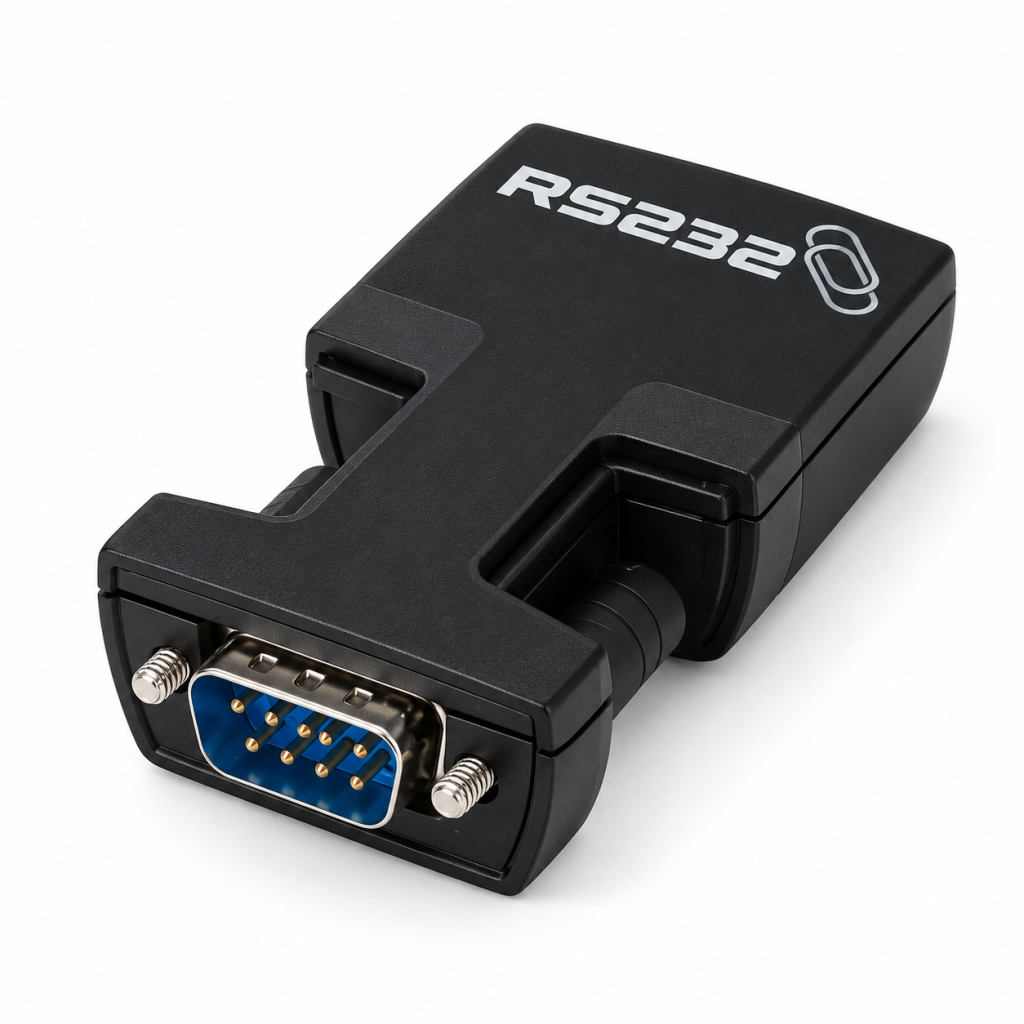

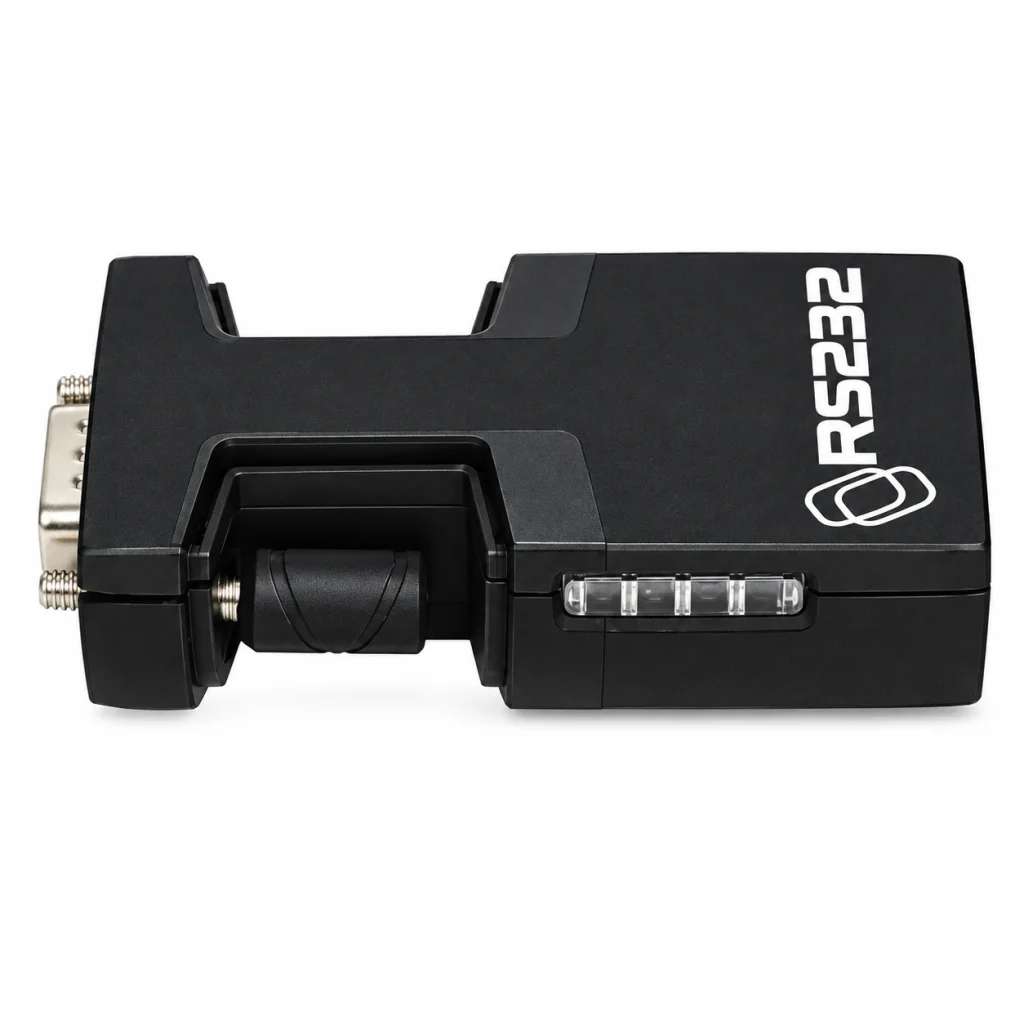

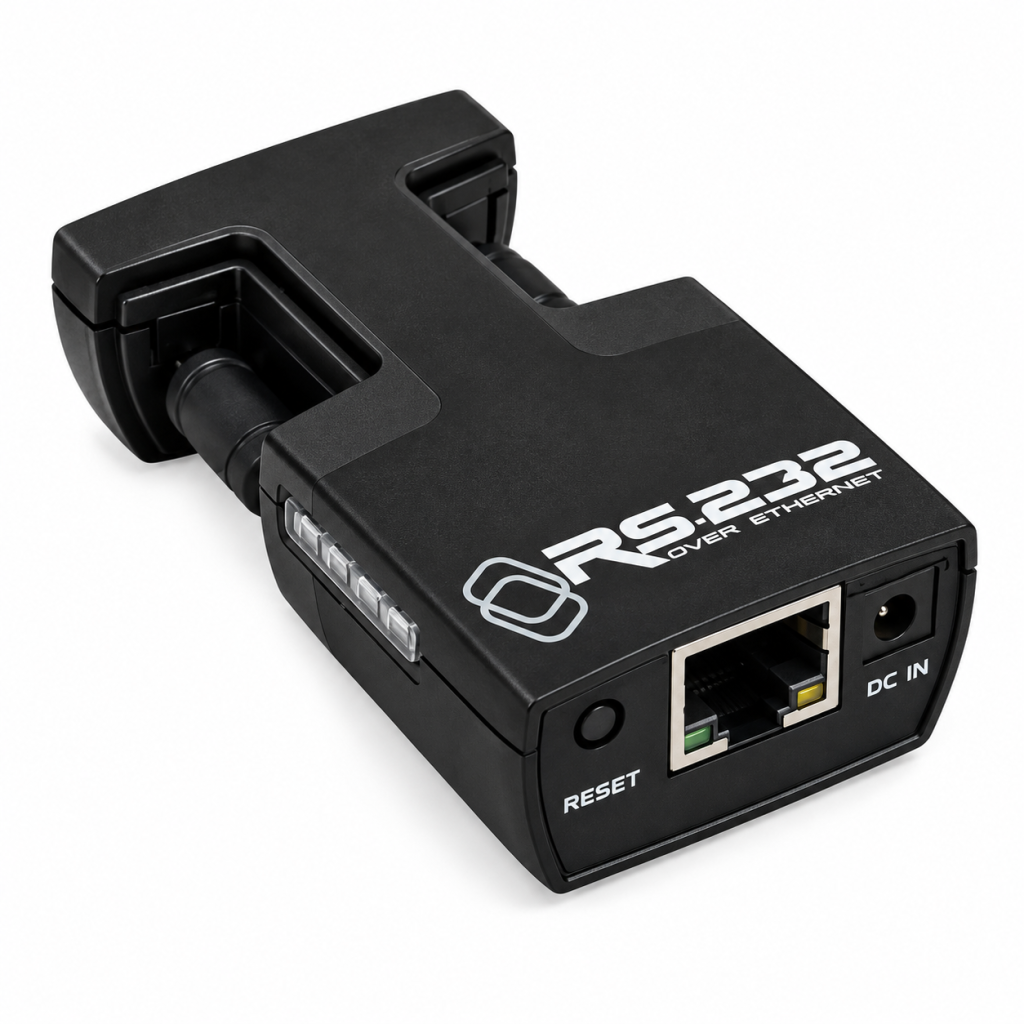

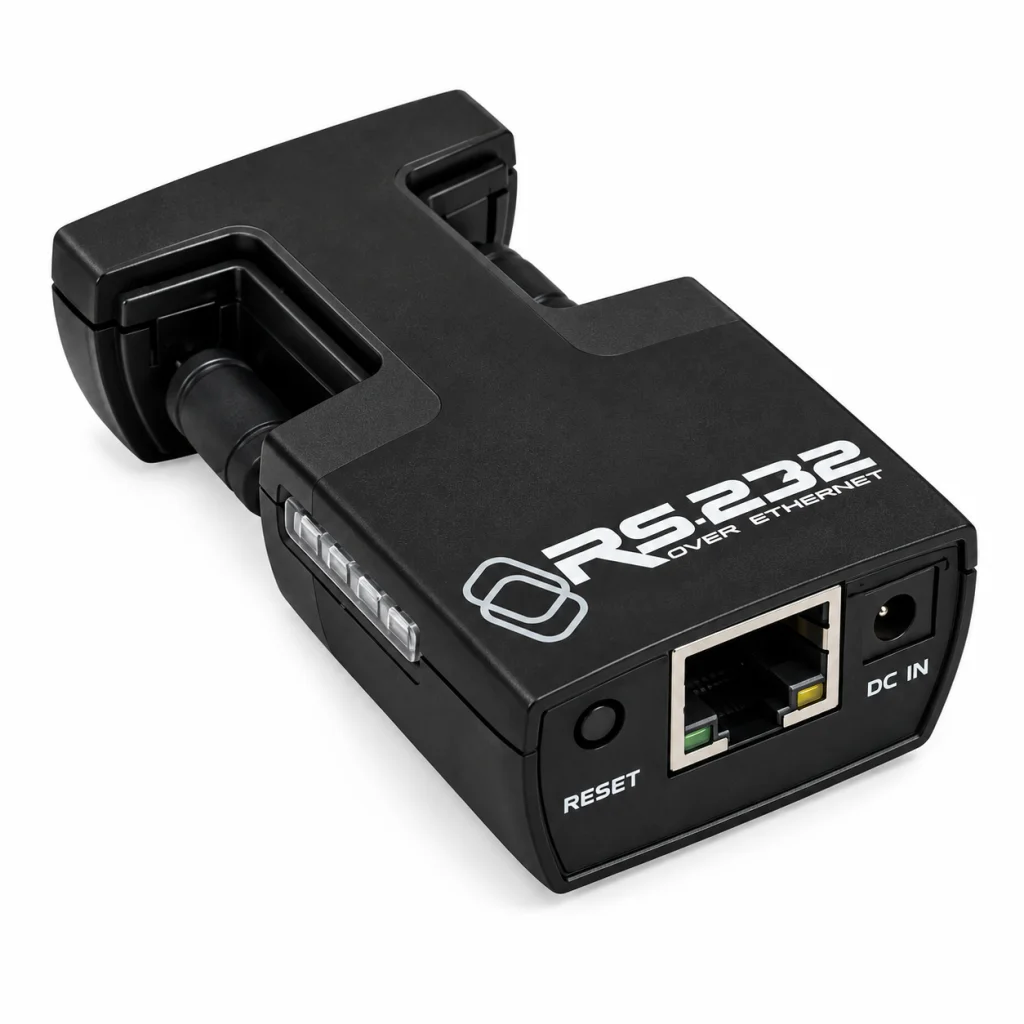

What we have here is a cost-effective desktop style basic serial RS232 to Ethernet converter. With this converter you can connect a serial RS232 to your computer over a standard Ethernet/LAN network.
Embedding a 8051 CPU and 32Kb SRAM with a 10/100Mbps Ethernet port and serial COM support with handshake control this serial to Ethernet converter is the choice for communicating with both legacy and modern serial devices.
The included Virtual COM software creates a COM port in your PC which will show up in Windows Device Manager as a virtual serial COM port and can be used almost as if it was a standard built-in COM port, which means that your software can communicate with the serial device through the virtual COM port.
This Serial RS232 to Ethernet converter can be managed through a web-browser. This means that all settings can be viewed and changed by using a simple web-browser, no fancy software is needed.
All standard COM port and network settings such as baud rate, data bits, parity, IP address and many more can be viewed and configured.
Alternatively the settings can be configured by a free downloadable configuration utility.
The converter is ideal for commercial, light-industrial and personal applications and devices such as printers, scales, PLC's, scanners, CNC machines and other industrial and commercial devices which communicates through a serial RS232 port.
Overall features
- 1-port RS232 to Ethernet
- Easy parameter configuration via web-browser
- Free downloadable virtual COM port software
- DHCP (Dynamic Host Configuration Protocol) support
- Static IP address support
- Server / Client support
- 10/100Mbps Ethernet, auto detect straight/cross cable
- Commercial and light industrial applications
- 110VAC/5VDC power supply included
|
Resources
|
| SPECIFICATIONS |
| Model number |
STE-232 |
| Operating system |
Virtual COM software available for:
Windows 11 32/64-bit, Windows 10 32/64-bit, Windows 8 32/64-bit, Windows 7 32/64-bit, Vista, XP, Linux |
| No. of serial ports |
1 port RS-232, male DB9 |
| RS-232 signals |
TX, RX, RTS, CTS, GND
- Parity: None, even, odd, Mark, Space
- Data bits : 5, 6, 7, 8
- Stop bits : 1, 1.5, 2
- Flow Control : Hardware, Software |
| Baud rate |
300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bps |
| Buffer size |
1024 bytes |
| Number of simultaneous connections (clients). This is how many computers that can access the STE-232 at the same time. |
TCP mode: 12 clients
UDP mode: up to 12 clients |
| Parameter configuration |
Web browser and included Virtual COM software.
Telnet: No |
| ModBus |
No |
| LAN port |
RJ-45, 10Base-T or 100Base-TX Auto-Sensing |
| Protocols |
TCP/IP, UDP/IP, DHCP, HTTP |
| Memory |
64KB OTP ROM, 32K bytes SRAM |
| CPU |
IC+ IP210T, 8051CPU, 25MHz |
| Serial mode |
Virtual Com / TCP Server / TCP Client / UDP |
| Serial tunnel |
Yes |
| Opr. Temp. |
-20 to 60°C |
| Dimensions |
66 x 39 x 20 mm |
| Weight |
35g |
| Approvals |
FCC, CE, ROHS |
| Power |
5 VDC |
| Protection |
Magnetic Protection: Ethernet port 1.5 KV
Surge protection: Serial ports 15 KV ESD/600W |
| Warranty |
1 year Limited Warranty |
For alternative serial to Ethernet solutions please see our full selection of serial Ethernet converters.
