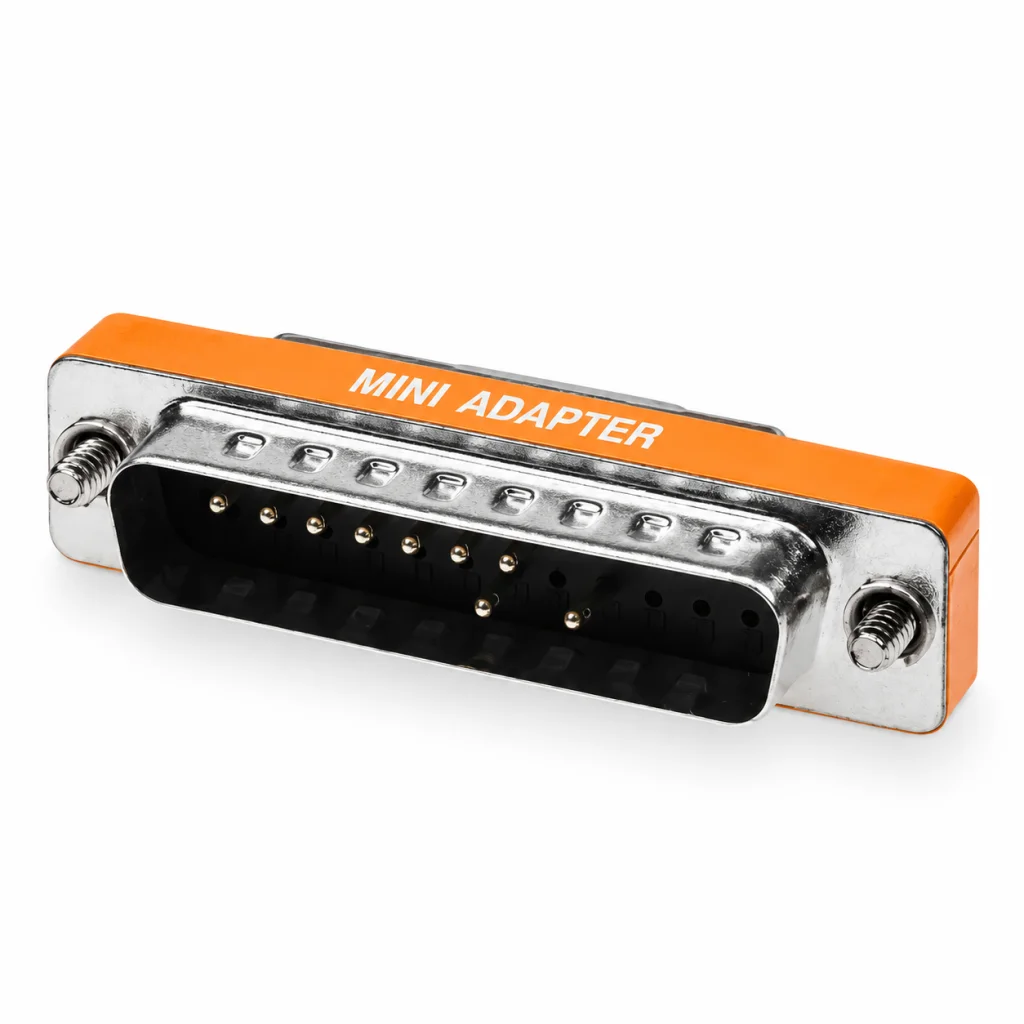

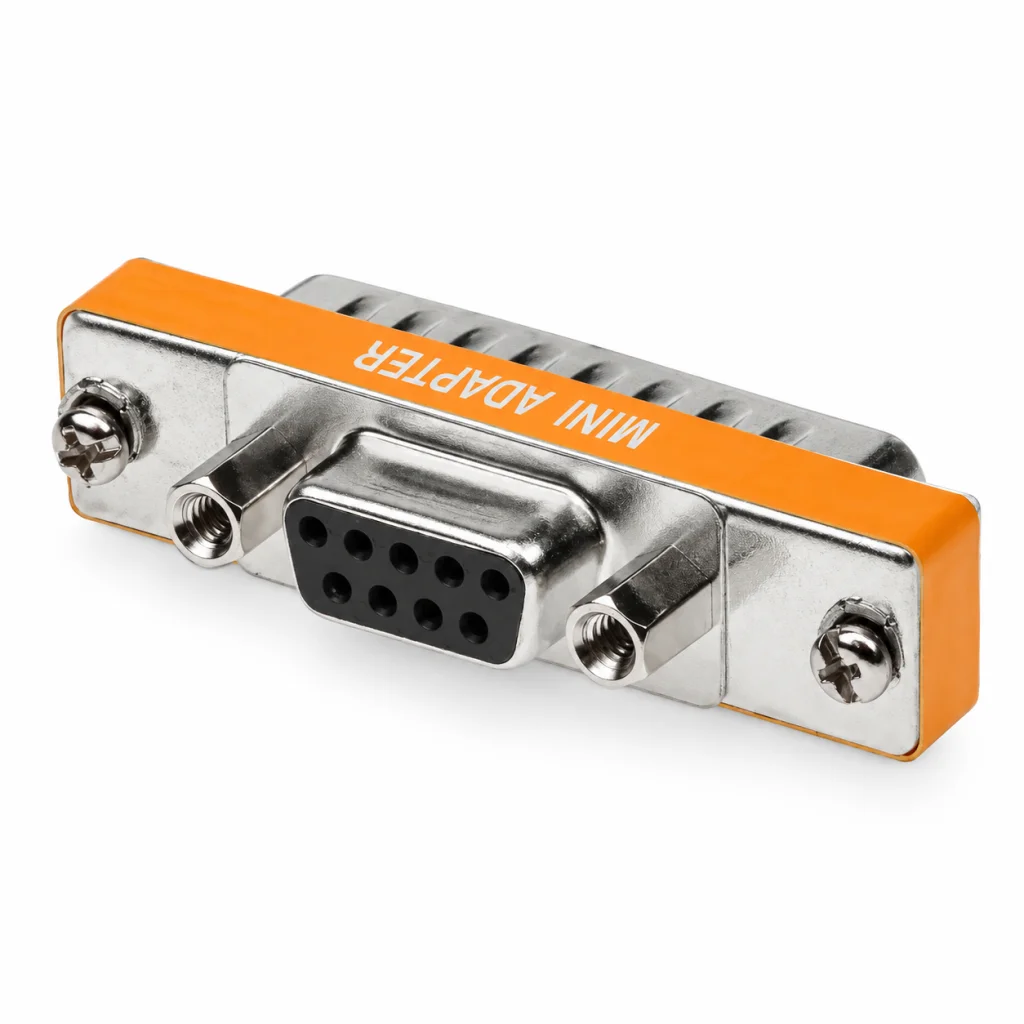

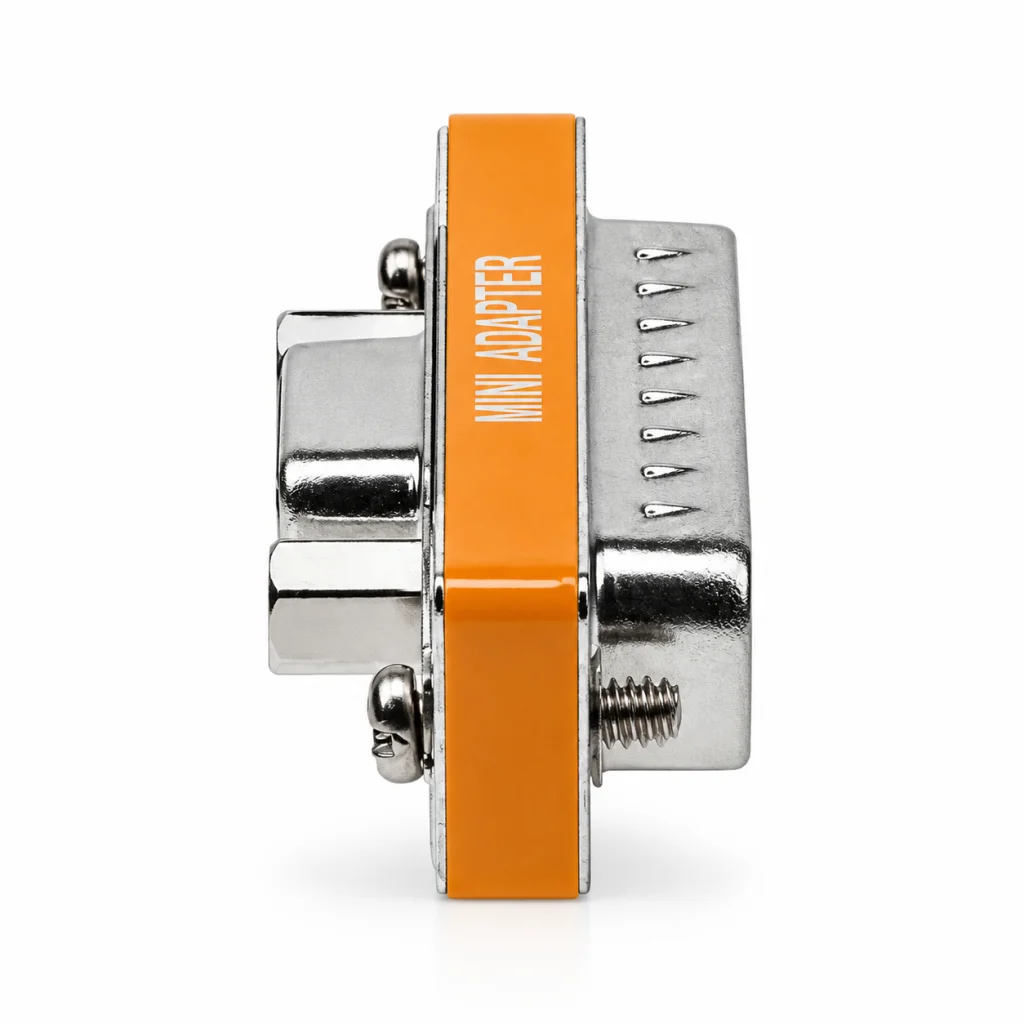

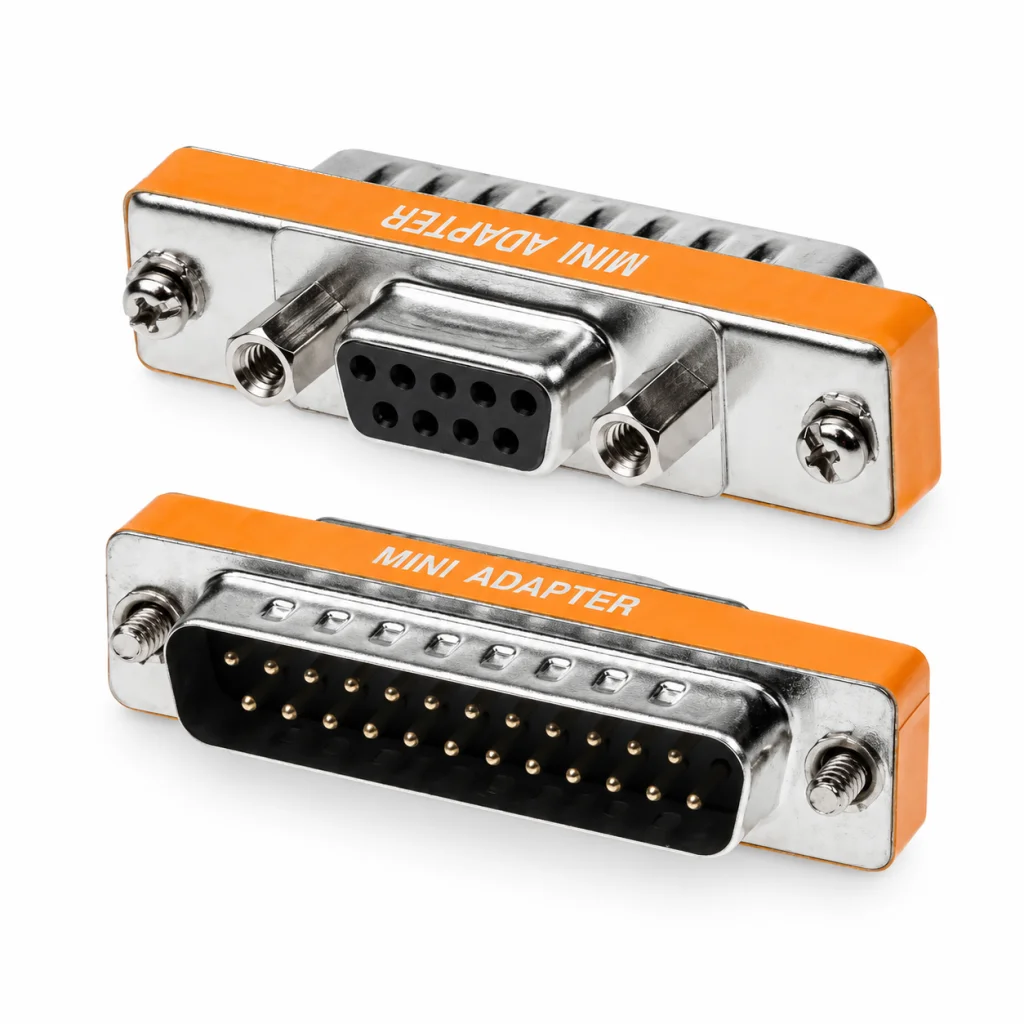

Converts a DB9 male to a DB25 male.
Use these adapters to connect a DB25 device to a DB9 serial port or vice versa. If needed these can be combined with gender adapters to fit any particular connector.
Overall features
- Interfaces: DB9 female / DB25 male
- Converts a DB9 male to a DB25 male
- Designed for: Serial applications
- Low-profile design
|
| DB9 Pin |
DB25 Pin |
| 1 |
8 |
| 2 |
3 |
| 3 |
2 |
| 4 |
20 |
| 5 |
7 |
| 6 |
6 |
| 7 |
4 |
| 8 |
5 |
| 9 |
22 |
