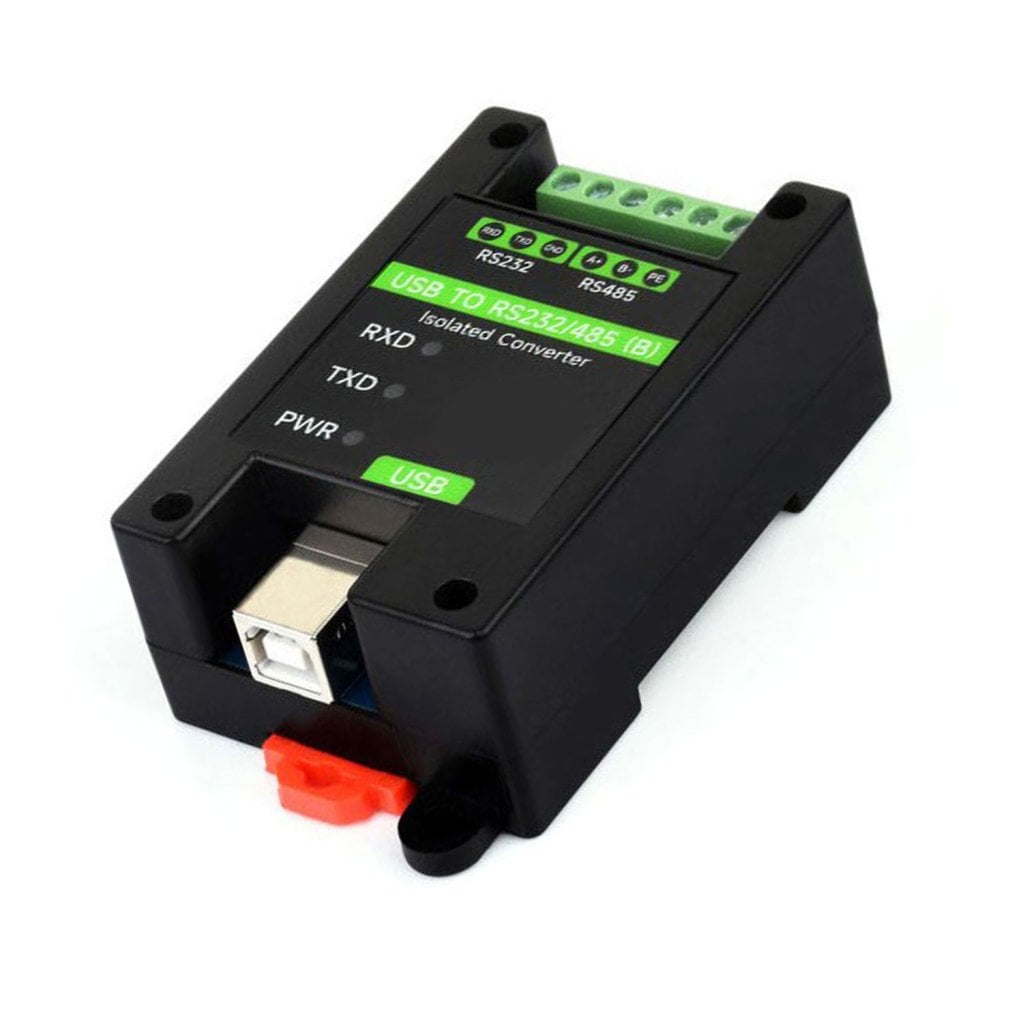

USB to RS232 Converter with RS485 - Fully Isolated DIN Mount Pro


  • Model: USC-WUSB232B
  • In Stock

$89.00

Add to Cart:

Description

In industrial environments it is often necessary to use a higher grade of quality and toughness to avoid communication issues and to withstand damage by harsh environments. This is where the USC-WUSB232B comes in. This is an industrial grade bi-directional USB to RS232 converter which also has an RS485 port, with DIN mount and optional screw mounts. It supports serial communication and has screw terminals for the RS232 / RS485 side for easy connection of single wires and a standard female USB type B connector on the USB side, and a male connector for the RS232 interface. LED indications lights for power, TX and RX makes it easy to see the converter is powered and when data is flowing. The converter allows for connecting multiple devices using a single USB port. The baud rate is crucial for ensuring efficient data transfer and compatibility with various devices.

This USB to RS232 converter is compatible with digital cameras and other modern peripherals, enhancing its versatility.

This USB to serial converter is designed around the reliable FT232RNL processor from FTDI, which makes it a high performance, fast and very reliable serial converter for most applications. The importance of driver software for installation and compatibility with various operating systems, including Windows Server, cannot be overstated. As one of the USB serial adapters, it bridges the gap between modern USB ports and legacy serial devices, making it an essential USB to serial solution.

The converter gets its power from the USB port so no external power is needed, making it port powered. The power provided from the USB port is isolated from the data signals for effective protection of the connected serial device and to prevent data loss. Built-in digital isolation, transient voltage suppressors (TVS), a self-recovering fuse and protection diodes, effectively suppresses voltage surges, transient voltage spikes, static electricity and over voltages/current. This ensures reliable connections with serial peripherals and maintains data integrity while transferring data at high speeds.

A built-in 120 ohms terminal resistor on the RS485 / RS422 ports is configurable by a jumper.

Overall features
  • Industrial grade
  • Combo RS232 / RS485 converter
  • Port powered from USB port
  • Fully isolated
  • Built-in electrostatic protection
  • Screw terminal block
  • WHQL compliant COM drivers included
  • Auto detection of data speed
  • USB cable included
Resources


Useful optional accessories
(not included)

Null modem adapter
Null modem adapter


DB9 to RJ45 adapter
DB9 - RJ45 adapter


DB9 gender changer
Gender Changer


SPECIFICATIONS
Part number USC-WUSB232B
Operating system
  • Windows 11, 10, 8.1, 8 (32/64-bit), Windows Server 2016, Windows Server 2012 / R2, Windows 7 (32/64-bit), Windows Server 2008 R2, Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP, Windows Server 2003 (32/64-bit), 2000, (all WHQL compliant). Windows RT as D2XX drivers only.
  • Windows CE v4.2 - 5.2, 6.0, 7.0 and 2013 including: Windows Mobile 2003, 2003 SE, Windows Mobile 5, 6, 6.1 and 6.5
  • Linux (built into kernel 3.0.0-19 and above)
  • Mac OS 8, OS 9, OS X 10.3 to 10.9 and above
  • Android 4.2
Processor FT232RNL
Power 5VDC provided by USB port
Serial interface Screw terminal block
RS232 2-wire full duplex
RS485 2 wire half duplex
Compatible with Modbus RTU/ASCII, BACnet
Bias resistors Yes (by jumper)
Installation method 35mm standard DIN rail or screws
USB interface Standard Type B Female
Indication LEDs Power, Send and Receive
Signals - RS232: TX, RX, GND
- RS485: D+, D-, GND
Baud rate 300 to 921600bps
Parity None, Odd, Even, Mark, Space
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
TX / RX buffer size
Flow Control Hardware automatic control
COM port accessible by Included virtual COM port drivers
Isolation 700V continuous and 3500V spike
200mA self-recovery fuse (USB)
Electrostatic (ESD) protection 15KV/ 600W/ms high voltage protection
Current draw Static: less than 80mA. Dynamic average: less than 150mA
Dimensions 81.9 × 54.0 × 32.0 mm
Interface compliance USB1.1,2.0,3.0, EIA/TIA RS-232
Regulatory compliance FCC, CE and RoHS
Operating temp -15°C to 70°C
Warranty 1 year limited warranty

For alternative USB to serial solutions please see our full selection of USB to Serial RS232 adapters




What is a USB to RS232 Converter?

A USB to RS232 converter is a device that converts a USB signal into a serial signal, allowing users to connect serial devices to a computer’s USB port. This converter acts as a bridge between the USB port and the serial device, enabling seamless communication between the two. It is commonly used to connect legacy serial devices to modern computers that no longer have built-in serial ports. By doing so, it ensures that older, yet still functional, serial devices can continue to be used with contemporary technology, making it a cost-effective solution for maintaining compatibility.

Key Features and Benefits

USB to RS232 converters offer several key features and benefits, including:

  • Plug-and-Play Installation: These converters are designed for easy setup, requiring no complex installation processes, making them highly user-friendly.

  • High-Speed Data Transfer: Ideal for applications that require rapid data exchange, ensuring efficient and quick communication.

  • Wide Compatibility: They support a range of operating systems, including Windows, macOS, and Linux, ensuring broad usability.

  • Support for Multiple Serial Protocols: These converters can handle various serial protocols such as RS-232 and RS-485, enhancing their versatility.

  • Compact and Lightweight Design: Their portable nature makes them easy to carry and use on the go.

  • Cost-Effective Solution: They provide an affordable way to connect serial devices to modern computers without needing to replace existing equipment.

  • Reliable Connectivity: Ensures stable and efficient connections with serial peripherals, maintaining consistent performance.

Applications and Uses

USB to RS232 converters have a wide range of applications and uses, including:

  • Industrial Automation: Essential for connecting various industrial equipment and machinery.

  • Medical Devices: Used in medical equipment for reliable data transfer.

  • Point-of-Sale Systems: Integral in connecting POS systems for transaction processing.

  • Barcode Scanners: Facilitates the connection of barcode scanners to modern systems.

  • Digital Cameras: Enables the transfer of data from digital cameras to computers.

  • GPS Devices: Connects GPS devices for data logging and navigation.

  • CNC Machines: Used in manufacturing for precise control and data transfer.

  • Telescopes: Allows for the control and data acquisition from telescopes.

  • Embroidery Machines: Connects embroidery machines for design uploads and control.

  • Fuel Injection Controllers: Used in automotive applications for tuning and diagnostics.

  • PDUs (Power Distribution Units): Connects PDUs for monitoring and control.

  • Network Switches: Facilitates the management and configuration of network switches.

Technical Specifications

  • USB Type: USB 2.0 (backward compatible)

  • Serial Protocol: RS-232, RS-485

  • Cable Length: 1.0 meter (3.3 feet)

  • Connector type: Screw terminals for RS232 / RS485

  • USB Port Current Consumption: 50mA

  • Operating Systems: Windows 11, Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, macOS, Linux

  • Driver Software: Available for download

How to Use a USB to Serial Converter

Using a USB to serial converter is a straightforward process:

  1. Connect the Converter: Plug the converter into a single USB port on your computer.

  2. Attach the Serial Device: Connect the serial device to the converter using a DB9 male connector.

  3. Install Driver Software: If required, download and install the driver software to ensure proper functionality.

  4. Configure Settings: Adjust the converter settings as needed for your specific application.

  5. Start Transferring Data: Begin transferring data between the serial device and your computer.

Note: The specific steps may vary depending on the converter model and operating system being used.
