Connect Legacy Serial Devices to Modern Ethernet Networks — Reliably
Modernize your industrial communication without replacing existing equipment.
This Industrial RS232/RS422/RS485 to Ethernet Converter Server enables seamless, stable data transmission between traditional serial devices and Ethernet-based systems, even in harsh industrial environments.
Built for automation, monitoring, and control applications, it delivers dependable networking where reliability matters most.
One Device. Multiple Serial Interfaces.
Support RS232, RS422, and RS485 communication in a single compact industrial unit. Easily integrate PLCs, sensors, meters, and controllers into TCP/IP networks with minimal configuration.
Industrial Networking Made Simple
- Convert serial data to Ethernet (TCP/IP)
- Enable remote access and centralized management
- Extend communication distance without signal degradation
- Eliminate complex rewiring and legacy system replacement
Flexible Communication Modes
Supports Transparent Transmission, TCP Server, TCP Client, UDP, and Modbus TCP/RTU modes to fit a wide range of industrial architectures.
Industrial-Grade Reliability
Fanless design, wide operating temperature range, and rugged enclosure ensure stable performance in demanding environments. Dual power supply.
Easy Setup & Management
Configure and monitor the device through a built-in web interface — no advanced networking expertise required.
Flexible Installation

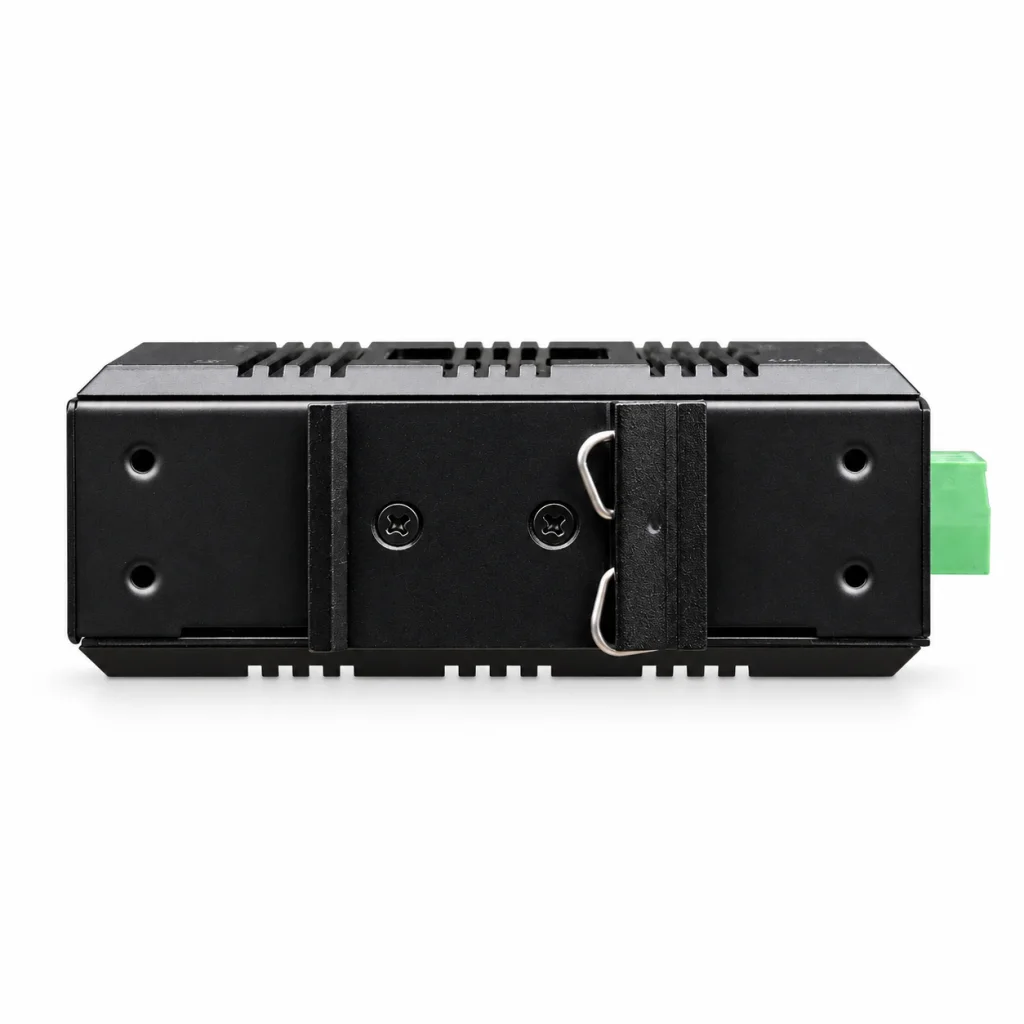

DIN-rail mount allow quick installation in control cabinets, panels, or field enclosures.
Designed for Industrial Applications
- Industrial automation & PLC systems
- SCADA and remote monitoring
- Energy management & smart metering
- Building automation systems
- Transportation & traffic control
- Environmental monitoring
Why Choose This Serial-to-Ethernet Converter?
✔ Extend the life of existing serial devices
✔ Reduce system upgrade costs
✔ Improve network visibility and control
✔ Ensure long-term, stable operation in industrial conditions
This converter server provides a simple, cost-effective path to Ethernet connectivity while maintaining the reliability industrial systems demand.
| SPECIFICATIONS |
| Model number |
FCT-201-F |
Operating system
|
Virtual COM software included for:
Windows 11 32/64-bit, Windows 10 32/64-bit |
| Processor |
ARM Cortex-M4 |
| Serial ports |
RS232, RS485, RS422 |
| Signals |
RS-422: TxD+ TxD- RxD+ RxD-
RS-485 4-wires: TxD+ TxD- RxD+ RxD-
RS-485 2-wires: A(TX+) B(TX-) Ground
RS-232: Terminal: RXD TXD GND
DB9 (male): RXD TXD GND, CTS, RTS |
| Flow Control |
RS232: Hardware (RTS/CTS), Software (XON/XOFF), None
RS485: Automatic Send Control |
| Serial port settings |
300bps-921600bpsbps
Non-standard baud rates supported
Parity: None, Odd, Even
Data bits : 8, 9
Stop bits : 1, 2 |
| LAN port |
RJ45, Auto-MDI/MIDX, 2KV isolation |
| Protocols |
TCP Server, TCP Client, UDP Server, UDP Client, DHCP, ModBus TCP/RTU |
| Parameter management |
Web-browser |
| Modbus |
Yes (TCP and RTU) |
| Power |

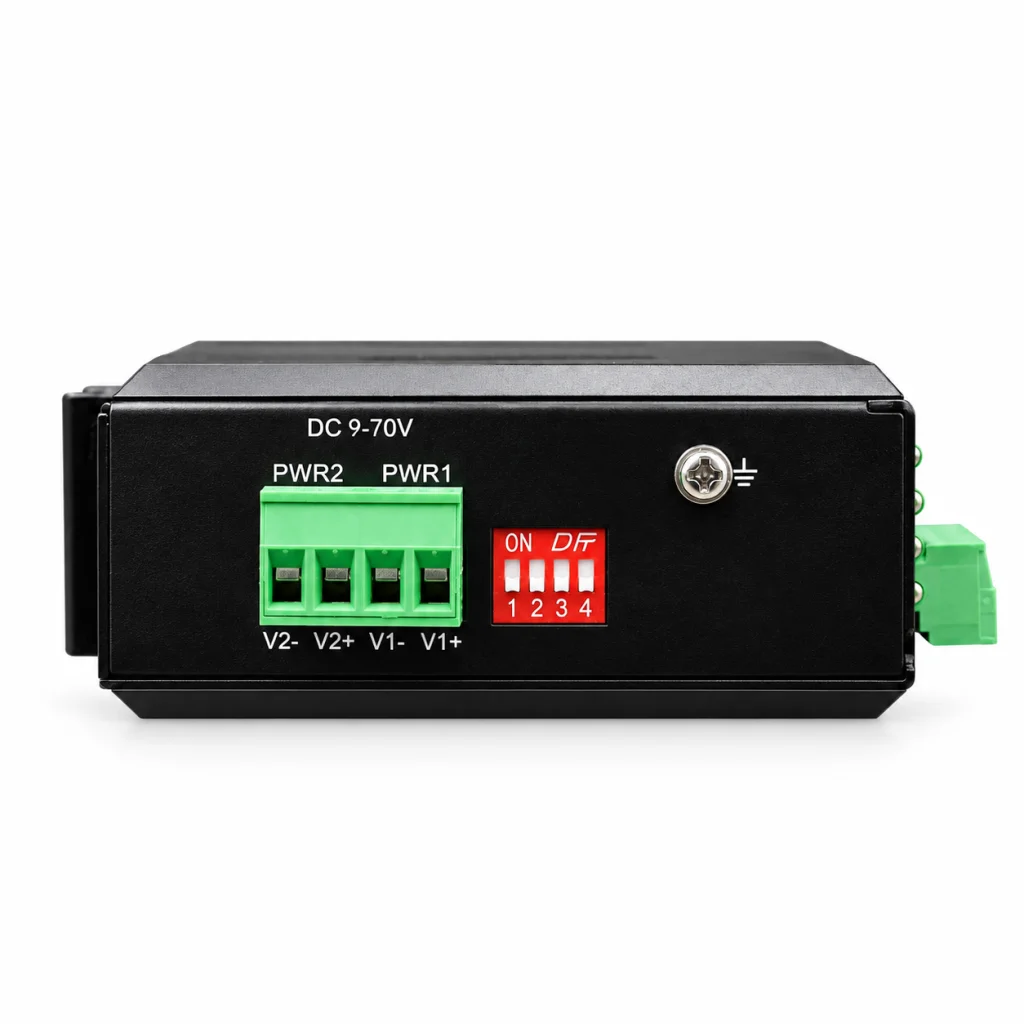

Dual power terminals 9-70VDC |
| Current draw |
<5W |
| Temprature |
Working Temperature: -40℃ to +85℃
Storage Temperature: -40℃ to +85℃ |
| MTBF: |
> 100,000 hours |
| Dimensions |
110mm x 86mm x 40.5mm |
| Weight |
495g |
| Approvals |
CE, FCC, ROHS |
| Warranty |
1 year Limited Warranty |
Useful optional accessories (not included)
