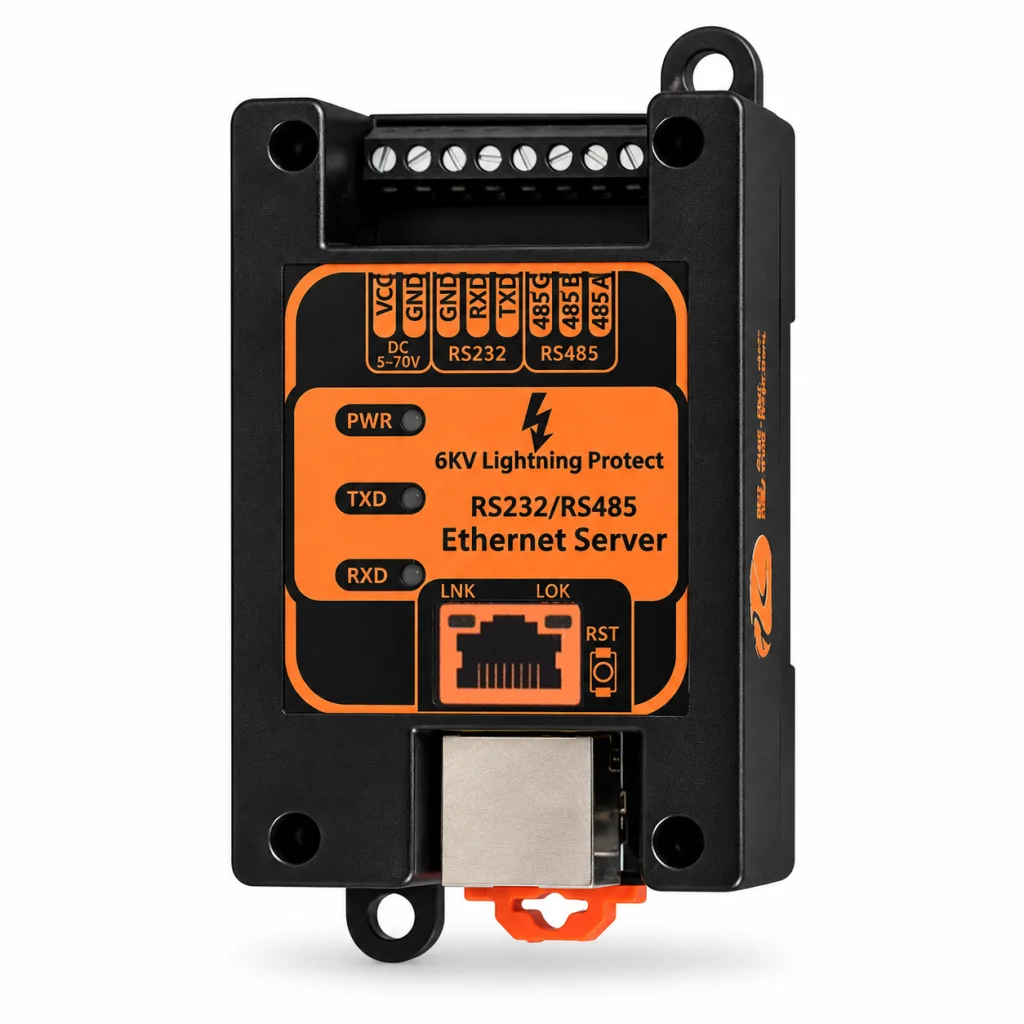

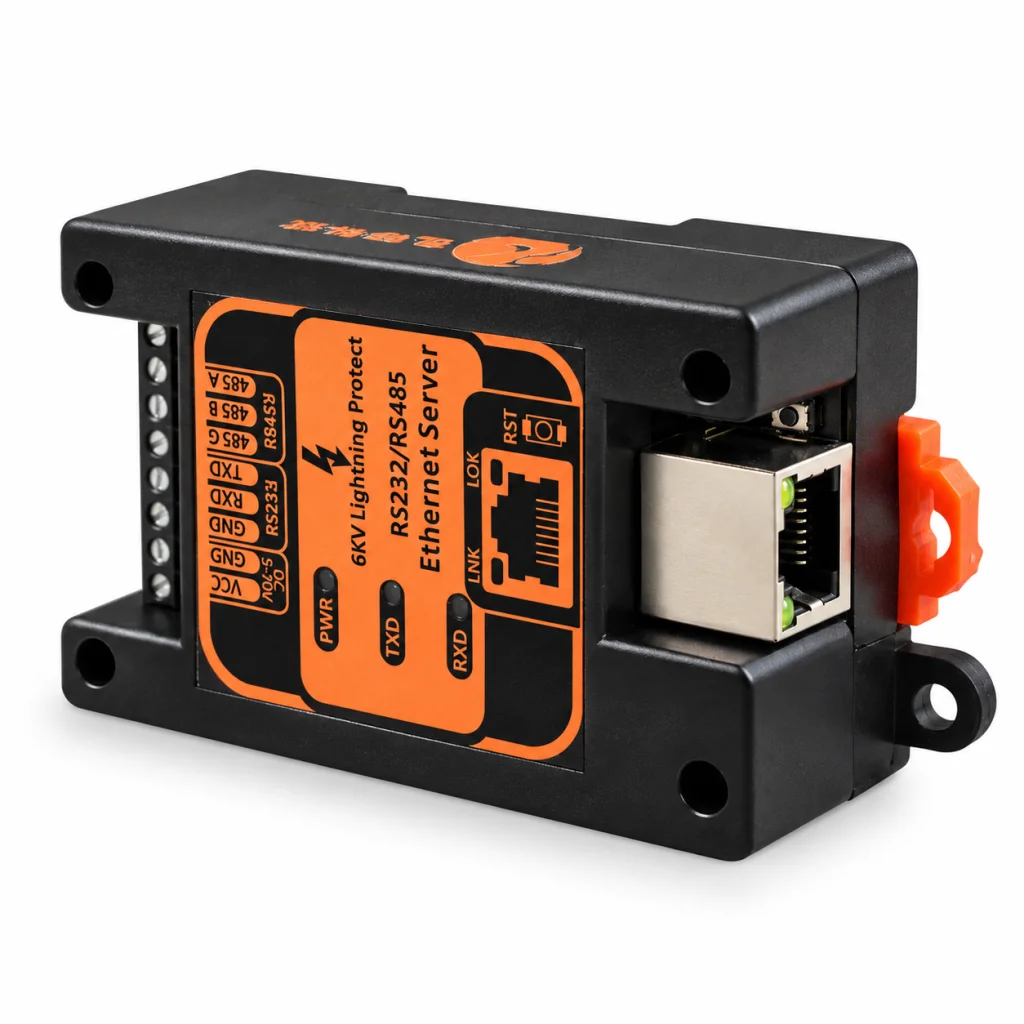

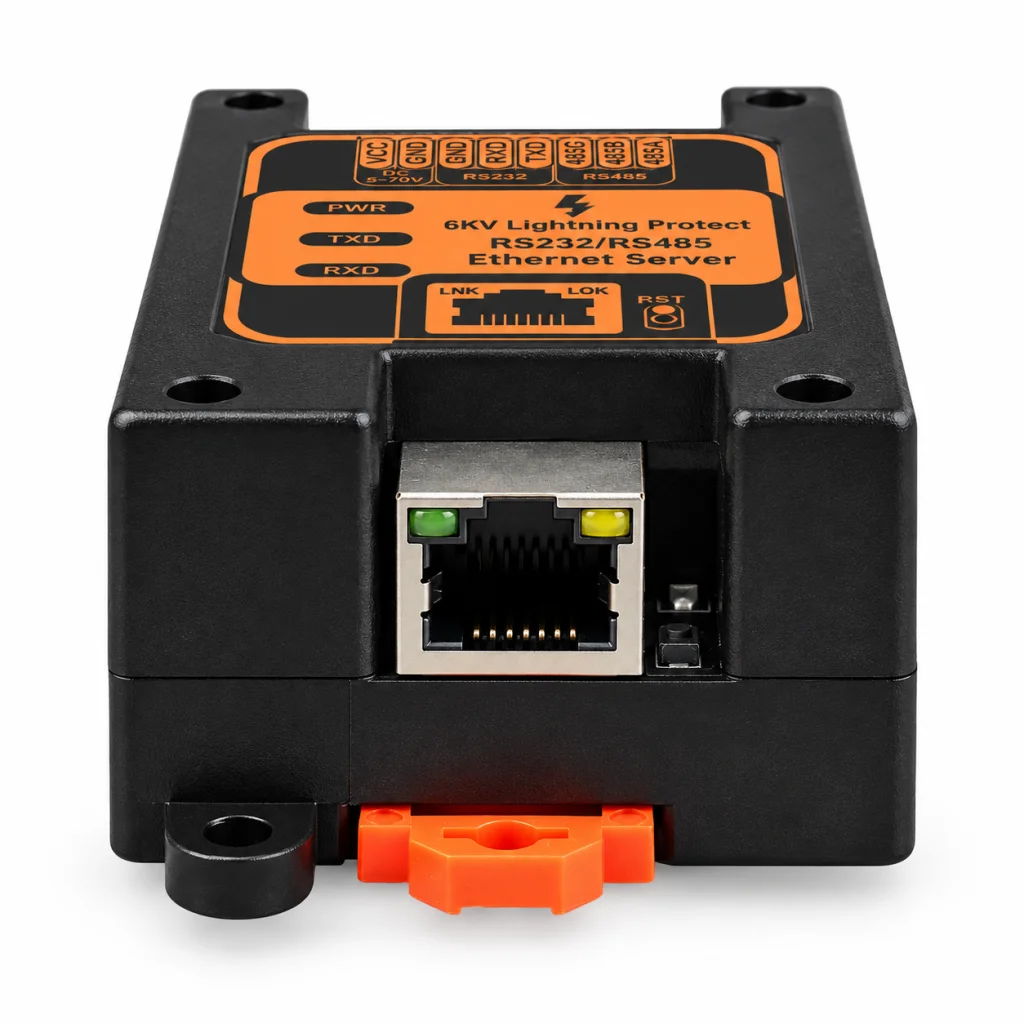

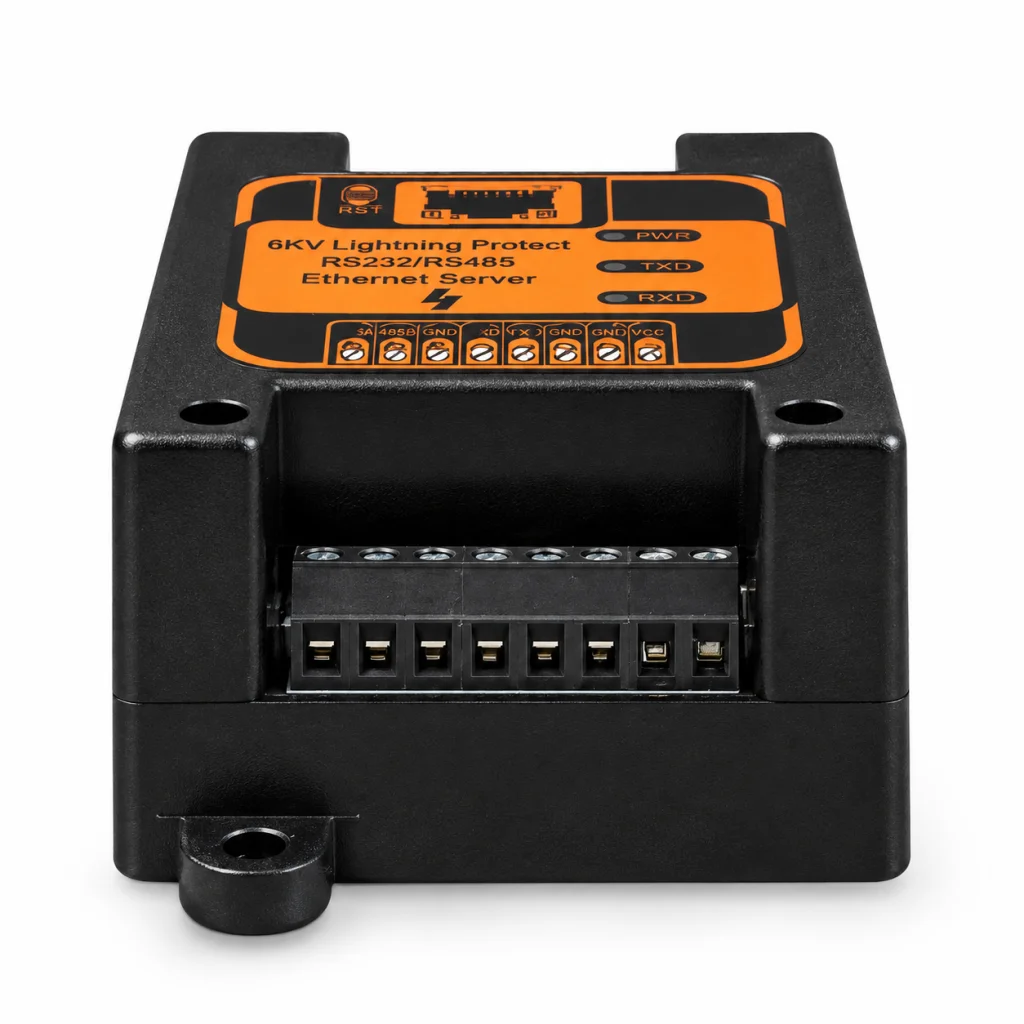

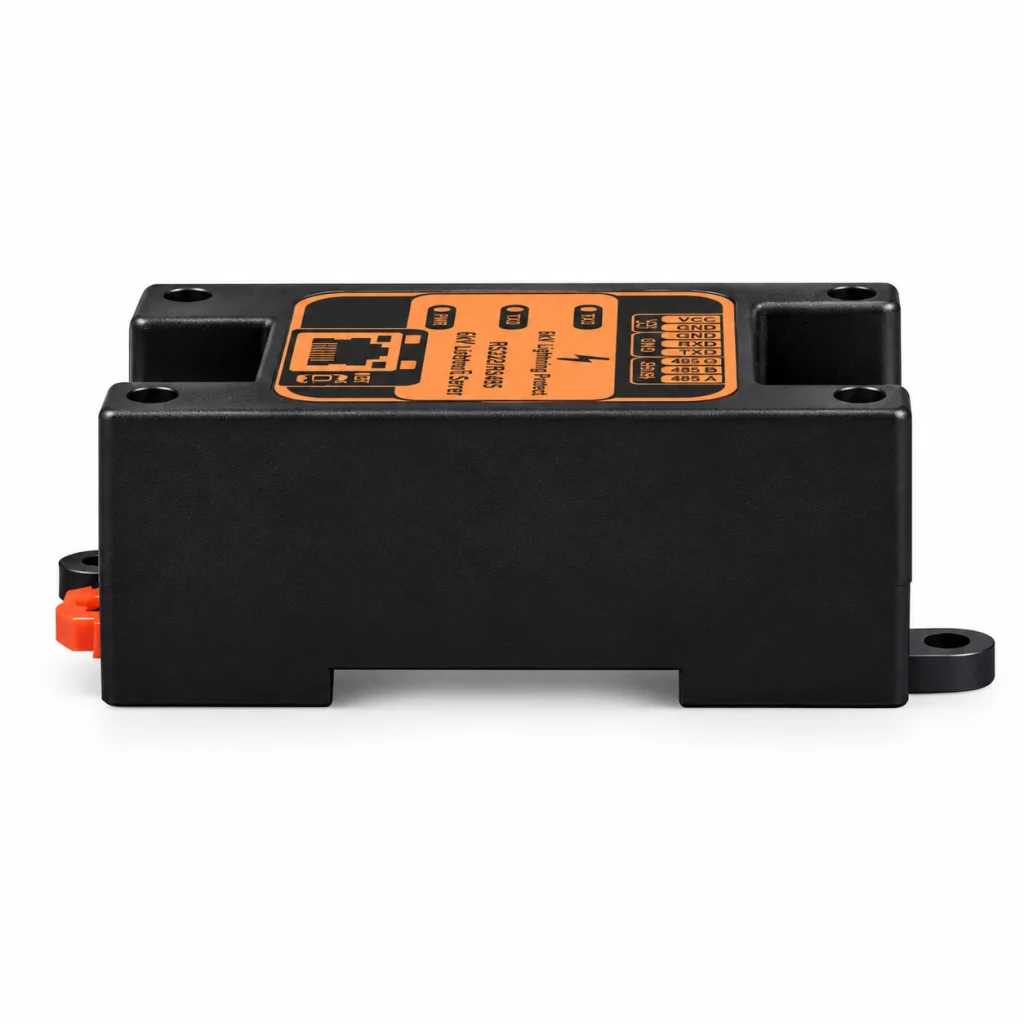

The 1-Port RS232/RS485 Serial to Ethernet Server is an industrial-grade networking solution designed to connect legacy serial devices to modern Ethernet networks quickly and reliably. It enables transparent data transmission between RS232 or RS485 equipment and TCP/IP networks, making it ideal for industrial automation, building management systems, and remote monitoring applications.
Built for industrial environments, this serial device server features a rugged, fanless design with wide temperature tolerance and EMC protection. It supports multiple communication modes including TCP Server, TCP Client, UDP, and Modbus TCP, allowing seamless integration with PLCs, HMIs, sensors, meters, and other serial devices.
With flexible mounting options, wide voltage power input, and advanced network protocols, this RS232/RS485 to Ethernet converter ensures stable, secure, and long-term operation in demanding industrial settings. Two TCP ports are available, one for RS232 and one for RS485, so two data streams can be used independently.
Key Features
- RS232 / RS485 to Ethernet Conversion – Easily connect serial devices to IP-based networks
- 2-Port Industrial Serial Device Server – Compact and reliable for single-device networking
- Two TCP ports available, one for RS232 and one for RS485, so two data streams can be used independently
- Multiple Network Protocols Supported – TCP, UDP, HTTP, DHCP, DNS, SNMP, ARP, ICMP
- Modbus TCP Support – Ideal for PLCs, SCADA systems, and industrial control applications
- High-Speed Serial Communication – RS485 up to 921.6kbps, RS232 up to 256Kpbs
- Industrial-Grade Design – Fanless, metal housing with strong EMC and surge protection
- Wide Power Input – 5–70V AC/DC with reverse polarity and overload protection
- DIN-Rail or Wall Mounting – Easy installation in control cabinets and field environments
- Remote Configuration & Management – Web interface, virtual COM driver, and software tools
Typical Applications
- Industrial automation & control systems
- PLC, HMI, and SCADA integration
- Building automation and smart infrastructure
- Energy management and power monitoring
- Environmental monitoring systems
- Factory equipment networking and remote diagnostics
| SPECIFICATIONS |
| Model number |
FCT-102-R |
Operating system
|
Virtual COM software included for:
Windows 11 32/64-bit, Windows 10 32/64-bit |
| Processor |
ARM Cortex-M4, 192MHz |
| Serial ports |
RS232, RS485 |
| Signals |
RS-485 2-wires: D+, D-, GND
RS-232: RXD, TXD, GND |
| Flow Control |
RS232: Hardware (RTS/CTS), Software (XON/XOFF), None
RS485: Automatic Send Control |
| Serial port settings |
RS485 up to 921.6kbps, RS232 up to 256Kpbs
Non-standard baud rates supported
Parity: None, Odd, Even
Data bits : 8, 9
Stop bits : 1, 2 |
| LAN port |

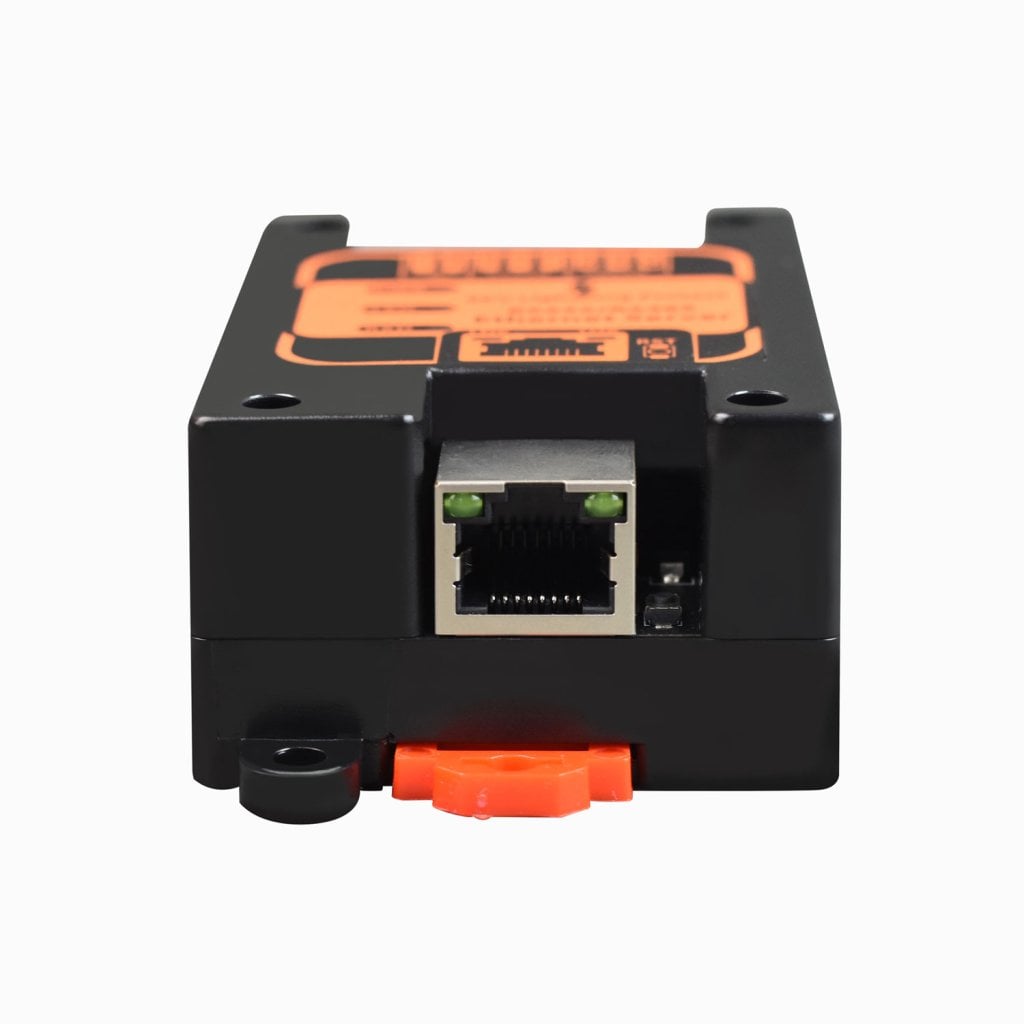

RJ45, Auto-MDI/MIDX, 2KV isolation |
| Protocols |
TCP Server, TCP Client, UDP Server, UDP Client, DHCP, ModBus TCP/RTU |
| Parameter management |
Web-browser |
| Modbus |
Yes (TCP and RTU) |
| Power |
Dual power terminals 5-70VDC |
| Current draw |
<5W |
| Temprature |
Working Temperature: -40℃ to +85℃
Storage Temperature: -40℃ to +85℃ |
| MTBF: |
> 100,000 hours |
| Dimensions |
97mm x 54mm x 32mm |
| Weight |
720g |
| Approvals |
CE, FCC, ROHS |
| Warranty |
1 year Limited Warranty |
