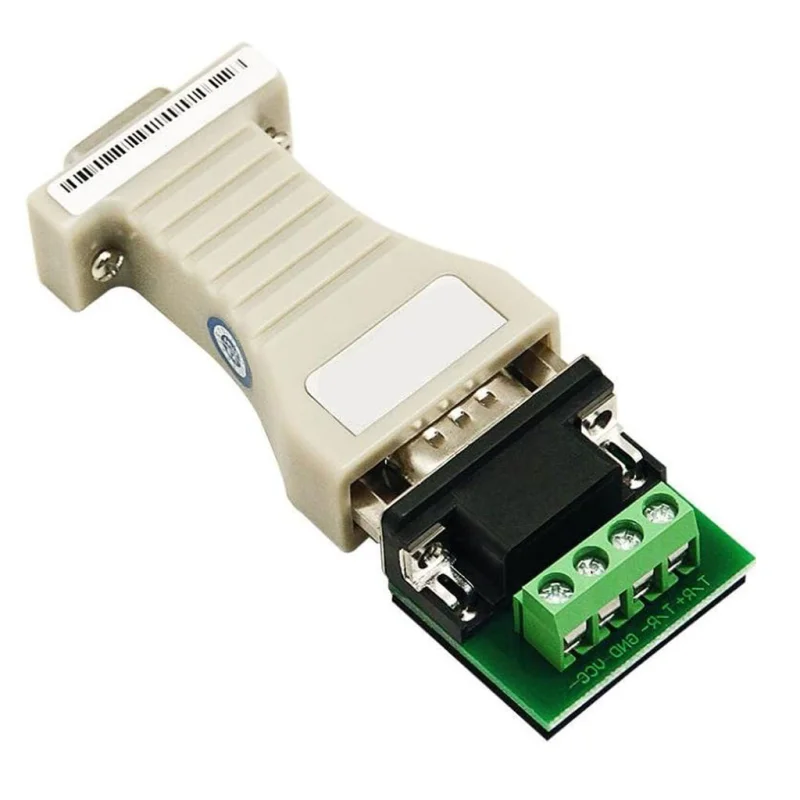

This bi-directional RS232 to RS485 converter is a port-powered simple and reliable solution for most standard commercial and industrial communications needs. It converts RS232 signals to half-duplex RS485 balanced differential signals and can extend the communication distance up to 4000 FT (1.2 km).
This RS232 to RS485 converter is port-powered, it uses an internal amplifier to gain power from the RS232 signals (RTS, DTR, TXD) without interfering with the RS232 interface. In case the RS232 port is not capable of supplying sufficient power an external power supply can easily be connected to the converter.
Automatic Send Data Control is enabled which means no software drivers are needed.
This converter utilizes the solid MAX485E processor chip from Maxim/Dallas Semiconductor and a supporting driver IC from Philips, which makes this RS232 to RS485 converter suitable for most applications, including industrial, business and any general office computer device.
It is a bi-directional RS232 to RS485 converter (meaning it communicates in both directions), reliable and cost-effective that easily lets you connect any RS485 device directly to your computer's serial RS232 COM port, efficiently converting standard RS232 signals to RS485 and vice versa.
A simple and reliable solution for most general and industrial communication needs. Header terminal board is included with each converter.
Overall features
- Port-powered RS232 to RS485 converter
- No external power supply required
- Fail-safe bias resistors
- Plug and play, no drivers needed
- Static and surge protected converter
- Optional external power supply
- Automatic Send Data Control.
- Working mode: asynchronous, half-duplex.
- Terminal board included with each converter.
|
Resources
|
| SPECIFICATIONS |
| Model number |
XS201A |
| Baud rate |
300 - 115200bps |
| Power |
Port-powered from RS232 (RTS, DTR, TXD).Optional external power: 5 - 12VDC |
| Current consumption |
less than 10mA |
| Processor |
MAX491/Philips HEF4093 |
| Interface RS232 |
DB9 female connector. Pin 7 (RTS) and 8 (CTS) are tied together. Pin 4 (DTR), 6 (DSR), and 1 (CD) are tied together. |
| Interface RS485 |
DB9 Male and terminal board |
| Working mode |
2-wire RS232 to RS485 asynchronous, half-duplex |
| Compatible with |
Modbus RTU/ASCII, BACnet |
| Standards |
EIA/TIA RS232 / RS485 |
| Housing |
ABS plastic |
| DB9 sockets and shields |
Electroplated steel |
| DB9 pins |
Stainless steel |
| Transmission distance |
RS232: Typical: 15 FT (5m)
RS485: Typical 4000FT (1200m) |
| Static/surge protection |
1500W / 600W/ms |
| Screw terminals wire gauge |
Max. 16 AWG |
| Operating Temp. |
-13°F to 158°F (-25°C to 70°C) |
| Operating humidity |
5% To 95% - No Condensation |
| Dimensions |
2.47" x 1.33" x 0.70" (62.8 mm x 33.8 mm x 17.8 mm) |
| Weight |
2 oz. (55g) incl. packaging |
| IP rating |
IP40 |
| Compliance |
CE, FCC, RoHS, ISO 9001 |
| Warranty |
1 year Limited Warranty |
For alternative RS232 to RS485 / RS422 solutions please see our full selection of serial converters.
Top-Rated RS232 to RS485 Converter for Efficient Data Communication
RS232 to RS485 converters are essential for enabling communication between devices that use different serial protocols. These converters convert RS232 signals to RS485, allowing for long-distance data transmission and support for multiple devices on a single network. This article covers the key features, benefits, and practical applications of the RS232 to RS485 converter.
Key Takeaways
-
RS232 to RS485 converters enable communication between devices using different serial protocols, significantly enhancing data transmission speeds and distances.
-
Port-powered converters simplify installation by deriving power from the connected device, while external power options improve reliability and performance in demanding applications.
-
Industrial-grade converters are built for durability and include features like surge protection, ensuring reliable data communication even in harsh environments.
Understanding RS232 to RS485 Converters
RS232 to RS485 converters are indispensable tools designed to facilitate communication between devices using different serial communication protocols. These converters transform RS232 signals into RS485 signals, allowing for seamless data transmission and ensuring compatibility in various applications.
RS232 vs. RS485: Key Differences
Knowing the differences between RS232 and RS485 helps in choosing the right converter. RS485 boosts data transmission speeds up to 10 Mbps, while RS232 maxes out at 1 Mbps. Additionally, RS485 extends communication distances up to 4000 feet, making it ideal for large setups, whereas RS232 is typically limited to shorter distances.
Benefits of Using RS232 to RS485 Converters
RS232 to RS485 converters extend communication distances up to 4000 feet and support multiple network nodes, offering numerous benefits. External power sources are often needed for these converters, particularly with longer cable runs or extensive networks, to ensure reliable data communication and operational efficiency.
Port-Powered RS232 to RS485 Converters
Port-powered RS232 to RS485 converters derive their power from the output signals of the RS-232 device they are connected to. This negates the need for an external power source, simplifying installation.
Compatible with industrial communication protocols like Modbus RTU and BACnet, these converters offer versatile solutions for various applications. They allow for plug-and-play connectivity without requiring software drivers.
How Port Powering Works
Port powering utilizes signals like RTS, DTR, and TXD to supply the necessary energy for the converter’s operation. Voltage measurements across the Receive Data A and B lines typically show over 4 V dc, confirming whether the RS-232 port supplies power.
Applications in Industrial Settings
Port-powered RS232 to RS485 converters are widely used in industrial settings for long-distance applications, extending communication up to 1200 meters. These converters support multiple devices on a single bus, increasing the number of connected devices up to 32 on a single RS485 network.
Commonly used in industrial automation devices, they facilitate real-time data communication.
Industrial-Grade RS232 to RS485 Converters
Industrial-grade RS232 to RS485 converters are designed to withstand harsh operational environments. They often feature robust construction with materials such as ABS plastic and electroplated steel, ensuring durability and a long service life of over 250,000 hours.
These converters include features like rugged housing and surge protection, making them suitable for electrically hazardous environments.
Rugged Design and Durability
Industrial-grade converters are typically housed in steel cases, incorporating robust materials to endure physical stress and temperature fluctuations. This rugged design ensures that the converters can operate reliably in harsh industrial environments, providing protection against voltage spikes and ground loops.
Reliable Data Communication
High-quality RS232 to RS485 converters enhance communication resilience by improving noise immunity and reducing error rates, even in challenging conditions. Optical isolation and built-in surge protection ensure stable data transmission and safeguard against voltage surges and ground loop issues, making these converters ideal for industrial applications.
Surge Protection in RS232 to RS485 Converters
Surge protection in RS232 to RS485 converters prevents damage from voltage spikes and ensures reliable data transmission. This protection maintains data integrity while safeguarding connected devices from electrical disturbances.
Industrial-grade converters often include features like 15KV ESD and 600W surge protection to enhance reliability.
Types of Surge Protection
Common surge protection methods in RS232 to RS485 converters include:
These mechanisms help mitigate electrical disturbances, providing protection against static and surge voltages, and ensuring the resilience of the converters in demanding environments.
Benefits of Surge-Protected Converters
Converters with built-in surge protection prevent data loss or corruption caused by transient voltage conditions, enhancing overall safety and reliability. These mechanisms effectively absorb and redirect excessive voltage, safeguarding both the converter and the connected devices.
This protection effectively protects is especially critical in industrial settings, where operational continuity and data integrity are paramount.
External Power Options for RS232 to RS485 Converters
Many port-powered RS232 to RS485 converters come with an option for external power supply, providing increased versatility in industrial applications. External power sources are needed for optimal performance when port power alone cannot meet additional power requirements.
Utilizing external power sources can enhance the functionality and stability of these converters in demanding industrial settings.
When to Use External Power
External power is crucial when the RS232 port cannot supply sufficient voltage or current for reliable data transmission. Using an external power source is advisable when the converter is near a sensor or requires reliable operation over long cable runs, ensuring optimal performance.
Advantages of External Power
External power enhances the stability and performance of RS232 to RS485 converters. It enables these converters to support higher current capacities and ensures optimal functionality in various applications.
Overall, external power significantly improves the reliability and efficiency of data communication in RS232 to RS485 converters.
Key Features of High-Quality RS232 to RS485 Converters
High-quality RS232 to RS485 converters should support a wide range of baud rates for versatile communication needs. They should also auto-sense the connected signal, supporting both RS485 and rs232 to rs485 rs422 modes without requiring manual adjustments.
Matching the converter to your devices’ communication requirements, including voltage levels and signaling types, ensures reliable data exchange.
Baud Rates and Flow Control
Baud rates determine the speed of data transmission, which is crucial for maintaining effective communication. These converters operate reliably at baud rates ranging from 300 to 115.2K, ensuring effective data transmission even in harsh environments.
Proper flow control mechanisms prevent data loss by managing data flow rates, and automatic send data control in port-powered converters removes the need for additional software drivers.
LED Indicators and Status Lights
LED indicators offer immediate visual feedback on the converter’s operational status. They provide real-time feedback on data transmission status and power connectivity, simplifying the diagnosis and troubleshooting of issues like connectivity problems or power failures.
Hot Pluggable and ESD Protection
Hot pluggable designs enable converters to be connected or disconnected without system shutdown, enhancing usability in dynamic environments. Many RS232 to RS485 converters are designed to be hot-pluggable, providing convenience and flexibility.
ESD protection ensures the devices are safeguarded from electrostatic discharge, further enhancing their reliability.
Choosing the Right RS232 to RS485 Converter
Selecting the right RS232 to RS485 converter involves understanding your specific application needs, including distance, data rate, and environment. Baud rates can be adjusted for efficient performance, with some converters supporting speeds up to 921600 bps.
Status lights can help quickly diagnose issues, such as connectivity problems or power failures, making them a valuable feature to consider.
Assessing Your Requirements
Knowing the environmental conditions where RS232 to RS485 converters will operate ensures effective communication, especially in harsh settings. Evaluating the need for external power maximizes performance, particularly in applications requiring longer communication distances or higher power consumption.
Prioritizing converters with robust features that match the communication environment leads to more reliable data exchange and operational efficiency.
Comparing Different Models
When comparing RS232 to RS485 converters, focus on key specifications such as baud rate compatibility and maximum cable length supported. Check for compatibility with both RS232 and RS485 devices to accommodate various communication standards.
Technical specifications like supported baud rates and the number of ports are essential factors to consider.
Summary
In summary, RS232 to RS485 converters are essential tools for bridging communication between devices using different serial protocols. Understanding the key differences between RS232 and RS485, the benefits of using these converters, and the importance of features like surge protection and external power options can significantly impact your system’s performance. Whether you are managing an industrial setup or a simple point-to-point connection, selecting the right converter requires careful consideration of your specific application needs.
By considering factors such as baud rates, flow control, LED indicators, and ESD protection, you can ensure reliable and efficient data communication. Investing in high-quality, industrial-grade converters with robust features will enhance the durability and reliability of your systems, ensuring seamless and uninterrupted communication. Make informed decisions and elevate your data communication systems with the right RS232 to RS485 converters.
Frequently Asked Questions
What is the main difference between RS232 and RS485?
The main difference between RS232 and RS485 is that RS232 is suited for shorter distances and lower speeds, whereas RS485 supports longer distances of up to 4000 feet and higher data rates of up to 10 Mbps. This makes RS485 more suitable for industrial applications requiring robust communication over large areas.
Why is surge protection important in RS232 to RS485 converters?
Surge protection is crucial in RS232 to RS485 converters as it prevents damage from voltage spikes, ensuring reliable data transmission and safeguarding connected devices from electrical disturbances.
When should I use external power for my RS232 to RS485 converter?
You should use external power for your RS232 to RS485 converter when the RS232 port lacks sufficient voltage or current, particularly in situations that demand reliable performance over long distances or greater current requirements.
What are the key features to look for in high-quality RS232 to RS485 converters?
Key features to look for in high-quality RS232 to RS485 converters include support for a wide range of baud rates, flow control mechanisms, LED indicators, hot pluggable designs, and ESD protection. Prioritizing these specifications will ensure reliable and efficient communication.
How do port-powered RS232 to RS485 converters work?
Port-powered RS232 to RS485 converters operate by deriving power from the output signals of the connected RS-232 device, specifically utilizing RTS, DTR, and TXD signals for energy. This design allows for efficient power usage without the need for an external power source.
