This serial Bluetooth adapter is similar to our Bluetooth version 2.1 adapters; the main difference is that this adapter is built around a Siliconlab BG22 processor which supports Bluetooth 5.2.
This adapter is a Bluetooth version 5.2 Low Energy (BLE) adapter, also commonly called Bluetooth Smart®. It will allow you to communicate with most serial RS232 devices using a Bluetooth Smart® enabled device such as an iPad/iPhone, Android, Windows tablet or any other Bluetooth Smart enabled device.
Notice that this adapter require a Bluetooth Smart® compatible device / application to be able to connect and transfer data with iOS, Android and Windows.
If you don't have a Bluetooth Smart® / Bluetooth BLE device then you can use one of our standard SPP (Serial Port Profile) v2.0 Bluetooth serial adapters instead.
Bluetooth Low Energy 4.0 or higher (BLE) / Bluetooth Smart® is supported by most newer tablets, phones, computers and other Bluetooth enabled devices, including the following devices: Android 4.3+, iPad 3+, iPhone 4S+ and iPad Mini.
The following operating systems support
Bluetooth Smart®: iOS 5 and later,
Windows Phone 8.1,
Windows 8 and later,
Android 4.3 and later, BlackBerry 10,
Linux 3.4 and later through BlueZ 5.0.
This Bluetooth Smart® wireless serial adapter has a maximum communication range of up to 160 feet (50m) and applications includes automation, home applications, automotive, laboratory, office use and many more, only your imagination is the limit.
This new version of the adapter also supports Modbus ASCII/RTU which makes it an ideal solution for many industrial applications.
The adapter can be configured as a central or peripheral (master or slave) device. It also has multiple other port parameters and functions such as baud rate, flow control, parity and data bits which can be configuredusing the free iOS/Android app, by DIP switches or through the COM port using AT commands and a terminal program.
Overall features
- Bluetooth Smart® compatible
- Supports Bluetooth Low Energy 5.2 (BLE)

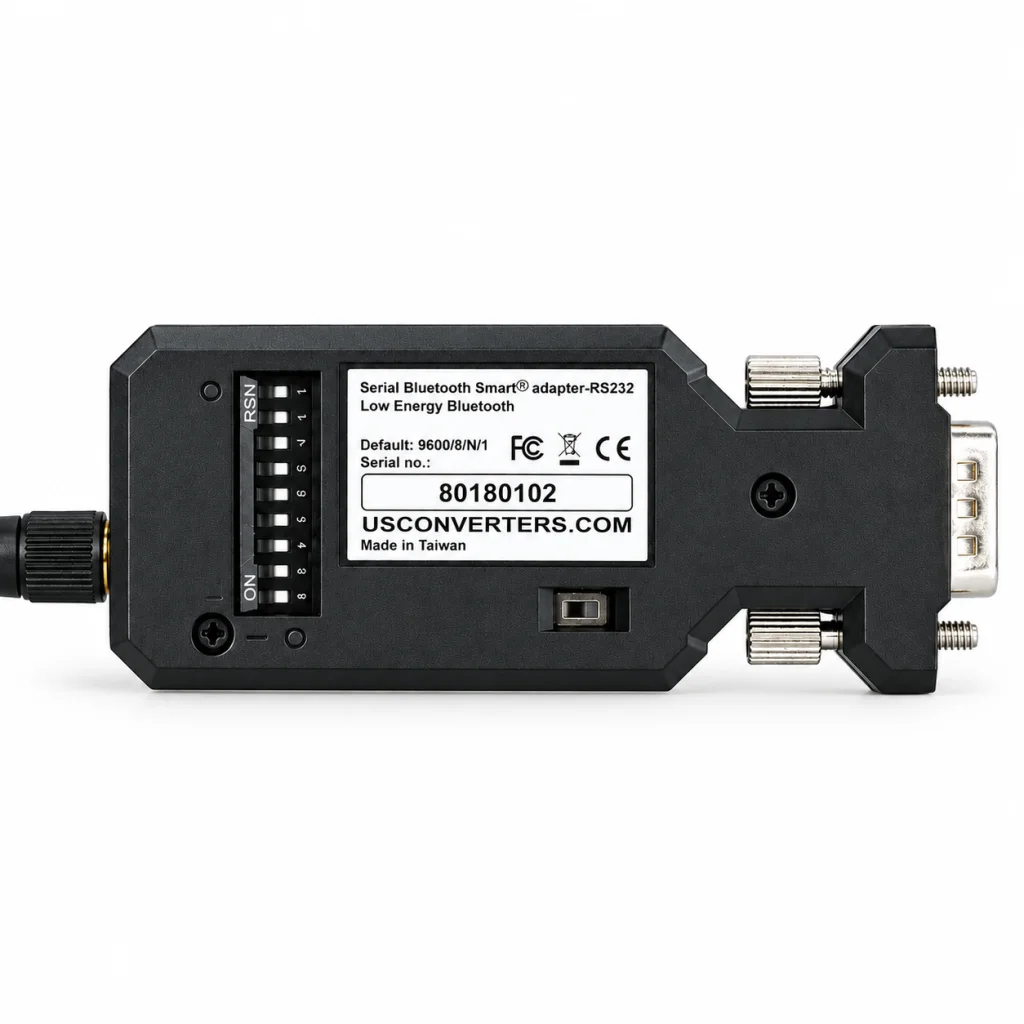

- DIP switches for most settings
- iOS and Android app available for configuration
- Can be configured via COM port with AT commands
- Works as a peripheral or central device
- Can be powered by: included mini USB cable
- External antenna for optimal range
- Communication range up to 50m (line-of-sight)
- DCE/DTE controlled by switch
- LED control lights
- Supports CTS/RTS flow control
- Works with most serial RS232 devices
- Modbus support
|
Included items
- Serial Bluetooth adapter
- Mini USB cable (for power)
- Datasheet
Resources
|
| SPECIFICATIONS |
| Part number |
S2B5232E / S2B5232EV2 |
| Operating systems |
iOS 5 and later,
Windows Phone 8.1,
Windows 8 and later,
Android 4.3 and later, BlackBerry 10,
Linux 3.4 and later through BlueZ 5.0. |
| Processor |
Siliconlab BG22 |
| Data payload |
240 bytes |
| Interface type |
RS232 |
| Mode |
Central or Peripheral (Master or Slave) |
| Works with iPad/iPod? |
Yes |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 bps
Custom set: 80 - 921600 bps |
| Parity |
None, even, odd |
| Stop bits |
1, 1.5, 2 |
| Data bits |
8 |
| Flow control |
None, CTS/RTS, RTS, CTS |
| Operating distance |
Up to 50m (line-of-sight) under ideal conditions |
| LED lights |
TX, RX, Link and Power |
| DEC/DTE |
Manual switch |
| Parameters configurable by |
- Over the air by iOS and Android app
- Via COM port by AT commands
- DIP switches |
| RS232 Signals |
TX, RX, CTS, RTS, GND |
| Protocols supported |
Modbus ASCII / RTU, None |
| Works with NMEA 0183 |
Yes |
| Beacon reader |
No |
| Max no. of masters pr client |
32 masters |
| Max no. of clients pr group |
16 |
| Serial port |
1-port male D-sub 9-pin |
| Bluetooth version |
5.2 |
| Programming interfaces |
GATT / UUID |
| Frequency range |
2.4GHz ISM ( 2.40000 – 2.4835GHz) |
| TX Power |
Max. 6 dBm |
| RX Sensitivity |
106.7 dBm sensitivity @ 125 kbps GFSK |
| TX current consumption |
7.5 mA radio transmit current @ 6 dBm output power |
| Antenna |
2.4Ghz, 2dBi di-pole with Reverse Polarity SMA (RP-SMA) male connector (inside threads / center receptacle) |
| Antenna connector type on adapter |
Reverse Polarity SMA (RP-SMA) female connector (outside threads / male pin) |
| Antenna Gain |
max. 2 dB |
| Power supply |
Mini USB (5VDC)
Screw terminals (5 - 40VDC)
DB9 pin 9 (5 - 40VDC) |
| Operating temp. |
-40°F to 185°F (-40°C to 85°C) |
| Dimensions |
87mm x 34mm x 18mm |
| Total package weight |
105g (4 oz) |
| Certifications |
CE, FCC, Rohs |
For alternative wireless serial solutions please see our full selection of wireless RS232 adapters.
