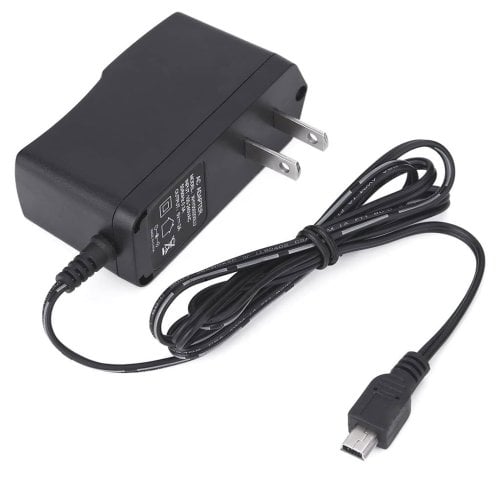

Mini USB 110/240VAC to 5VDC adapter. This adapter converts standard 110/240VAC into 5VDC which can be used for several of our products requiring 5VDC powered by a Mini USB connector.
| SPECIFICATIONS |
| Part number |
PWR5USB |
| Input |
AC input voltage: 110 - 240 VAC
AC input frequency: 47Hz - 63Hz
AC input current: 0.2A max. |
| Output |
DC output voltage: 4.5 to 9.5VDC
Load max: 0.8A |

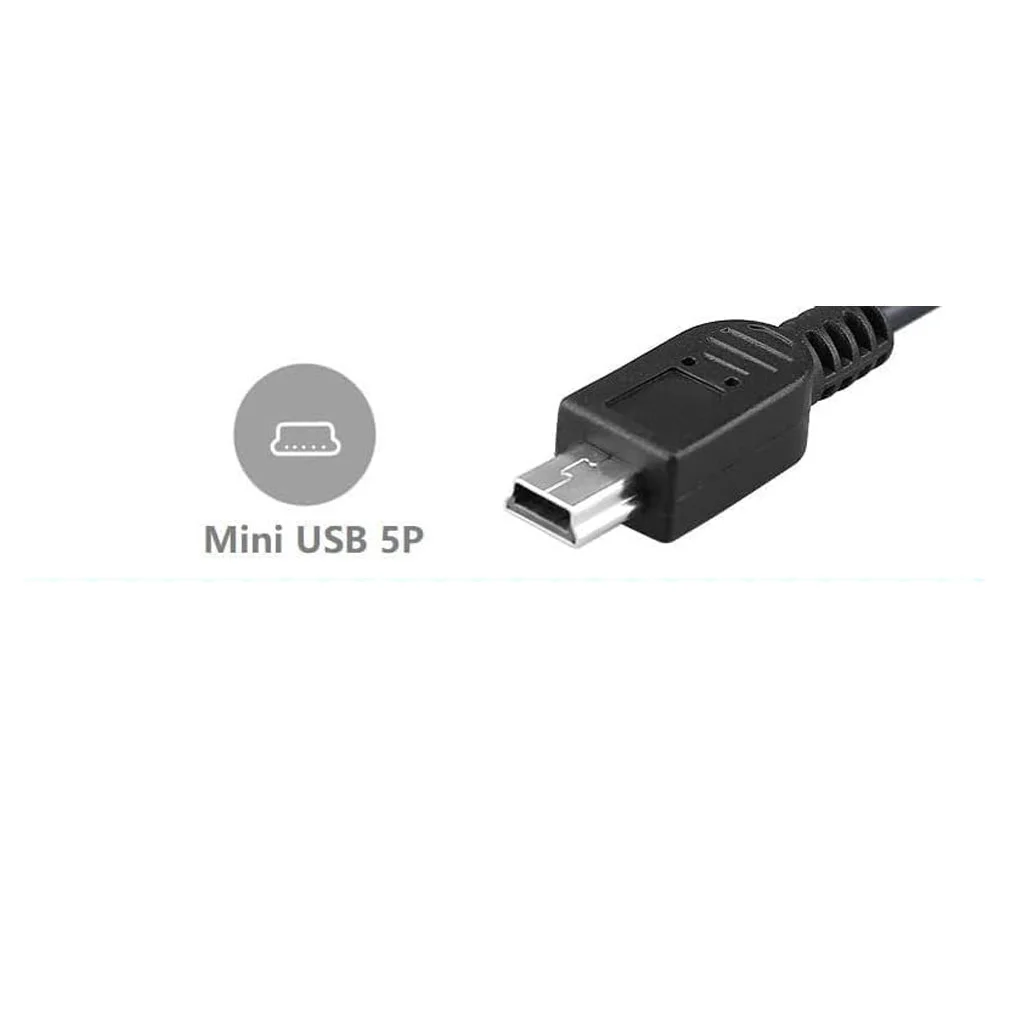

| USB Connector |
Standard Mini USB |
| Operating temp |
0 to 40 degrees C |
| Storage temp |
-20 to +70 degrees C |
| Opr. humidity |
20% to 80% RH |
| Mechanical |
Standard plastic case
57 x 34 x 25mm |
