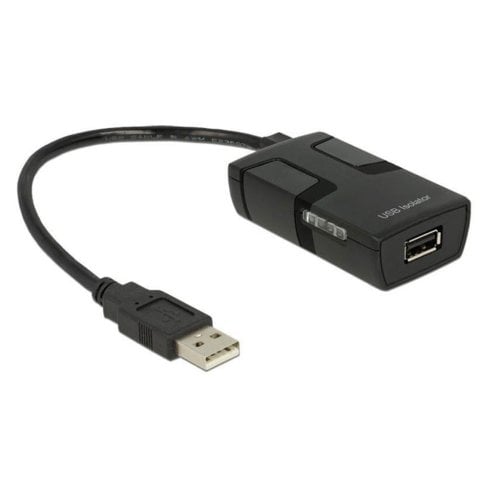

USB Isolator - Mini

This USB isolator is an alternative to our other USB isolator part UISO3. This isolator is smaller and made from mainstream components which makes it a good economic alternative but still with quality components making sure a reliable isolation is achieved.

If you need to isolate your USB device from your computer this USB Isolator is an effective and easy solution to ensure total isolation between your USB devices and your computer. This USB isolator separates both the data lines and power supply from your computer, fully protecting your USB devices and data signals against electrical noise, high voltage spikes, surges and ground loops for up to 3000V, which otherwise easily could damage your equipment. USB isolation is crucial for preventing direct electrical connections between devices while maintaining their ability to function together, thereby protecting both the equipment and the data being transmitted.

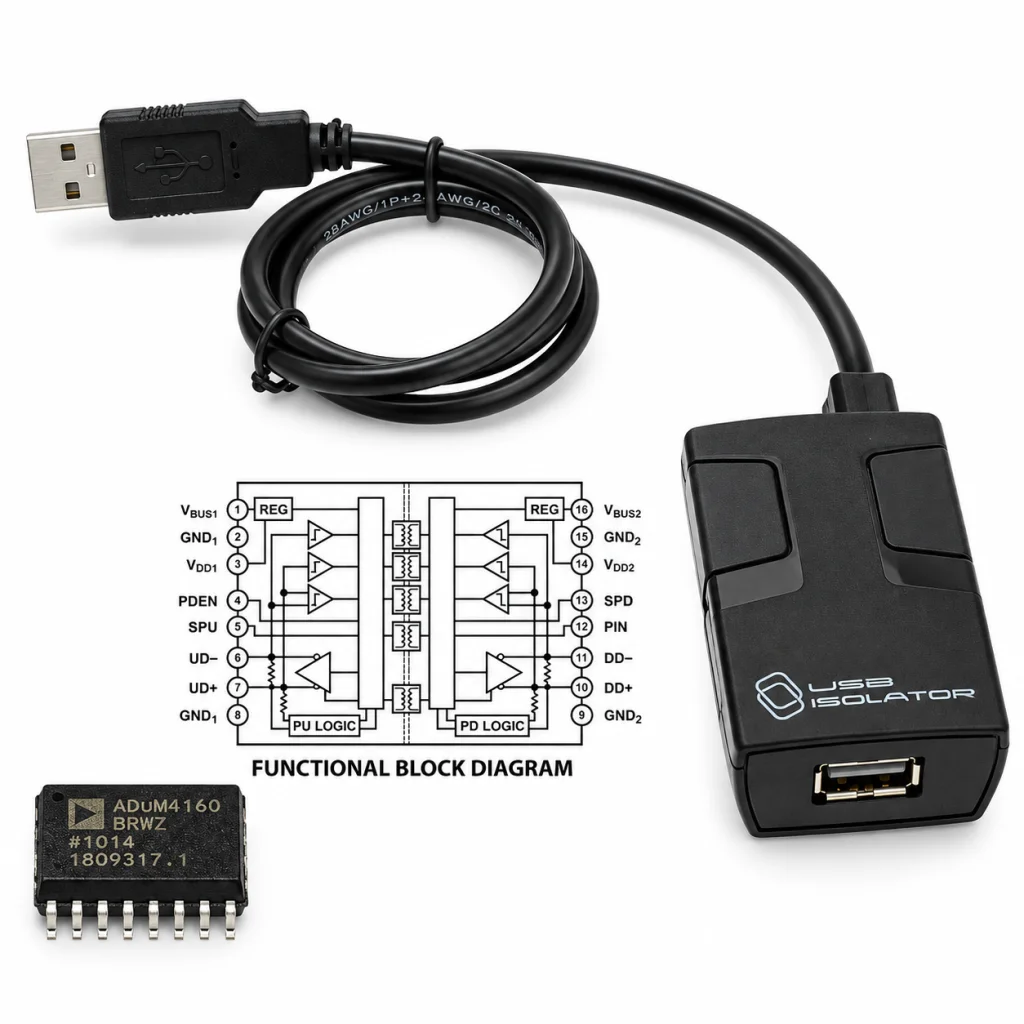

Isolation is achieved by the ADUM4160 from Analog Devices, which efficiently protects your equipment against all types of high voltage spikes, surges and static electricity. The ADUM4160 makes this USB isolator compatible with both low speed (1.5M) and high speed (12M).

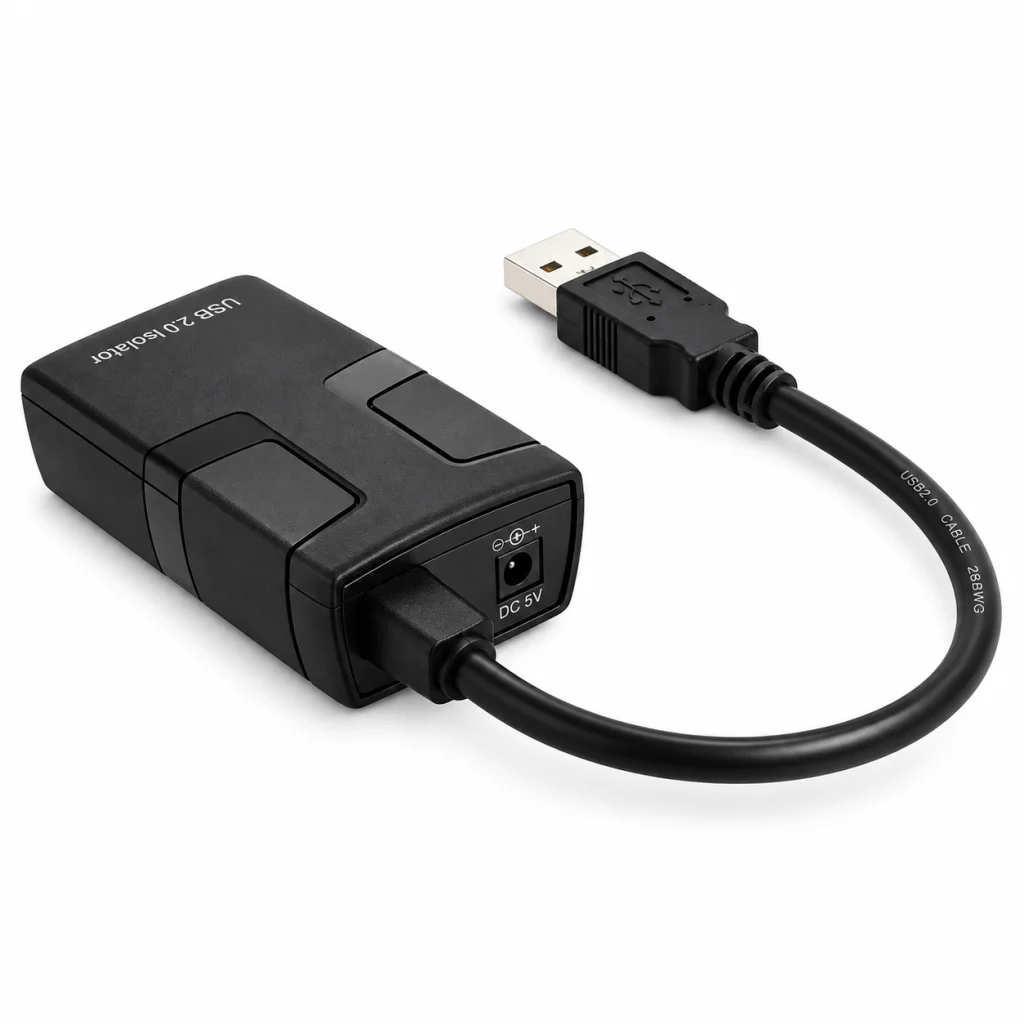

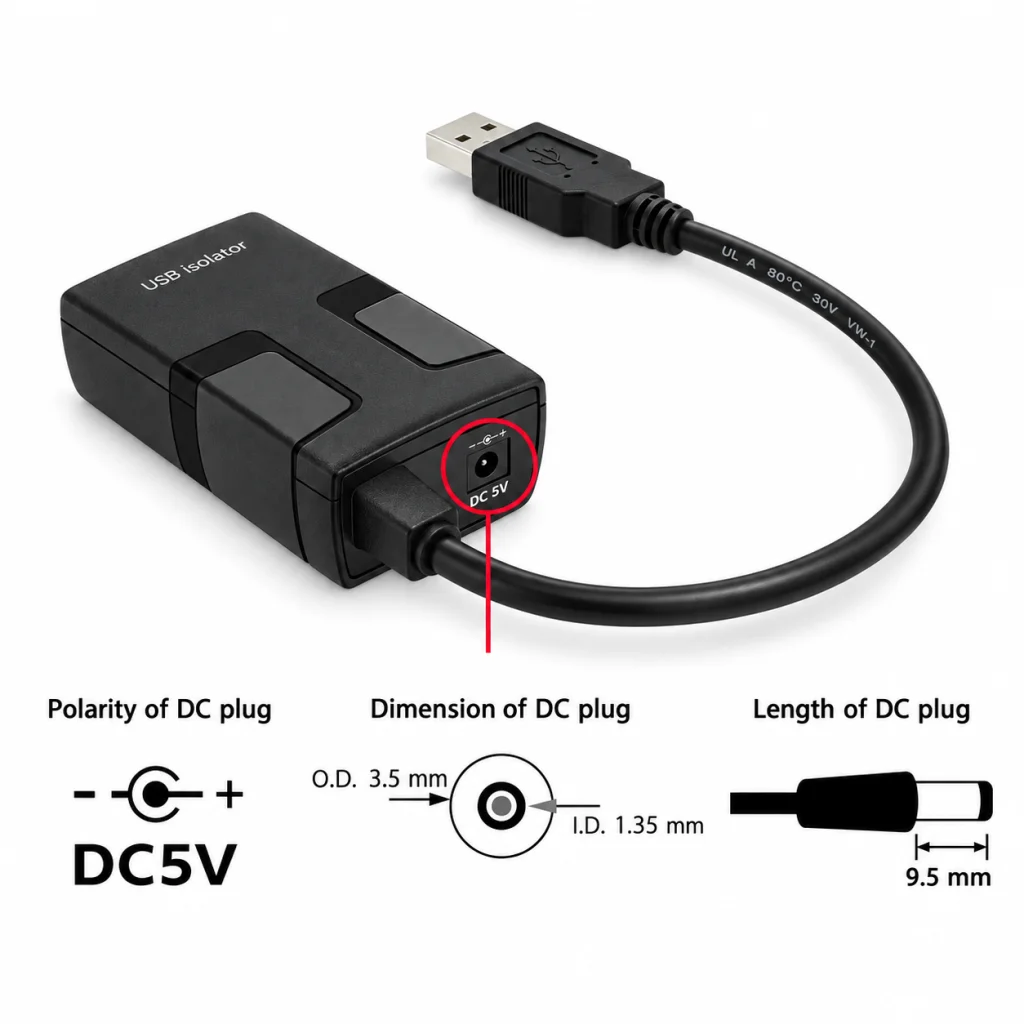

Power is provided from the computer’s USB port, however an external power supply can be connected to the isolator if your USB device has a high current consumption (400mA or more). Adding an external 5V power supply will ensure that the connected USB device(s) will get sufficient power. Power is isolated by a DC-DC converter with an isolation of 3000V.

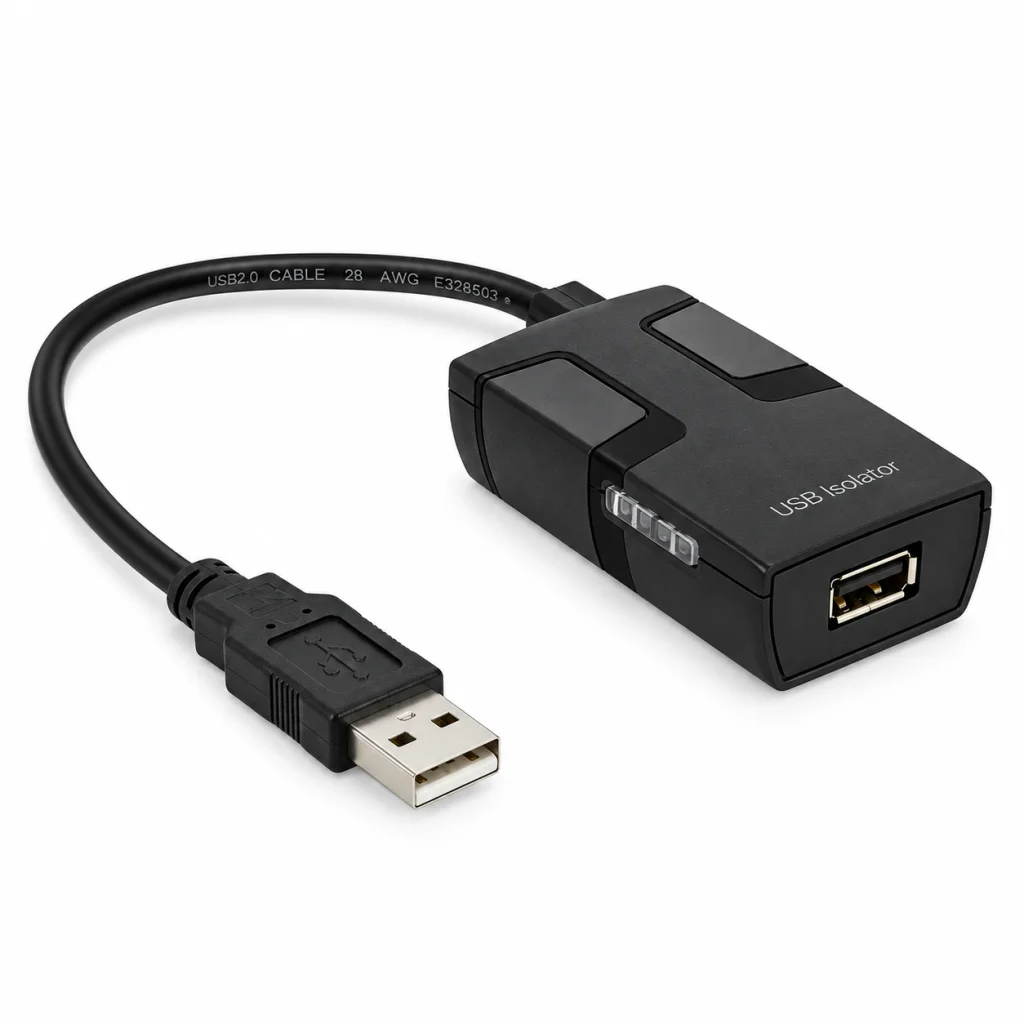

A LED indication light indicates when the isolator is turned on.

Understanding USB Isolators

A USB isolator is a crucial device that provides electrical isolation between a computer and a connected USB device. By creating a barrier between the two, it prevents electrical noise, ground loops, and surges from affecting the connected device. This isolation is particularly important in applications involving sensitive equipment, such as audio converters, medical devices, or industrial control systems. By isolating the USB connection, the USB isolator ensures reliable data transfer and protects the connected device from potential damage, making it an essential tool for maintaining the integrity and performance of your USB devices.

Benefits of Using a USB Isolator

Using a USB isolator offers several significant benefits:

• Elimination of Ground Loop Problems: Ground loops can introduce electrical noise and interference, negatively impacting the performance of connected devices. A USB isolator effectively eliminates ground loops, ensuring a clean and reliable data transfer.

• Protection Against Electrical Surges and Spikes: Electrical surges and spikes can cause severe damage to connected devices. A USB isolator safeguards your equipment by providing robust protection against these electrical anomalies.

• Improved Signal Isolation: By providing signal isolation, a USB isolator enhances common-mode voltage and noise rejection, leading to more reliable and accurate data transmission.

• Reduced Electromagnetic Interference (EMI): Electromagnetic interference can disrupt the performance of connected devices. A USB isolator helps reduce EMI, ensuring that your devices operate smoothly and without interruption.

• Increased Safety: A USB isolator ensures a safe and reliable connection between devices, significantly reducing the risk of electrical shock or damage, thereby enhancing overall safety.

Key Features of a USB Isolator

A USB isolator typically boasts several key features that make it indispensable:

• High-Voltage Isolation Barrier: This feature provides a robust high-voltage isolation barrier between the computer and the connected device, protecting against electrical surges and spikes.

• Signal Isolation: By offering signal isolation, a USB isolator improves common-mode voltage and noise rejection, ensuring reliable data transfer.

• DC-DC Converter: A USB isolator uses a DC-DC converter to supply power to the connected device, ensuring consistent and reliable performance.

• Low Speed and Full Speed Compatibility: USB isolators are compatible with both low speed (1.5 Mbps) and full speed (12 Mbps) USB devices, making them versatile for various applications.

• External Power Supply Option: Some USB isolators come with an option for an external power supply, which is particularly useful for devices with high current consumption (400mA or more).

• LED Indication: Many USB isolators feature an LED indication light that shows when the isolator is powered on, providing a clear visual status.

Applications of a USB Isolator

USB isolators are versatile and find applications in various fields:

• Audio Equipment: In audio equipment, such as audio converters and digital audio workstations, USB isolators eliminate ground loop problems and enhance sound quality.

• Medical Devices: USB isolators are crucial in medical devices, including patient monitoring systems and medical imaging equipment, ensuring reliable data transfer and protection against electrical surges and spikes.

• Industrial Control Systems: In industrial control systems, such as programmable logic controllers (PLCs) and human-machine interfaces (HMIs), USB isolators provide reliable data transfer and protect against electrical noise and interference.

• Laboratory Equipment: USB isolators are used in laboratory equipment, such as data acquisition systems and scientific instruments, to ensure reliable data transfer and safeguard against electrical surges and spikes.

By understanding the importance, benefits, features, and applications of USB isolators, you can make informed decisions to protect and enhance the performance of your USB devices.
