USB Ground Loop Isolator

If you need to isolate your USB device from your computer this USB ground loop isolator is an effective and easy solution to ensure total isolation between your USB devices and your computer. This USB ground loop isolator separates both the data lines and power supply from your computer, fully protecting your USB devices and data signals against electrical noise, high voltage spikes, surges and ground loops for up to 3000V, which otherwise easily could damage your equipment.

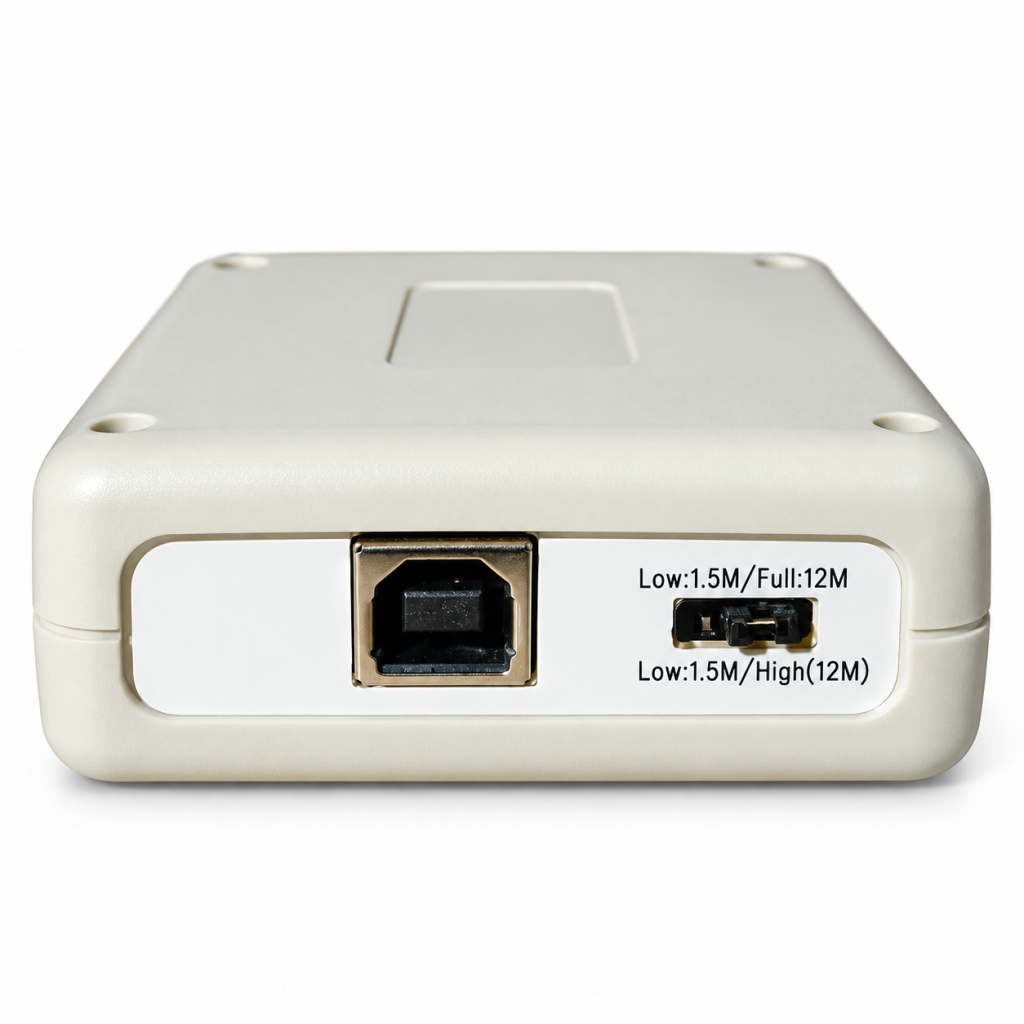

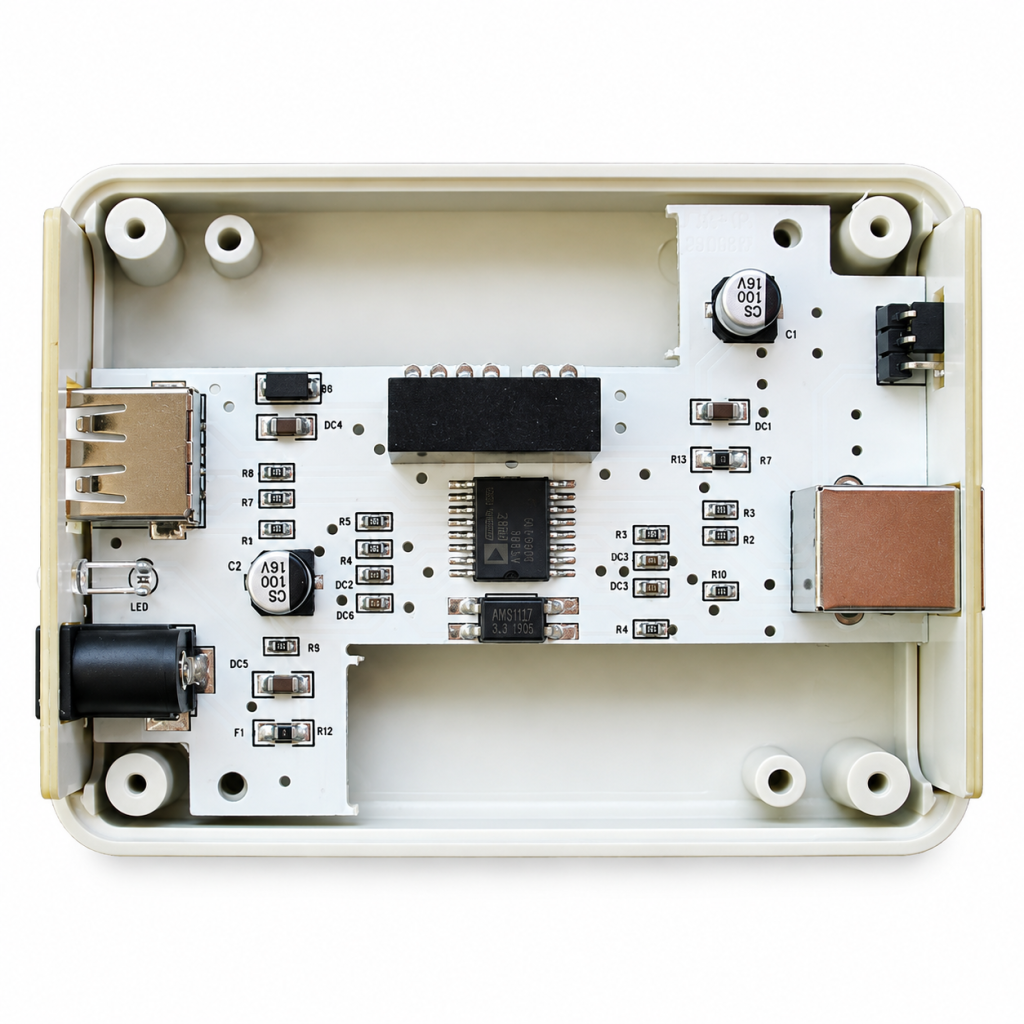

Isolation is achieved by the ADUM4160 from Analog Devices, which efficiently protects your equipment against all types of high voltage spikes, surges and static electricity. The ADUM4160 makes this USB isolator compatible with both low speed (1.5M) and high speed (12M) modes, as well as USB High Speed (480Mbps). The speed can manually be selected by a jumper on the side of the isolator.

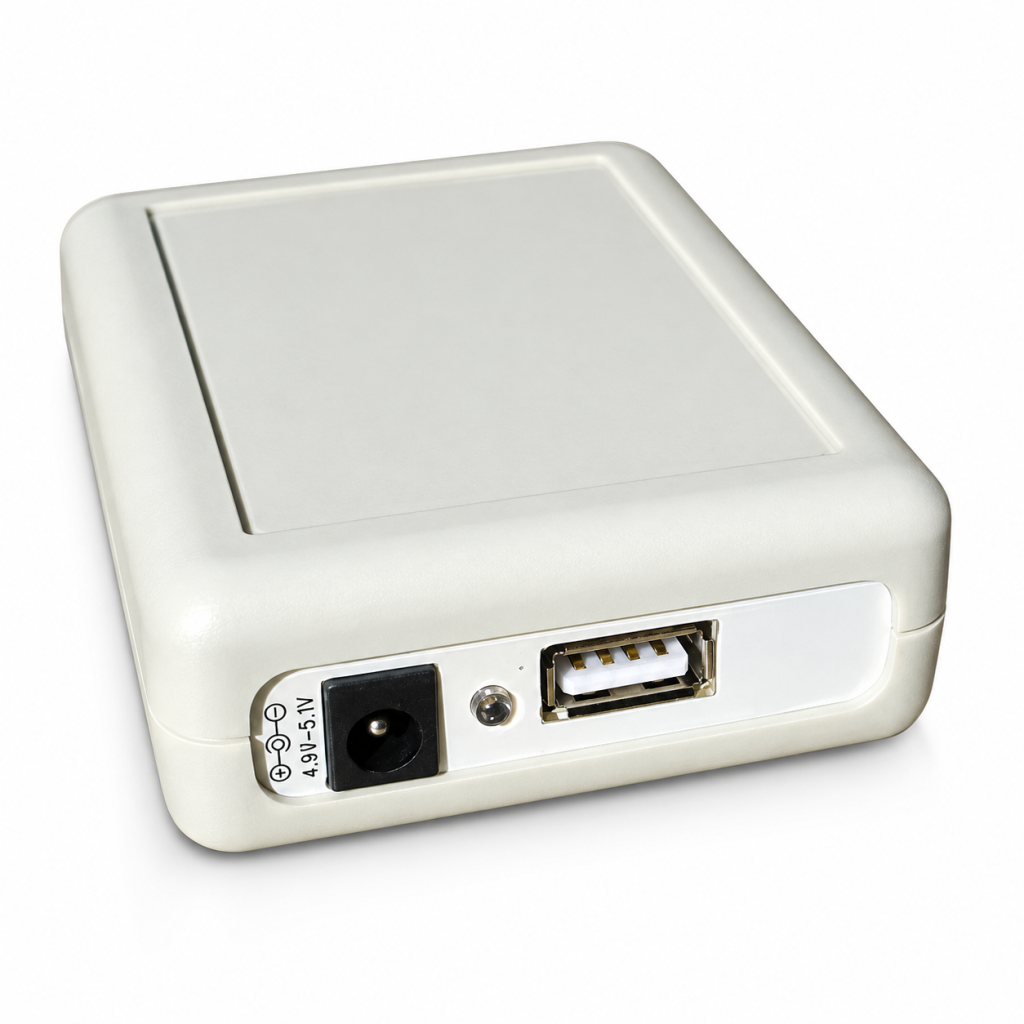

Power is provided from the computer’s USB port, however an external power supply can be connected to the isolator if your USB device has a high current consumption (400mA or more). Ensuring sufficient USB power is crucial to prevent noise in audio interfaces. Adding an external 5V power supply will ensure that the connected USB device(s) will get sufficient power. Using devices with their own power supply can also help resolve ground loop issues. Power is isolated by a 2 watt regulated DC-DC converter with an isolation of 3000V.
A LED indication light indicates when the isolator is turned on.

Using proper USB ports is crucial to avoid ground loop noise.

This USB ground loop isolator is particularly useful for USB powered devices, which often face challenges with ground loop noise and insufficient power from USB ports.

Introduction

A ground loop is a common issue that can cause hum or noise in audio equipment, and it can be particularly problematic when using USB devices. In this article, we will explore the concept of ground loops, what causes them, and how to solve them using a USB isolator. We will also discuss the benefits of using a USB isolator and provide troubleshooting tips for ground loop issues.

What is a USB Ground Loop?

A ground loop is a condition that occurs when there is a difference in electrical potential between two or more devices connected to a common ground. This can cause a current to flow through the ground connection, resulting in hum or noise in audio equipment. Ground loops can be caused by a variety of factors, including using a USB hub or extension cable that is not properly grounded, connecting multiple devices to a single power source, or using a device that is not designed to handle the power requirements of the connected devices.

Definition and Explanation

A ground loop is an electrical phenomenon that occurs when there is a difference in electrical potential between two or more devices connected to a common ground. This difference in potential can cause a flow of current through the ground connection, resulting in noise, hum, or other unwanted signals in audio equipment. Ground loops are particularly problematic in audio systems, where they can cause distortion, noise, and other issues that degrade the quality of the audio signal. Understanding ground loops is crucial for anyone dealing with audio equipment, as they can significantly impact the performance and clarity of the sound.

Causes of Ground Loops

Ground loops can be caused by a variety of factors, including:

• Using a USB hub or extension cable that is not properly grounded: Improper grounding can create a difference in electrical potential, leading to ground loops.

• Connecting multiple devices to a single power source: This can create a shared ground path, increasing the risk of ground loops.

• Using a device that is not designed to handle the power requirements of the connected devices: Overloading a device can cause ground loops due to insufficient power handling.

• Using a device with a faulty or damaged power supply: A damaged power supply can introduce noise and create ground loops.

• Using a device with a poor quality power source: Low-quality power sources can introduce electrical noise, leading to ground loops.

Additionally, ground loops can be caused by the use of USB cables that are not properly shielded or that have poor quality connectors. These cables can allow electromagnetic interference (EMI) to enter the system, exacerbating ground loop issues. Ensuring that your USB cables are of high quality and properly shielded can help mitigate these problems.

Common Scenarios

Ground loops can occur in a variety of common scenarios, including:

• Connecting a USB audio device to a computer and a separate power source: This setup can create a difference in electrical potential, leading to ground loops.

• Using a USB hub to connect multiple devices to a single computer: A shared ground path in this scenario can increase the risk of ground loops.

• Connecting a USB device to a power source that is not properly grounded: Improper grounding can cause ground loops and introduce noise into the audio signal.

• Using a USB cable that is not properly shielded or that has poor quality connectors: Poor quality cables can allow EMI to enter the system, causing ground loops.

In each of these scenarios, the potential for ground loops exists, and they can cause significant problems with the audio signal. Using high-quality USB cables and ensuring proper grounding can help prevent these issues.

Effects of Ground Loops on Audio Signals

Ground loops can have a significant impact on audio signals, causing a range of problems including:

• Distortion: Ground loops can cause distortion in the audio signal, resulting in a loss of clarity and definition.

• Noise: Ground loops can introduce noise into the audio signal, resulting in a hissing or humming sound.

• Hum: Ground loops can cause a low-frequency hum to be introduced into the audio signal, resulting in a loss of bass response and clarity.

These effects can severely degrade the quality of the audio signal, making it essential to address ground loop issues promptly.

Audio Distortion and Noise

Ground loops can cause a range of audio distortion and noise problems, including:

• Intermodulation distortion: This occurs when the ground loop causes the audio signal to be modulated by the noise signal, resulting in a loss of clarity and definition.

• Harmonic distortion: This occurs when the ground loop causes the audio signal to be distorted by the introduction of harmonics, resulting in a loss of clarity and definition.

• Noise floor: This occurs when the ground loop causes the noise floor of the audio signal to be raised, resulting in a loss of signal-to-noise ratio and clarity.

In each of these cases, the use of a high-quality USB isolator can help to eliminate the ground loop and prevent distortion and noise from entering the audio signal. By breaking the ground loop, a USB isolator ensures that the audio signal remains clean and free from unwanted noise and distortion, providing a better listening experience.

What is a USB Ground Loop Isolator?

A USB isolator is a device that separates the power and data signals in a USB connection, preventing ground loops and electrical noise from affecting the connected devices. USB isolators work by creating a new ground for the USB device, so it doesn’t have to share ground with the computer and other devices that may be connected to the same power source. This can improve the quality of the DC voltage that powers the USB device, reducing noise and hum in audio equipment.

Benefits of Using a USB Ground Loop Isolator

Using a USB ground loop isolator can provide several benefits, including:

• Reducing ground loops and electrical noise in audio equipment

• Improving the quality of the DC voltage that powers the USB device

• Protecting the USB device and host from electrical shocks or static electricity shocks

• Improving the performance of sensitive equipment like audio converters

• Providing a clean and stable power supply to the connected devices

Troubleshooting Ground Loop Issues

If you are experiencing ground loop issues, there are several steps you can take to troubleshoot the problem:

• Check the USB connection and make sure it is properly grounded

• Use a USB isolator to separate the power and data signals

• Use a device with a built-in ground loop isolator

• Use a device with a separate power supply

• Use a device with a high-quality power source

• Use a device that is designed to handle the power requirements of the connected devices

By following these steps, you can identify and solve ground loop issues, ensuring that your audio equipment operates smoothly and without noise or hum.
