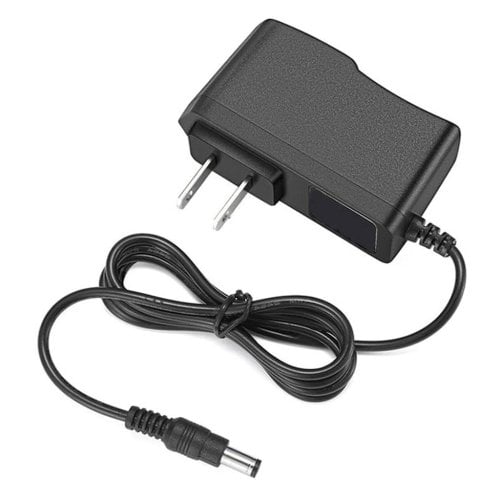

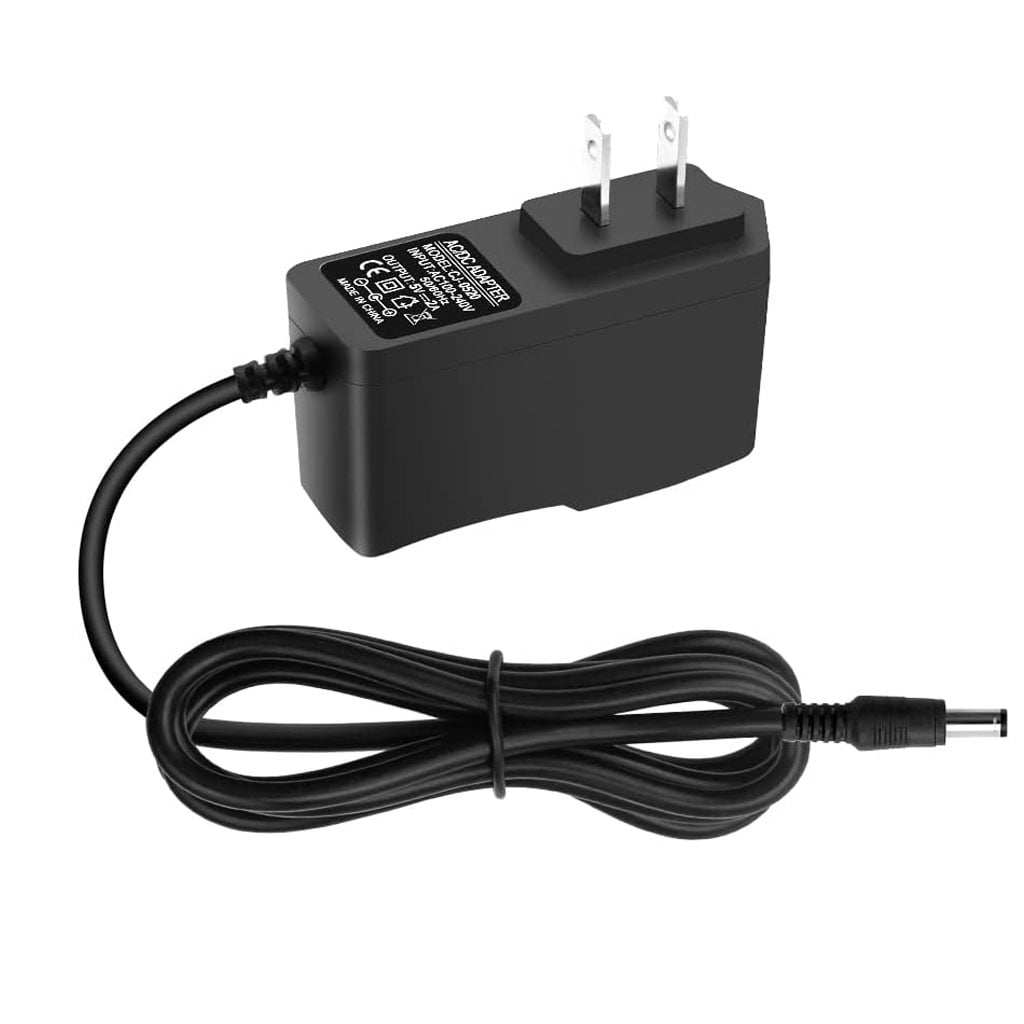

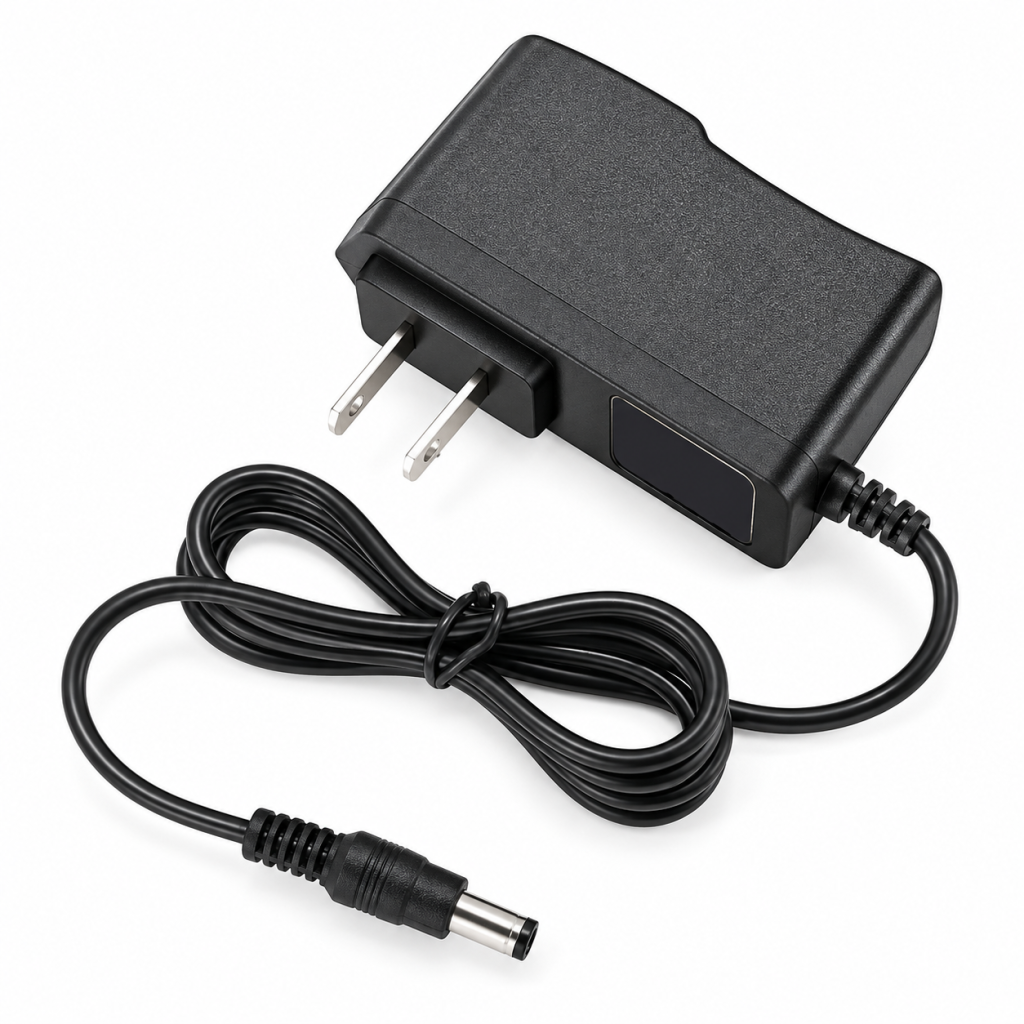

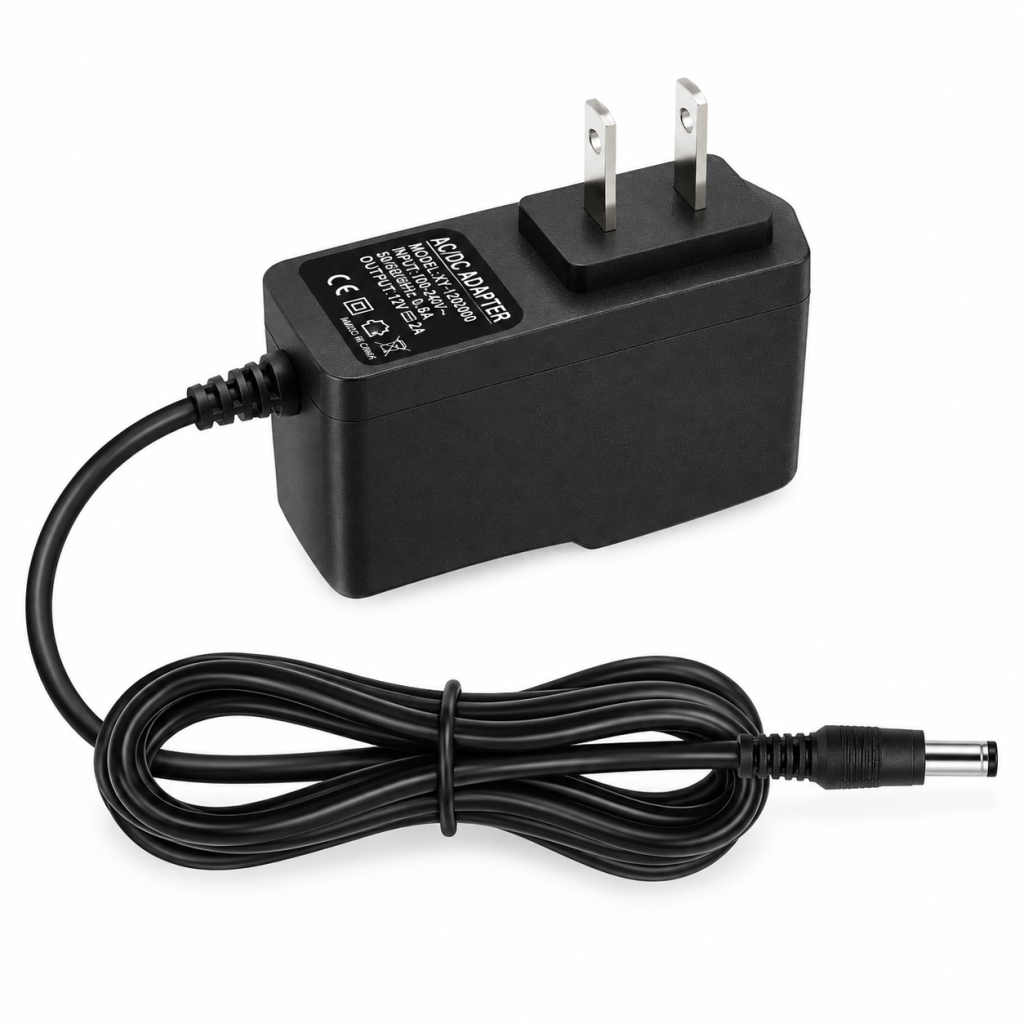

AC-DC adapter. This is a standard 110/240VAC to 5VDC 1000mA power supply compatible with US power plugs. It can be used to power our serial converters and all other products requiring a stable 5VDC supply.
| SPECIFICATIONS |
| Part number |
PWR5V |
| Input |
AC input voltage: 110 - 240 VAC
AC input frequency: 47Hz - 63Hz
AC input current: 0.3A max.
Max. inrush current: 30A max.
Leakage current: max. 0.75 mA
Efficiency: 70% typical at full load
No load power consumption 0.5W |
| Output |
DC output voltage: +5VDC
Load min: 0.0A
Load max: 1.0A |

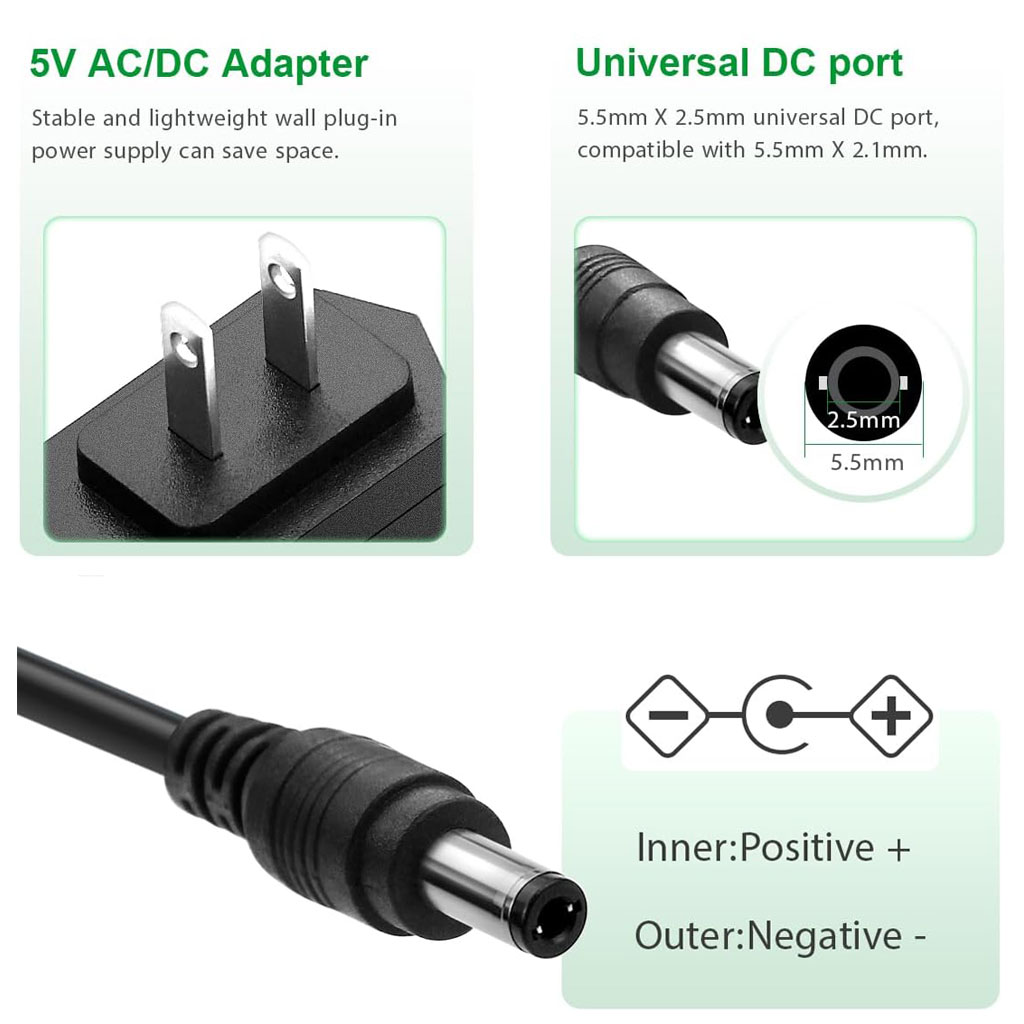

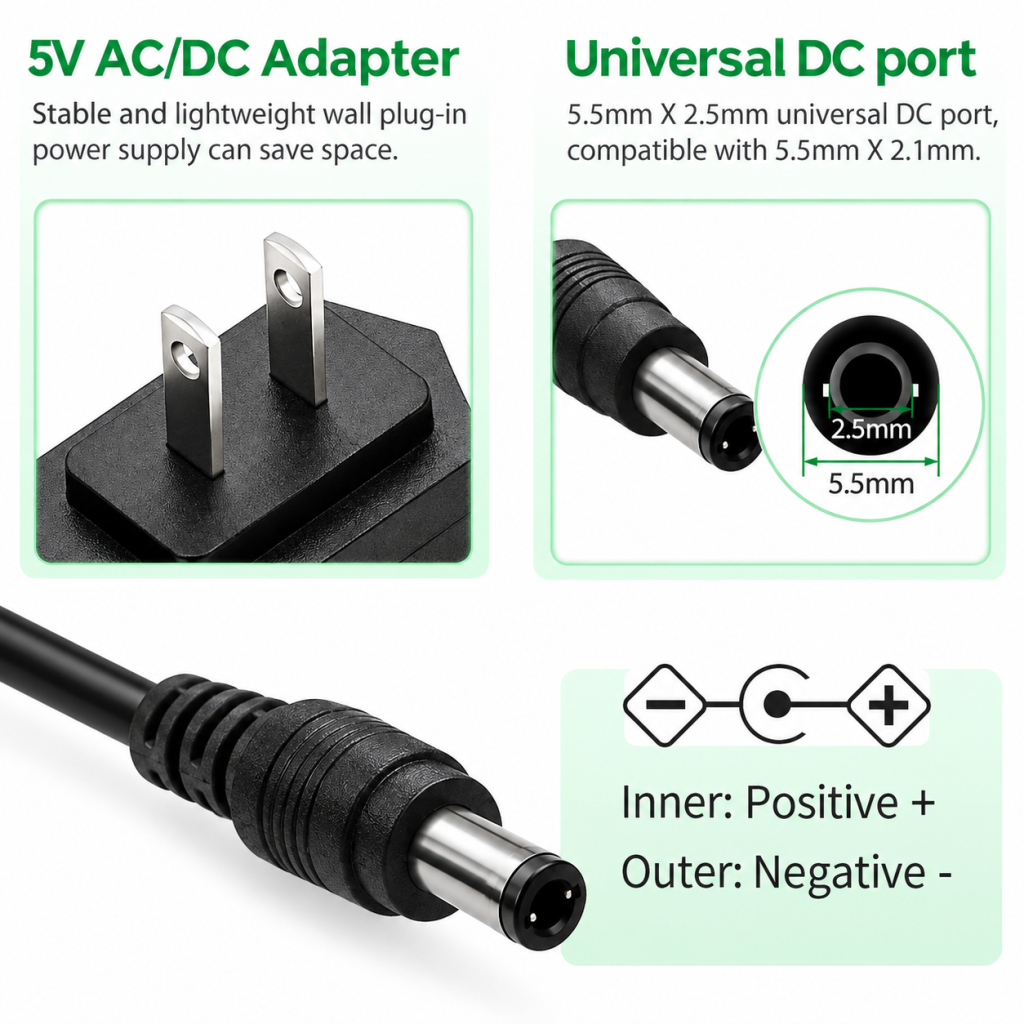

| Polarity |
Center + |
| Protection |
Short circuit protection: automatic recovery |
| Environment |
Operating temperature: 0 to 40 degrees C |
| Humidity |
20% to 80% RH
Storage temperature: -20 to +70 degrees C
Storage humidity: 10% to 90% RH |

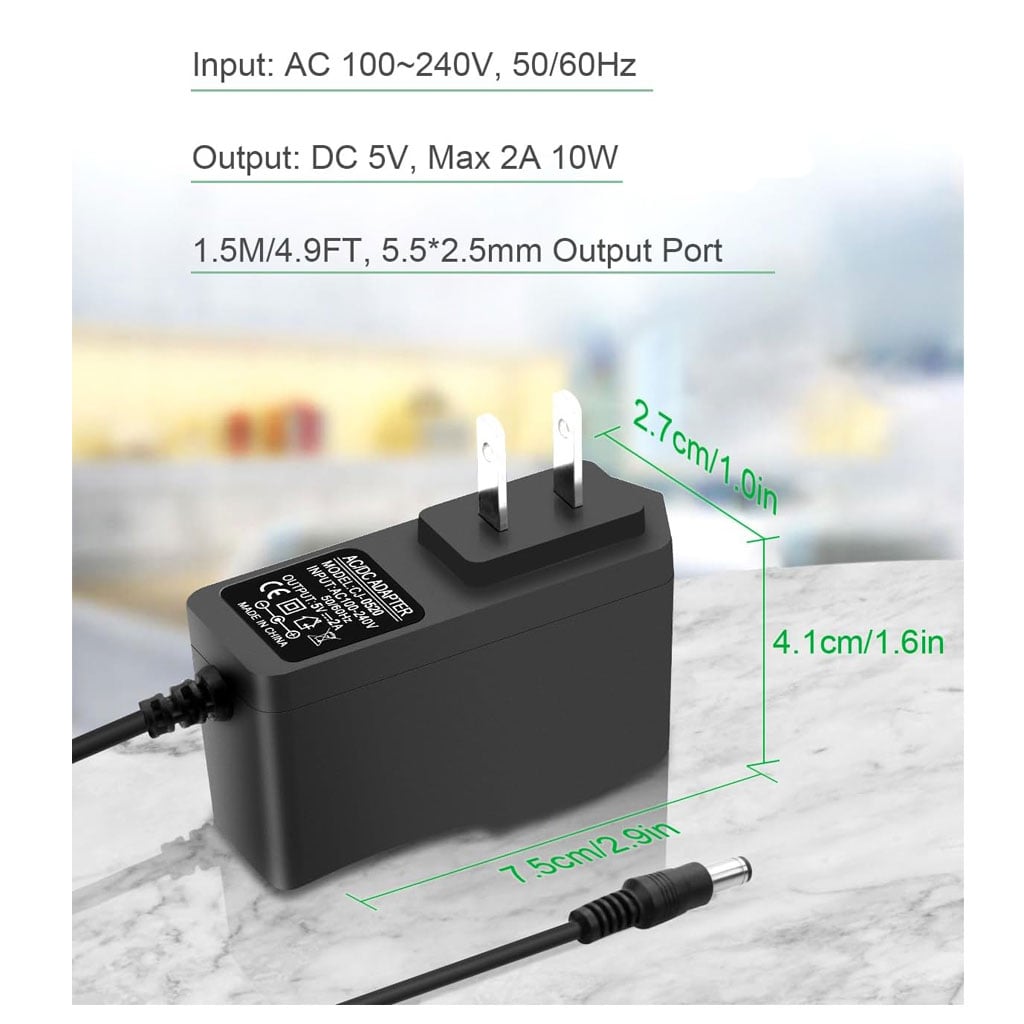

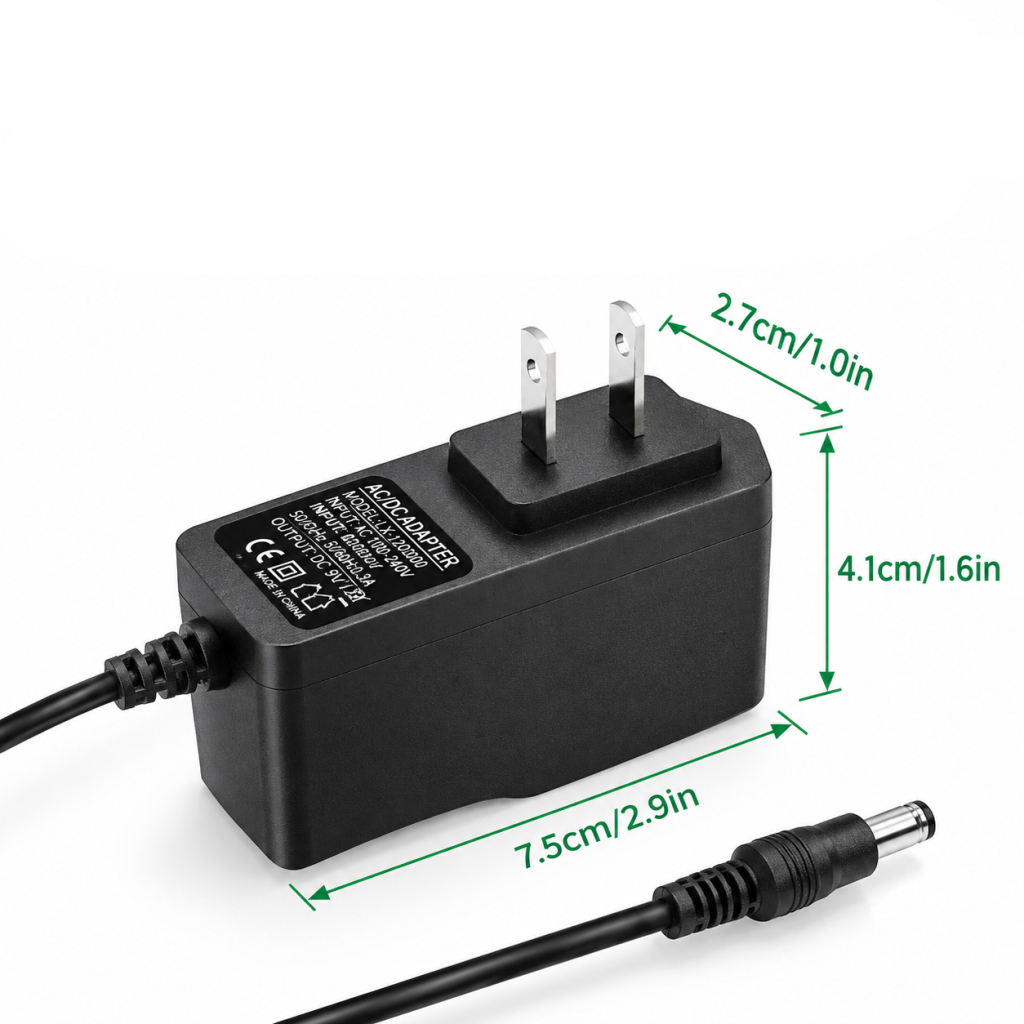

| Mechanical |
Standard plastic case
50 x 25 x 28.5mm
Cord length: 110 cm (43 inches)
Output Jack: 5.5mm (outside) x 2.5mm (inside) |
