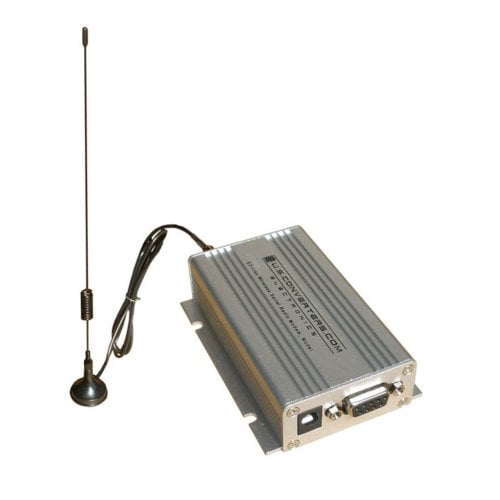

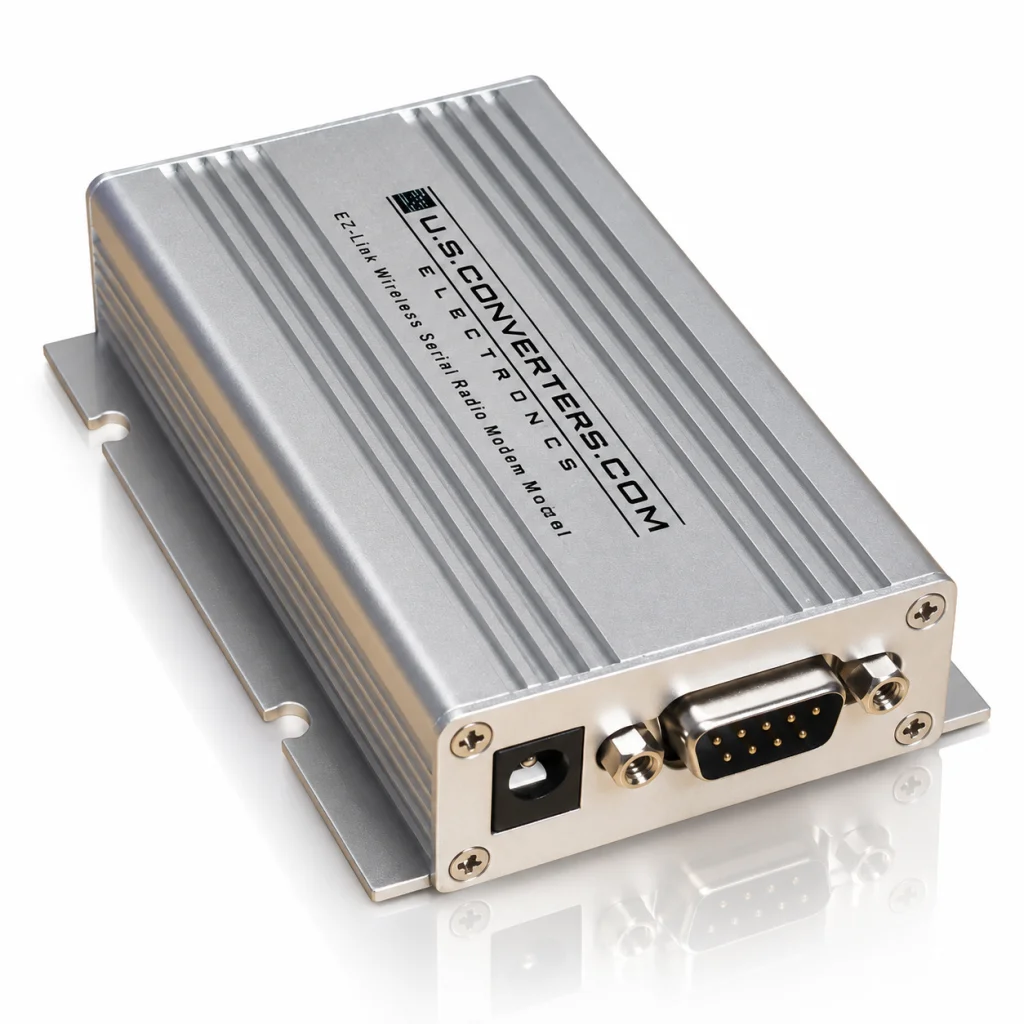

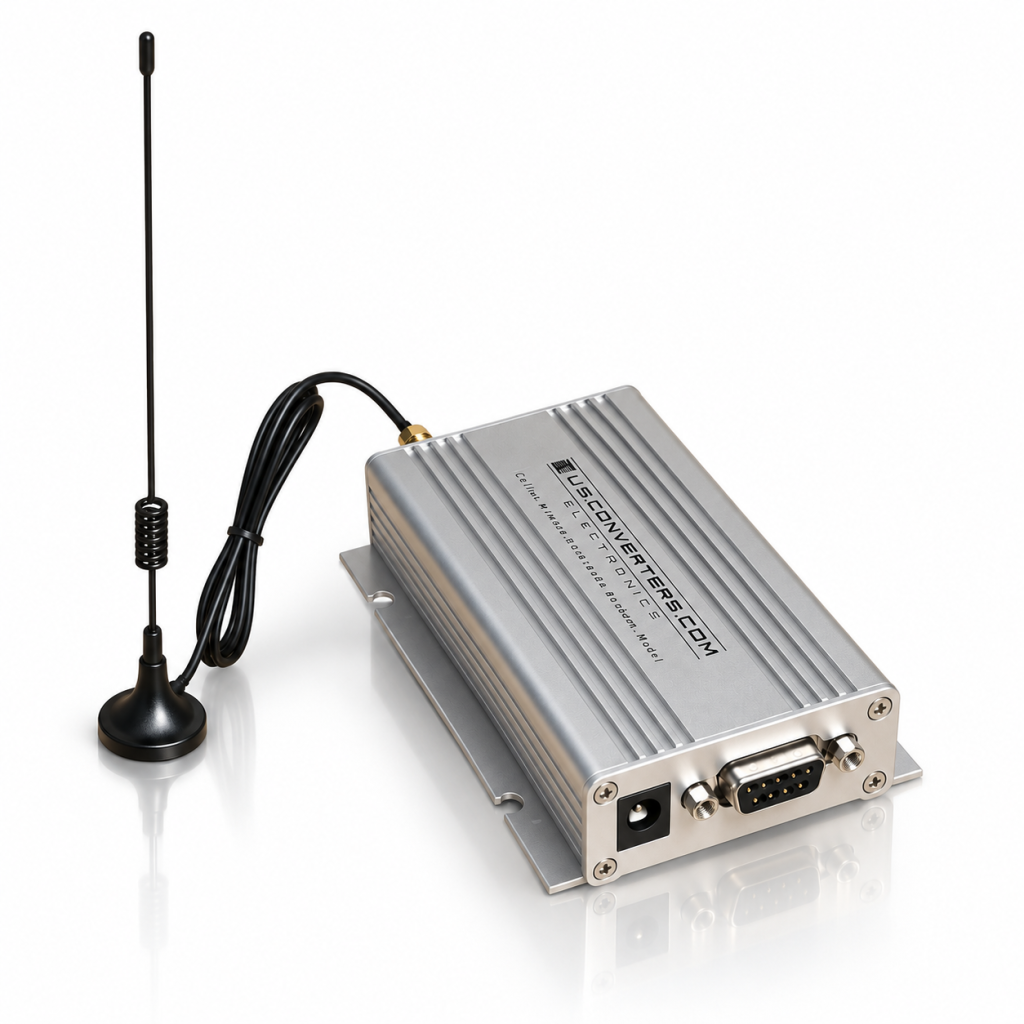

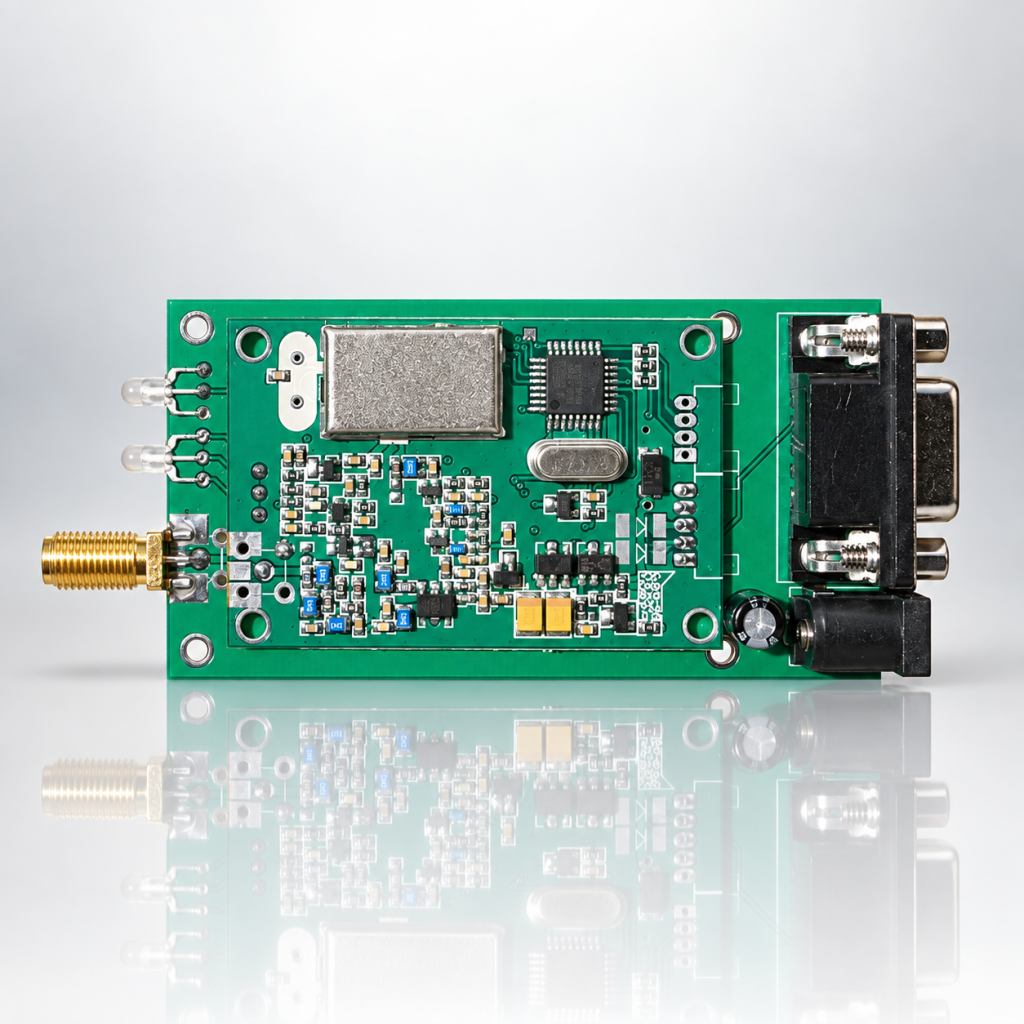

Serial RS232 Wireless RF Radio, PRO, 9800 FT


  • Part: EZ500B
  • In Stock

$139.95

Add to Cart:

Add Accessories:





Description

The EZ500B is a light-industrial grade serial RS232 RF radio modem similar to our EZ50 radio but with with a high power output of 500mW allowing an extra long communication range of up to 9800 feet. It will allow you to send and receive wireless serial data between two serial devices or computers.

The advantage of a serial RF radio such as this is that it can be used without an operating system as a host. An operating system is only required to configure the parameters of the radio.
The parameters can be configured through the serial port of the radio by using the downloadable configuration utility. If your computer does not have an available COM port we strongly recommend using a high quality USB to serial adapter such as our part XS8801 for configuring the parameters.

This radio works in the unlicensed 915Mhz frequency band so no radio license is required.
It is ideal for most types of wireless serial communication of manufacturing machinery, CNC's, PLC's, printers, bar-code scanners or even home automation control.

With the included configuration software each RS232 serial wireless radio can be configured with custom data settings which includes baud rates, parity bit and channel frequency.
Each radio has 16 channels so multiple radio pairs can operate at the same location without interference. It is ideal for point-to-point communication which makes setting up a communication link fast and easy; however point-to-multi-point configurations can also be setup without problems.

Each package contains one RS232 serial wireless radio which works as a transceiver, meaning it can both transmit and receive data, however not simultaneously (half-duplex only). You will need two radios to setup a communication link. Included with each radio is a male / female serial cable and a USB/DC adapter cable to power the radio from a USB port.

This radio can be powered through the included USB cable or an external standard wall plug 110VAC/5VDC adapter, which is sold separately.

serial wireless adapter setup

Overall features
  • Serial RS232 interface
  • Frequency 915MHz
  • RF power: 500mW/ 27dBm
  • 16 individual channels
  • Baud rates: 9600 to 38400bps
  • Typ. range 3000m (9800 ft) at 1200bps
  • Operating system: Windows XP, Vista, 7, 8, 10
  • Power supply: 5VDC
Included items
  • Serial RF transciever
  • USB/DC adapter cable
  • Male/Female DB9 serial cable

Resources


Useful optional accessories
(not included)

usb power supply
110V/5VDC Power adapter



Battery pack
Rechargeable battery pack



gender changer
Gender Changer



null modem adapter
Null modem adapter
SPECIFICATIONS
Model number EZ500B
Operating system for configuration software Windows XP, Vista, 7, 8, 10

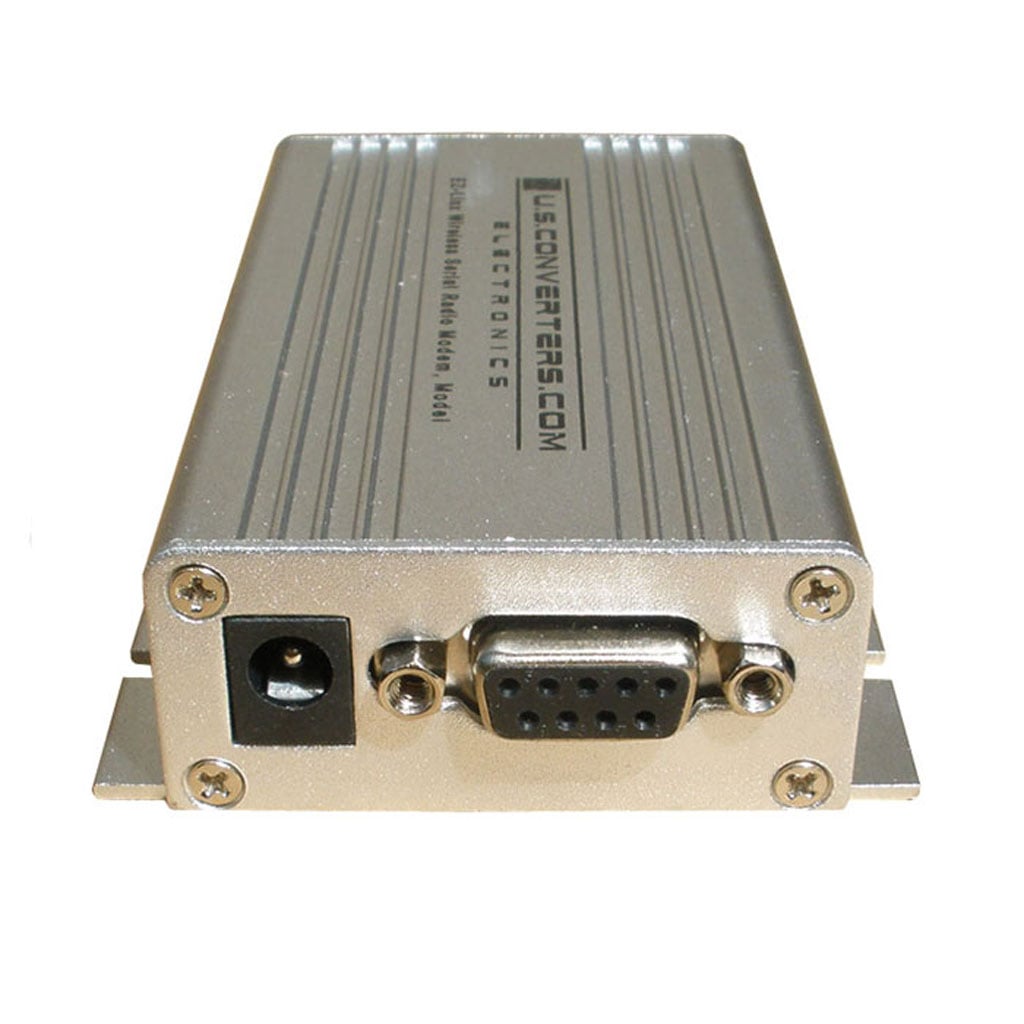

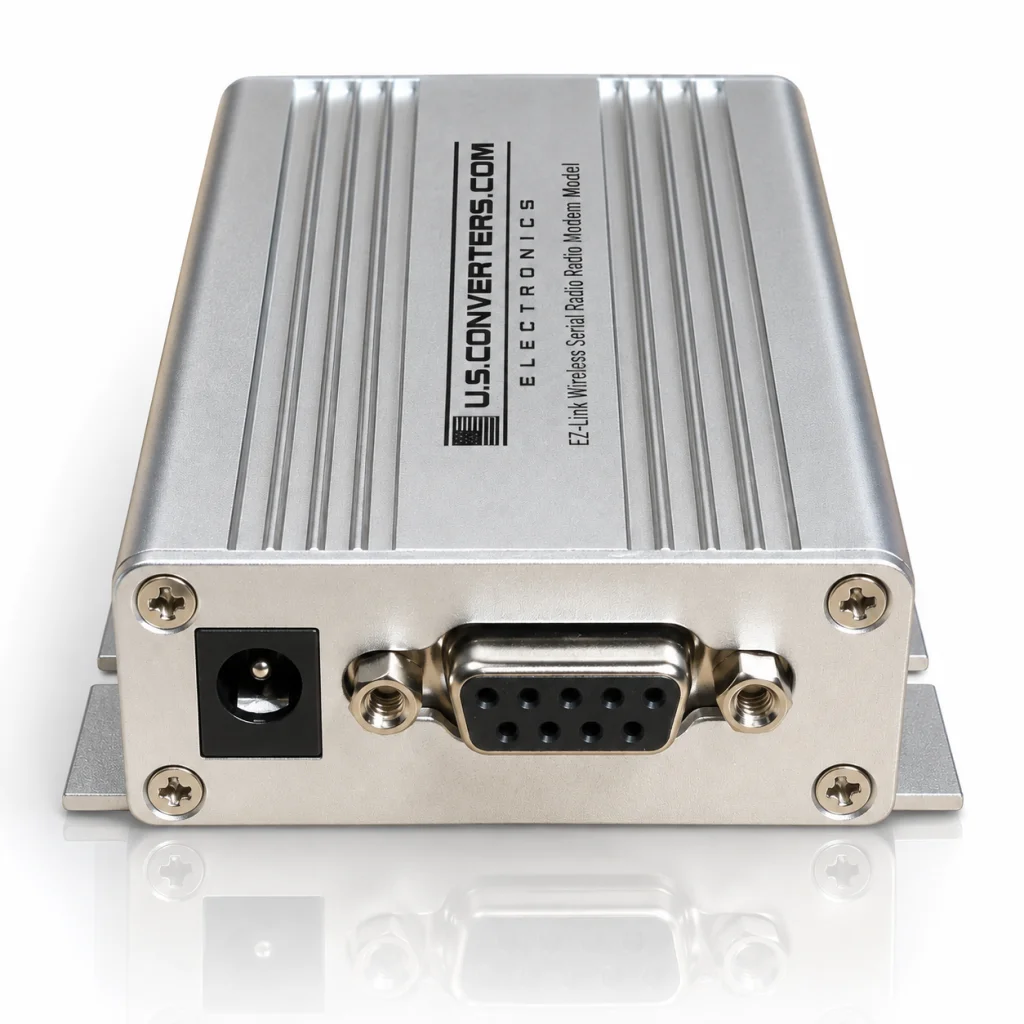

Interface RS232, DB9 Female
RF power 500mW/ 27dBm
Communication mode Half duplex
Frequency range 912 - 915Mhz
Number of channels 16
Baud rates 1200, 2400, 4800, 9600, 19200, 38400bps
Parity None, Even, Odd
Stop bits 1
Buffer size 512 bytes
Typ communication range 3000m (9800 ft) at 1200bps
Data bits 8 (6 and 7 bits not supported)

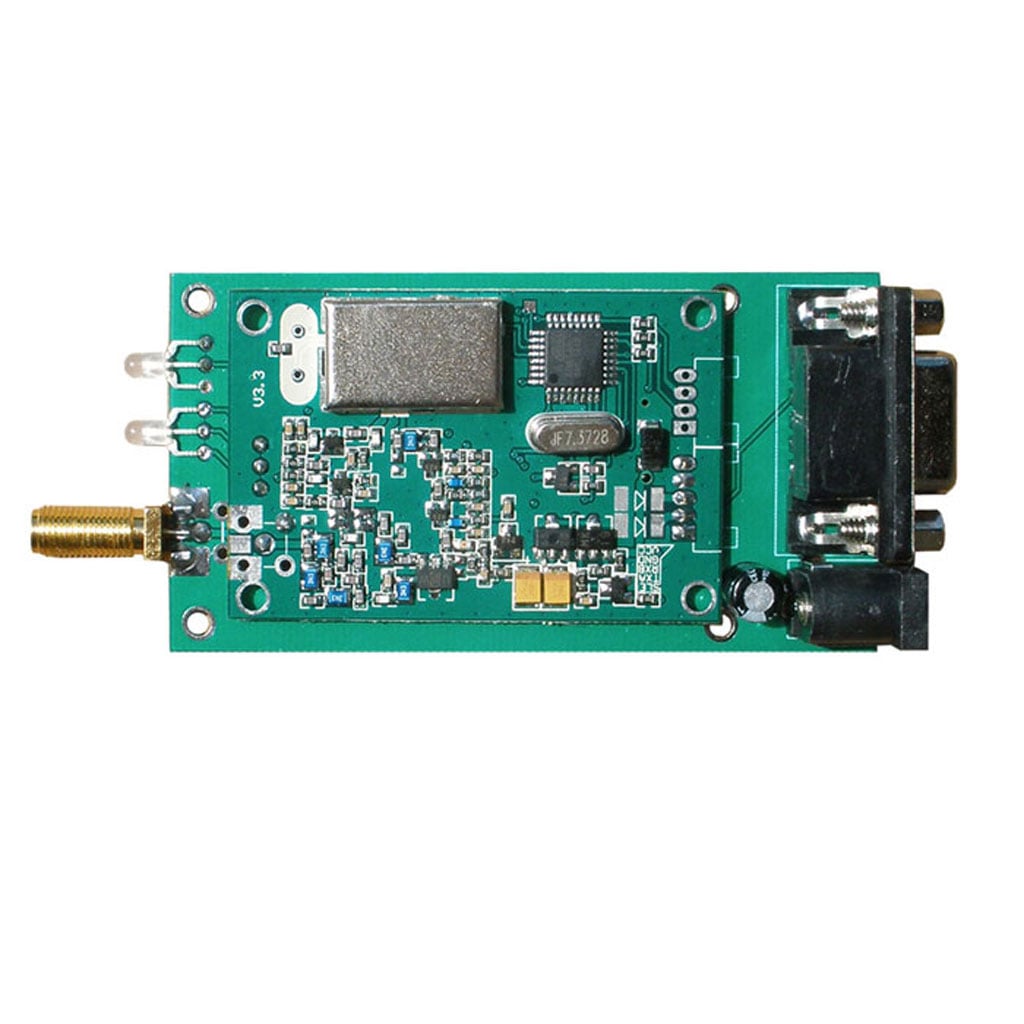

Processor Atmel ATMEGA8L
Modulation GFSK
Receiver sensitivity -123dBm
Receiving current less than 45mA
Transmitting current less than 360mA
Sleep Current less than 1mA
Size 91 × 64 × 23mm
Power supply 4.5V -5.5VDC by USB or other external power source. (Absolute max voltage: 6VDC). Minimum 200mA recommended.
Working temperature -20C to 75C

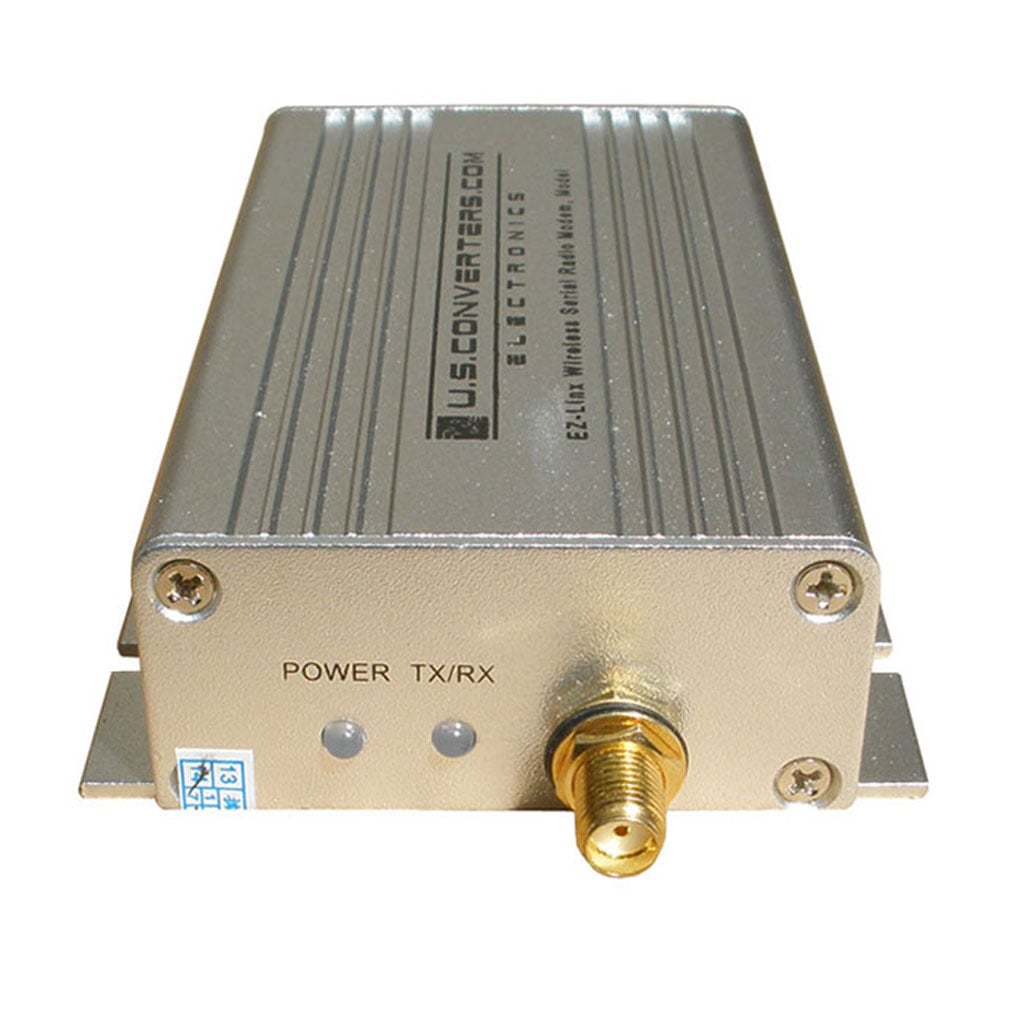

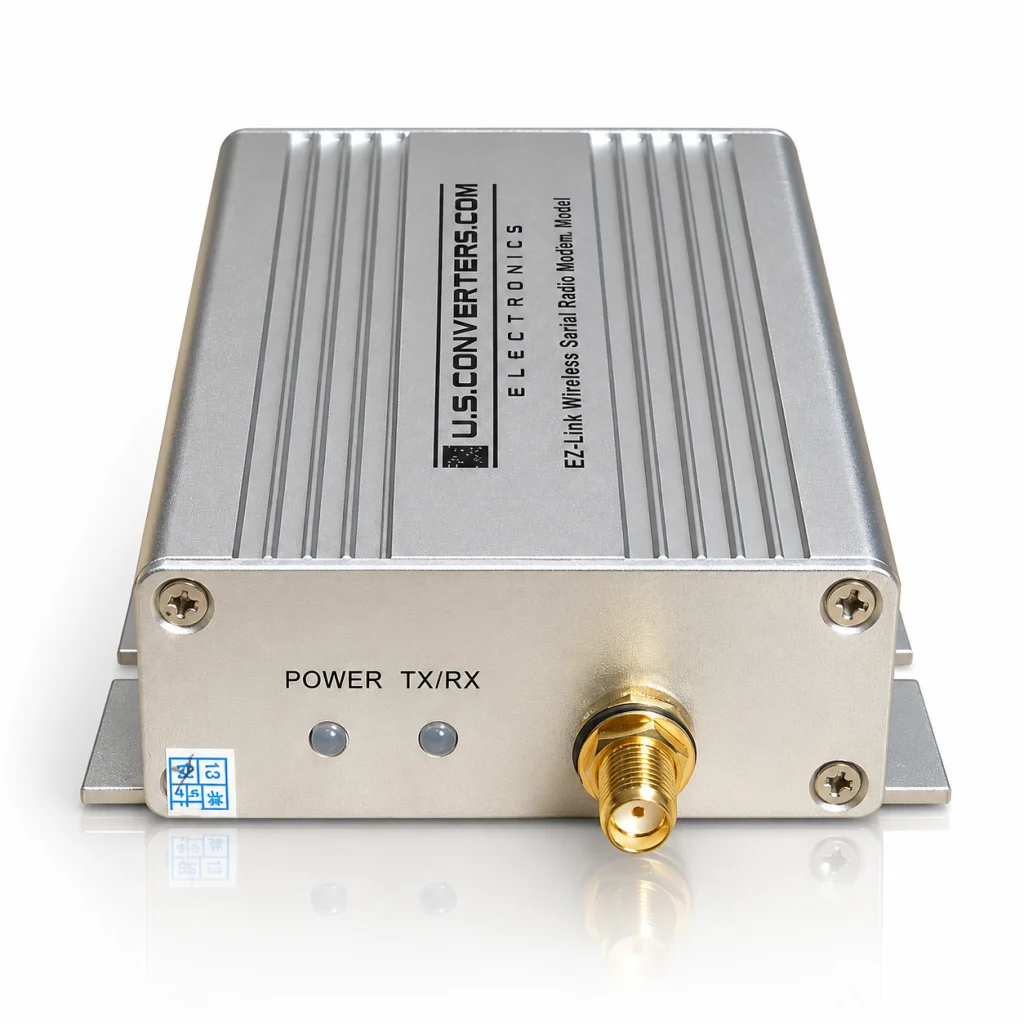

Antenna 50 ohm SMA male

For alternative wireless serial solutions please see our full selection of wireless RS232 adapters.
