Serial WiFi Adapter - RS232, Industrial


  • Model: WF5000B
  • In Stock

$95.00

Add to Cart:

Add Accessories:



Description

Here is a light-industrial grade serial RS232 to WiFi adapter which can be used to connect any standard RS232 serial device to a computer over an open or secure wireless network.

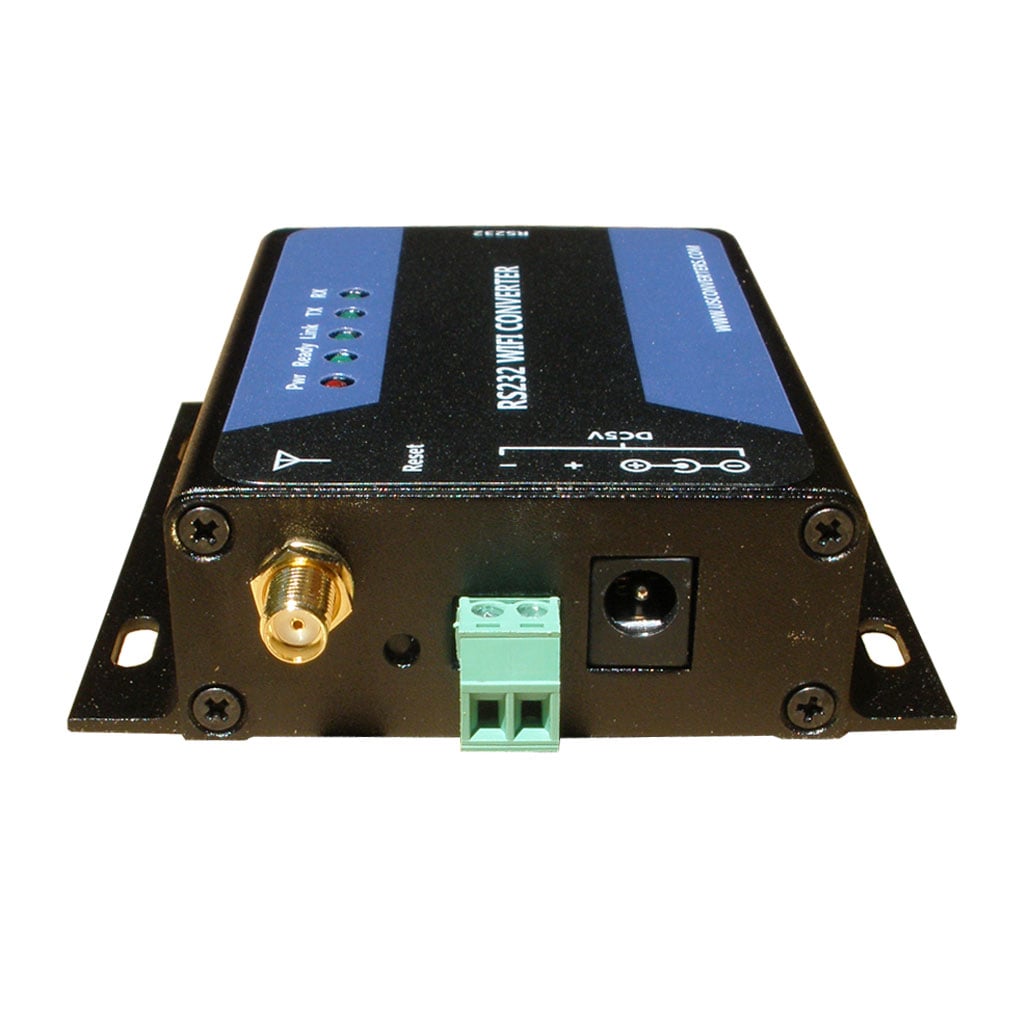

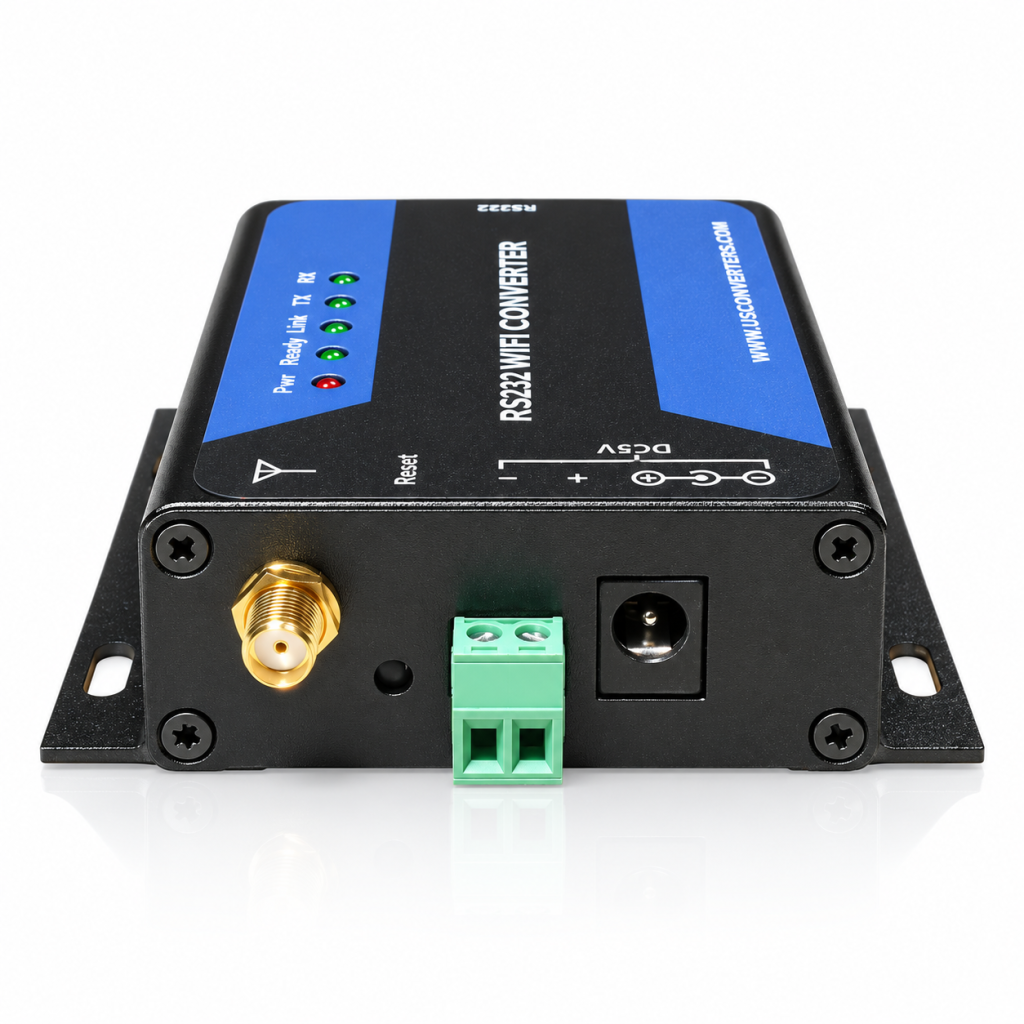

It has a strong aluminum housing with screw mounting holes for easy installation which makes it ideal for most factory environments and other commercial facilities.

This serial RS232 to WiFi adapter is designed around a Ralink MTK7688 processor which is a basic and reliable processor ensuring high-performance and reliability with basic functions.

Supported network protocols are TCP, UDP, ARP, ICMP, DHCP, DNS, HTTP and Modbus TCP/RTU using 802.11b/g/n in AP or STA network modes. Supported security protocols are OPEN, SHAREDWEP, WPA-PSK and WPA2-PSK.

The adapter's parameters can be configured over WiFi by using any standard web browser or through the serial port by using the downloadable configuration software. If your computer does not have a serial port then we recommend using a good USB to serial adapter such as our XS8801.

Power for the adapter must be supplied through a standard DC jack with a voltage of 5VDC. A standard 110VAC/5VDC power supply can be used as a power source.

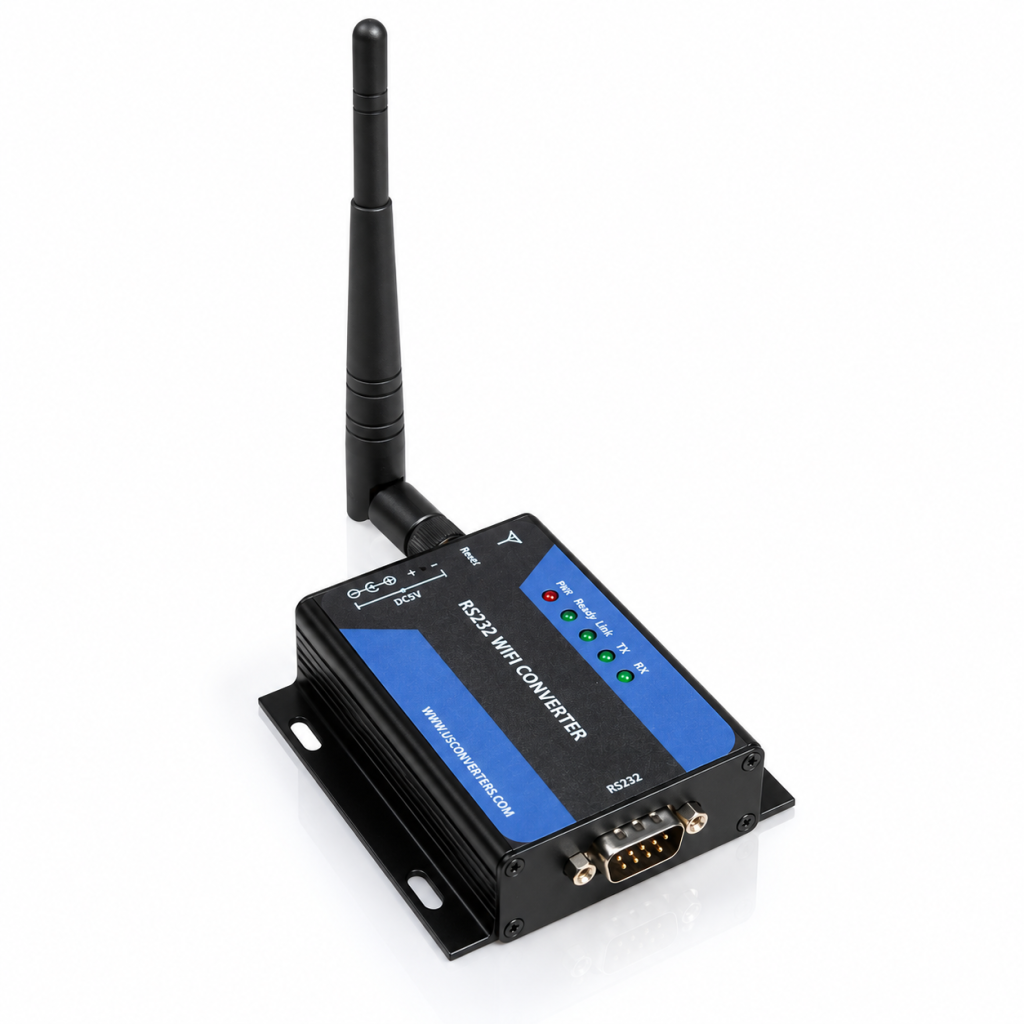

With the adapter is included a 3dBi antenna and a female/female serial null modem cable.

This adapter is ideal for most industrial environments, home automation, office, laboratory or factory environment and will allow you to connect any serial RS232 device to your WiFi network, with Windows, Android or most other mobile applications. Tested working with ASCOM drivers and most types of astronomy telescopes and software, see our Controlling a Telescope over WiFi setup guide for details.

serial wifi setup

Overall features
  • Basic and reliable serial RS232 to WiFi adapter
  • Modbus TCP/RTU support
  • Easy to setup and use
  • Parameters configurable over WiFi or serial port
  • Supports OPEN, SHAREDWEP, WPA-PSK and WPA2-PSK
  • Voltage: 5VDC
  • Supports AP and STA network modes
  • Works with most mobile devices / operating systems

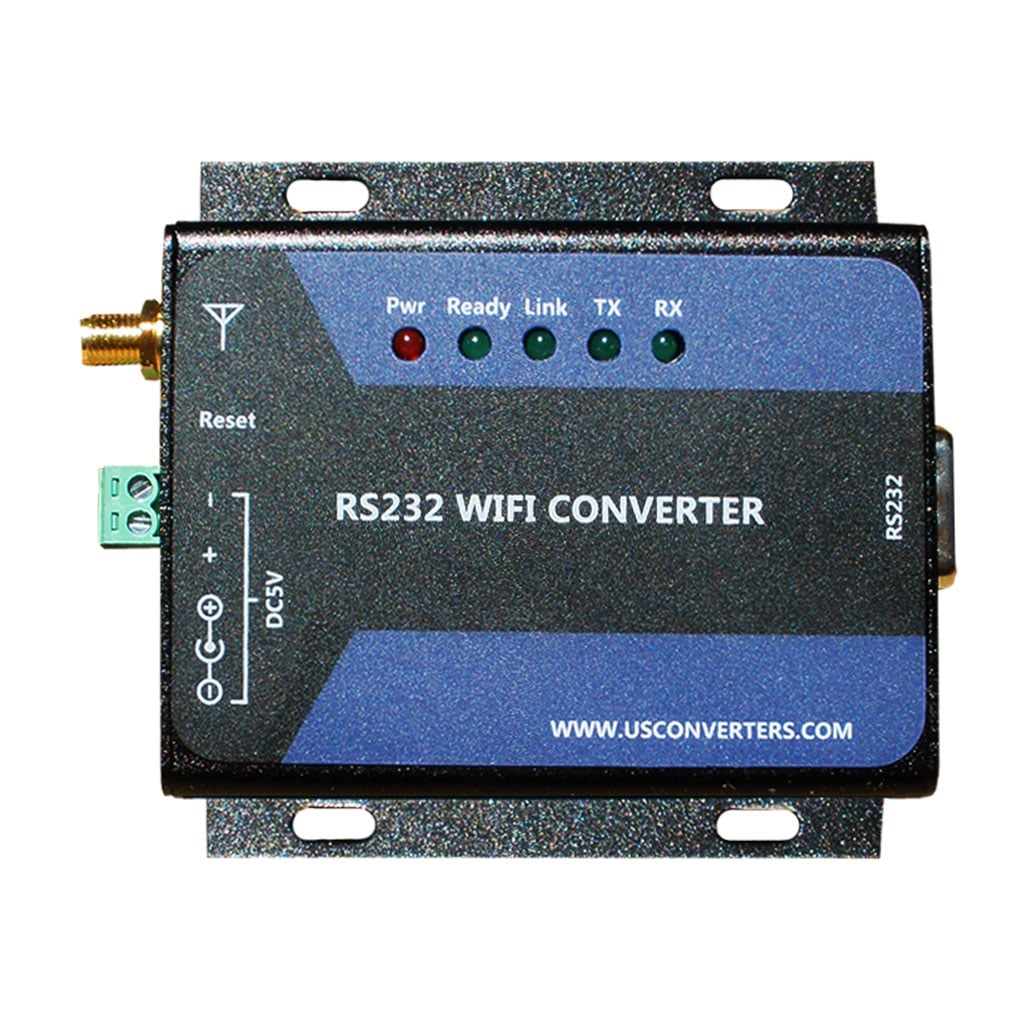

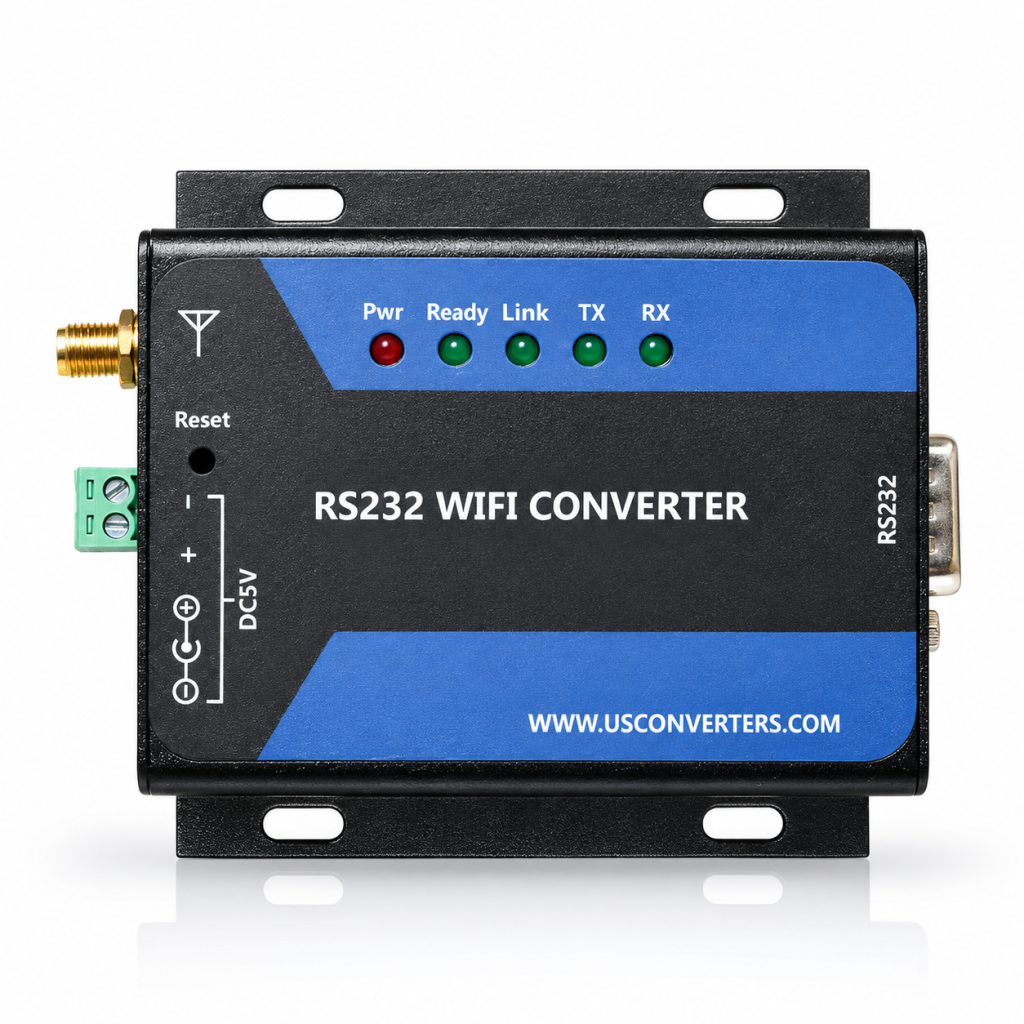

  • LED control lights for Power, Ready, Link, TX, RX
  • Female/female null modem cable included
  • Antenna included
Resources


Useful optional accessories
(not included)

Null modem adapter
Null modem adapter


DB9 to RJ45 adapter
DB9 - RJ45 adapter


DB9 gender changer
Gender Changer


5V power supply
5V Power supply
SPECIFICATIONS
Part number WF5000B
Operating system Virtual COM software available for Windows 11, 10, 8.1 / 8, 7, Vista (32/64-bit)
Processor Ralink MTK7688
Processor frequency 580MHz
Network IEEE 802.11 b/g/n
RS232 Signals TX, RX, RTS, CTS, GND

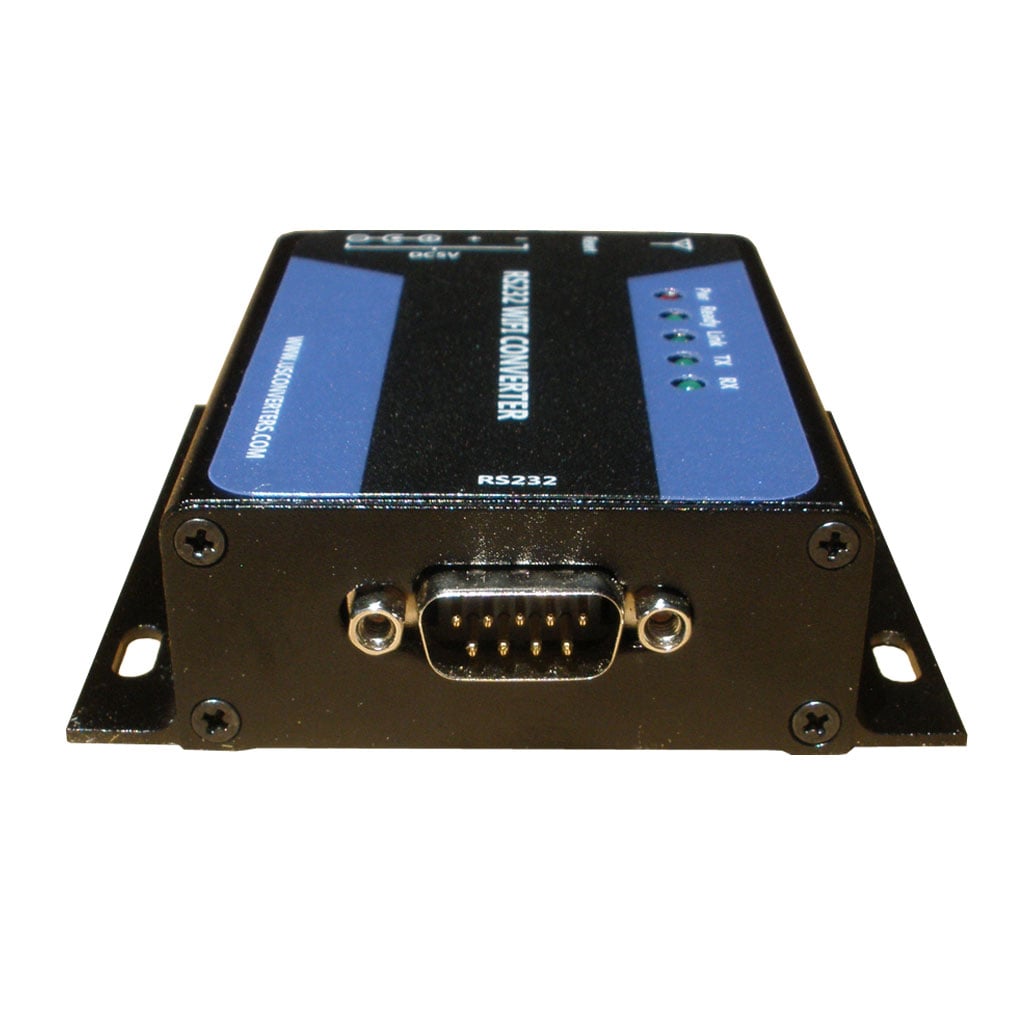

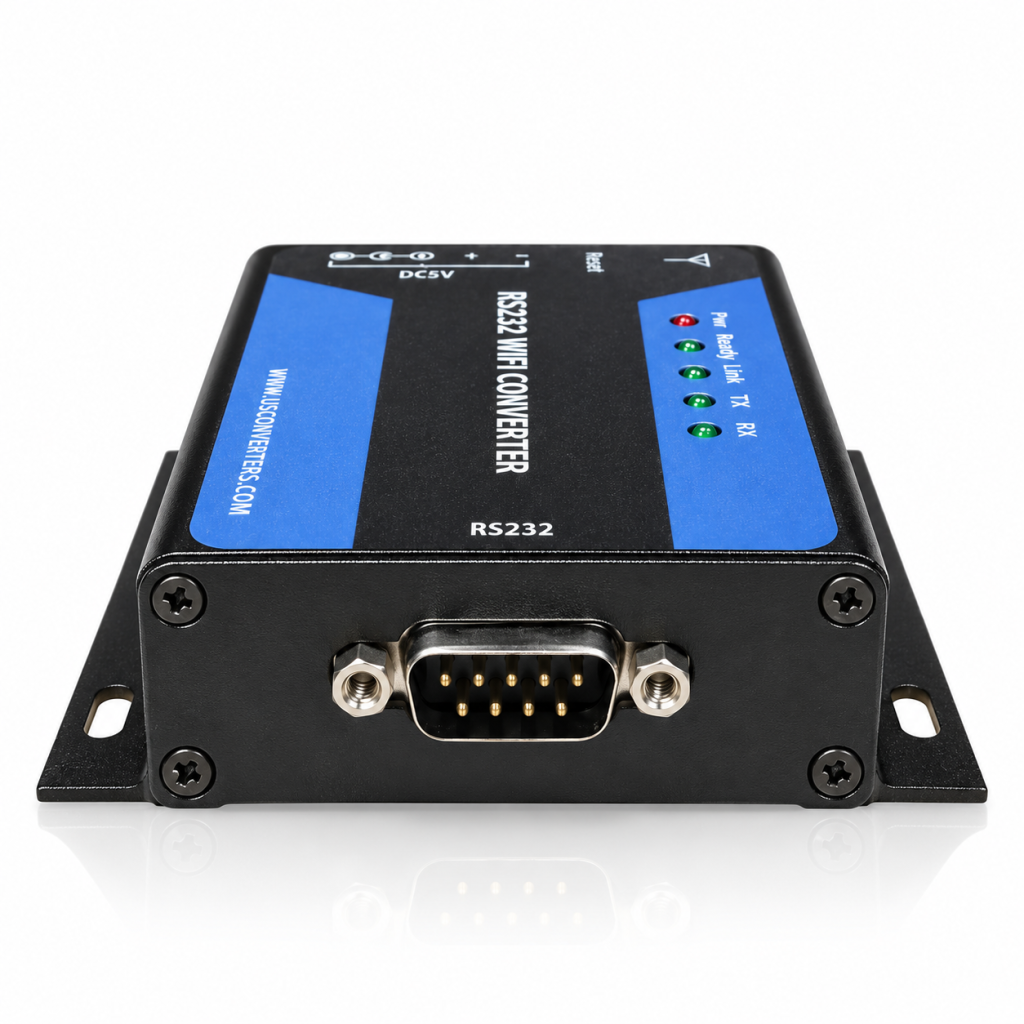

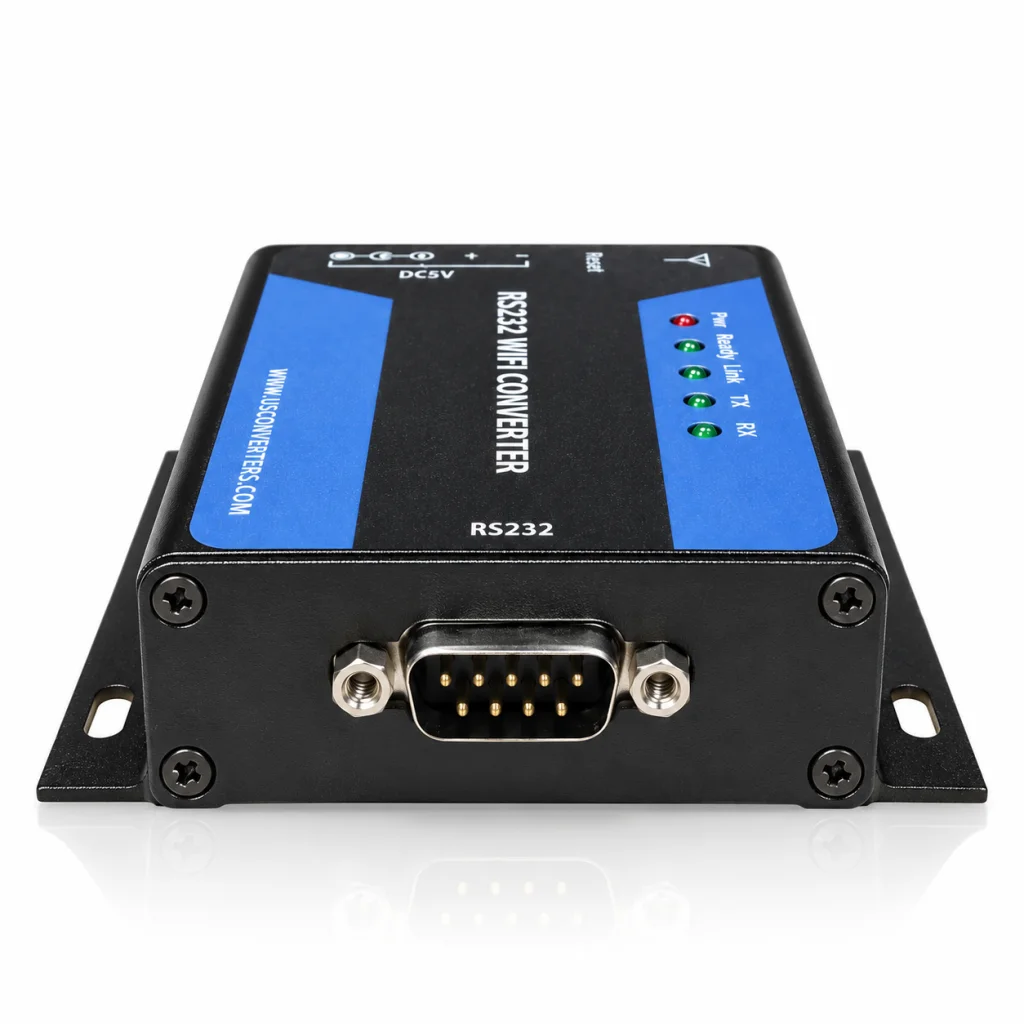

Serial port 1-port RS232 male D-sub 9-pin
Baud rates 300 - 460800bps
Data bits 5, 6, 7, 8
Parity None, Odd, Even, Mark, Space
Stop bits 1, 2
Parameter configuration Web-browser (over WiFi), by AT commands or by software utility
Buffer TX: 5Kb
RX: 5Kb
Operating distance Up to 330 feet (100 meters)
Flow control Hardware CTS/RTS, None. (Software XON/XOFF NOT supported)
Transmit power 802.11b: +20dBm(Max.)
802.11g: +18dBm(Max.)
802.11n: +15dBm(Max.)
Receiver Sensitivity 802.11b: -89dBm
802.11g: -81dBm
802.11n: -71dBm
Modulation DSSS
Frequency 2.400–2.484GHz
Security OPEN, SHAREDWEP, WPA-PSK and WPA2-PSK
Protocols TCP, UDP, ARP, ICMP, DHCP, HTTP, Modbus TCP/RTU
Max. simultaneous clients 32 Clients in TCP Server mode. All 32 can be served at the same time
Network type STA, AP
Power consumption 1000mA (max)
Antenna 2.4Ghz, 3dbi di-pole antenna, SMA male (inside threads / center pin)
Antenna connector (on converter) SMA female (outside threads / center receptacle)
Power supply 5VDC (+/-5%) max. 350mA
Operating temp. -13°F to 185°F (-25°C to 85°C)
Dimensions 83×80×25mm
Weight 205g (without antenna)
Certifications CE, FCC, ROHS

For alternative RS232 wireless solutions please see our full selection of wireless serial converters.
