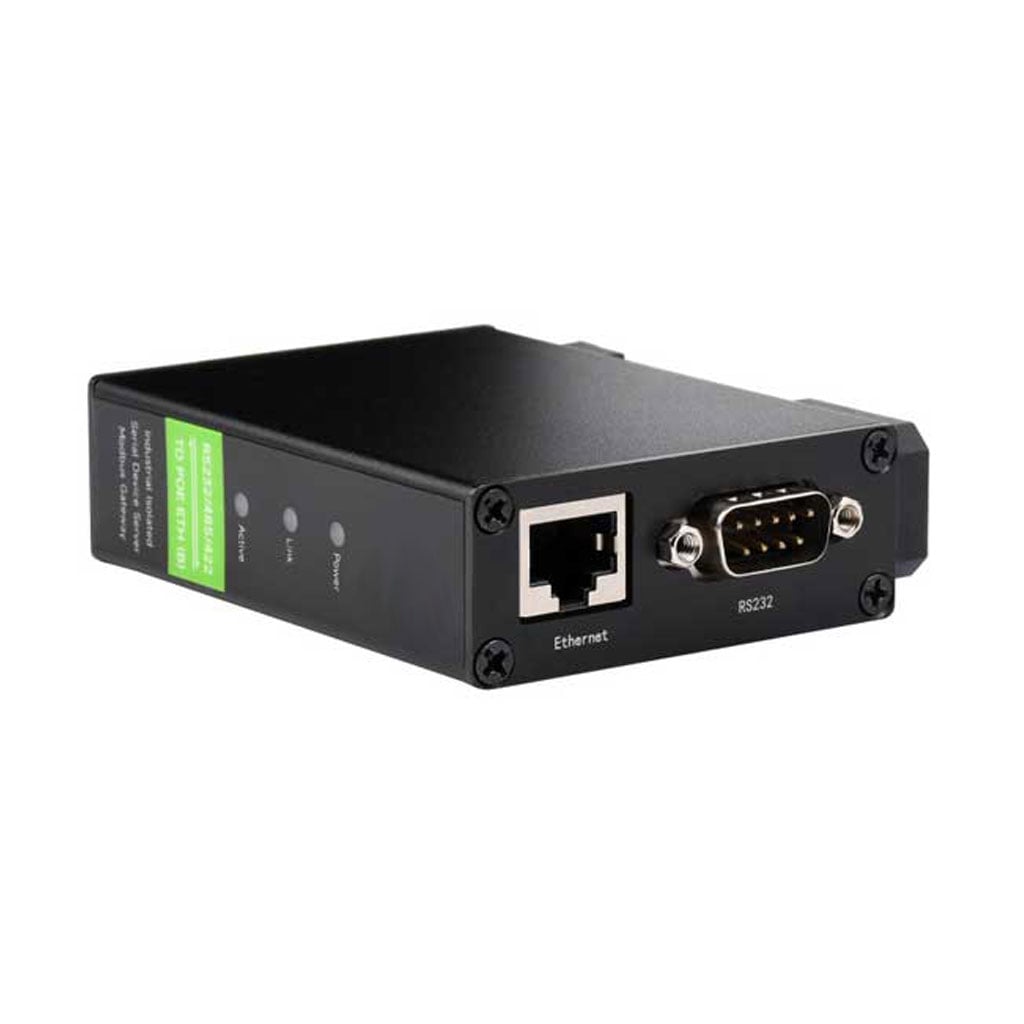

Serial to Ethernet Converter (RS232, RS485, RS422) with POE

Serial RS232, RS485, RS422 to Ethernet Converter with PoE and DIN Rail Support. Built for Engineers, by Engineers.
Bridge legacy systems with modern networks, reliably, efficiently, and intelligently.

At U.S. Converters LLC, we understand what engineers need in the field: rock-solid performance, ease of integration, and industrial durability. Our latest Serial to Ethernet Converter with PoE and DIN rail support delivers just that, a reliable solution designed to meet the demands of real-world applications.

This is a serial to Ethernet converter which supports all three serial types (RS232, RS485, RS422) designed for industrial environments and applications. It combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 / RS485 / RS422 to JSON.

Engineered for Performance:

• Multi-Protocol Support: RS-232, RS-422, RS-485 over Ethernet supporting multiple network protocols.
• Power over Ethernet (PoE): One cable for both data and power, reduce clutter, simplify installs.
• DIN Rail Mountable: Rugged industrial enclosure with easy panel integration.
• Configurable via Web Interface: Streamlined setup and diagnostics.
• Wide Voltage & Temperature Range: Built for harsh industrial environments.
• Surge & ESD Protection: Industrial-grade electrical protection out-of-the-box.

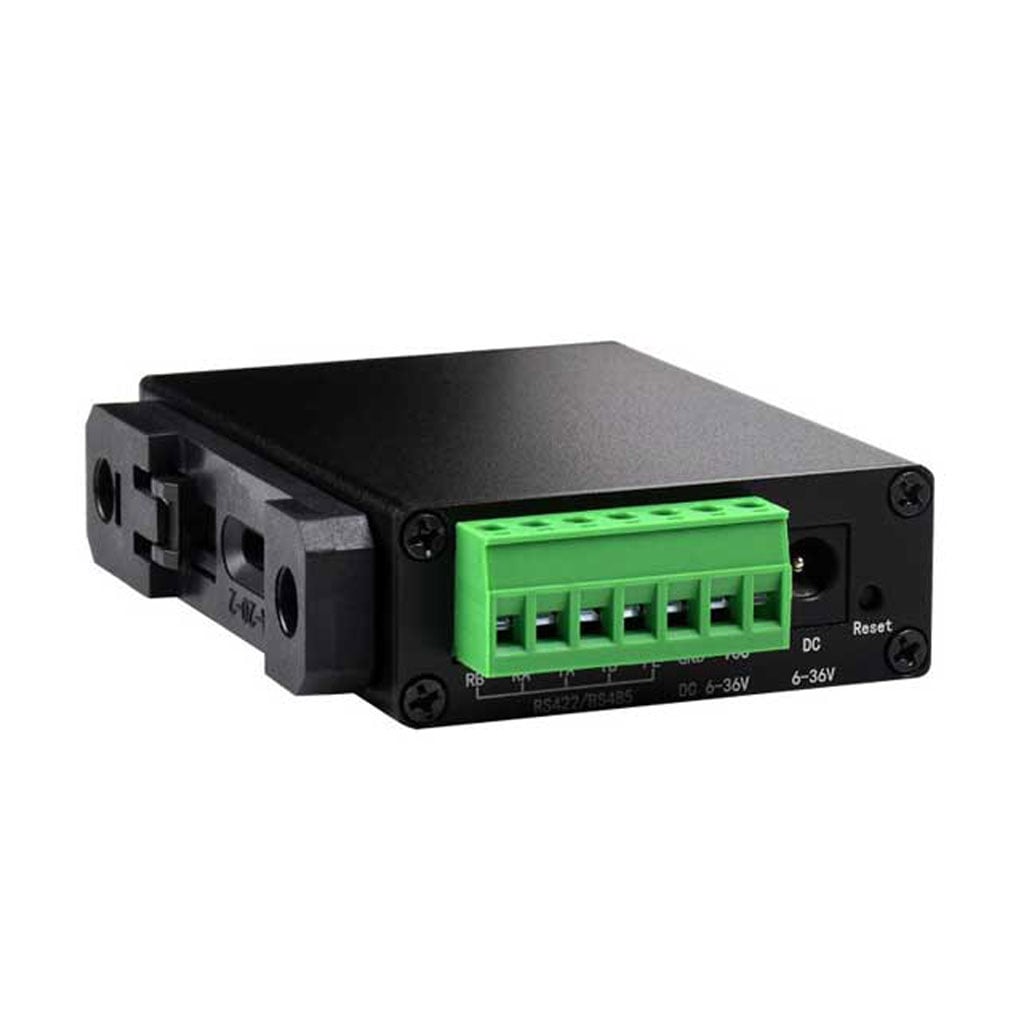

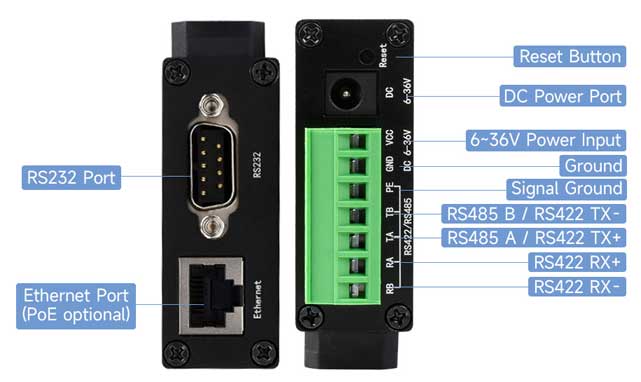

Adopting RS232, RS485, RS422 and Ethernet interface with PoE, it can be powered using screw terminals, power barrel connector (5.5mm x 2.1mm) or POE of course.
The DIN-rail mount design is small in size, easy to install, and cost-effective. It's suitable for collecting data from a wide varity of serial devices such as sensors, printers, weighing scales, automation and process equipment etc. in industrial and commercial environments and applications.

Why Engineers Choose U.S. Converters LLC:

• U.S.-Based Tech Support: Real experts, real answers
• Thoroughly Tested: In-house testing ensures near plug-and-play reliability
• Fast Shipping: U.S. inventory, ready to deploy
• Custom Solutions Available: Tailored configurations on request

Upgrade Your Legacy Devices Today
Engineered for precision. Trusted for performance. Delivered by U.S. Converters LLC.

All standard and advanced functions for most serial devices are supported, which includes the following:

• DHCP and Static IP address.
  By default the converter is set to have a static IP address, this can be changed to DHCP so your network or computer automatically assigns an IP to the converter.

• Serial port settings.
  All standard port settings such as baud rate, parity, data bits, and stop bits can be set within the standard range, allowing for the connection of multiple serial ports (RS-232/422/485) to the network.

• Parameter configuration via web-browser.
  All parameters can easily be changed by logging into the converter using a standard web-browser such as Chrome, Firefox or Internet Explorer. This can be done on a local network, or from a remote location using a 3rd party DNS service.

• Network modes.
  The converter can be set to the most commonly used network modes which includes: TCP Client, UDP Client, TCP Server, UDP Server or HTTPD Client mode.

• Virtual COM port software.
  To create a virtual COM port with any serial to Ethernet converter you will need a virtual COM port software. With this converter it is a full function free downloadable software. No extra cost.

As a serial server, it facilitates data flow between various devices like sensors and PLCs, enabling remote monitoring and control, which leads to optimized production processes and increased operational efficiency.

Besides the features mentioned above this converter is also fully capable of handling more complex setups such as Serial Tunneling mode, communication without virtual COM software, access over Internet and more.
