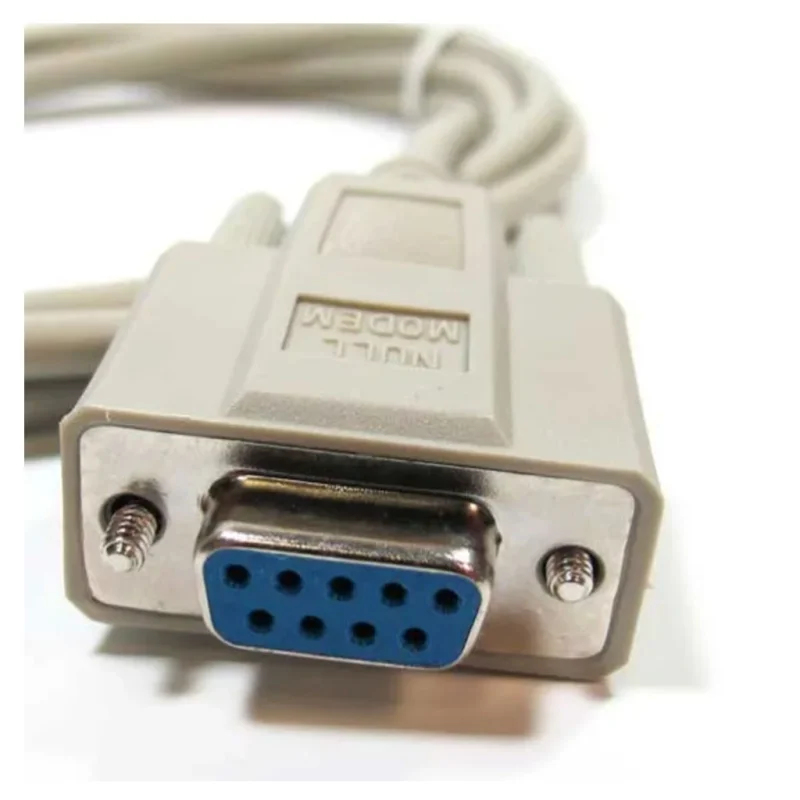

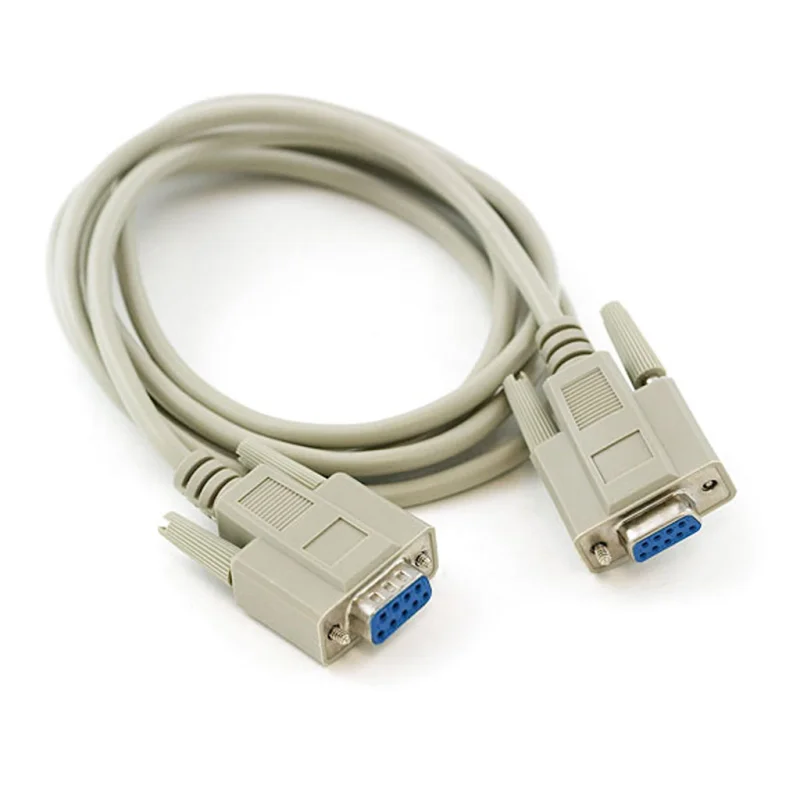

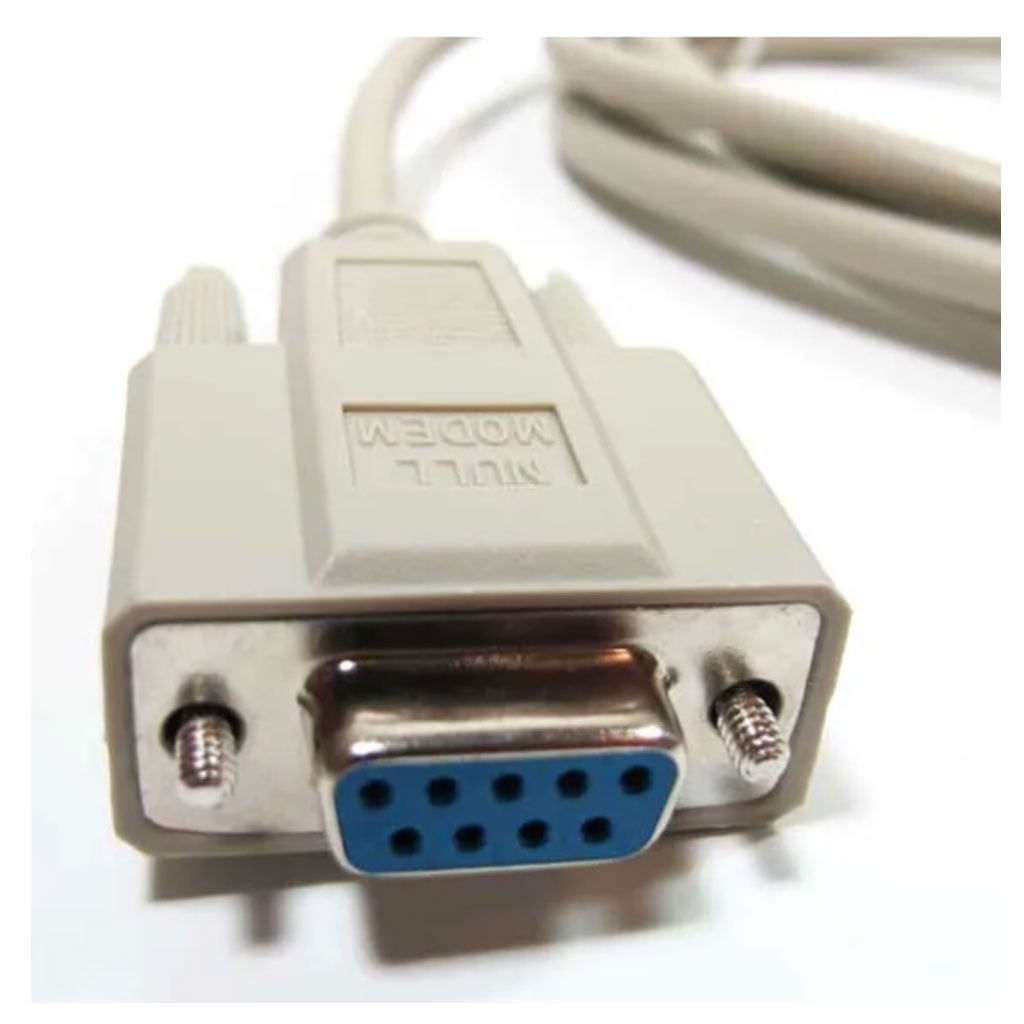

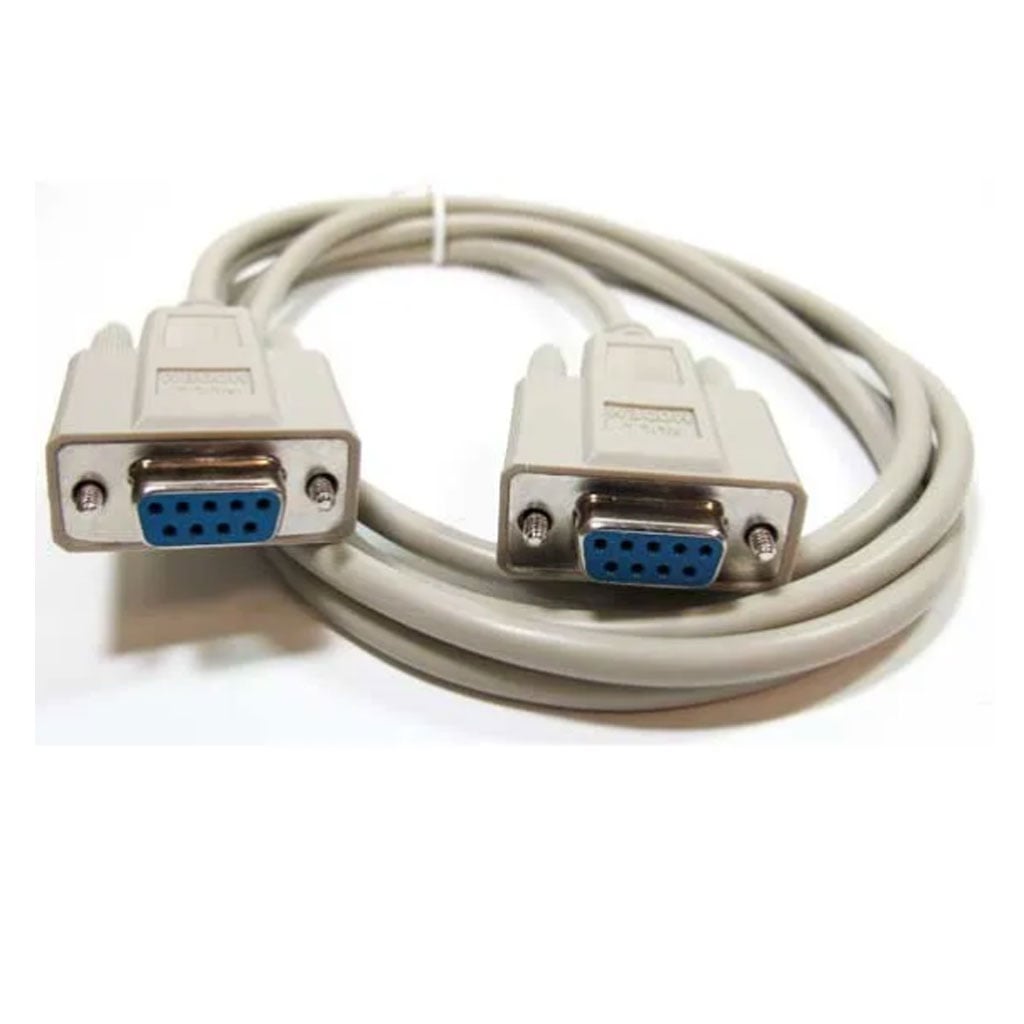

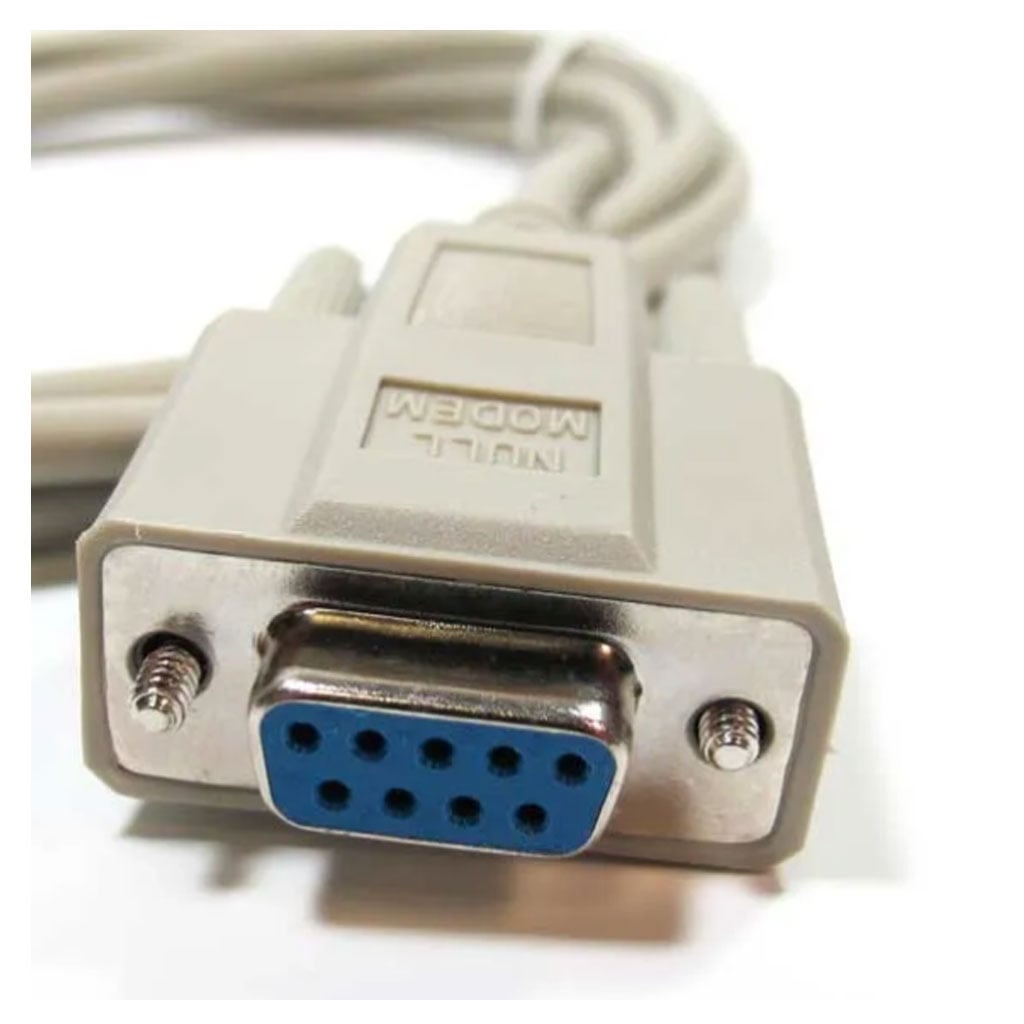

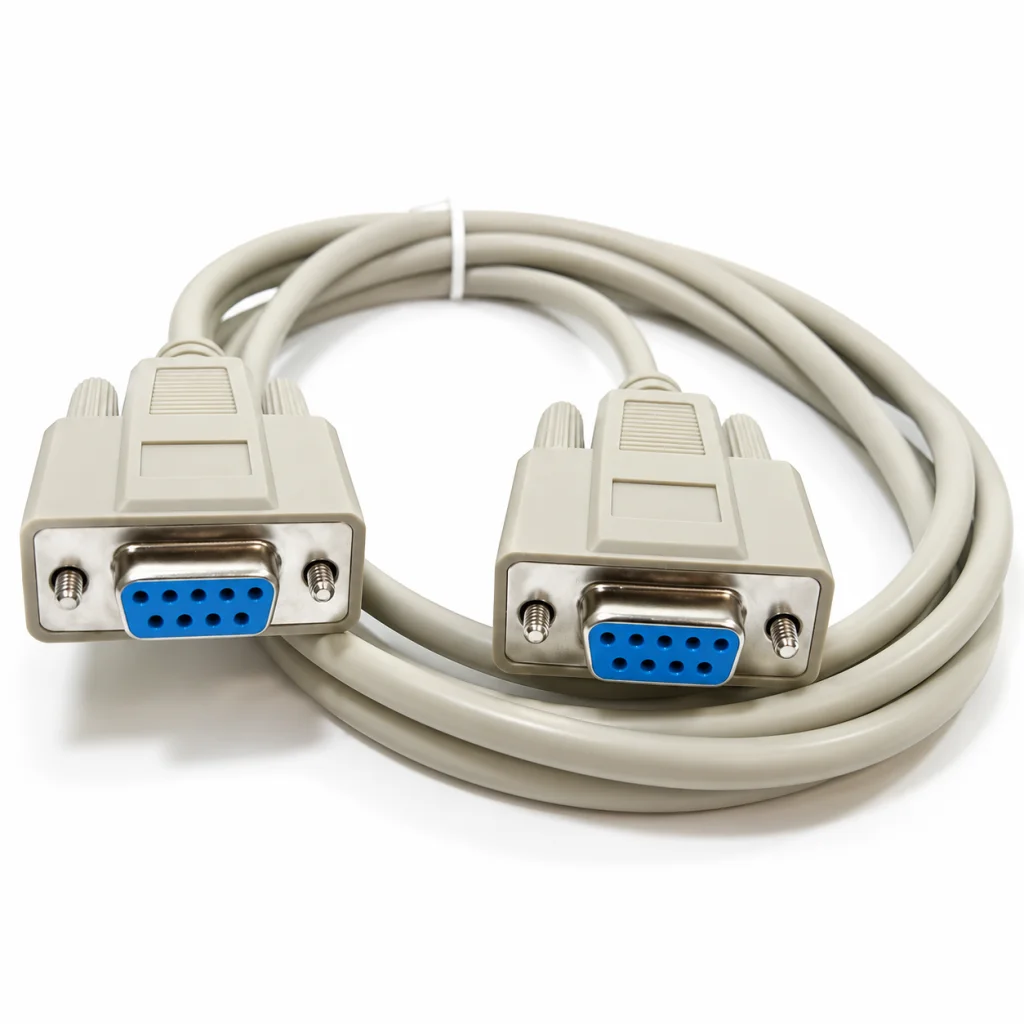

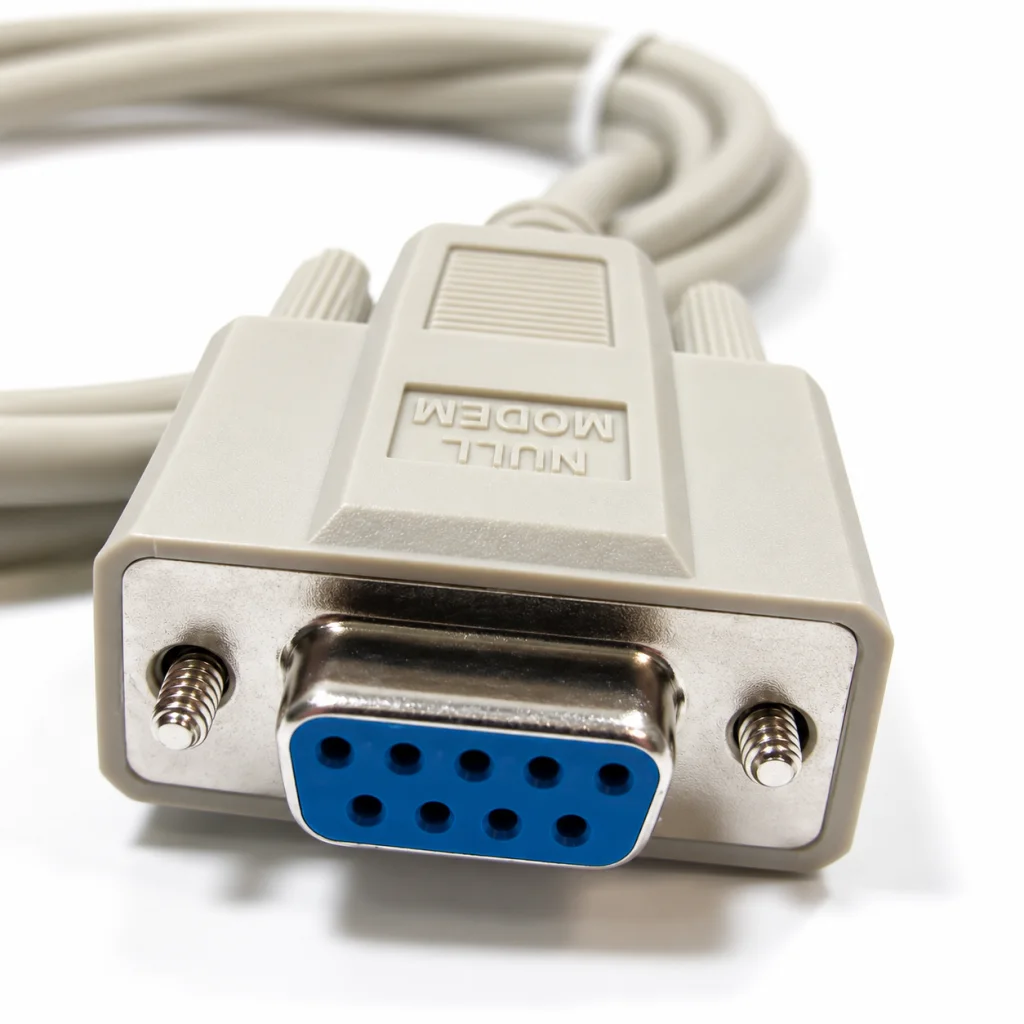

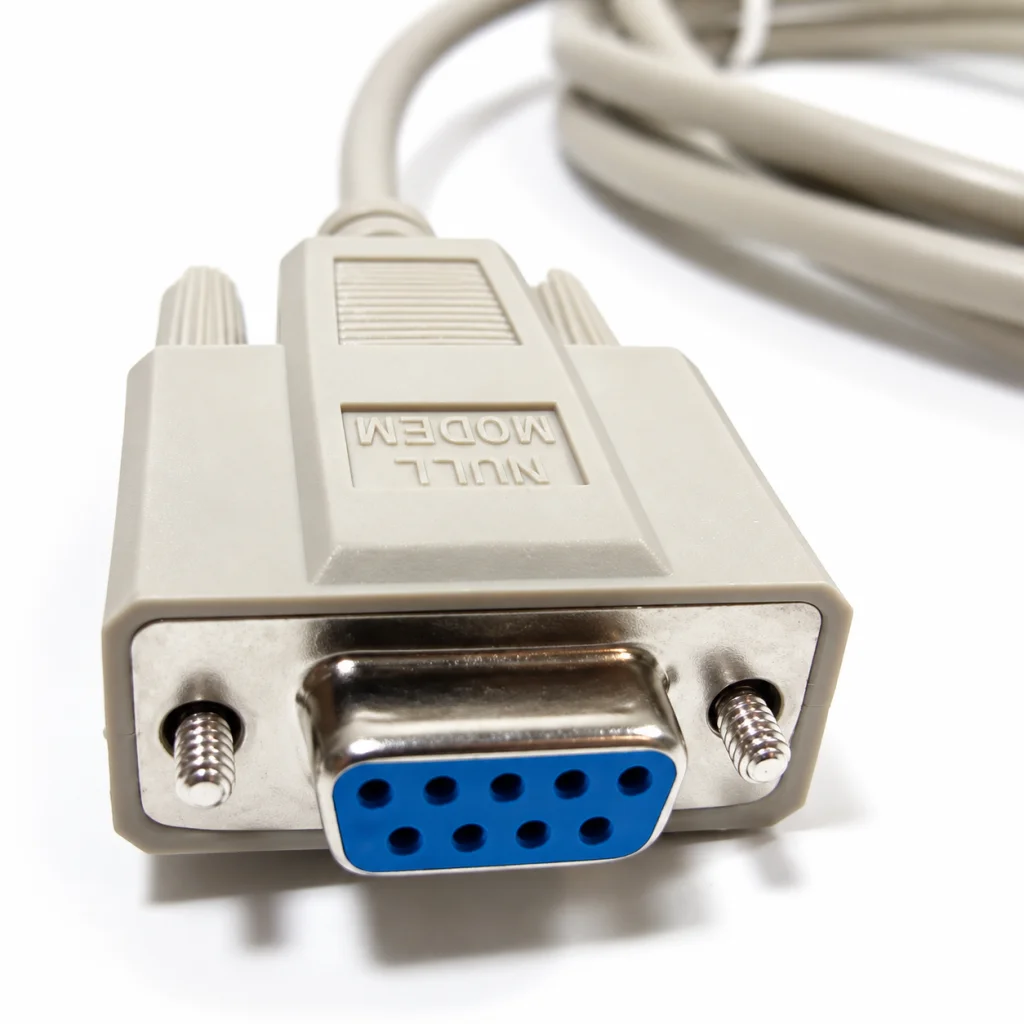

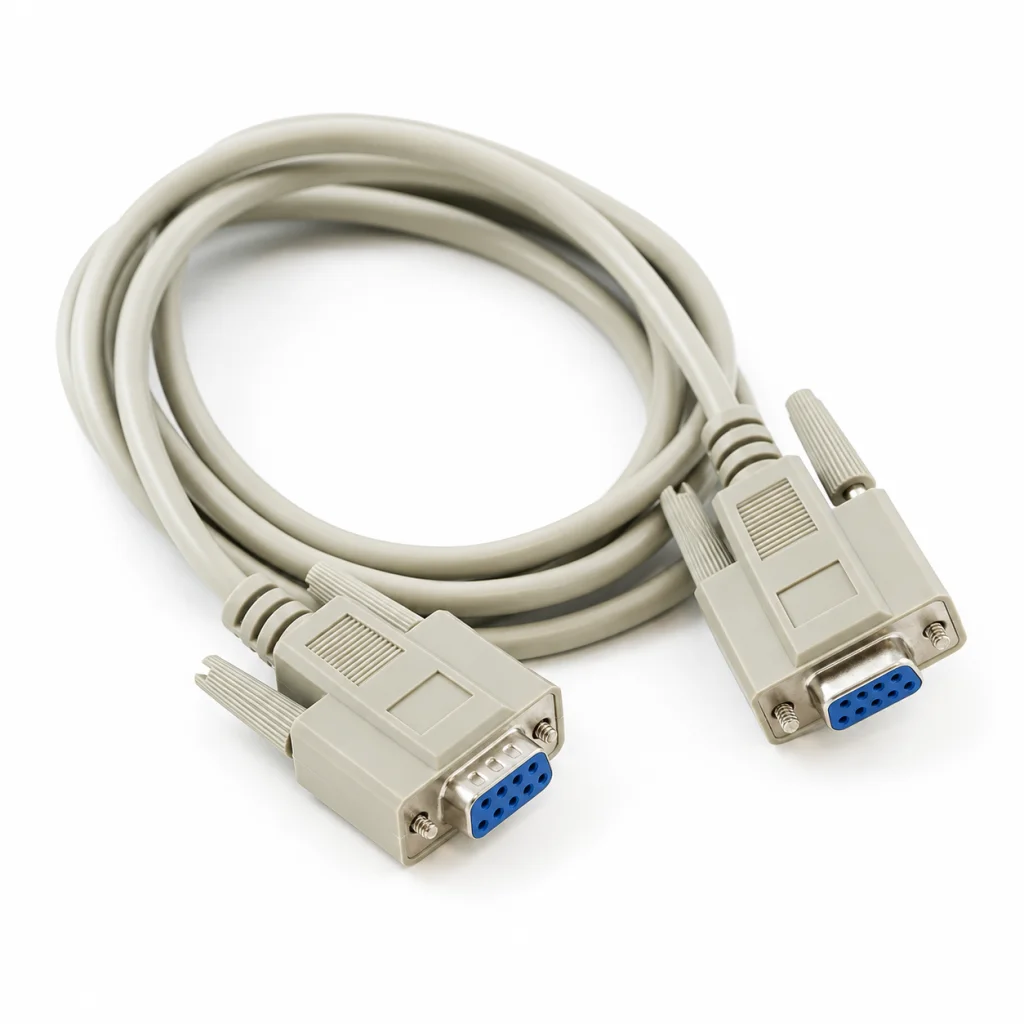

Serial Cable DB9, Female/Female, 3 ft - Null Modem Cable. This serial cable can be used to transfer data between a computer and a serial device. It swaps the TX and RX lines and the RTS and CTS lines so that a DCE and a DTE device can communicate without conflicting. See mechanical drawing for details.
Overall features
- Connectors: Null Modem Serial Cable
- Supports all standard DB9 serial ports / connectors
- Fully foil shielded
- Molded connectors with 4/40 thumbscrews
- Wire gauge: 28 AWG
- Length: 3 feet
- Pin-Out: 1, 6-4, 3-2, 2-3, 7-8, 8-7, 1,6-4, 5-5, 4-1,6, G-G
|
Top Uses for a Null Modem Cable: Complete Guide
A null modem cable connects two devices directly for communication without a modem. This guide explains what a null modem cable is, how it works, and its key uses.
Key Takeaways
-
Null modem cables enable direct communication between devices without modems, facilitating reliable data exchange and file transfers.
-
Different types of null modem cables, including basic, loopback, and partial handshaking cables, cater to varying needs for data transmission and flow control.
-
Selecting the right null modem cable involves assessing compatibility with existing systems, understanding specific application needs, and considering industrial durability standards.
Understanding Null Modem Cables
Null modem cables are a fascinating piece of technology that enable direct communication between two devices without the need for an intermediary modem. This direct connection allows for seamless data exchange and file sharing between computers. These cables facilitate direct connections, making them essential for applications requiring a straightforward, wired link.
The origin of null modem cables dates back to the days when RS232 cables were used to link teleprinters for communication. Despite the rise of Ethernet and wireless communication, null modem cables remain relevant, especially in managing headless devices that require serial console access.
Their continued use underscores their reliability and simplicity in scenarios where modern solutions might be overkill or unsuitable.
Key Features of Null Modem Cables
Several key features make null modem cables stand out, such as their construction with gold-plated connectors to enhance connectivity and reduce signal degradation. This ensures that the data transmitted remains clear and intact, which is crucial for maintaining a solid connection and the integrity of communication between devices.
Compatibility with RoHS compliant materials ensures the cables meet specific environmental and safety standards. Additionally, the pin configurations in null modem cables can vary, but understanding these configurations is critical for proper functionality. Knowing which pins are used for transmission (Tx) and reception (Rx) helps in selecting the right cable for your needs.
Types of Null Modem Cables
Null modem cables come in several types, each catering to different communication needs between devices. These include basic null modem cables without hardware handshaking, loopback handshaking cables, and partial handshaking cables.
Each type has its own specific use case and requires an understanding of the wiring configuration to ensure proper functionality.
Basic Null Modem Cables
Basic null modem cables are a straightforward solution designed without hardware handshaking, relying solely on software for flow control. These cables connect only the data and signal ground wires, which means they lack any hardware handshaking features. This simplicity can be both an advantage and a limitation, depending on the specific requirements of the connected devices.
Basic null modem cables are ideal for those requiring a simple, direct connection without advanced handshaking signals. They are useful when software can manage flow control, ensuring data is transmitted and received correctly without additional hardware support.
Loopback Handshaking Cables
Loopback handshaking cables offer a bit more sophistication by simulating hardware flow control through specific connections. These cables create a loopback on the signal pins, allowing the software to operate as if hardware flow control is available, even though it is not truly provided. This simulation is achieved by connecting the DTR (Data Terminal Ready) and DSR (Data Set Ready) signals.
Loopback handshaking cables offer greater software compatibility despite lacking actual hardware support. This makes them a versatile choice for scenarios where some level of hardware handshaking is needed without the complexity of full hardware implementation.
Partial Handshaking Cables
Partial handshaking cables strike a balance between basic and full handshaking cables by allowing some flow control signals to be looped back. This enables higher communication speeds with software flow control, providing a compromise between simplicity and functionality. These cables enhance communication speed and reliability by looping key control lines back into the device without full hardware support.
Partial handshaking cables provide a practical solution for users needing more than basic connectivity but not full hardware handshaking. They provide limited flow control features, making them suitable for a variety of applications where speed and reliability are important.
Applications and Use Cases
Null modem cables are used in a variety of applications, each leveraging their ability to establish direct serial connections between computers and devices. These cables are crucial for file transfers, debugging, and connecting data terminal equipment (DTE) devices, ensuring seamless communication.
File Transfers Between PCs
Using null modem cables to transfer data between PCs can be faster and more reliable than network-based methods. These cables enable direct file transfers, facilitating secure and efficient transferring data exchange without the need for an internet connection. Basic null modem cables connect only the data and ground lines, potentially causing compatibility issues with devices needing handshaking signals. A pc can benefit from this direct connection.
Partial handshaking cables offer a compromise by allowing some flow control signals while maintaining compatibility with standard communication methods. Choosing the right null modem cable for file transfers involves considering the specific application to ensure optimal performance.
Debugging and Testing
Null modem cables are invaluable for debugging and testing, providing reliable connections for various software and hardware configurations. Durability is a key factor in industrial settings, where cables must withstand high wear and tear.
Industrial null modem cables should be resistant to environmental factors like moisture, dust, and temperature fluctuations. Identifying the intended use helps in selecting the appropriate null modem cable type, ensuring it meets the specific requirements of the testing environment.
Connecting DTE Devices
Connecting two dtes with null modem cables involves crossing their transmit and receive lines to establish communication. These cables enable direct communication between two DTE devices and DCE devices by crosslinking transmit and receive lines, with various configurations for handshake signals.
Selecting a null modem cable for DTE devices requires assessing the devices' specific connection requirements. Verifying that the pinout configuration matches the connecting devices' specifications is crucial for proper communication.
Choosing the Right Null Modem Cable
Selecting the right null modem cable involves understanding the specific needs of your application and ensuring compatibility with your existing systems. These cables typically feature molded female DB9 and male DB9 connectors, making them versatile for various uses.
Compatibility with Existing Systems
Compatibility with existing systems is crucial for effective data transfer and communication with null modem cables. Factors such as cable length, pin configuration, and the required signaling methods must be considered to ensure compatibility with devices.
Understanding communication protocols like RS-232 ensures the null modem cable will work effectively to communicate with the devices involved.
Considerations for Industrial Use
For industrial applications, choose cables that meet durability requirements and safety standards like UL and RoHS. These standards ensure the reliability and safety of the cables in harsh industrial environments.
Price and Availability
Null modem cable prices can vary significantly based on length, quality, and manufacturer. Quality null modem cables vary in price, so it's recommended to compare different suppliers for the best deals.
When shopping for these cables, consider the required features like shielding or connectors to ensure the best value for your money.
Maintaining and Troubleshooting Null Modem Cables
Regular inspections are vital for maintaining null modem cables to avoid issues from loose or damaged connections. Proper wiring is vital, especially for RS-232 connections, where the transmit and ground pins should be correctly connected to their corresponding pins on the receiving device. Minimize signal interference by keeping null modem cables away from audio lines, as proximity can lead to crosstalk and degrade communication quality.
Utilizing serial port debugging tools can streamline the troubleshooting process by allowing real-time monitoring and analysis of serial port activities. These tools are invaluable for diagnosing and resolving connectivity issues, ensuring that your null modem cables perform optimally.
Summary
Throughout this guide, we have explored the various aspects of null modem cables, from their types and key features to their applications and how to choose the right one. Null modem cables remain a vital tool in many fields, providing reliable and direct communication between devices. By understanding their functionality and selecting the appropriate type, you can ensure seamless data transfer and connectivity for your projects.
Remember, whether you are transferring files between PCs, debugging software, or connecting DTE devices, null modem cables offer a robust solution. Embrace the simplicity and reliability of these cables to enhance your technical endeavors.
Frequently Asked Questions
What is a null modem cable used for?
A null modem cable allows for direct communication between two devices without a modem, making it ideal for file sharing and data exchange. It streamlines connections by bypassing traditional telecommunications protocols.
What are the key features of null modem cables?
Null modem cables feature gold-plated connectors for improved connectivity, RoHS compliant materials, and specific pin configurations to ensure proper functionality. These elements make them reliable for direct communication between devices.
How do basic null modem cables differ from loopback handshaking cables?
Basic null modem cables use software for flow control without hardware handshaking, whereas loopback handshaking cables create a loopback on signal pins to simulate hardware flow control. The distinction is crucial for applications requiring reliable communication protocols.
What should I consider when choosing a null modem cable for industrial use?
When selecting a null modem cable for industrial applications, prioritize cables that satisfy durability standards and safety regulations such as UL and RoHS to ensure long-term reliability in challenging conditions.
How can I maintain and troubleshoot null modem cables?
To maintain and troubleshoot null modem cables, regularly inspect connections for damage and ensure they're not near audio lines to prevent crosstalk. Utilizing serial port debugging tools for real-time monitoring can also help identify issues effectively.
