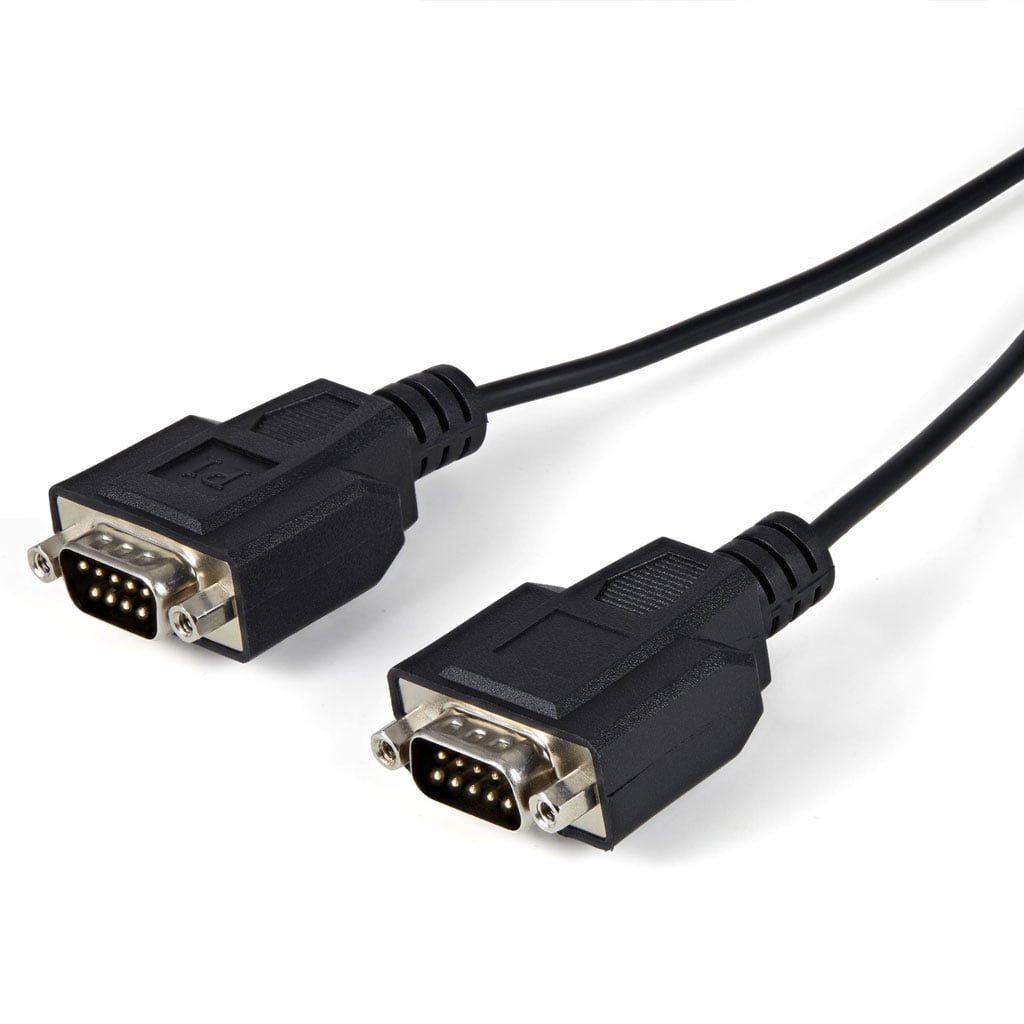

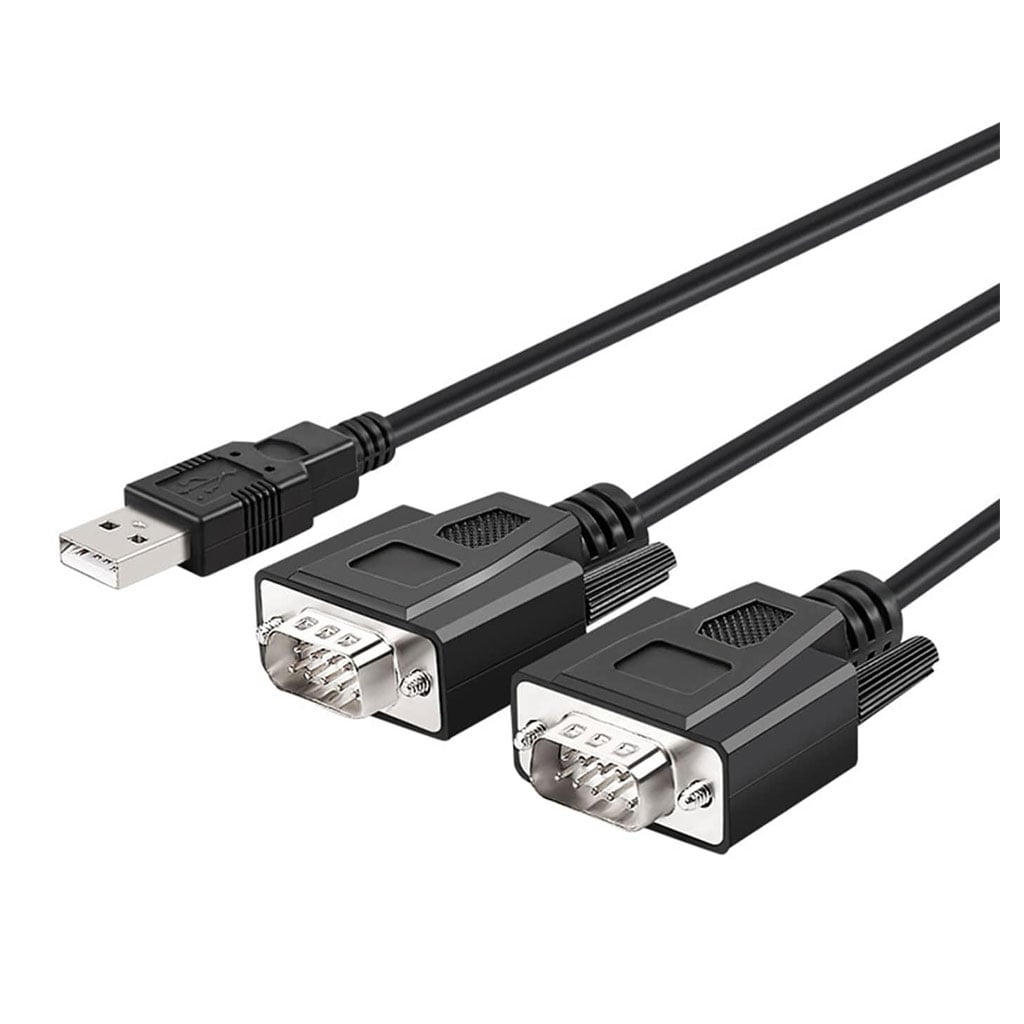

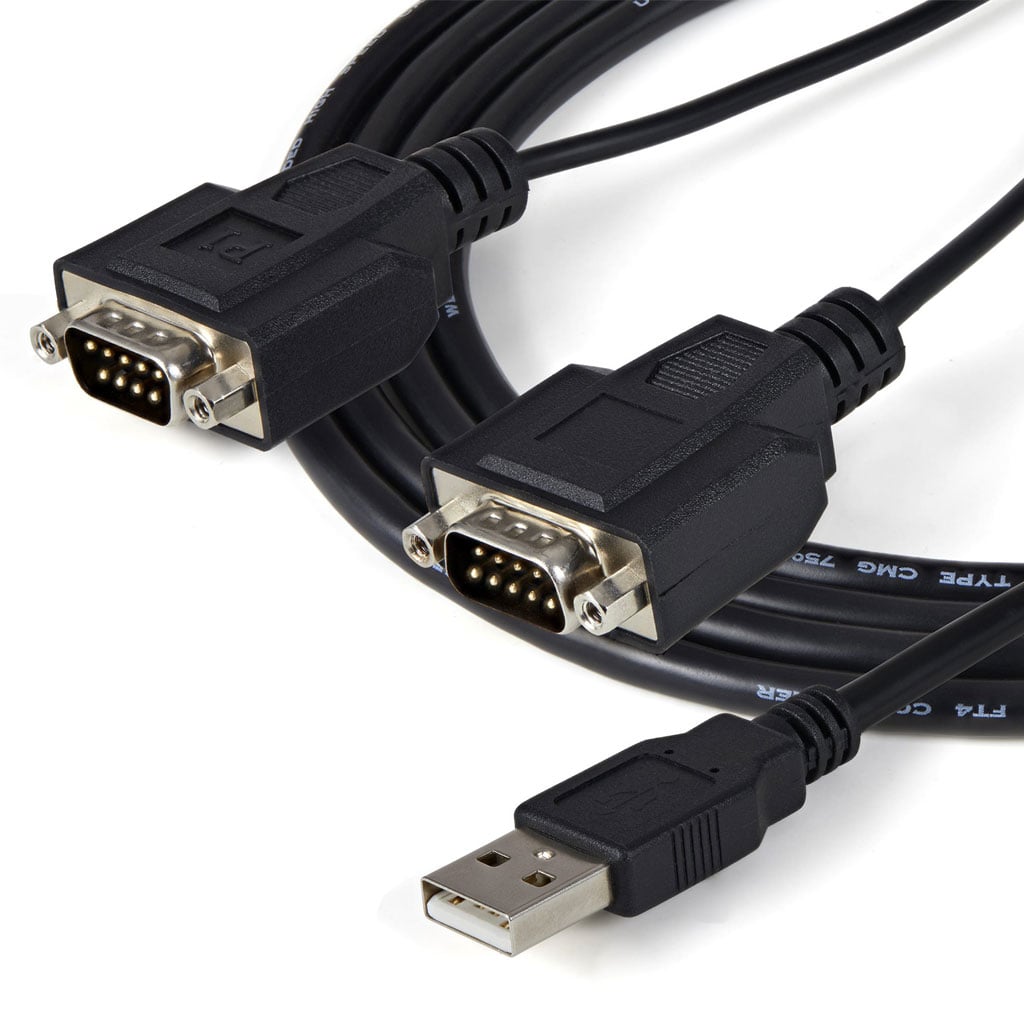

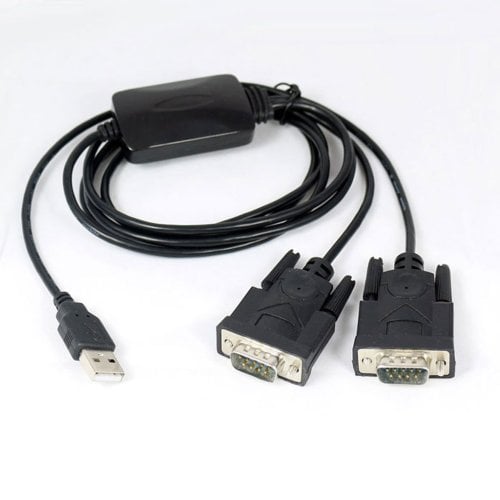

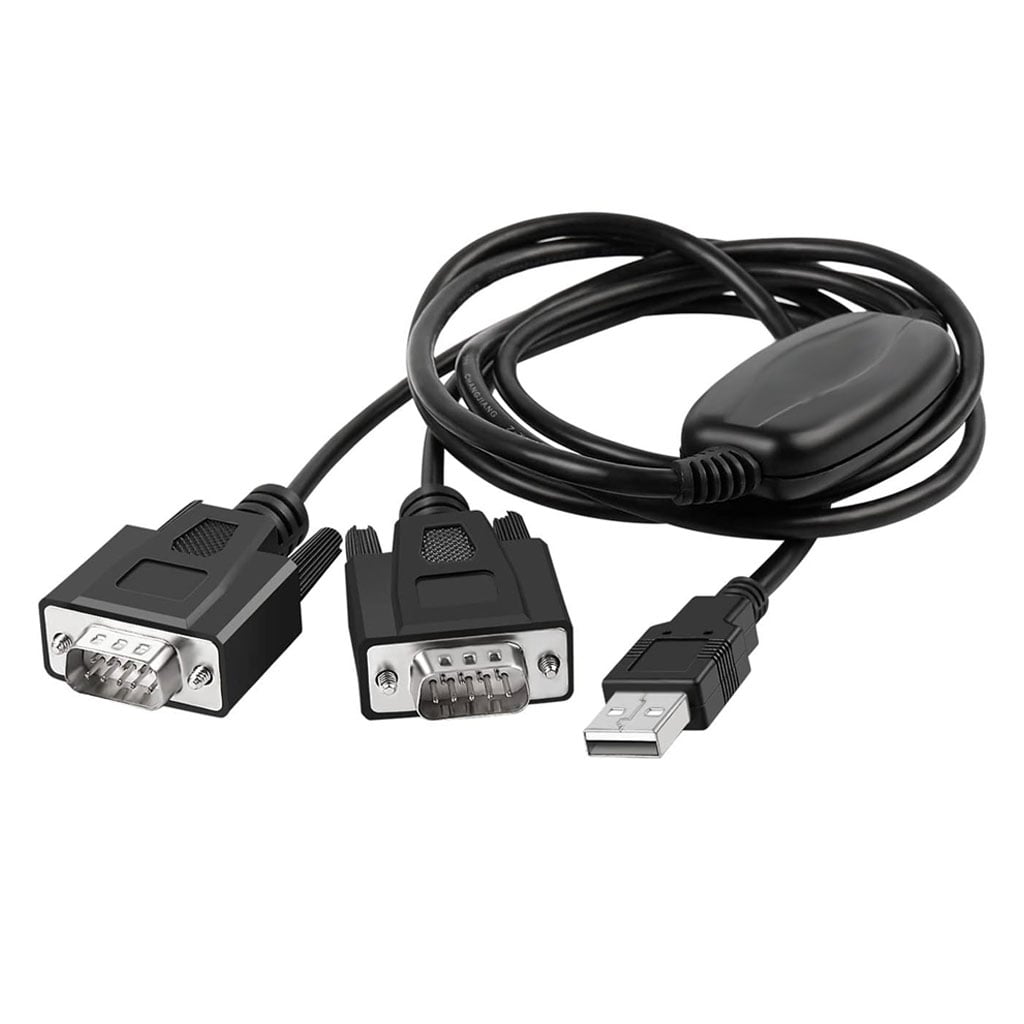

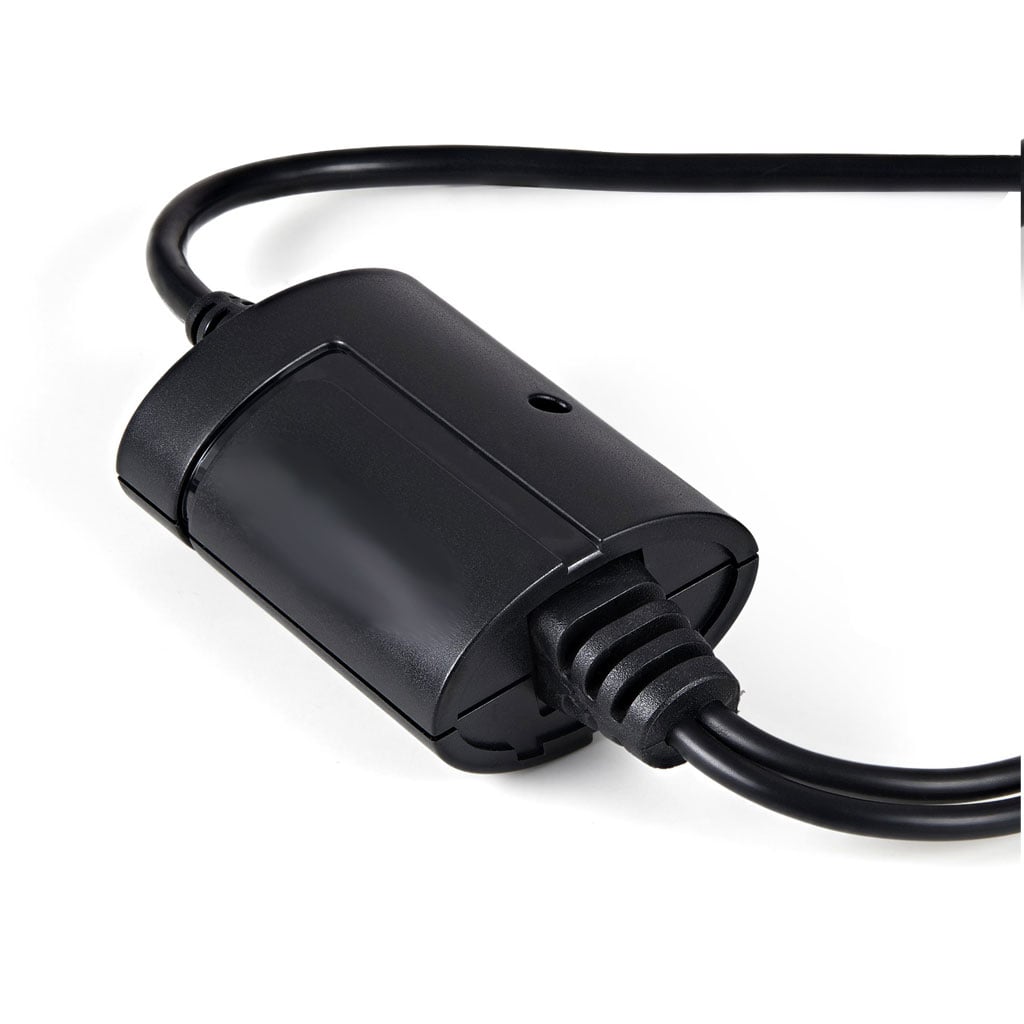

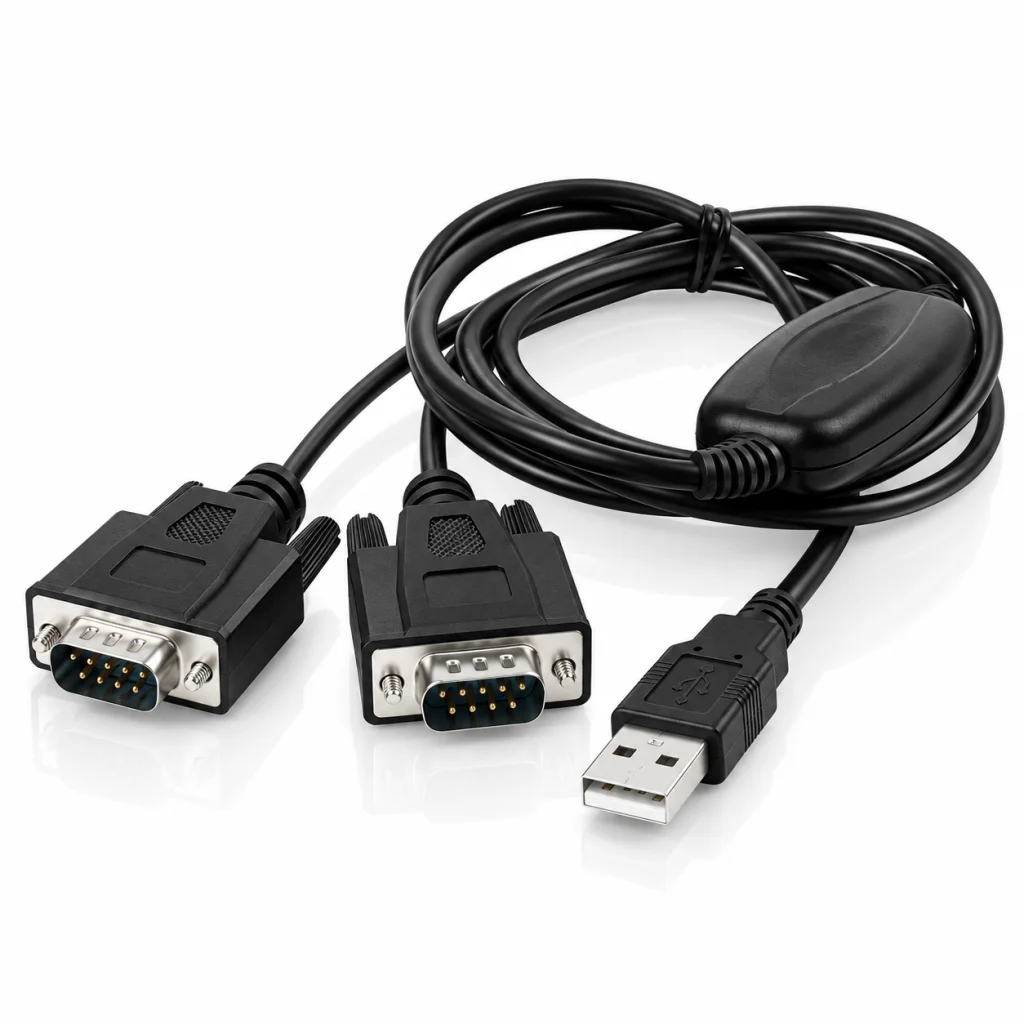

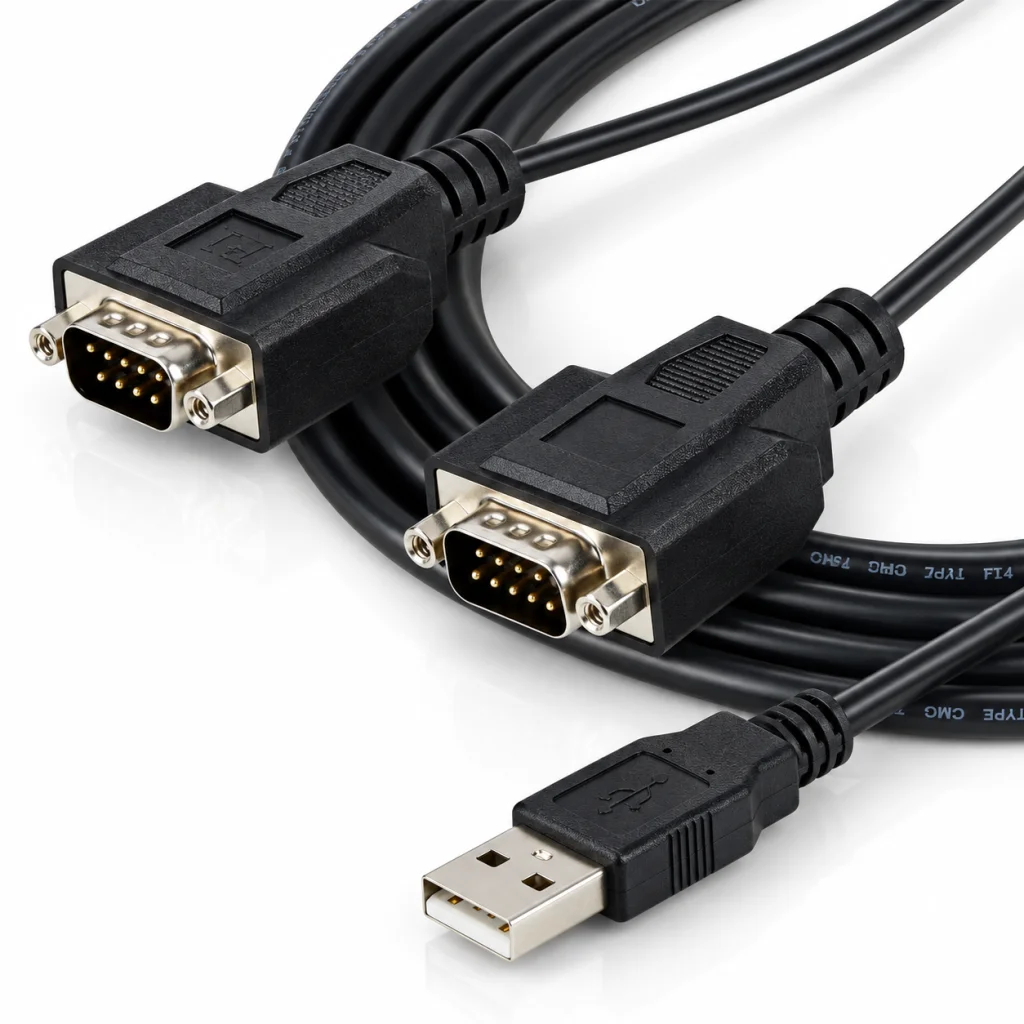

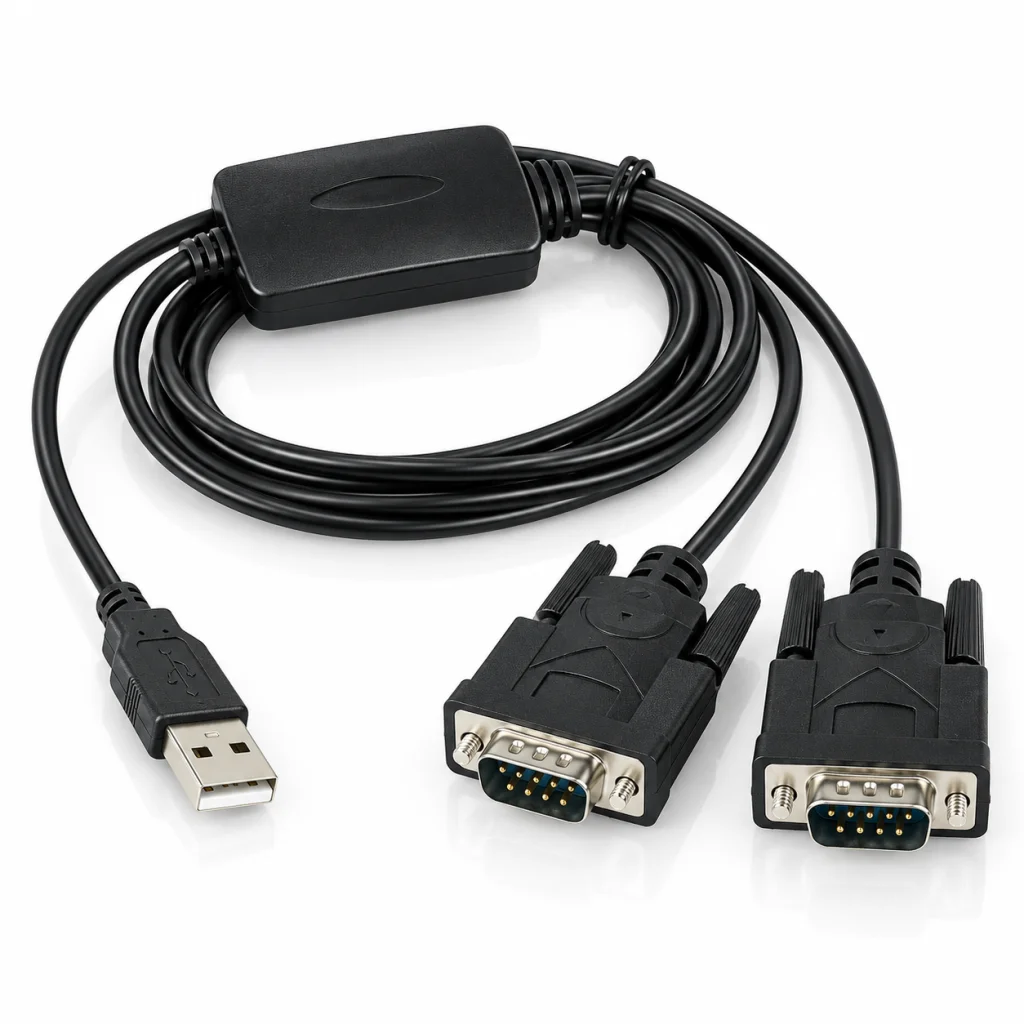

USB to Serial Cable, 2-ports

  • Model: AY-1060
  • In Stock

$39.99

Add to Cart:

Description

Here is a USB to serial adapter cable which is similar to our Y-106 adapter with the difference that it has the better FTDI FT232RL chipset which is more reliable and has better performance. This serial adapter cable connects devices with a 9-pin RS-232 serial port to a USB-A port on computers, offering versatility and convenience for users.

The FT232RL chipset is a good all-round stable chip with good performance which works with most versions of Windows, Mac and Linux. It is compatible with both desktop computers and laptops. It also works with most RS232 serial devices such as printers, scanners, digital cameras, alarm systems, process machinery and most other types of equipment with a standard RS232 port. The adapter supports various versions of Mac OS, enhancing its appeal to Mac users looking for serial connectivity solutions.

This USB to serial cable creates two virtual COM ports which can be used individually at the same time. These virtual COM ports, also known as 'serial COM ports', are available in your operating system’s Device Manager where COM port numbers can be changed and several other port settings can be adjusted. Baud rate can also be adjusted however the adapter automatically detects and adjusts to the baud rate, so in most cases no port adjustments are required to use the adapter.

Protection against static electricity and surges up to 15KV gives you reliable data transfers and protects the serial adapter and your equipment from damage due to over voltages.

Overall features
  • Dual port RS232 to USB adapter
  • USB port powered
  • Thumb-screws for securing the adapter
  • Serial ports can be used individually
  • Auto detection of data speed
  • Built-in electrostatic protection
  • Advanced port settings available
Resources


Useful optional accessories
(not included)

Null modem adapter
Null modem adapter


DB9 to RJ45 adapter
DB9 - RJ45 adapter


DB9 gender changer
Gender Changer


SPECIFICATIONS
Part number AY-1060
Operating system
  • Windows 11, 10, 8.1, 8 (32/64-bit), Windows Server 2016, Windows Server 2012 / R2, Windows 7 (32/64-bit), Windows Server 2008 R2, Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP, Windows Server 2003 (32/64-bit), 2000, (all WHQL compliant). Windows RT as D2XX drivers only.
  • Windows CE v4.2 - 5.2, 6.0, 7.0 and 2013 including: Windows Mobile 2003, 2003 SE, Windows Mobile 5, 6, 6.1 and 6.5
  • Linux (built into kernel 3.0.0-19 and above)
  • Mac OS 8, OS 9, OS X 10.3 to 10.9 and above
  • Android
Processor FT232RL

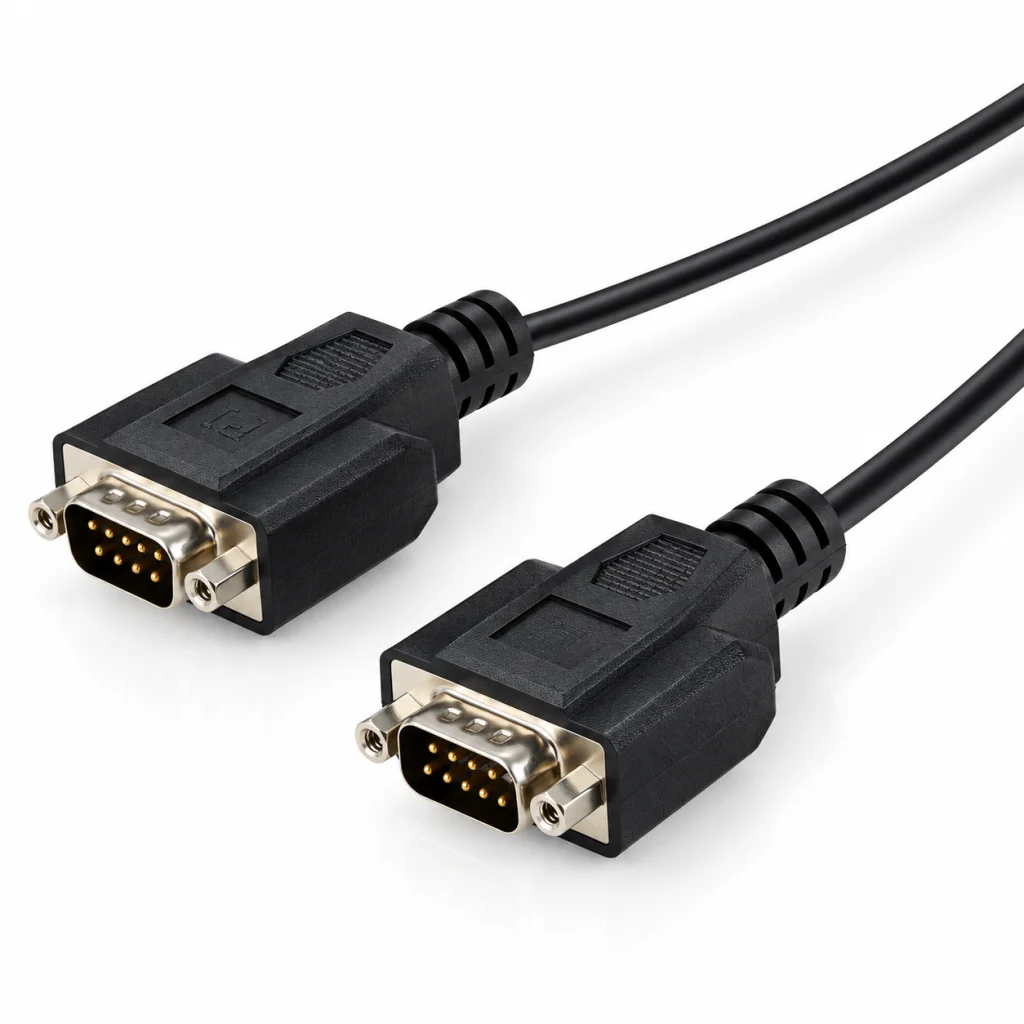

RS232 Interface RS232 DB9 Male
Cable length 60 inches (152 cm)
USB interface Standard Type A Male
Indication LEDs No
Serial ports 2
Signals TX, RX, RTS, CTS, DTR, DSR, RI and GND
Power on pin 9 No
Baud rate 300-921,600bps (up to 3Mbps by using alising)
Parity None, Odd, Even, Mark, Space
Data Bits 7, 8
Stop Bits 1, 2
TX / RX buffer size From 64 bytes to 4096 bytes
Flow Control None, Xon/Xoff, Hardware
COM port accessible by Included virtual COM port drivers
Special features
  • Enable/disable FIFO buffers
  • Adjustable transmit and receive buffers
  • Selectable COM port numbers
  • Electrostatic (ESD) protection 600W surge protection, 15KV static electricity protection
    Power USB port (5VDC)
    Current draw Static: less than 80mA. Dynamic average: less than 150mA
    Interface compliance USB1.1, 2.0, 3.0, EIA/TIA RS-232
    Regulatory compliance FCC, CE and RoHS
    Operating temp -13°F to 158°F (-25°C to 70°C)
    Warranty 1 year limited warranty

    For alternative USB to serial solutions please see our full selection of USB to Serial RS232 adapters




    Overview

    A USB to Serial adapter is a crucial device that bridges the gap between modern computers and legacy serial devices. As many contemporary computers have phased out built-in serial ports, connecting older serial devices has become increasingly challenging. This is where a USB to Serial adapter comes into play. Serial communication is essential for connecting various serial devices across multiple industries. It converts the USB signal from the computer’s USB port into an RS-232 serial signal, enabling seamless communication between the computer and serial devices. High-quality serial adapters offer significant advantages, focusing on their reliability and superior design. This ensures that legacy serial devices, such as printers, scanners, and industrial machinery, can continue to function in modern computing environments without any hitches.

    Technical Specifications for USB to Serial Adapter

    • Converts USB signal to RS-232 serial signal

    • Converts USB signals to serial RS232 data signals, enabling the connection of older serial devices to modern computers

    • Supports data transfer speeds up to 230 Kbps

    • Compatible with RS-232, RS-422, and RS-485 protocols

    • Uses no IRQs, eliminating IRQ conflicts

    • Ideal for connecting multiple serial devices to a PC

    • Frees up the RS-232 port for other uses

    • Suitable for Microsoft Surface products and other leading laptops and tablets

    • USB-A male connector and DB9 male connector

    • 5ft (0.46m) long adapter cable

    This adapter is designed to handle various serial protocols, making it versatile for different applications. The continued relevance of the serial protocol in modern devices showcases its reliability and ease of integration with older systems. Its ability to support high data transfer speeds ensures efficient communication between your computer and serial devices. The use of a USB-A male connector and a DB9 male connector makes it compatible with a wide range of devices, providing flexibility and convenience.

    Compatibility

    Compatible with Windows 2000 through 11, macOS 10.6 through 12.4, and Linux Redhat 7.3, 8.0, and 9.0 Supports remote wake-up and power management Compatible with most major operating systems Works with a wide range of serial devices, including modems, PDUs, network switches, console servers, and more

    This USB to Serial cable is designed to work seamlessly with a variety of operating systems, ensuring broad compatibility. USB to Serial cables convert USB signals to serial RS232 data signals, highlighting their importance in connecting modern computers to older serial devices. Whether you are using a Windows, macOS, or Linux system, this adapter will integrate smoothly. It supports a wide range of serial devices, making it a versatile tool for various applications.

    Installation and Setup for USB to Serial Cables

    • Connect the adapter to an available USB port on the computer

    • Download the necessary drivers from the manufacturer’s website

    • Install the drivers by running the downloaded driver installation file

    • Connect the serial device to the adapter using a serial cable

    • Open the Device Manager to locate the newly installed serial port

    • Configure the port settings to match the requirements of the serial device

    Setting up your USB to Serial cable is straightforward. Begin by connecting the adapter to your computer’s USB port. Next, download and install the necessary drivers from the manufacturer’s website. Once the drivers are installed, connect your serial device to the adapter using a serial cable. Open the Device Manager to locate the new serial port and configure the settings to match your serial device’s requirements. This ensures optimal performance and seamless communication.

    Troubleshooting Common Issues

    If you encounter any issues with your USB to Serial cable, there are several troubleshooting steps you can take to resolve the problem. Here are some common issues and their solutions:

    • Device not recognized: Ensure that the adapter is securely connected to the computer and that the drivers are installed correctly. Check the Windows Device Manager to see if the adapter is listed. If not, try reconnecting the adapter or reinstalling the drivers.

    • Serial port not found: Open the Device Manager and check if the serial port is listed. If it is not, try reinstalling the drivers or resetting the adapter. Sometimes, a simple restart of your computer can also resolve this issue.

    • Communication errors: Verify that the baud rate, data bits, parity, and stop bits are correctly set in the serial port settings. Check the serial cable and connections for any damage or loose connections. Ensuring that all settings match the requirements of your serial device is crucial for proper communication.

    • Adapter not working: Try resetting the adapter by unplugging and reconnecting it, or reinstalling the drivers. If the issue persists, contact our technical support team for further assistance. They can provide additional troubleshooting steps or determine if a replacement is necessary.

    By following these troubleshooting steps, you should be able to resolve any issues with your USB to Serial cable and get your serial devices up and running quickly and easily.

    Applications

    • Industrial automation

    • Medical field

    • Point of sale systems

    • Telecommunications

    • Embedded systems

    • Mobile data collection

    • Laboratory settings

    • Connecting serial devices to desktop computers or laptops

    • Extending the reach of serial devices

    • Enabling communication between serial devices and modern computers

    USB to Serial cable is incredibly versatile, finding applications in various fields. From industrial automation and medical equipment to point of sale systems and telecommunications, this adapter ensures that serial devices can communicate effectively with modern computers. It is also useful in embedded systems, mobile data collection, and laboratory settings, making it an essential tool for professionals across different industries.
