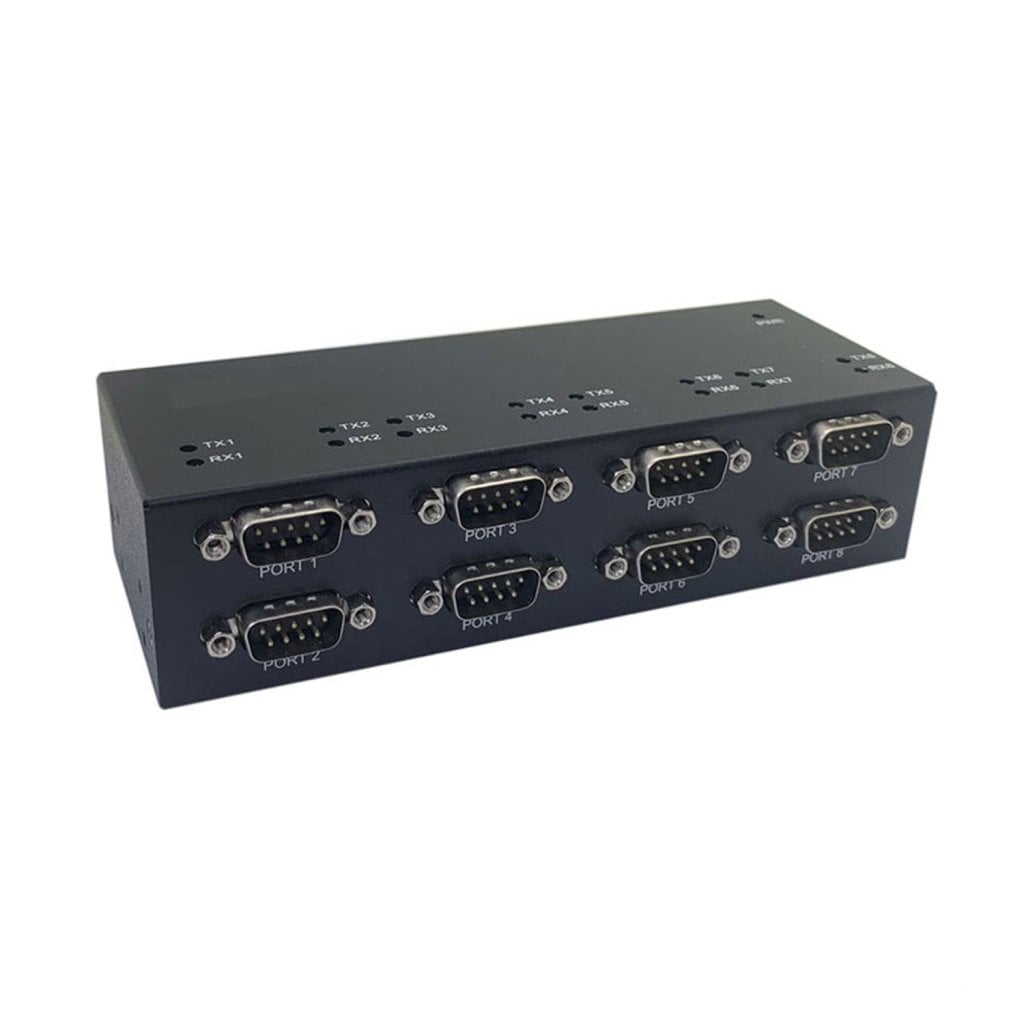

USC-UR208 is an 8-port USB to RS232 converter, a type of USB to serial adapter, which can be used as a desktop converter but it also has brackets included for wall and DIN installation. The enclosure is made of metal and it has 15KV ESD protection against static electricity and voltage surges, so it is an ideal solution for most applications including office, commercial, laboratory and even light industrial environments.
All eight RS232 serial ports can be used individually since the drivers and the computer's operating system will assign eight unique serial COM ports for the converter. Each port can send and receive data without interference from the other port. The serial converter is essential for connecting modern computers to legacy RS232 devices, ensuring seamless communication between contemporary and older systems.
Drivers are downloadable for free from our website and easily installed by running an auto-installer file. When installed, eight individual virtual COM ports which will show up in your operating system's Device Manager.
This USB to serial RS232 converter is powered through the USB port, however external 5VDC can be applied through a standard barrel connector if your application draws additional amperage or if you are connecting through a USB hub which doesn't provide sufficient power.

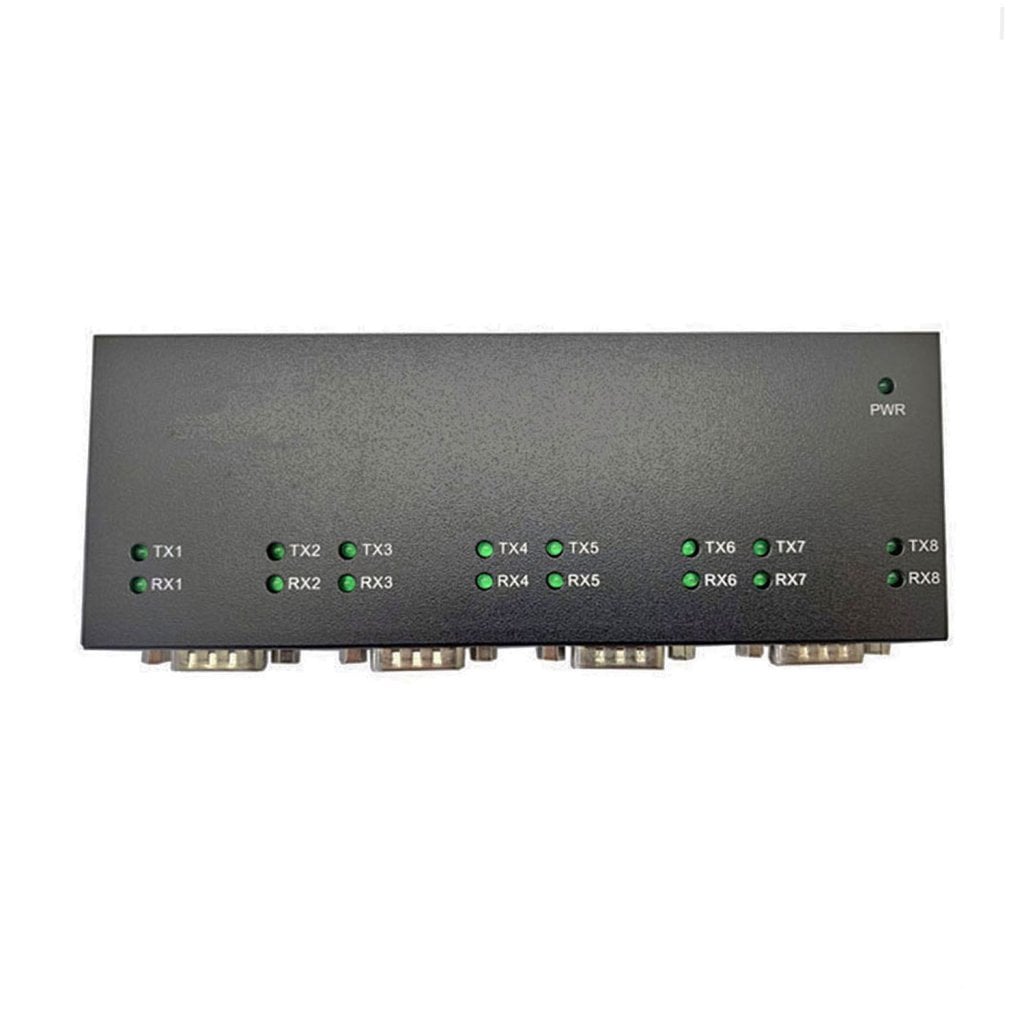

LED indication lights indicates when data is sent and received and when the converter is powered on.
The converter is built around the high-performance and reliable FT4232HL chipset from FTDI Semiconductors which makes it fully compatible with most operating systems, including Windows, Linux and Mac (32/64-bit).
Included items
- 1 x Converter
- 1 x USB cable
- DIN mount kit
- Wall mount kit
- Mounting screws
- Screw terminal
|
Overall features
- Eight individual RS232 ports
- Industrial grade
- DIN-rail mountable
- Wall mountable
- USB port powered
- Optional external power
- TX, RX, PWR status lights
- Easy driver installation
|
| SPECIFICATIONS |
| Part number |
USC-UR208 |
| Operating system |
- Windows 11, 10, 8.1, 8 (32/64-bit), Windows Server 2016, Windows Server 2012 / R2, Windows 7 (32/64-bit), Windows Server 2008 R2, Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP, Windows Server 2003 (32/64-bit), 2000, (all WHQL compliant). Windows RT as D2XX drivers only.
- Windows CE v4.2 - 5.2, 6.0, 7.0 and 2013 including: Windows Mobile 2003, 2003 SE, Windows Mobile 5, 6, 6.1 and 6.5
- Linux (built into kernel 3.0.0-19 and above)
- Mac OS 8, OS 9, OS X 10.3 to 10.9 and above (since 10.9 the drivers are included in the kernel).
- Android
|
| Processor |
FT4232HL |
| RS232 Interface |
RS232 DB9 Male x 8 |
| Cable length |
75 inches / 190cm |
| USB interface |
Standard Type B Female |
| Indication LEDs |
TX, RX and Power |
| Ports |
8-port |
| Signals |
TX, RX, RTS, CTS, DTR, DSR, RI and GND |
| Power on pin 9 |
No |
| Baud rate |
300-921,600bps (up to 3Mbps by using alising) |
| Parity |
None, Odd, Even, Mark, Space |
| Data Bits |
7, 8 |
| Stop Bits |
1, 2 |
| TX / RX buffer size |
128 Byte Transmit Buffer / 384 Byte Receive Buffer |
| Adjustable USB transfer sizes for TX and RX |
From 64 bytes to 4096 bytes |
| Adjustable latency timer |
1 to 255 msec |
| Adjustable read and write timeouts |
0 to 10000 msec |
| Flow Control |
None, Xon/Xoff, Hardware |
| COM port accessible by |
Included virtual COM port drivers or FTD2XX.DLL |
| Special features |
|
| Electrostatic (ESD) protection |
600W surge protection, 15KV static electricity protection
ESD IEC 61000-4-2 air discharge: 8KV
ESD IEC 61000-4-2 contact discharge: 4KV |
| Power |
Port powered from USB port. Optional external power: 9 - 48VDC via 5.5mm x 2.5mm barrel connector / screw terminal connector |
| Housing |
Aluminum |
| Dimensions |
160 x 59 x 41 mm |
| Weight |
517g |
| Interface compliance |
USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Regulatory compliance |
FCC, CE and RoHS |
| Operating temp |
-40°C to 85°C, 5% to 85% humidity |
| Warranty |
1 year limited warranty |
