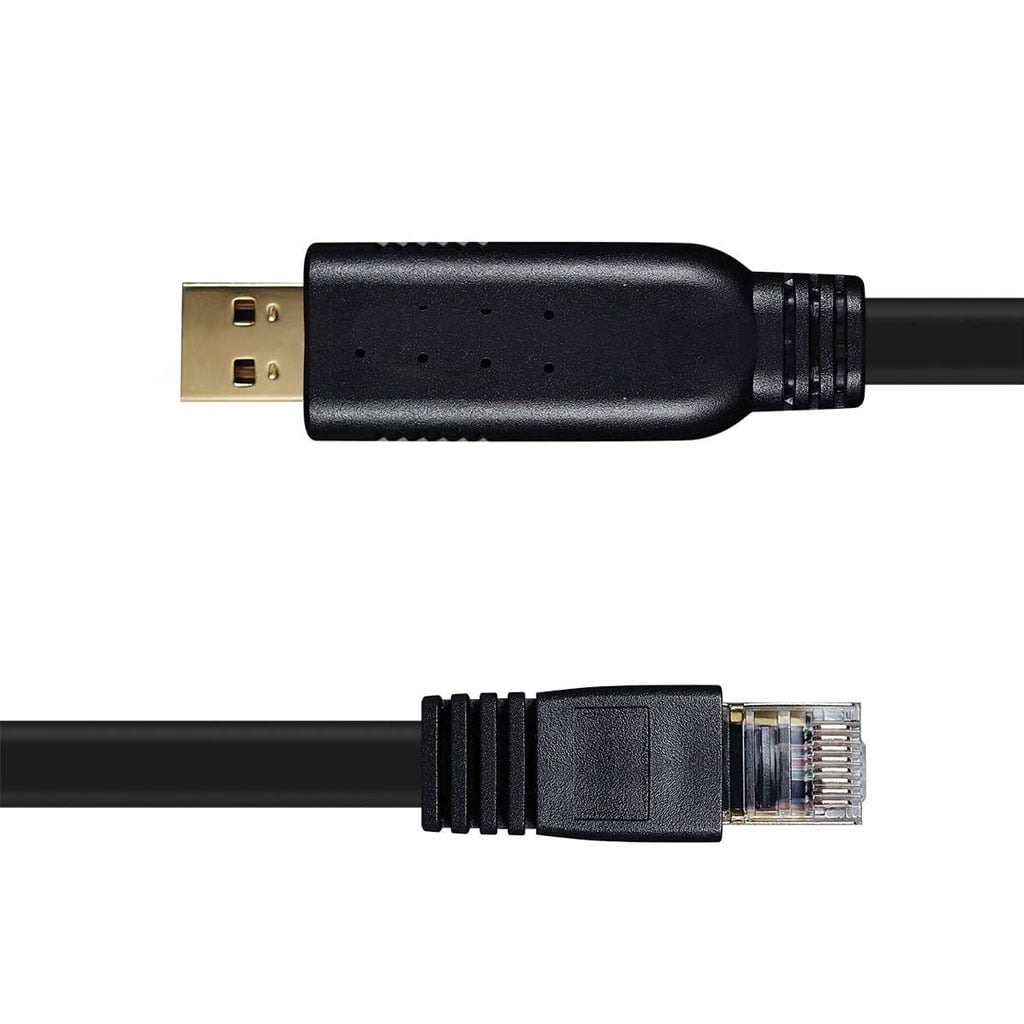

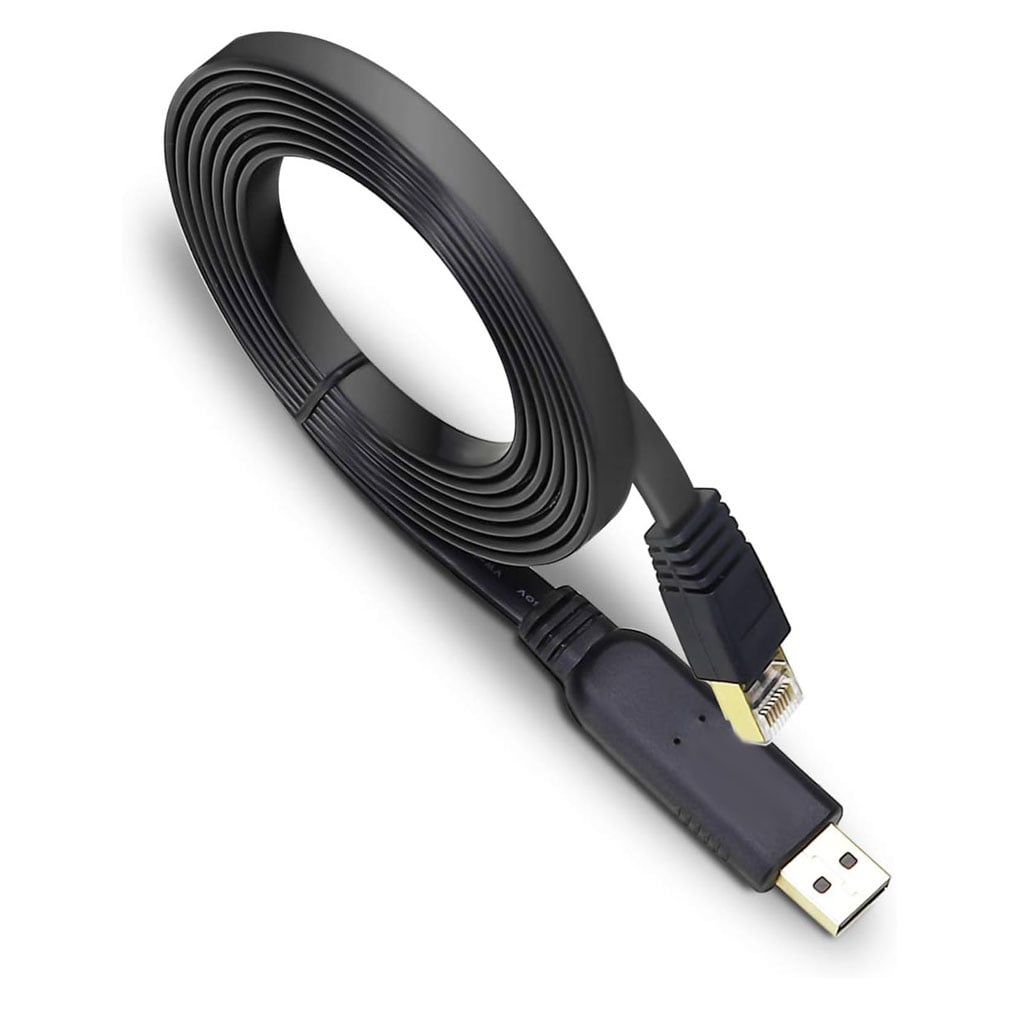

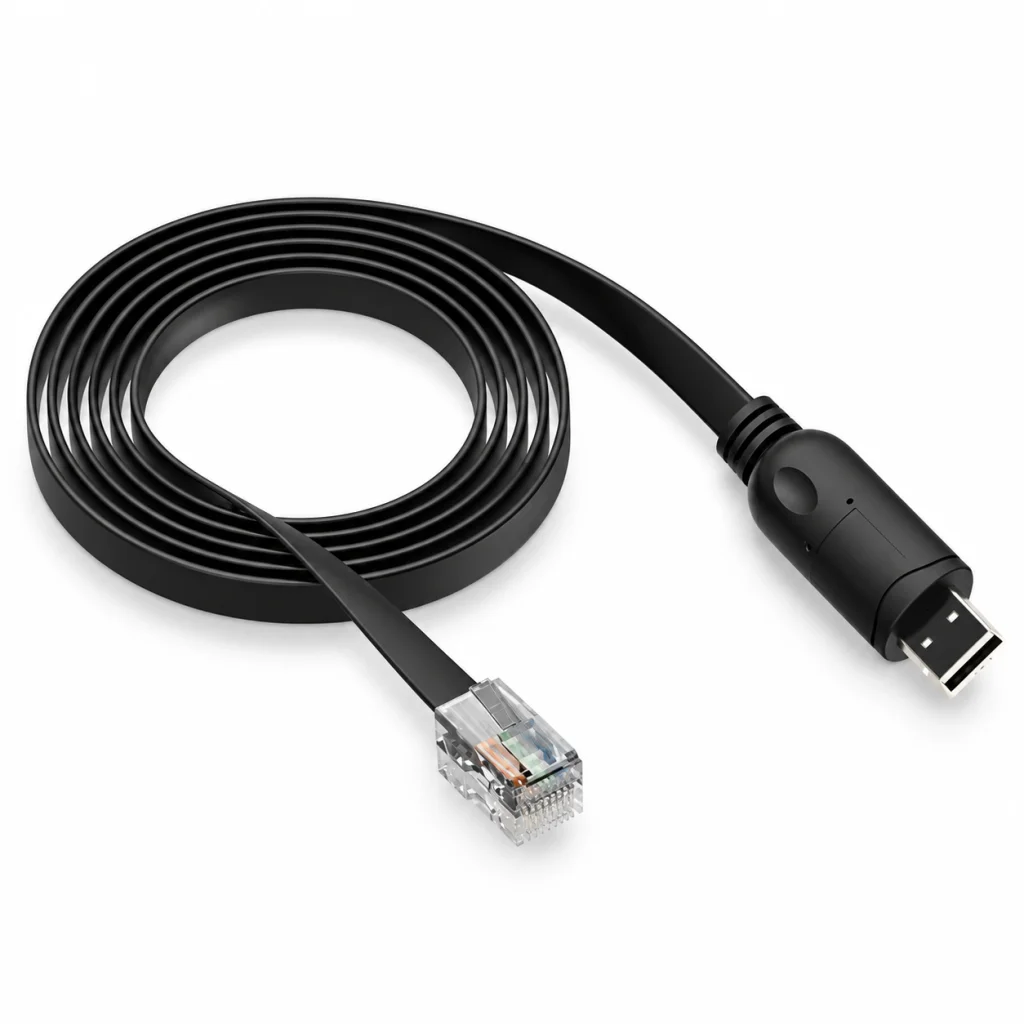

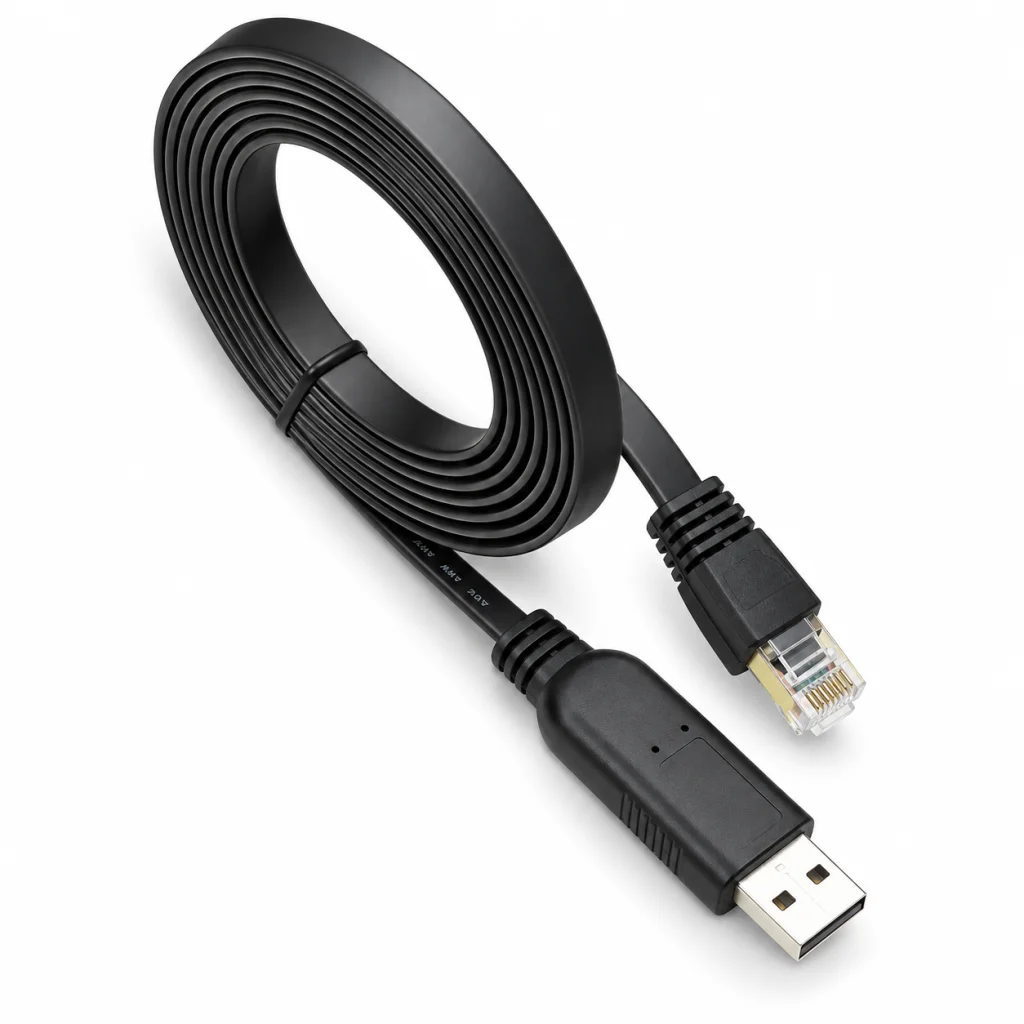

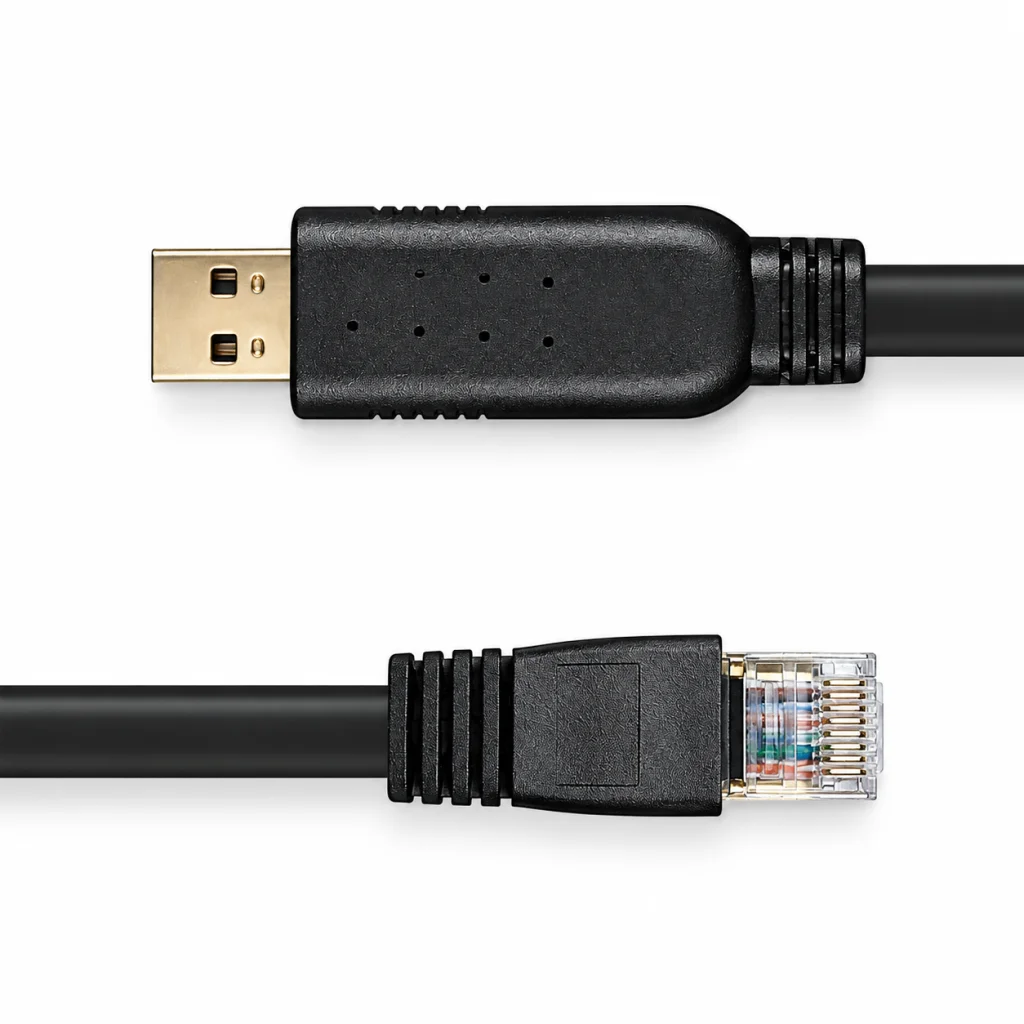

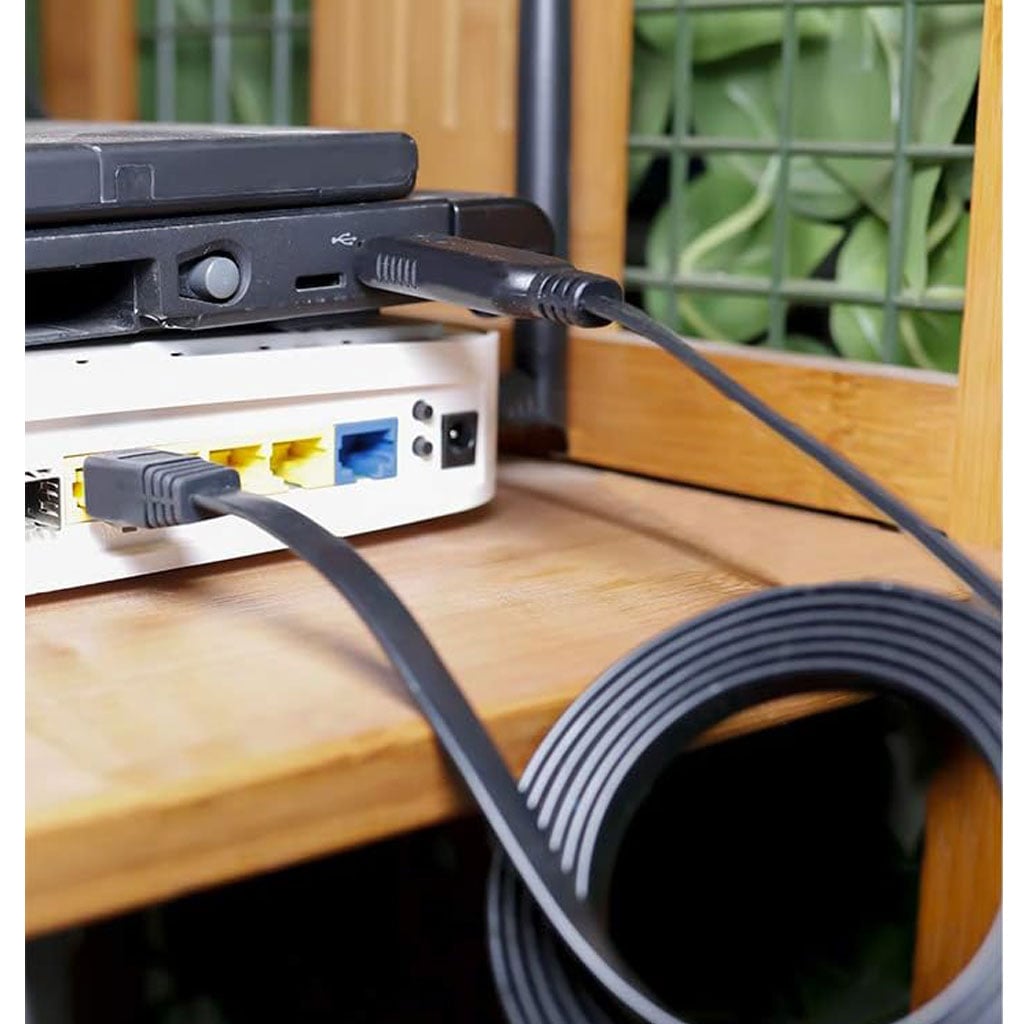

USB - RJ45 Cisco Console Cable, Rollover cable

  • Model: U2RJ45-FT181
  • In Stock

$24.95

Add to Cart:

Description

A Console cable is used for managing / configuring network devices such as network switches, routers, modems, hubs and similar devices. Cisco network devices in particular usually has a RJ45 port for management, which is also why this cable is also sometimes called a 'Cisco console cable', management cable or rollover cable.

The RJ45 end of the cable is not a regular RJ45 Ethernet connection cable even it looks like this, instead it's actually a serial interface, providing TX and RX lines, just like a standard RS232 connection.
The USB end of the cable is converting the serial data into a virtual COM port on the computer it's connected to, with help from virtual COM port drivers on the computer.

This USB Console Cisco rollover cable is compatible with most routers, including Cisco, Ubiquiti, Juniper, TP-Link, providing an easy way of programming a network device. Drivers support Windows, Mac and Linux.

In case your network device has a DB9 serial port instead of a RJ45 port then you can use a DB9 Female to RJ45 Modular Adapter in combination with this Console cable.

usb cisco console  diagram

Overall features
  • Compatible with most network devices
  • Powered by USB port
  • Reliable FTDI processor
  • Works with all versions of Windows
  • Works with Linux and Mac
Resources


SPECIFICATIONS
Part number U2RJ45-FT181
Operating system
  • Windows 11, 10, 8.1, 8 (32/64-bit), Windows Server 2016, Windows Server 2012 / R2, Windows 7 (32/64-bit), Windows Server 2008 R2, Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP, Windows Server 2003 (32/64-bit), 2000, (all WHQL compliant). Windows RT as D2XX drivers only.
  • Windows CE v4.2 - 5.2, 6.0, 7.0 and 2013 including: Windows Mobile 2003, 2003 SE, Windows Mobile 5, 6, 6.1 and 6.5
  • Linux (built into kernel 3.0.0-19 and above)
  • Mac OS 8, OS 9, OS X 10.3 to 10.9 and above
Power requirements Powered by USB port (5V)
Processor FTDI
Transfer rates Up to 460Kbps
Interfaces USB: Type A male USB 1.1/2.0
RJ45: RS232
Data bits 5, 6, 7, 8
FIFO 512 bytes
Parity Odd, Even, Mark, Space, None
Stop bits 1, 1.5, 2
Wire gauge 28 AWG
Cable length 6.0 ft (1.8m)
Compliance FCC, CE, ROHS
Warranty 1 year limited warranty



How to Use a Console Cable: A Simple Guide

A console cable connects your computer to networking devices like routers and switches for essential tasks like configuration and troubleshooting. This guide explains what console cables are, their types, and provides a detailed document on their configurations and step-by-step instructions on how to use them effectively.

Introduction to Console Cables

Console cables are a crucial component in connecting devices to routers, switches, and other network equipment. They enable users to configure, manage, and troubleshoot network devices using a terminal or computer. In this section, we will introduce the basics of console cables, including their types, uses, and importance in network management.

Console cables are used to establish a connection between a device and a terminal or computer. They are typically used for initial configuration, troubleshooting, and management of network devices. There are several types of console cables available, including straight-through, crossover, and rolled cables. Each type of cable has its own specific use case and is designed to meet the requirements of different network devices.

Key Takeaways

  • Console cables are crucial for direct communication with network devices, facilitating configuration and troubleshooting tasks.

  • There are various types of console cables, including rollover, DB-9, DB-25, and USB cables, each serving specific purposes and compatibility needs.

  • Proper maintenance practices, including careful handling, cleaning, and storage, are essential to ensure the reliability and longevity of console cables.

Understanding Console Cables

An assortment of different console cables including RJ-45 and USB types.

Console cables are essential for establishing reliable connections between computers and networking devices like routers and switches, especially during configuration or troubleshooting tasks. They act as a crucial bridge, enabling direct communication with network devices, making them indispensable in any network setup.

Purpose of Console Cables

Console cables are primarily used to connect computers to routers or switches for configuration. This direct connection allows network administrators to access the command-line interface (CLI) of the devices, facilitating setup, management, and troubleshooting. Without these cables, managing network devices would be significantly more challenging.

USB console cables are increasingly utilized as they connect easily to modern devices that lack traditional serial ports. This shift towards USB connectivity reflects the evolving landscape of computer hardware, where serial ports are becoming less common. The versatility of USB console cables makes them a popular choice for connecting laptops and newer PCs to network devices.

DB-9 or DB-25 console cables can connect to both Data Communication Equipment (DCE) and Data Terminal Equipment (DTE) devices, facilitating communication between the router and terminal. Additionally, these connectors support hardware flow control via the auxiliary port, which is essential for certain communication tasks. Console cables also support higher data transfer rates compared to traditional types, enhancing configuration efficiency.

Types of Console Cables

There are several types of console cables, each with its unique characteristics and uses. A rollover cable, for instance, is a type of null-modem cable used to connect a terminal to a router’s console port. These cables are typically flat and light blue in color, making them easily distinguishable. The term “rollover” comes from the fact that the pinouts on one end are reversed from the other.

DB-25 console cables, on the other hand, are designed to connect devices with serial ports, offering a range of configurations. Understanding the different types of console cables is crucial for selecting the right one for your specific networking needs.

Identifying Console Cable Types

Different types of console cables arranged for identification.

Identifying the different types of console cables is vital for ensuring the correct setup and functionality of your network devices. Each type of console cable serves a specific purpose, and understanding these distinctions can prevent potential connection issues and enhance overall network management.

RJ-45 Console Cables

RJ-45 console cables are commonly used but are not typically provided by manufacturers like Cisco, meaning they must be acquired separately. These standard cables are widely available from various sources, making them relatively easy to obtain. However, to ensure effective communication, especially at a baud rate of 115.2 kbps, shielded RJ-45 cables are required.

These cables are fundamental in connecting network devices to computers for configuration and troubleshooting. The widespread availability of RJ-45 cables makes them a convenient choice for network administrators.

DB-9 and DB-25 Console Cables

DB-9 and DB-25 console cables are characterized by their 9-pin or 25-pin connector arrangements, which are designed for serial communications. These connectors can function as both Data Communication Equipment (DCE) and Data Terminal Equipment (DTE) interfaces, making them versatile tools in networking environments.

Commonly used in Cisco router configurations, DB-9 and DB-25 connectors are essential for establishing reliable connections between network devices and computers. Their robust design and compatibility with various devices make them a staple in many network setups.

USB Console Cables

USB console cables have become increasingly popular due to their compatibility with modern computers, which often lack traditional serial ports. These cables provide a seamless connection between network devices and newer computers, simplifying the setup process and enhancing overall efficiency.

Setting Up a Console Connection

Setting up a console connection involves several steps to ensure that your network devices are properly configured and ready for use. Having the correct cable type and a computer with terminal software installed is essential for a successful setup.

Connecting to a Router

To connect a console cable to a router, first locate the router’s console port, typically marked with ‘CON’ or ‘Console’. Plug the RJ-45 connector of the console cable into this port, ensuring a secure fit. The other end of the cable should be connected to the serial or USB port of your computer, depending on the cable type. This direct connection is crucial for network configuration and troubleshooting, providing a reliable communication link between your devices.

Once connected, ensure both the router and the computer are powered on to establish a successful connection. This setup is fundamental for accessing the router’s CLI and performing necessary configurations.

Configuring Terminal Software

After physically connecting the console cable, the next step is to configure terminal software on your computer. Many USB console cables include plug-and-play functionality, which simplifies the setup process for network administrators. For example, using terminal emulation software like PuTTY or Tera Term, configure the communication parameters such as baud rate, data bits, parity, and stop bits to match the requirements of your network device.

When connecting a laptop to a switch, ensure the terminal software is correctly configured to enable smooth communication. This step is crucial for accessing the CLI and managing network devices effectively.

Verifying the Connection

To verify a successful console connection, check that the appropriate terminal software displays a command prompt after configuration. If the command prompt does not appear, recheck the cable connections and terminal settings.

Ensuring the terminal software is receiving data from the device confirms the connection is properly established.

Essential Adapters for Console Cables

Essential adapters for console cables, including RJ-45 to DB-9 and USB adapters.

Adapters are crucial for connecting console cables to devices with varying port types. These adapters ensure compatibility and facilitate seamless communication between different devices. They play a vital role in any network setup, making it possible to use a single console cable with multiple devices.

RJ-45 to DB-9 Adapter

The RJ-45 to DB-9 adapter, often referred to as a Management Cable, is essential for connecting console ports to various devices. This adapter allows a router to connect to a PC, enabling configuration and management of network devices.

Its versatility and reliability make it a go-to solution for many network administrators.

RJ-45 to USB Adapter

RJ-45 to USB adapters are particularly useful in modern setups where computers may lack traditional serial ports. These adapters streamline connections to newer devices, eliminating the need for legacy ports and simplifying the overall setup process.

Their ease of use and compatibility make them an invaluable tool in contemporary network management apps.

Common Console Cable Setups

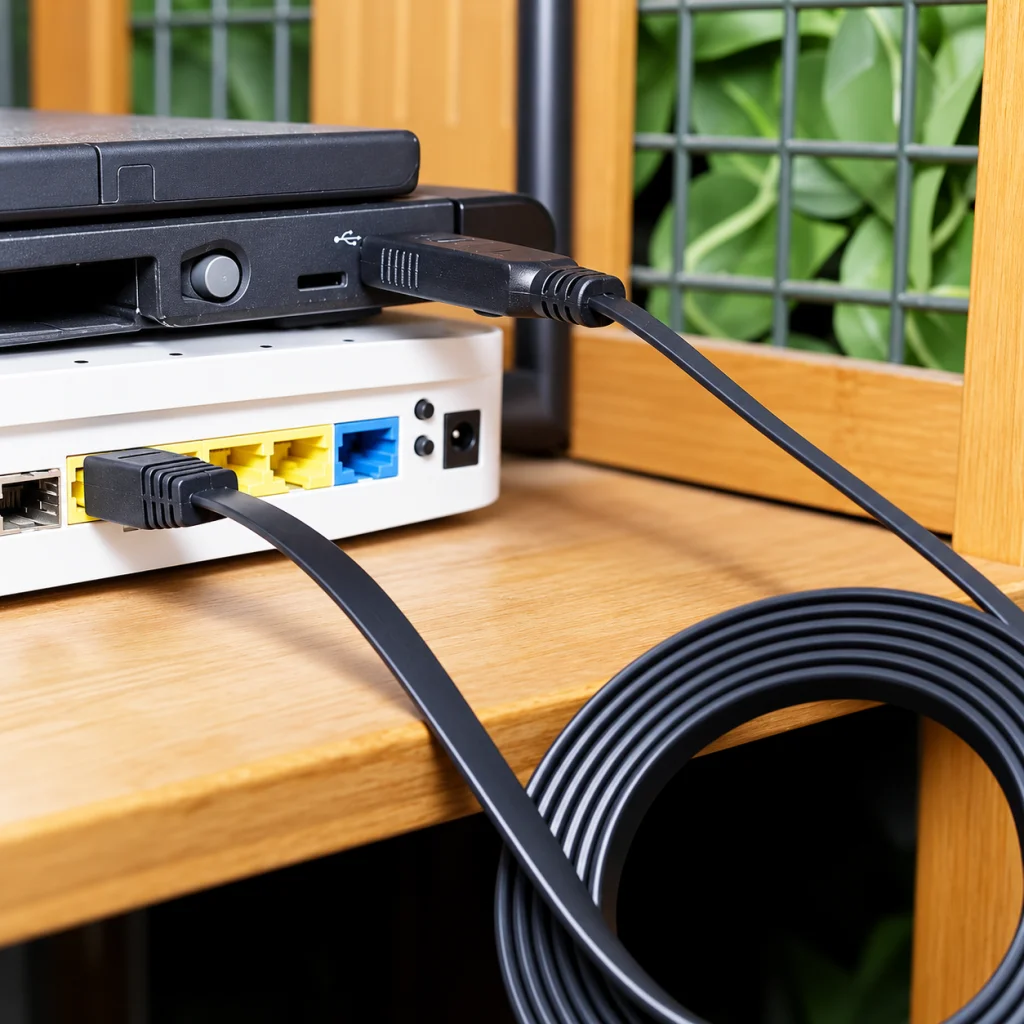

A PC connected to a router using a console cable.

Console cables are crucial for managing network devices by allowing direct access to their console ports. Understanding common setups, such as PC to router and laptop to switch connections, is essential for efficient network management and troubleshooting.

PC to Router Setup

When setting up a PC to router connection, start by plugging one end of the console cable into the router’s console port and the other end into your computer’s serial or USB port, depending on the cable type. For a router connection, typically, the DB-9 connector is plugged into the PC’s serial port and the RJ-45 connector into the router’s console port.

This setup is fundamental for accessing the router’s CLI, allowing network administrators to configure and troubleshoot the device effectively.

Laptop to Switch Setup

To connect a laptop to a switch, use a console cable that connects the serial port on the laptop to the console port on the switch. Alternatively, a USB console port can be used for a direct connection. The console cable typically features an RJ-45 connector for the switch and a DB-9 connector for the laptop.

After connecting the cable, launch terminal emulation software like PuTTY or Tera Term on the laptop to establish a connection with the switch. Upon powering on the switch, users can access the CLI by pressing Enter when prompted. Entering ‘enable’ at the CLI prompt allows users to switch to privileged EXEC mode for further configuration.

Pin-outs and Wiring Diagrams

Understanding pin-outs and wiring diagrams is essential for proper console cable connections. These configurations determine how the wires are connected and ensure effective communication between devices. Mismatches in pin-out configurations can lead to communication failures, making it crucial to get them right.

RJ-45 Pin-outs

RJ-45 console cables, commonly used for connecting network devices, come with specific configuration details. There are three types of RJ-45 cables. These include straight, cross, and rolled cables. Understanding the pin-out configurations of these cables is crucial for proper connections and functionality. Recognizing the relevance of RJ-45 pin-outs helps in optimizing the management of network devices via console cables.

A rolled cable features a reversed sequence of wires compared to straight cables, which is important to note when setting up connections.

DB-9 and DB-25 Pin-outs

In RS232 applications, typically only a few pins on the DB-9 or DB-25 connector are utilized for communication.

For DB-9 / DB-25 console cables:

  • The transmit data pin is designated as TXD

  • The receive data pin is labeled RXD

  • The data terminal ready (DTR) pin indicates when the device is ready to communicate.

The shield pin in a DB-9 / DB-25 connector serves as a ground connection, ensuring signal integrity. Understanding these pin-outs is essential for establishing reliable connections and effective communication between devices.

Console Cable Kits

Pre-packaged console cable kits are designed to simplify the connection process by including all necessary components. These kits provide everything needed for establishing console connections, making them a convenient solution for network administrators.

Standard Console Cable Kit Contents

A standard console cable kit usually contains essential cables and connectors necessary for establishing console connections. Typically, these kits include a 6-foot console cable length, which is standard for most applications. Various connector options are provided in the kit to ensure compatibility with multiple devices.

Having the right components in a console cable kit allows for efficient setup and management of network devices.

Specialized Kits for Specific Routers

Some router-specific kits include additional tailored connectors for compatibility. Customers have provided positive feedback about these specialized kits, highlighting their importance in ensuring compatibility and ease of use. These specialized kits often feature connectors like RJ-45 to DB-9 or DB-25, designed specifically for certain router models. Notable Cisco router models, such as the Cisco 7200 Series and Cisco 7301, do not come with a console cable kit by default, making these specialized kits essential for proper setup.

Specialized kits are designed to ensure compatibility and ease of use, providing all necessary components tailored for specific router models. This tailored approach helps in avoiding any compatibility issues during setup and ensures a smoother configuration process.

Cable Management and Organization

Proper cable management and organization are essential for maintaining a tidy and efficient network infrastructure. Console cables, in particular, can be prone to tangling and damage if not managed properly. In this section, we will discuss best practices for cable management and organization, including cable labeling, routing, and storage.

To ensure proper cable management, it is essential to label each cable clearly and consistently. This helps to identify the cable’s purpose and destination, making it easier to troubleshoot and manage the network. Cables should also be routed in a way that minimizes tangling and damage. This can be achieved by using cable ties, cable organizers, and cable management systems.

Troubleshooting Common Issues

Console cables can sometimes malfunction or fail, causing connectivity issues and disrupting network operations. In this section, we will discuss common issues that can arise with console cables and provide troubleshooting tips to resolve them.

One common issue with console cables is incorrect configuration. To resolve this, ensure that the cable is properly connected to the device and terminal or computer. Also, check that the cable is not damaged or faulty. If the issue persists, try using a different cable or adapter to rule out any hardware problems.

Another common issue is cable damage or wear and tear. To prevent this, handle cables with care, and avoid bending or twisting them excessively. Regularly inspect cables for signs of damage or wear and tear, and replace them as needed.

Maintaining Your Console Cables

network, patch cord, rj-45

Proper maintenance of console cables is essential for ensuring their longevity and reliability. Regular maintenance practices, such as careful handling and proper storage, can significantly extend the lifespan of your cables and ensure consistent performance.

Storage Best Practices

To prevent tangling and damage, console cables should be coiled loosely and stored in protective pouches or cases. Storing console cables in a coiled manner can help prevent kinks and tangling, which can damage the internal wiring. It is also important to store console cables in a cool, dry place away from direct sunlight to avoid material degradation.

Using cable ties or Velcro straps can effectively prevent tangling when storing console cables, ensuring they remain in good condition for future use.

Cleaning and Inspection

Regular cleaning of console cables is essential to maintain their functionality and prevent potential issues. To clean console cables, use a soft cloth and a mild cleaner to avoid damage and ensure effective maintenance. Inspecting console cables regularly is important to identify any signs of wear, fraying, or damage that could affect performance.

During inspection, check connectors, ends, and the cable itself for any visible damage or abnormalities that may impact performance. Keeping your console cables clean and in good condition will ensure they are always ready for reliable use.

Summary

In conclusion, understanding how to use console cables effectively is crucial for managing and configuring network devices. From identifying the right type of cable to setting up connections and maintaining your equipment, this guide has covered all the essential aspects. Proper use and maintenance of console cables will ensure a smoother, more efficient network management experience. Always remember, the key to a well-managed network lies in the details, and console cables play a significant role in that.

Frequently Asked Questions

What is the primary use of console cables?

Console cables are primarily used for connecting computers to routers or switches to facilitate configuration and troubleshooting.

Why are USB console cables becoming more popular?

USB console cables are becoming more popular due to their compatibility with modern devices that do not have traditional serial ports, making connections more convenient. This trend facilitates easier device management and configuration.

What is a rollover cable?

A rollover cable is specifically designed to connect a terminal to a router's console port, characterized by its null-modem configuration with reversed pinouts on one end. This unique wiring enables communication between devices that utilize serial ports.

What should I do if my terminal software doesn't display a command prompt?

If your terminal software doesn't display a command prompt, verify the cable connections and check the terminal settings for accuracy. Ensuring these are correct may resolve the issue promptly.

How can I maintain my console cables to ensure their longevity?

To ensure the longevity of your console cables, store them in a cool, dry place, coil them loosely to prevent tangling, and regularly clean and inspect them for wear or damage. Following these practices will help extend their lifespan.
