Serial RS232 and RS485 Wireless RF Radio, Full-duplex High-speed, 2600 Ft. (800m)

Industrial Wireless Made Reliable
Full-Duplex 2.4GHz Industrial Wireless DTU for RS-232 & RS-485 Systems
Replace complex wiring with stable, long-range wireless communication built for industrial environments.

Built for Continuous Industrial Operation
In automation systems, communication failure is not an option.

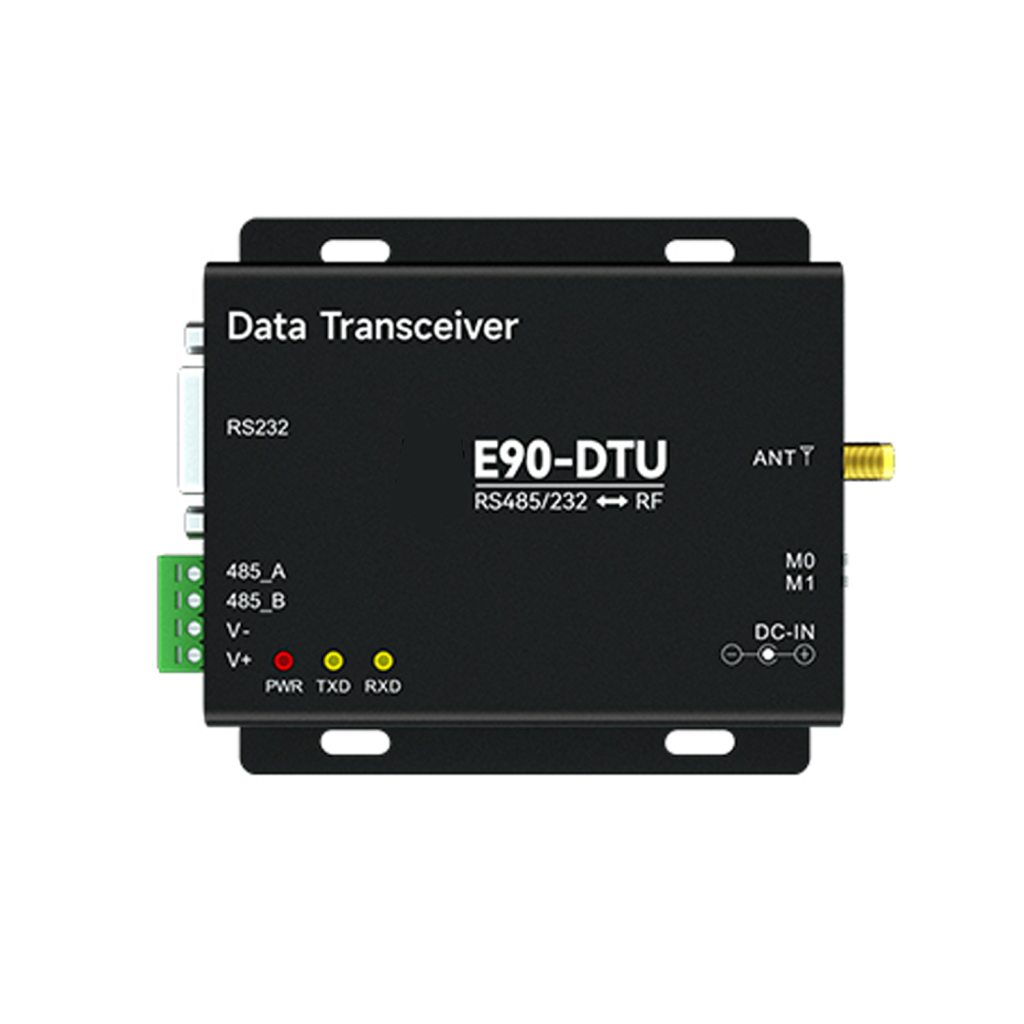

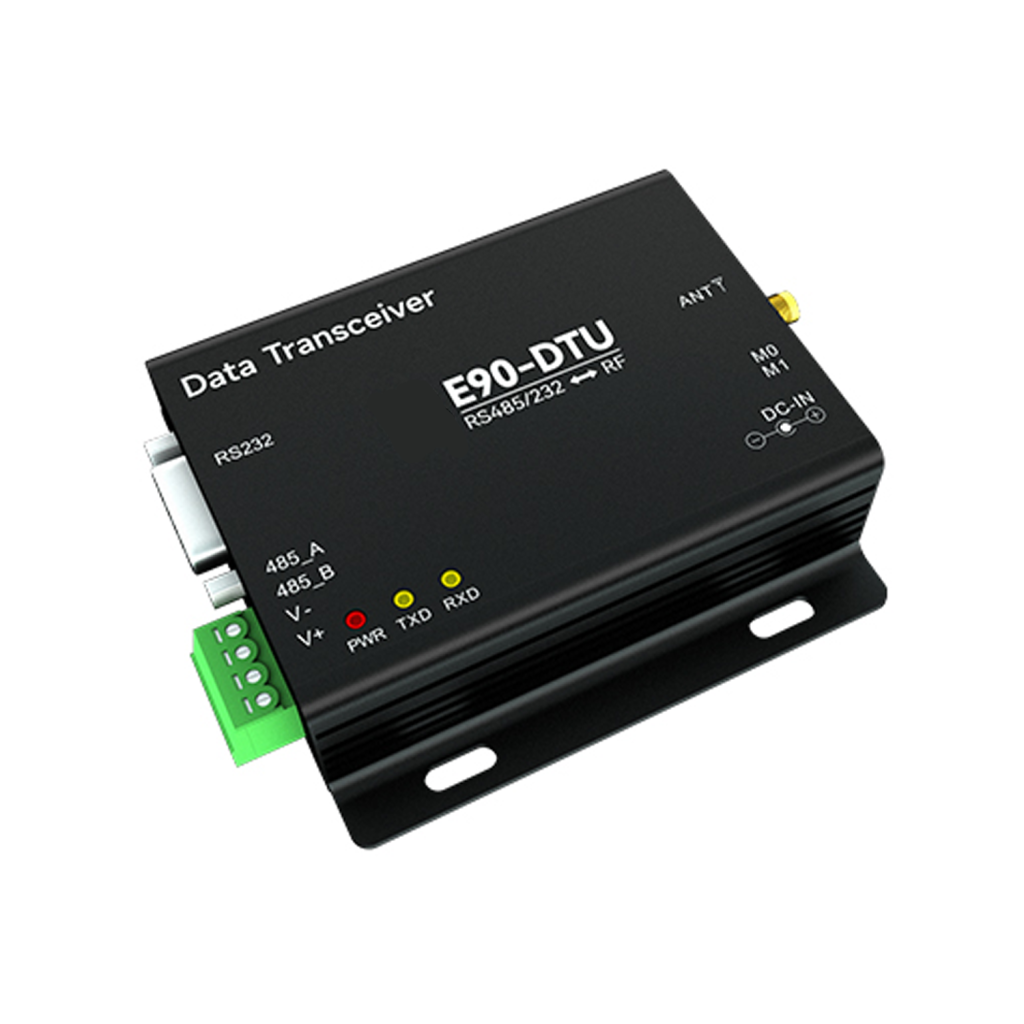

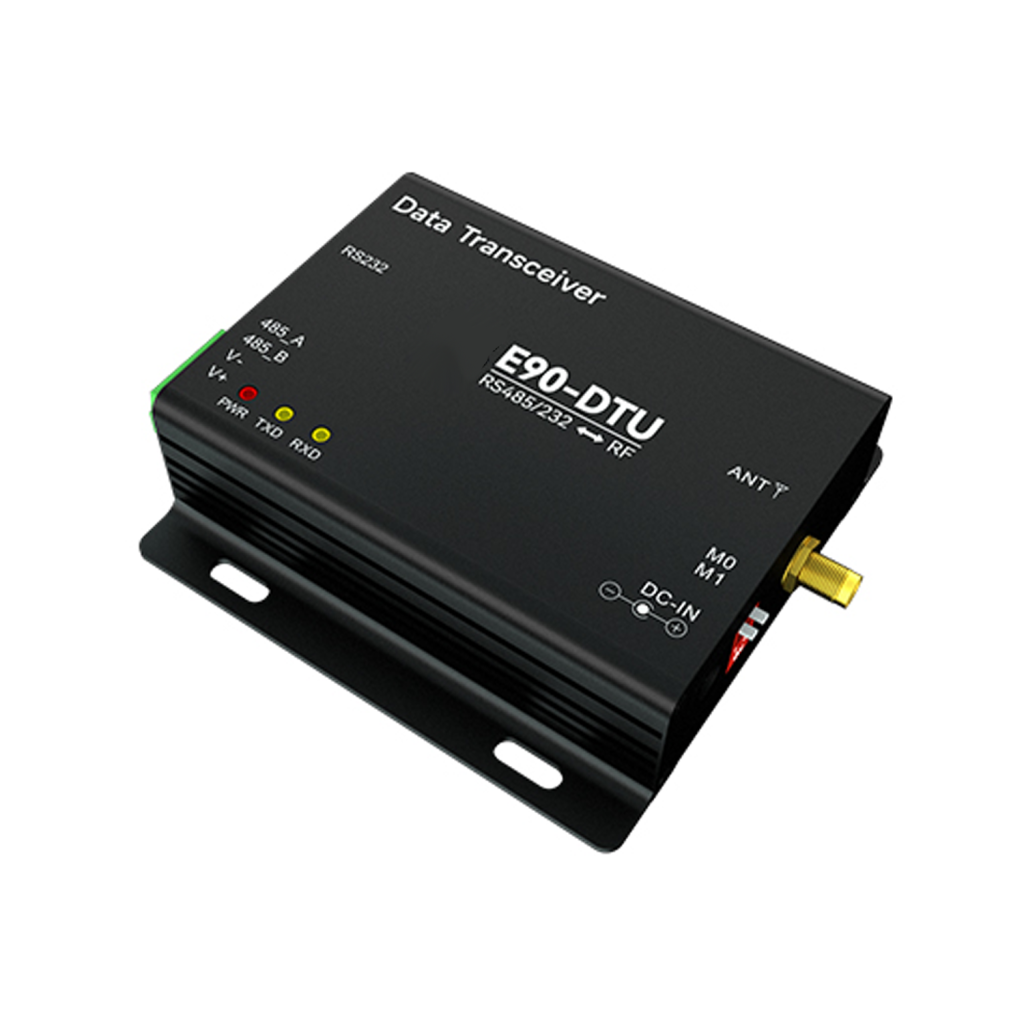

The E90-DTU2G4HD12 is engineered for stable, real-time wireless data transmission between serial devices. Designed for factories, utilities, energy systems, and infrastructure projects, it ensures uninterrupted communication in electrically noisy and environmentally harsh conditions.
With advanced error correction, automatic frequency hopping, and industrial-grade components, this DTU delivers consistent performance 24/7.

Up to 800m range · Full duplex · Industrial-grade protection · Wide voltage input

High-Speed Full-Duplex Wireless Performance
Unlike half-duplex solutions that introduce transmission delays, the E90-DTU(2G4HD12) supports simultaneous bidirectional communication, enabling:

• Real-time data exchange
• Faster control response
• Reduced latency in automation systems
• Seamless PLC-to-PLC communication

Operating in the global 2.4–2.48GHz ISM band, it provides license-free deployment worldwide.
Transmission Power: 12 dBm
Communication Distance: Up to 800 meters (open environment)
Baud Rate: 1200 bps – 921600 bps (default 115200 bps)

Flexible Serial Integration
Designed to integrate directly into existing industrial systems:
RS-232 (DB9 Interface)
Connect PCs, industrial controllers, legacy systems, and embedded devices.
RS-485 Terminal Interface
Ideal for Modbus networks, PLC systems, SCADA applications, and multi-node industrial buses.
Dual interface support reduces hardware complexity and simplifies deployment.

Designed for Harsh Environments

Industrial sites demand more than basic wireless hardware.
The E90-DTU(2G4HD12) features:

• Industrial-grade metal enclosure
• Three-proof coating (moisture, mildew, salt spray protection)
• Wide voltage input: 8–28V DC
• Operating temperature: –40°C to +85°C
• Strong anti-interference capability
• External SMA antenna for optimized signal strength

It performs reliably in high humidity, dusty workshops, outdoor cabinets, and electrically noisy environments.

Stable & Secure Data Transmission
Advanced built-in technologies ensure data integrity:

• Forward Error Correction (FEC)
• CRC error detection
• Automatic frequency hopping
• Hardware watchdog protection

These features minimize packet loss and enhance communication stability, even in crowded RF environments.

Compact, Efficient, Easy to Deploy

• Size: 82 × 62 × 25 mm
• Weight: ~130g
• LED indicators for real-time status monitoring
• DIP switches for configuration
• Low power consumption for continuous operation

The compact form factor allows easy installation in control cabinets, monitoring boxes, and remote field equipment.

Typical Applications
The E90-DTU(2G4HD12) is widely deployed in:

• Industrial automation systems
• PLC wireless communication
• Remote monitoring stations
• Energy management systems
• Water treatment facilities
• Environmental monitoring
• Smart agriculture systems
• SCADA and telemetry networks

Wherever reliable serial communication is required without the limitations of physical wiring, this DTU delivers dependable wireless connectivity.
