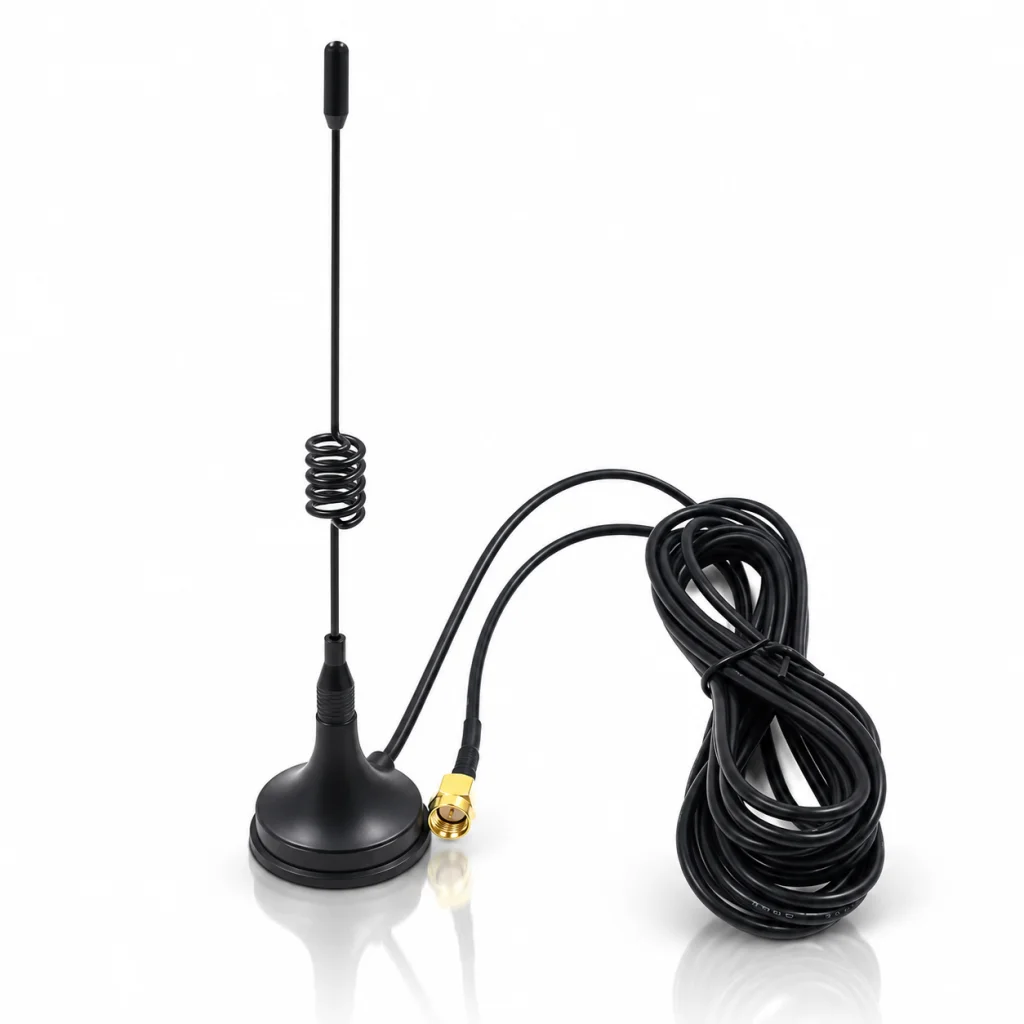

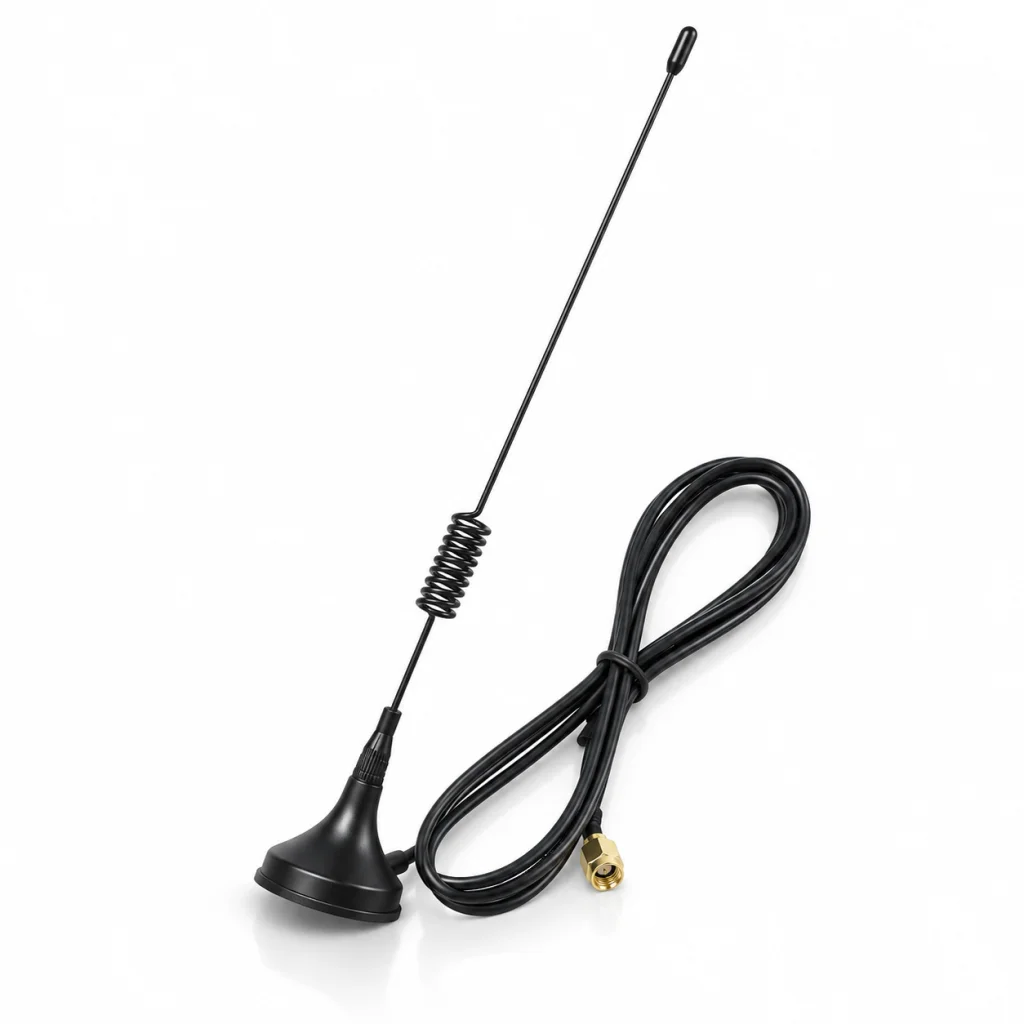

The TX2400-XPL-150 is a high-gain 2.4 GHz antenna with a magnetic base specially designed to improve wireless signal performance for a wide range of RF communication devices. With its strong magnetic base and robust design, it’s ideal for stationary or mobile installations where enhanced connectivity is needed.
Frequency & Compatibility
- Operating Frequency: 2.4 GHz (2.4–2.5 GHz bandwidth).
- Designed for a broad array of 2.4 GHz wireless systems such as Wi-Fi, IoT modules, data radios, and remote control equipment.
Connector & Interface

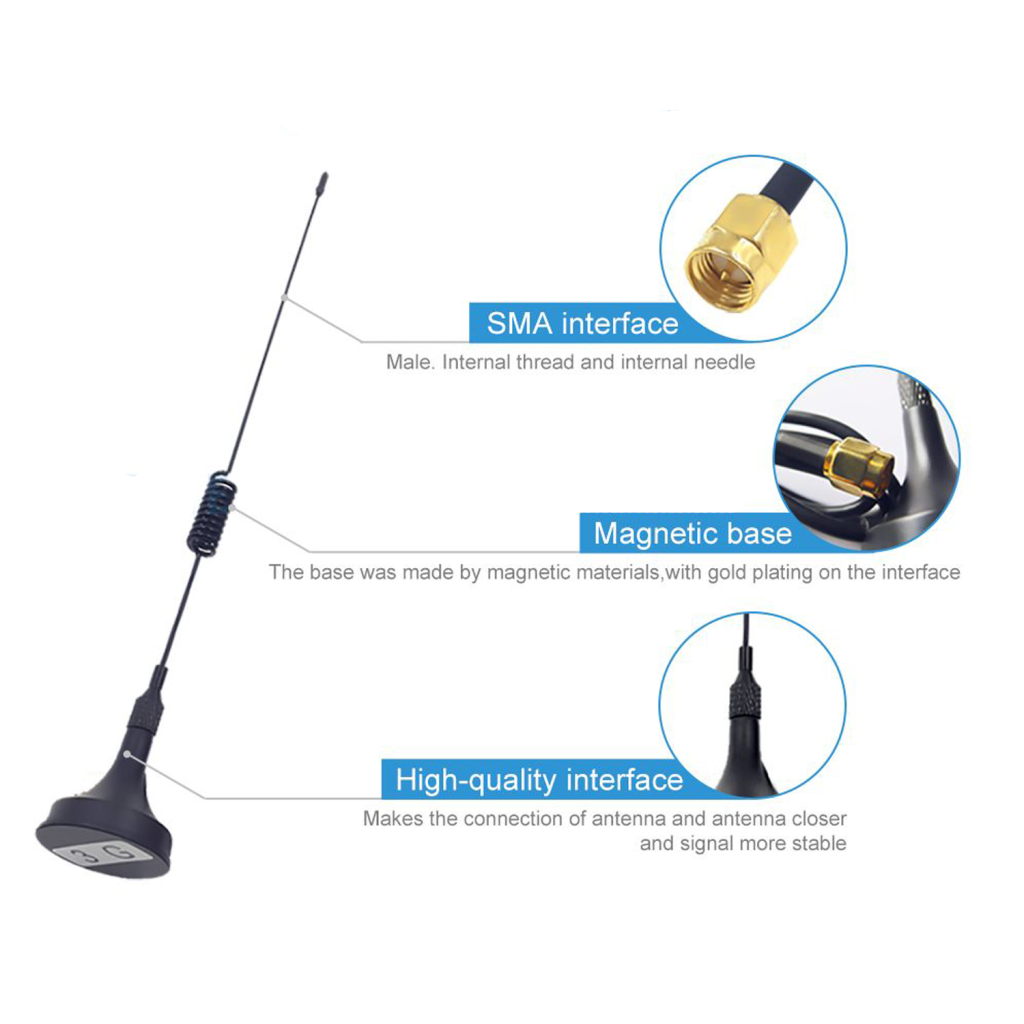

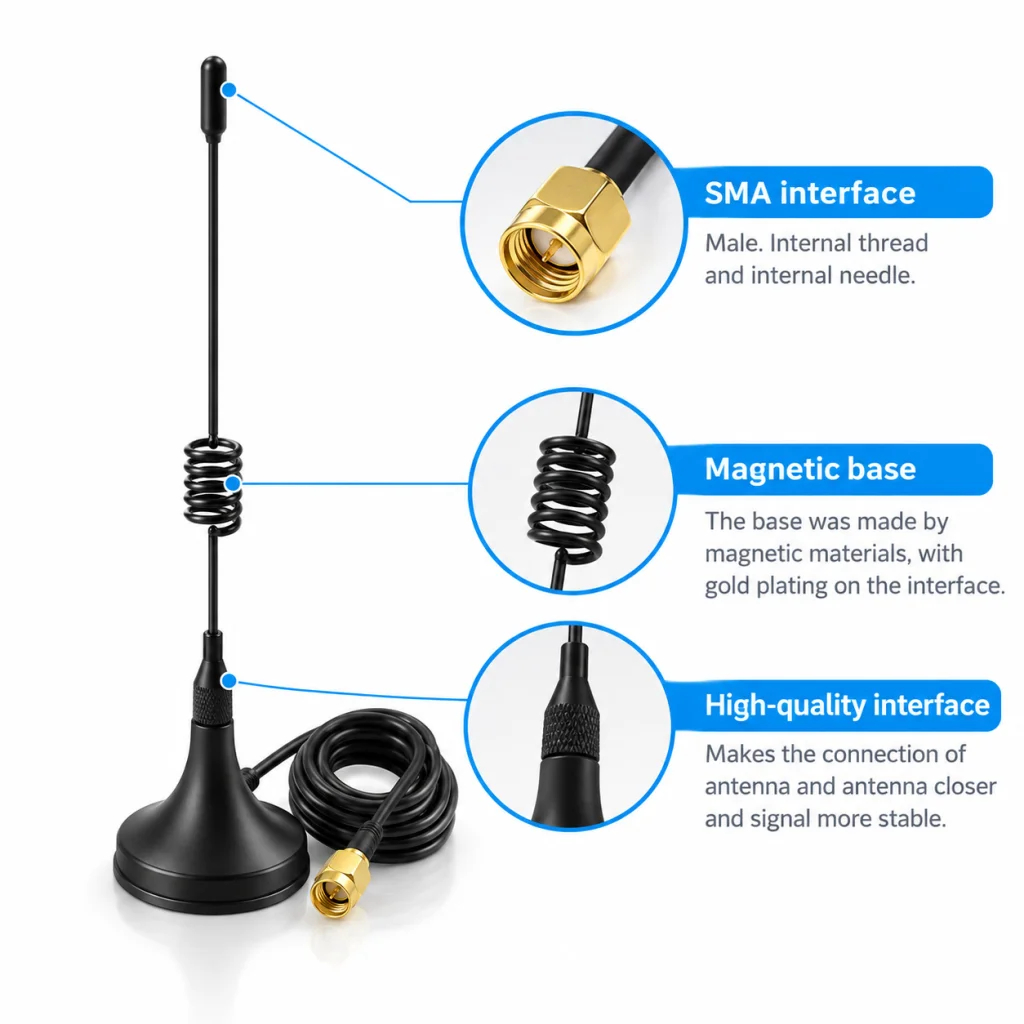

- Interface: SMA-J connector (SMA male with inner threading and needle).

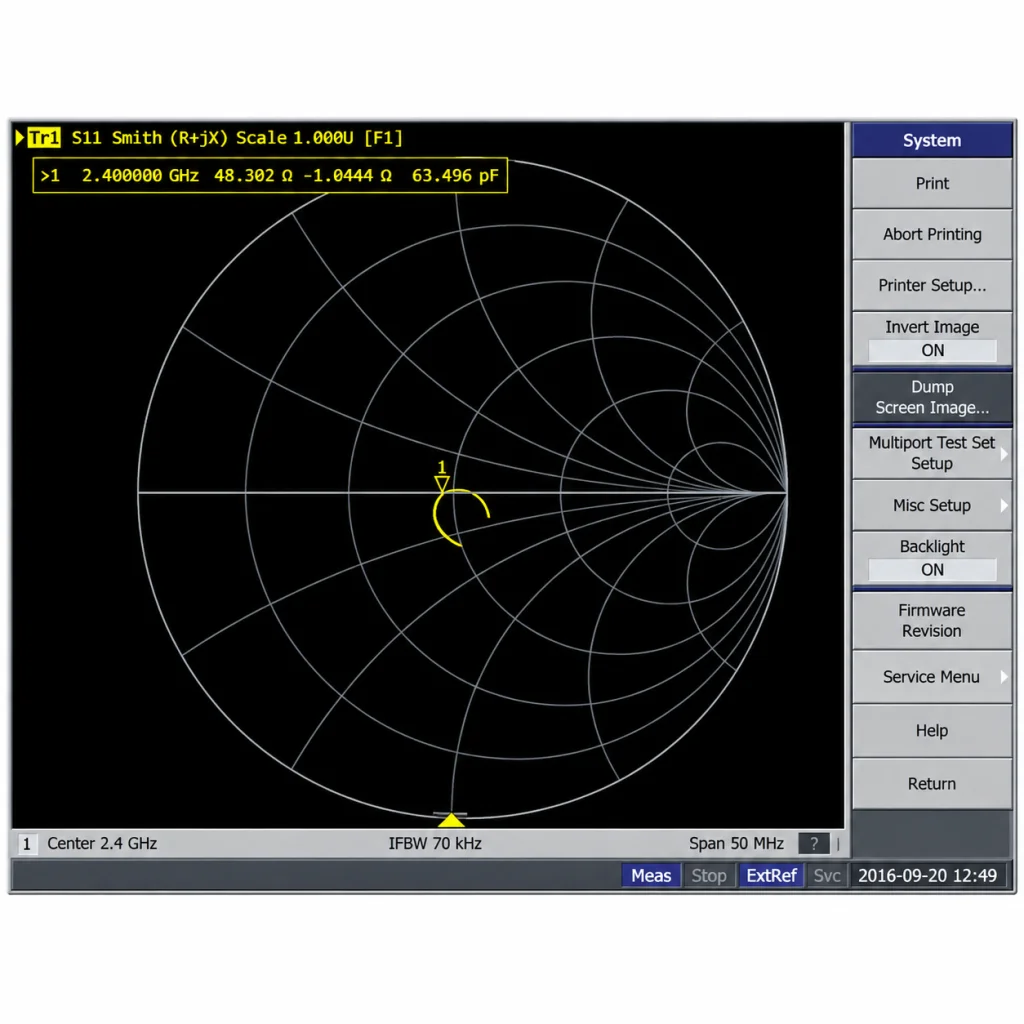

- Impedance: 50 Ω, matching standard RF systems.
Performance
- Gain: 5 dBi — delivers improved signal strength and extended coverage compared with low-gain antennas.
- Radiation: Omnidirectional pattern for wide, uniform signal distribution.

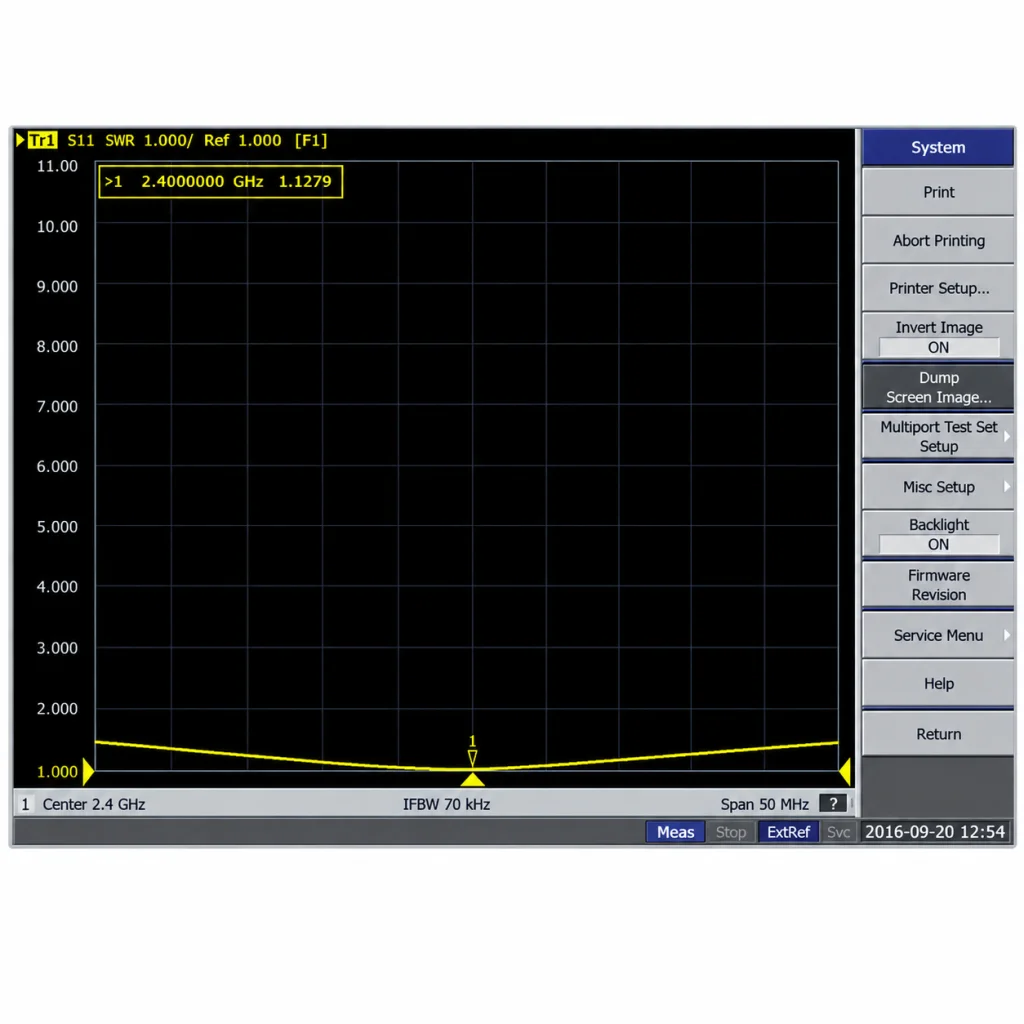

- Standing Wave Ratio (SWR): < 1.5, ensuring efficient RF transmission.
- Power Handling: Typically up to around 50 W, suitable for many consumer and industrial uses.
Physical Design

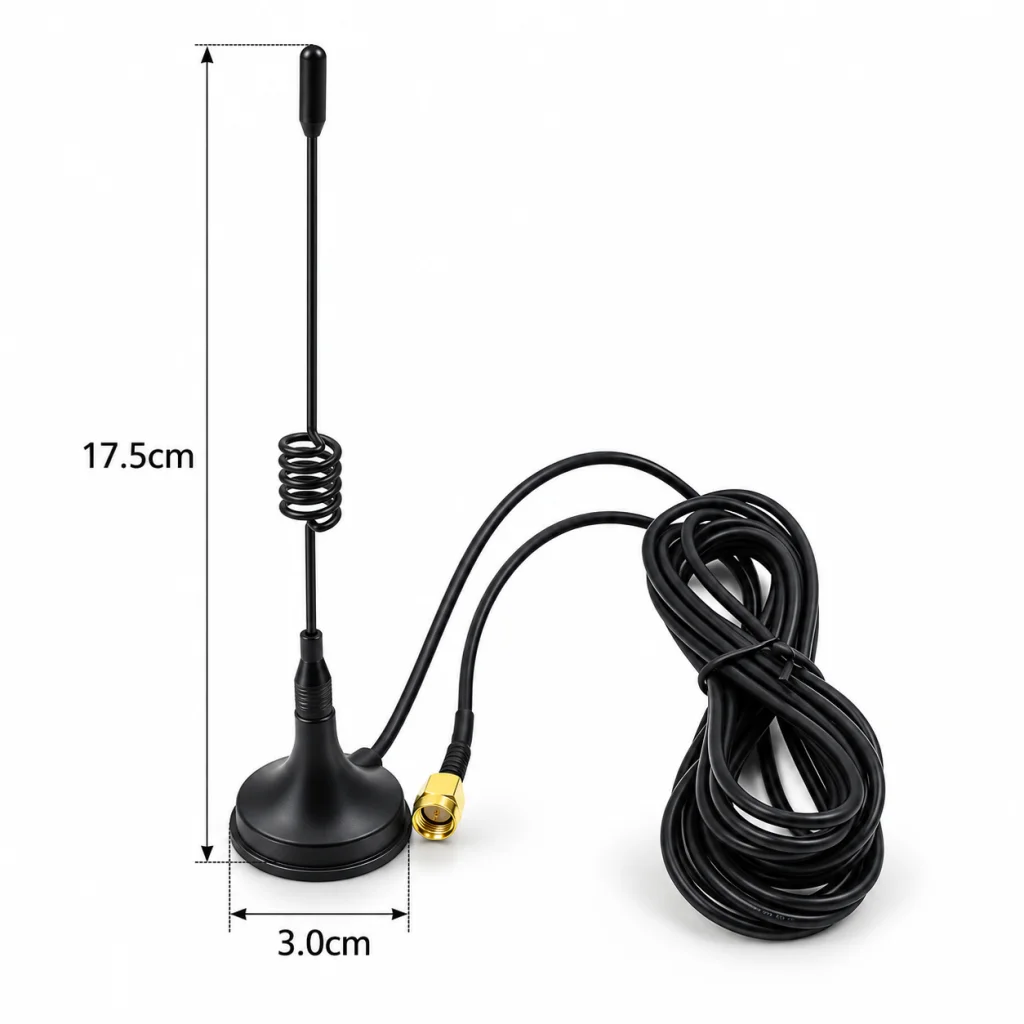

- Height: ~175 mm — practical size for routers, repeaters, and other devices.
- Base: Magnetic base allows easy attachment to metal surfaces and quick repositioning.
- Cable: ~150 cm RG-174 cable (often used for flexible installations).
- Weight & Build: Lightweight (~31 g) with durable carbon steel and ABS construction.
- Operating Temperature: −40 °C to +85 °C — suitable for outdoor and industrial environments.
Typical Applications
The TX2400-XPL-150 is ideal for enhancing wireless performance in systems like:
- Wi-Fi routers, access points, and repeaters
- IoT gateways and sensor hubs
- Data transmission radios and telemetry equipment
- Remote controls and mobile communication units
- Custom RF test setups and field installations
Why Choose This Antenna?
High gain improves signal strength and range
Magnetic base enables flexible placement on metal surfaces
Standard SMA connection ensures broad compatibility
Durable construction for both indoor and outdoor use
Extended cable length for versatile deployment
