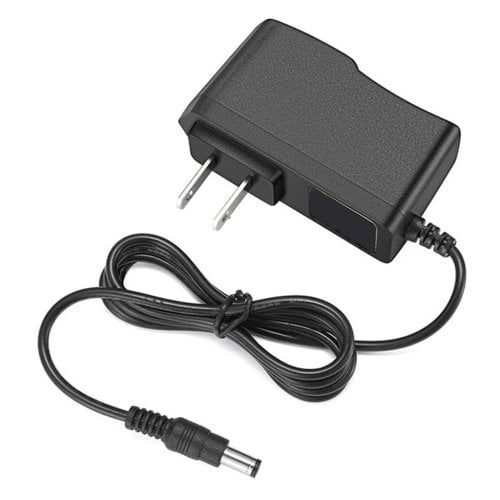

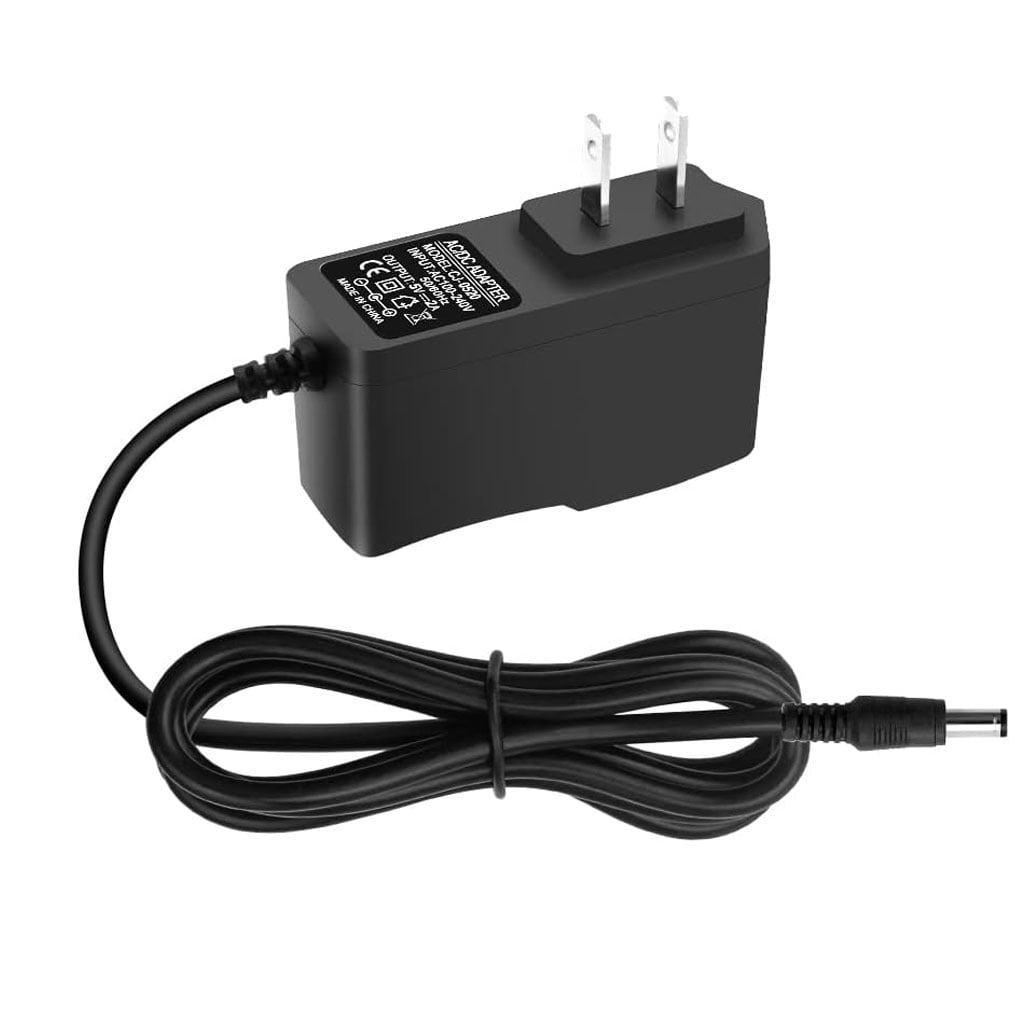

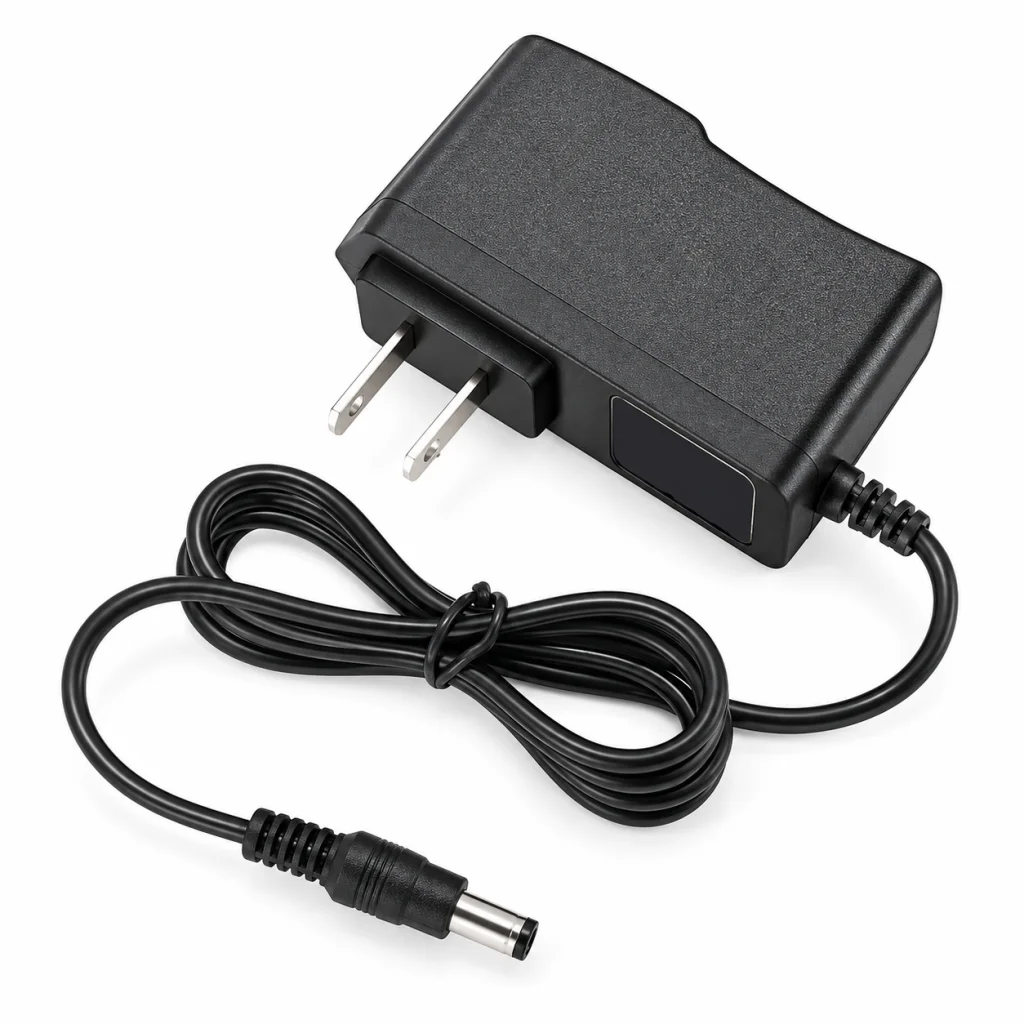

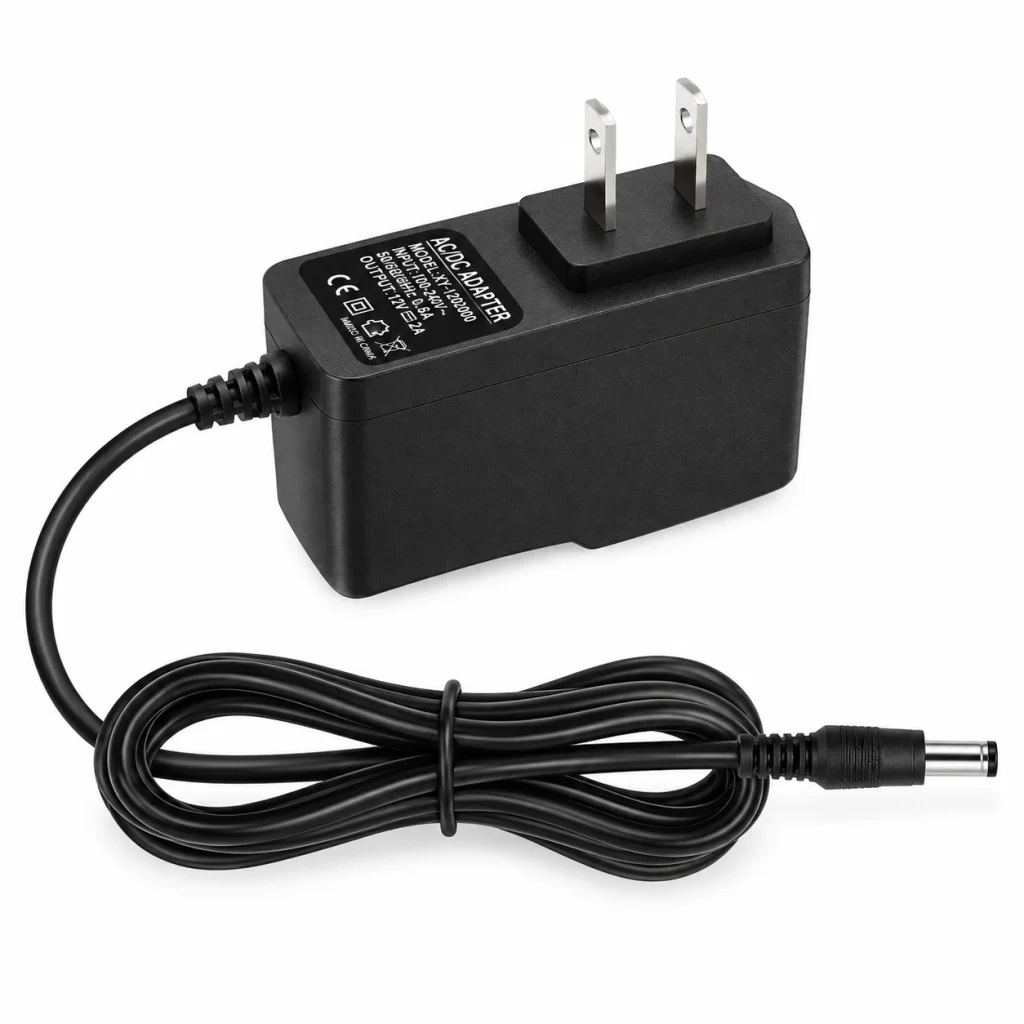

AC-DC adapter. This is a standard 110/240VAC to 9VDC 1000mA power supply compatible with US power plugs. It can be used to power our part numbers BF430 and XS1000 serial to ethernet converters and all other products requiring a stable 9VDC supply.
SPECIFICATIONS |
Part number |
VR9W01 (previous PWR9V) |
Input |
AC input voltage: 110 -240 VAC
AC input frequency: 47Hz - 63Hz
AC input current: 0.3A max.
Max. inrush current: 30A max.
Leakage current: max. 0.75 mA
Efficiency: 70% typical at full load
No load power consumption 0.5W |

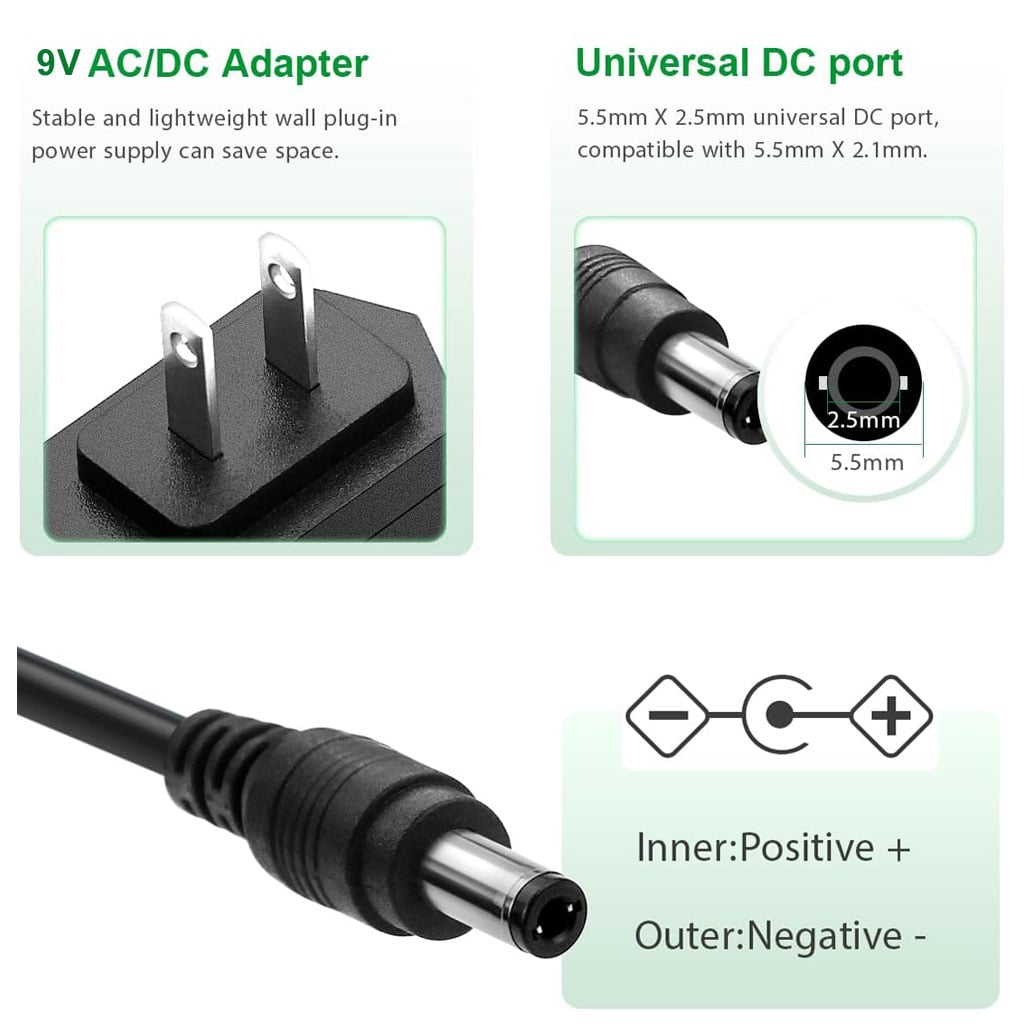

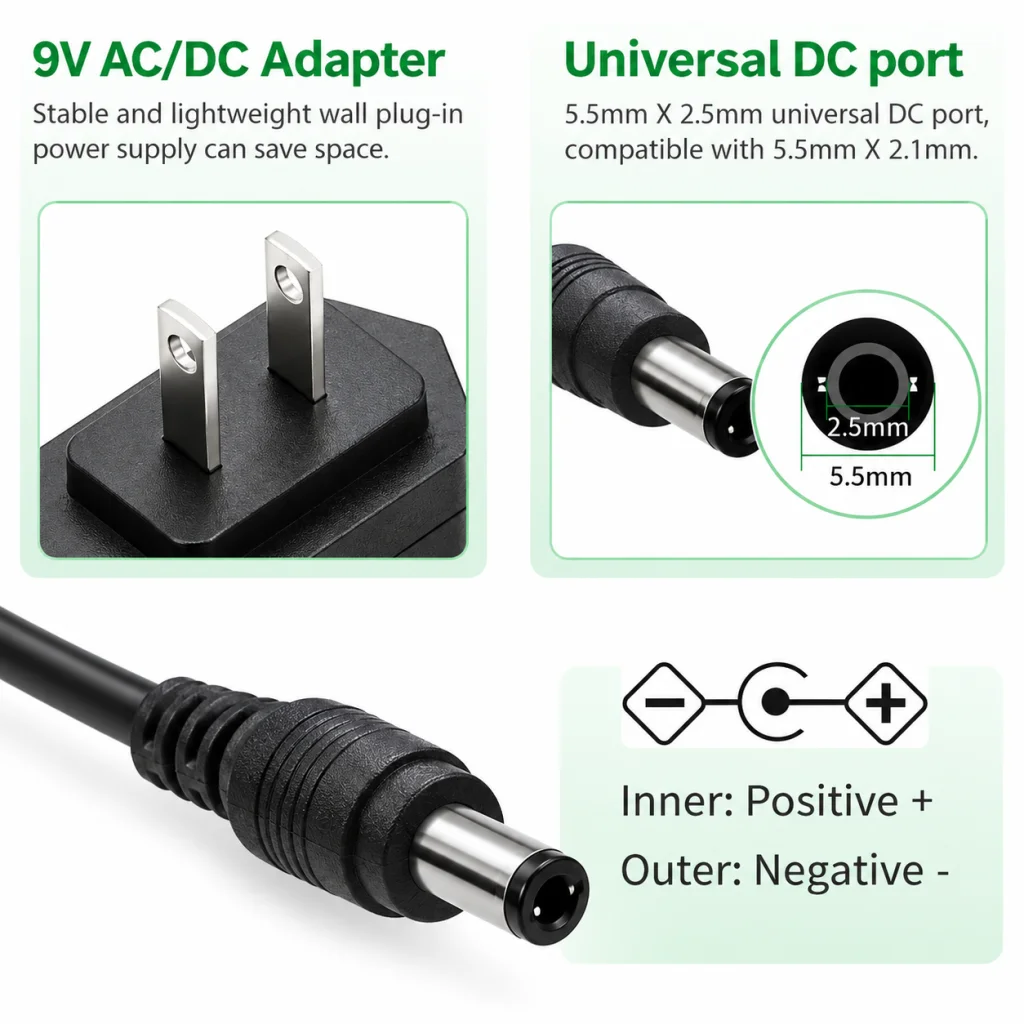

Polarity |
Center + |
Output |
DC output voltage: +9VDC
Load min: 0.0A
Load max: 1.0A |
Protection |
Short circuit protection: automatic recovery |
Environment |
Operating temperature: 0 to 40 degrees C |
Humidity |
20% to 80% RH
Storage temperature: -20 to +70 degrees C
Storage humidity: 10% to 90% RH |

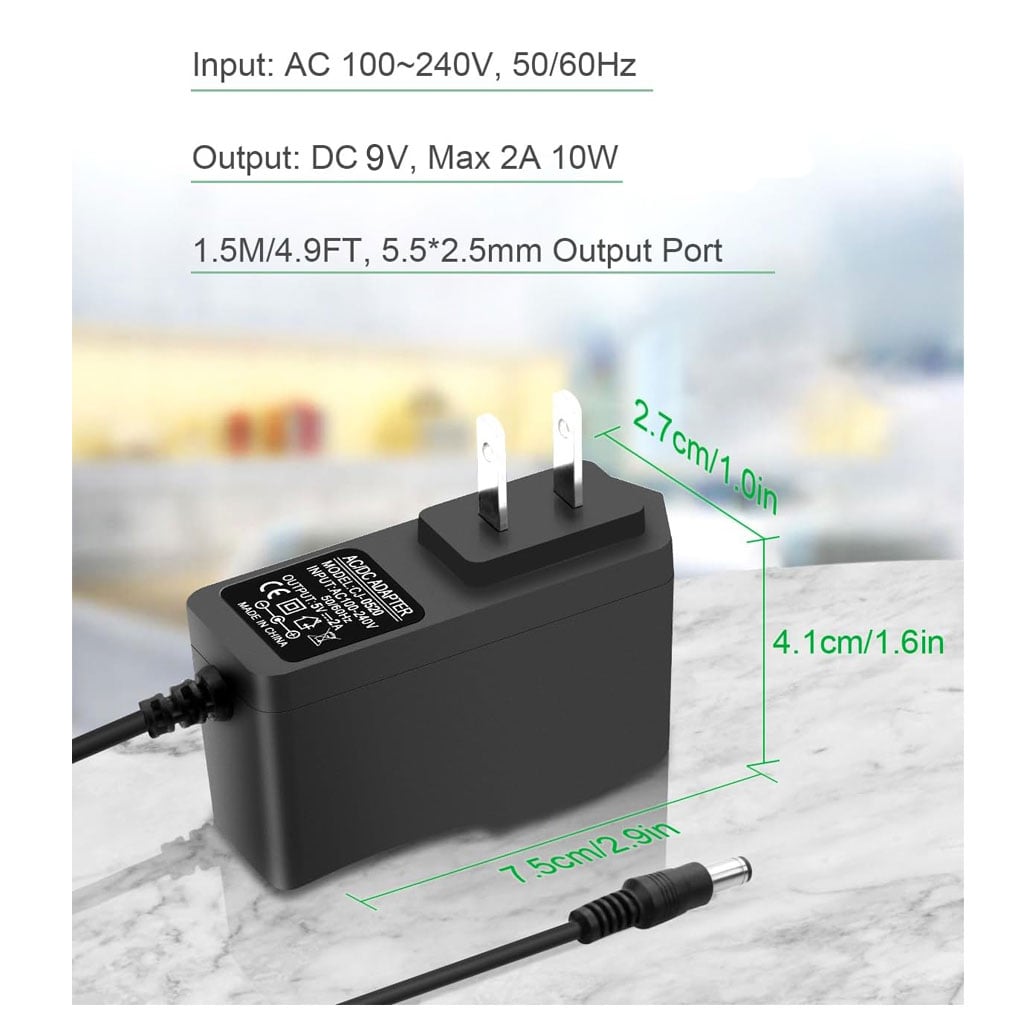

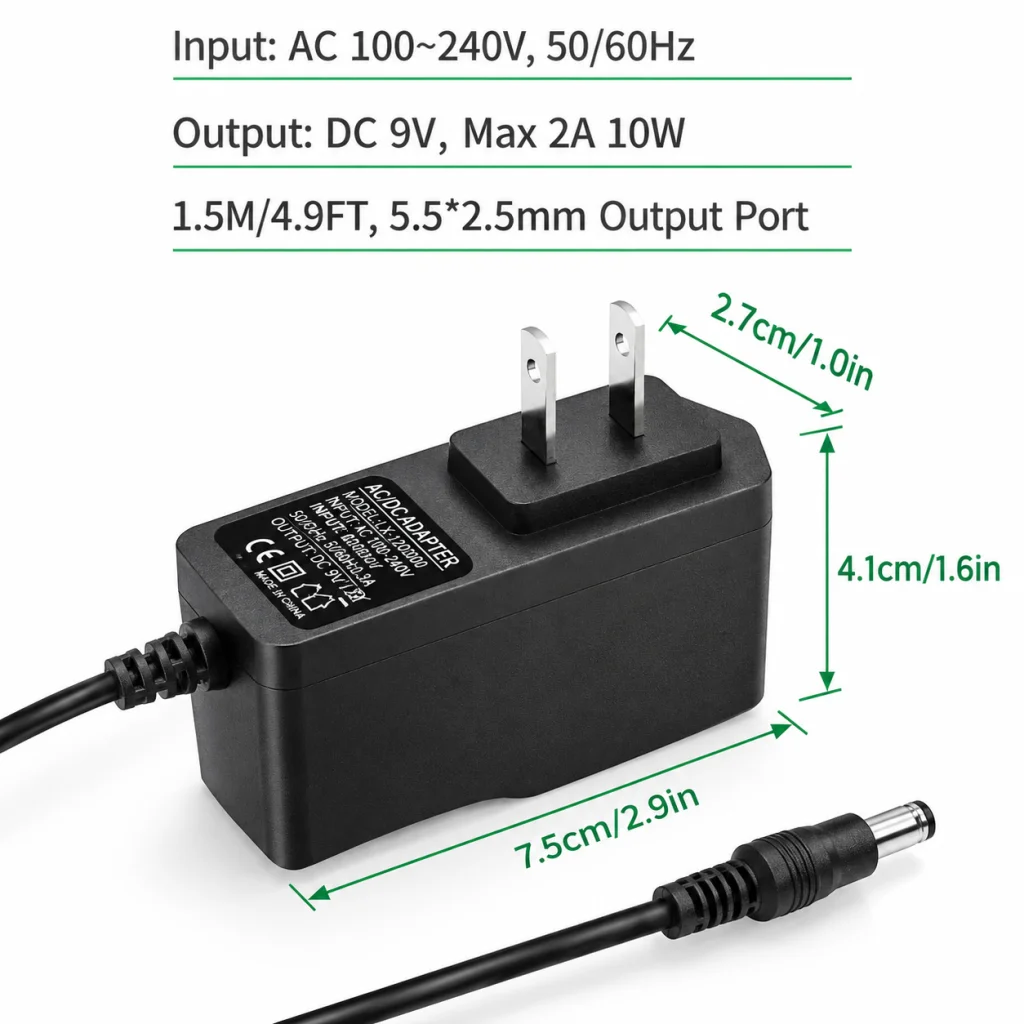

Mechanical |
Standard plastic case
50 x 25 x 28.5 mm
Cord length: 110 cm (43 inches)
Output Jack: 5.5 x 2.1 x 11.5mm |
Datasheet |
