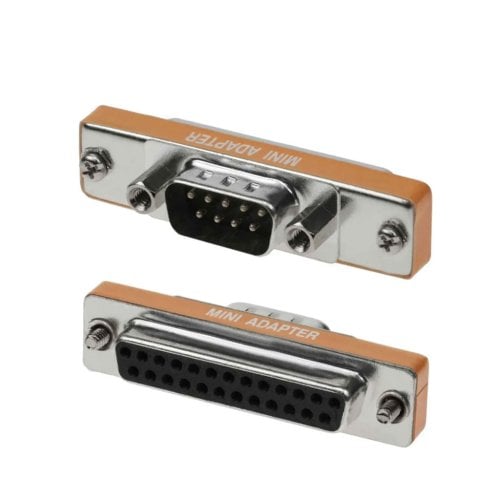

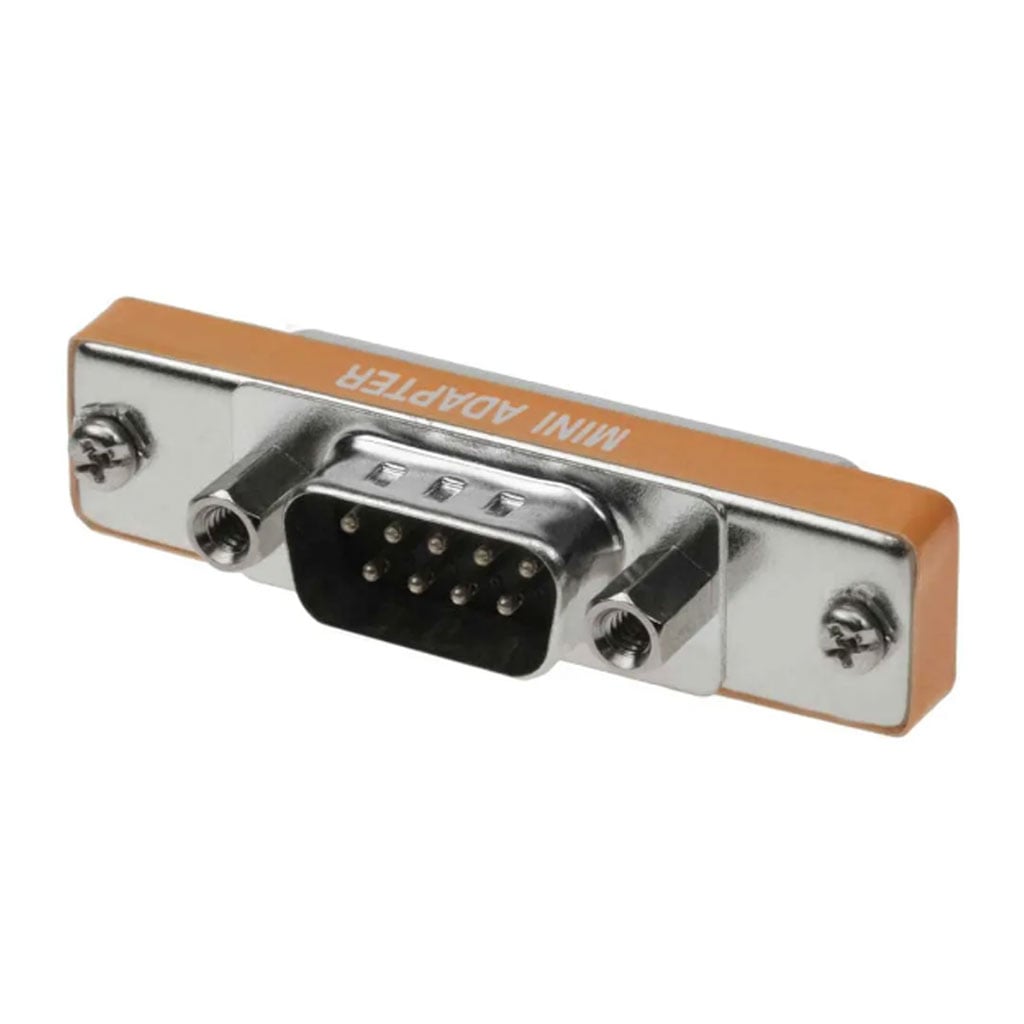

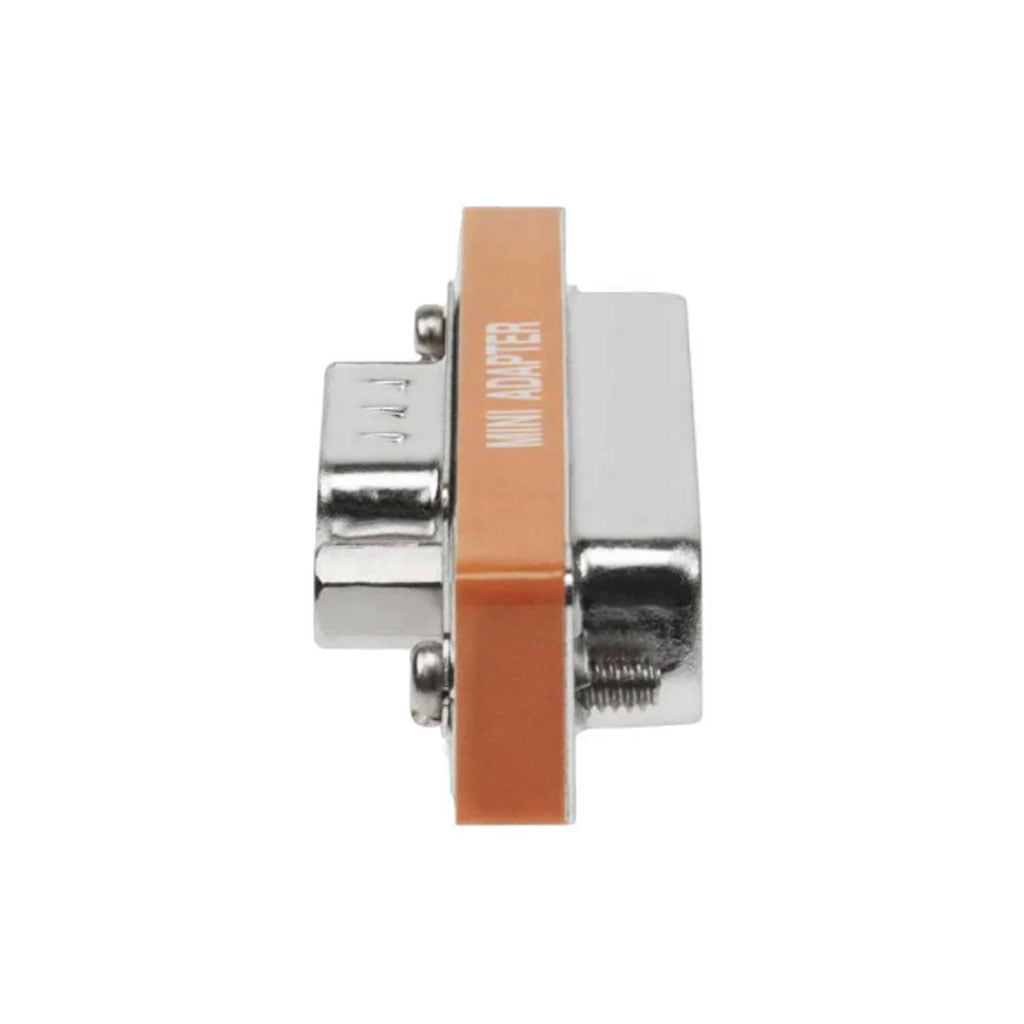

Converts a DB9 female to a DB25 female.
Use these adapters to connect a DB25 device to a DB9 serial port or vice versa. If needed these can be combined with gender adapters to fit any particular connector.
Overall features
- Interfaces: DB9 male / DB25 female
- Converts a DB9 female to a DB25 female
- Designed for: Serial applications
- Low-profile design
|
DB9 Pin |
DB25 Pin |
1 |
8 |
2 |
3 |
3 |
2 |
4 |
20 |
5 |
7 |
6 |
6 |
7 |
4 |
8 |
5 |
9 |
22 |
