USB to RS485 Converter, 5V Output

  • Model: FC-2001
  • Back Ordered

$19.99

Add to Cart:

This mini USB to RS485 Converter is an entry-grade communication interface designed to connect USB hosts to RS485 serial networks reliably and safely. It converts USB signals to RS485, offering robust electrical protection and broad compatibility without the need for external power supplies.
After installing the drivers this converter supports plug-and-play operation, automatic transmit/receive control, and multi-node communication, making it ideal for general use and industrial automation, data acquisition, and network expansion projects.
This converter has an AUX terminal (VCC and GND) which can be used for powering a low-voltage (5V) device. The amperage depends which type of USB the converter is connected to (USB 2.0 or 3.0).

Key Features
Industrial Protection & Reliability

  • 6 kV three-level lightning protection on the RS485 interface, meeting GB/T17626.5 (IEC61000-4-5) standards.
  • Gold-plated USB connector with built-in TVS protection (±15 kV air discharge / ±8 kV contact discharge).
  • Operates across a wide industrial temperature range: -40 °C to +85 °C.

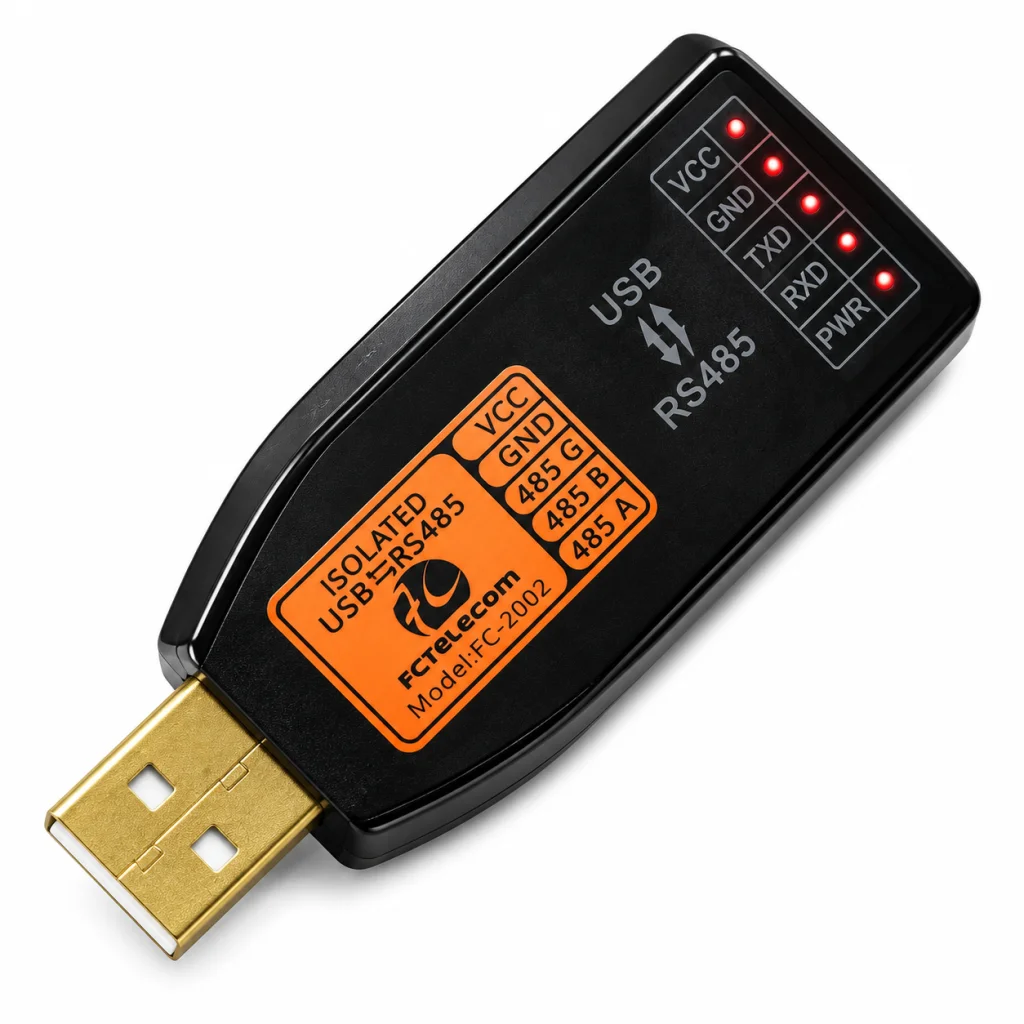

  • Three LED indicators (Power, Receive, Transmit) for easy status monitoring.

Connectivity & Compatibility

  • USB 2.0 Full-Speed interface with plug-and-play simplicity — no external power needed.
  • Emulates a standard serial port, compatible with most serial applications.
  • 5VDC AUX power which can be used for powering a low power/amp device.
  • Works with major operating systems including Windows (Win98 → Win11 32/64-bit)
  • Supports multi-point RS485 networks with automatic direction control.

Ideal Applications

  • This converter is engineered for use in demanding industrial environments, including:
  • Industrial automation systems
  • PLC / sensor network interfaces
  • Data logging and monitoring equipment
  • Multi-node RS485 communication systems
  • Legacy system integrations
    • Whether integrating legacy serial equipment or extending communication channels, this converter ensures secure, reliable, and high-performance USB-to-RS485 connectivity.

Resources

SPECIFICATIONS
Part number FC-2001
Operating system Windows 11/10/8.1/8/7/VISTA/XP/2000/98, Server 2022/2019/2016/2012/2008/2003 -32/64bit, Microsoft WHQL/HCK Certified
Processor CH340
Power 5VDC provided by USB port

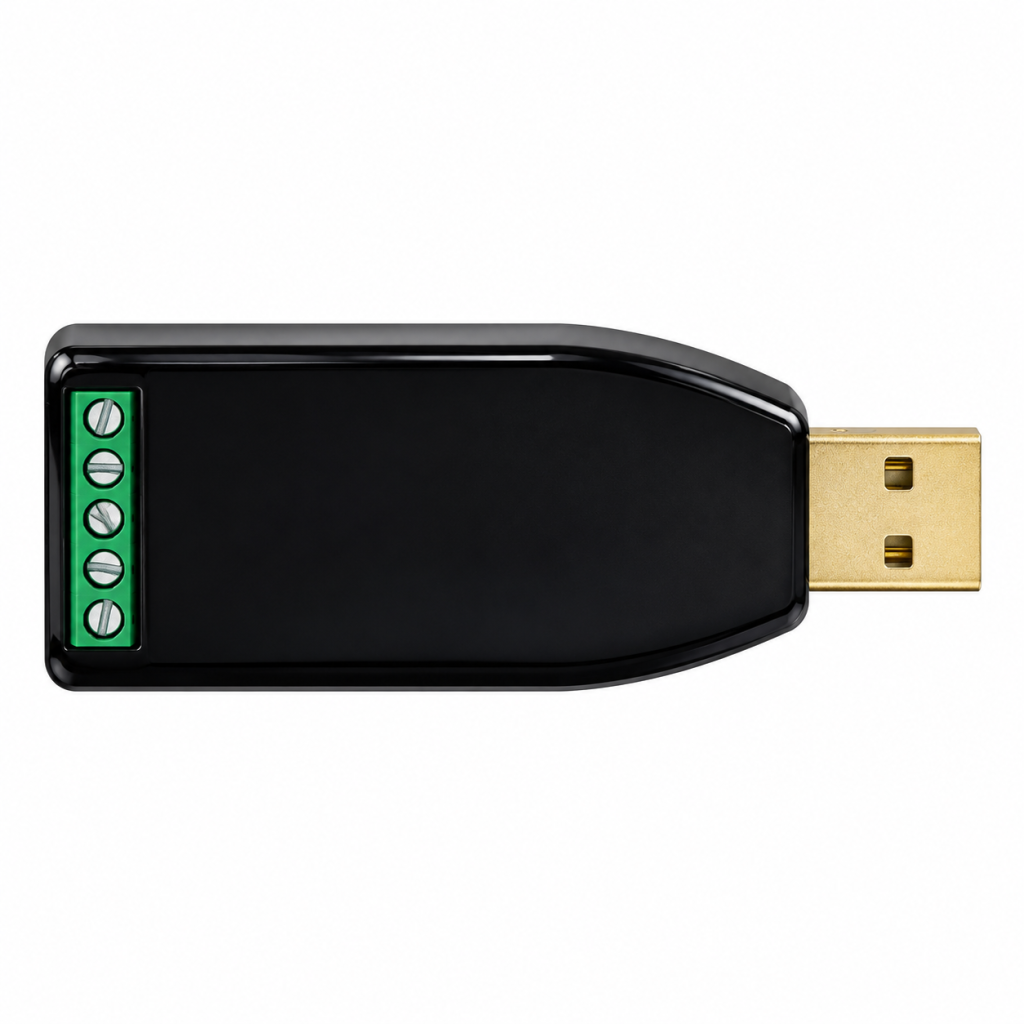

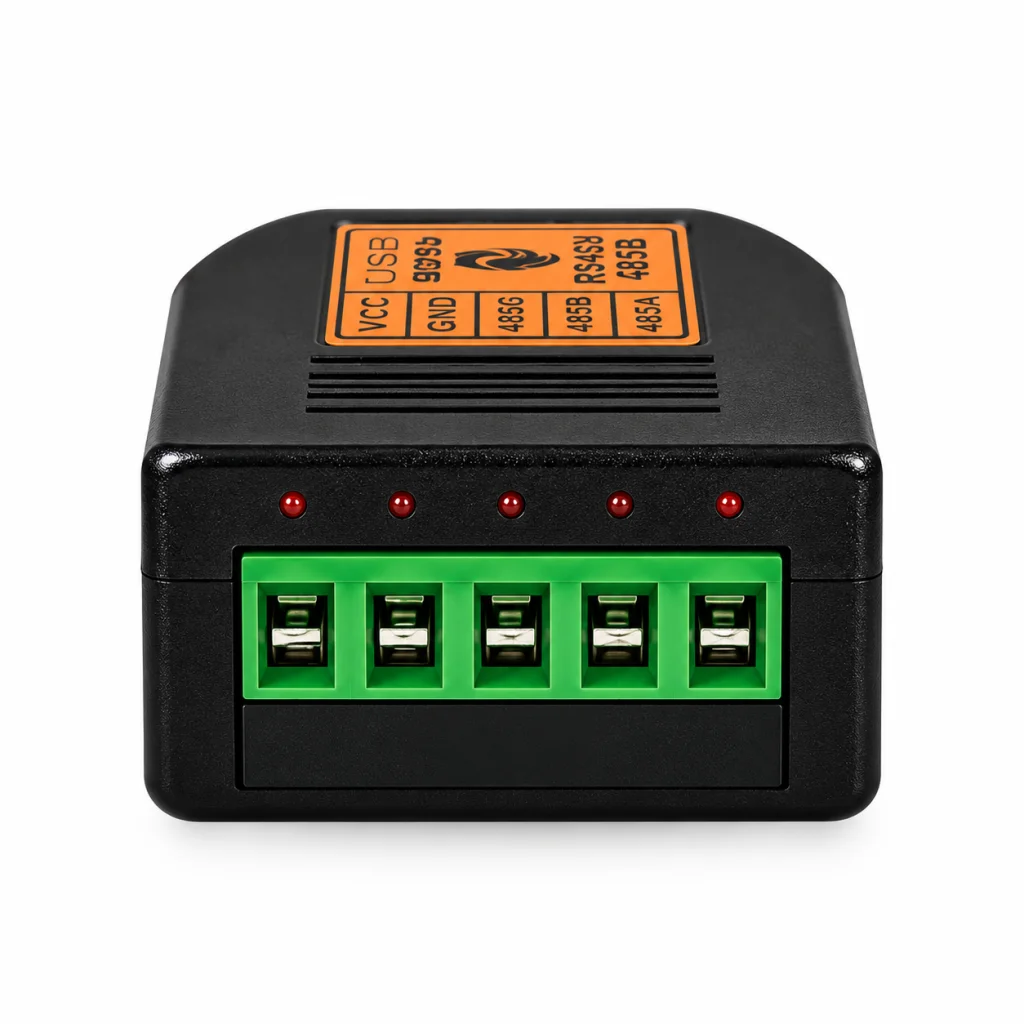

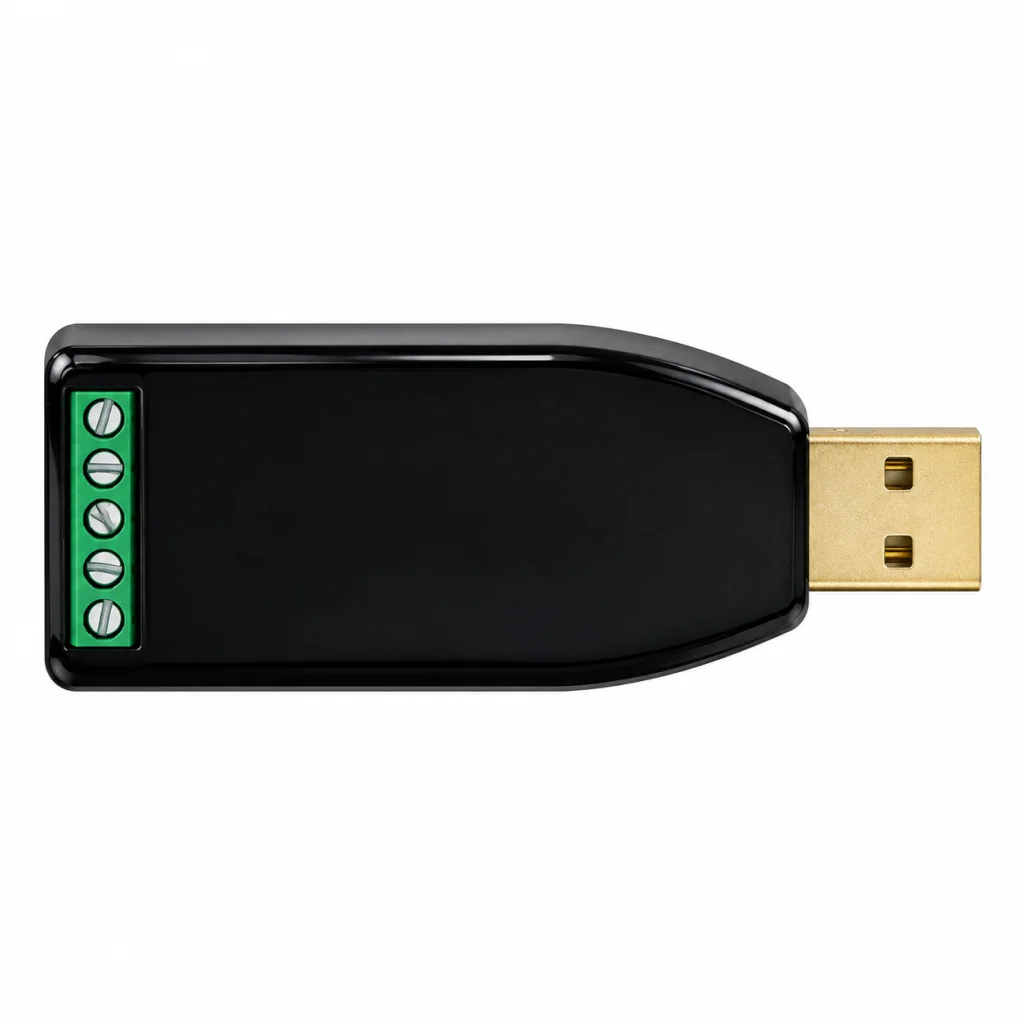

Serial interface RS485 2-wirre half-duplex, screw terminals, A, B, signal GND, GND and VCC
Compatible with Modbus RTU/ASCII, BACnet
Bias resistors Yes
USB interface Standard Type B Female. Static protection ±15kV(air), ±8kV(contact), EFT protection 40A(5/50ns), surge 5A(8/20us). 200mA self-recovery fuse (USB)
Indication LEDs Power, Send and Receive
Baud rate 300 to 921600bps
Parity None, Odd, Even, Mark, Space
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Flow Control Hardware automatic control
COM port accessible by Included virtual COM port drivers
Isolation RS485 port: GB/T17626.5(IEC61000-4-5), 10/700μs short circuit, 6KV open circuit peak output voltage
Electrostatic (ESD) protection 15KV/ 600W/ms high voltage protection
Current draw Static: less than 80mA. Dynamic average: less than 30mA

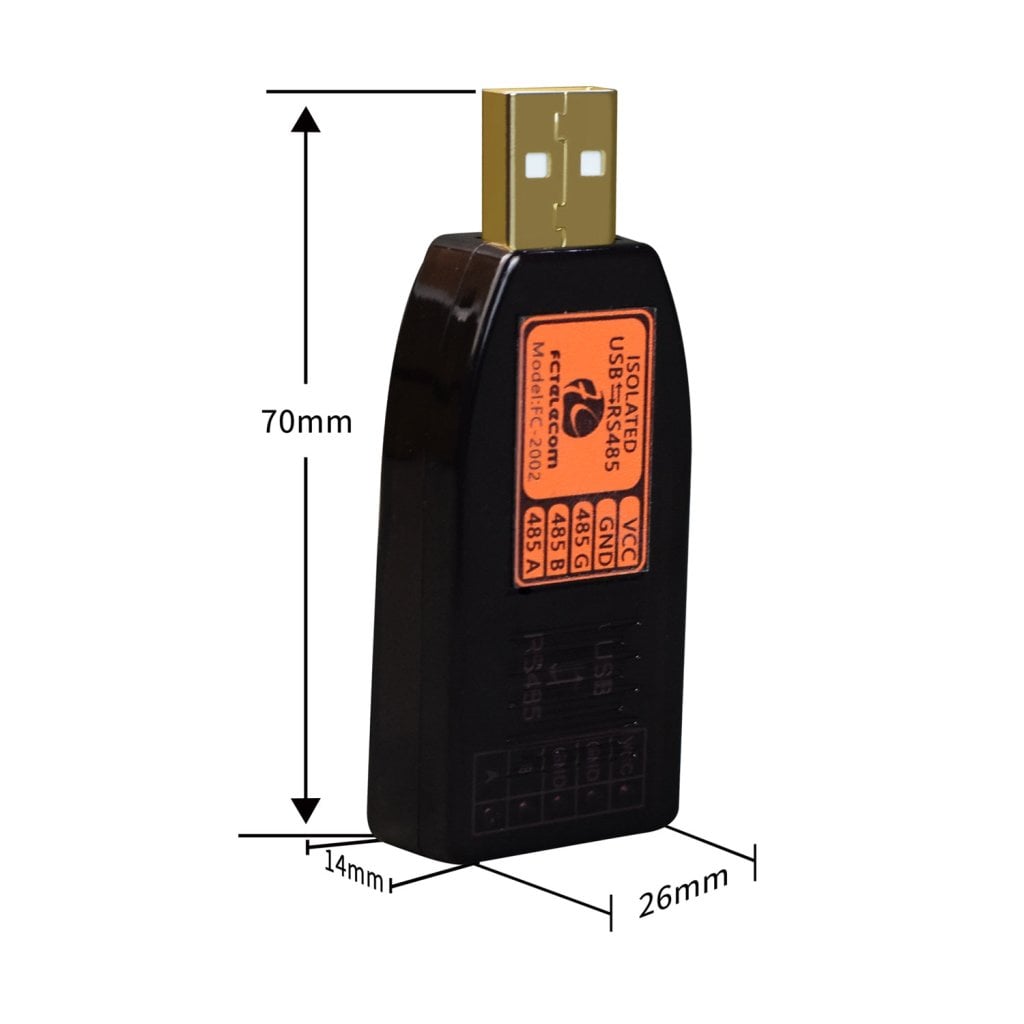

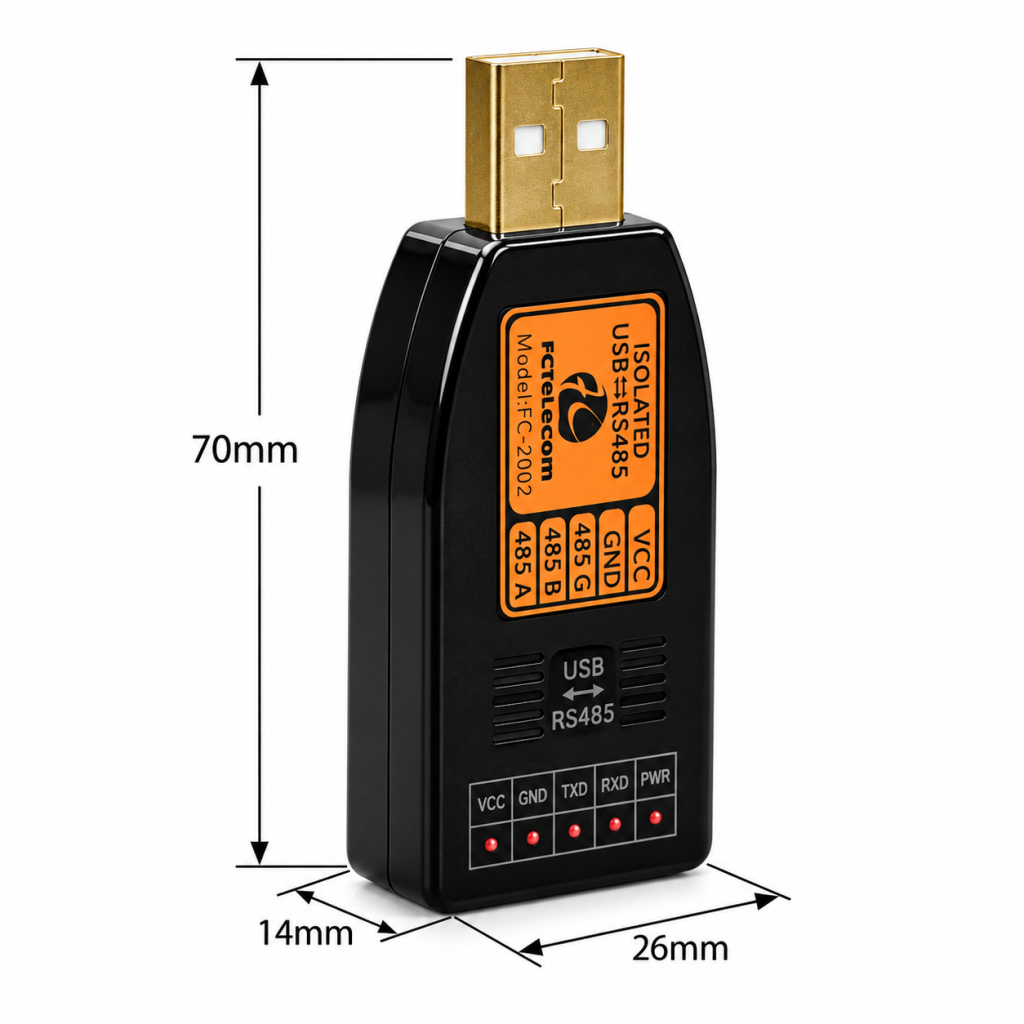

Dimensions 70 × 26 × 14 mm
Interface compliance USB1.1,2.0,3.0, EIA/TIA RS-232
Regulatory compliance FCC, CE and RoHS
Operating temp -40C to +85C
Warranty 1 year limited warranty
