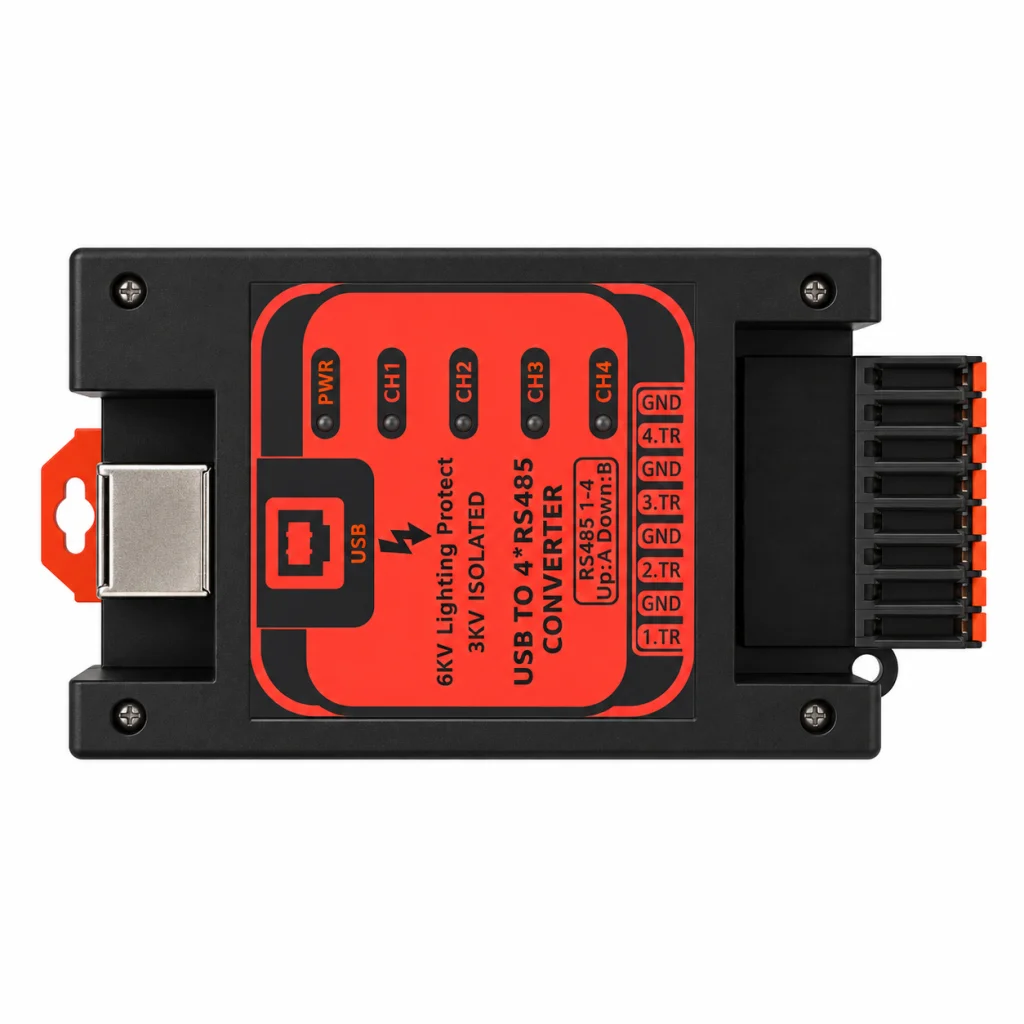

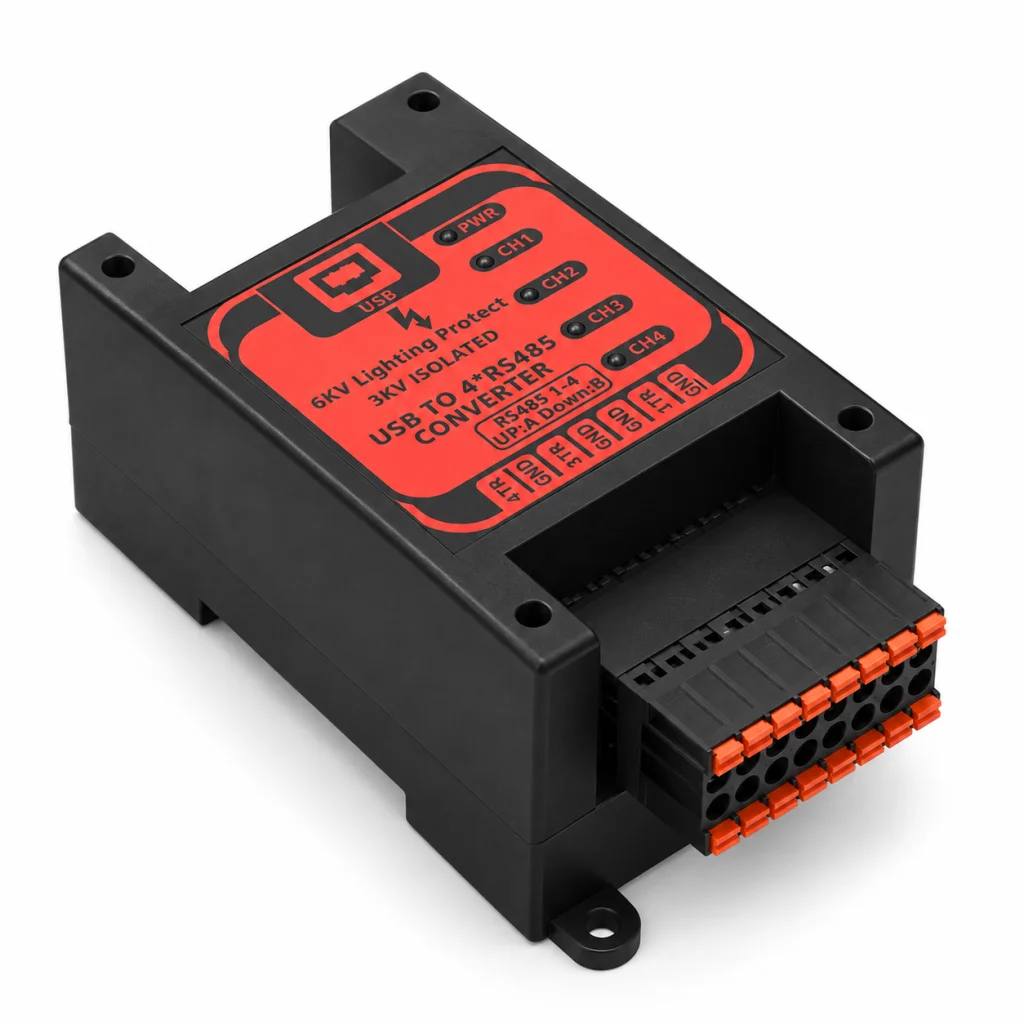

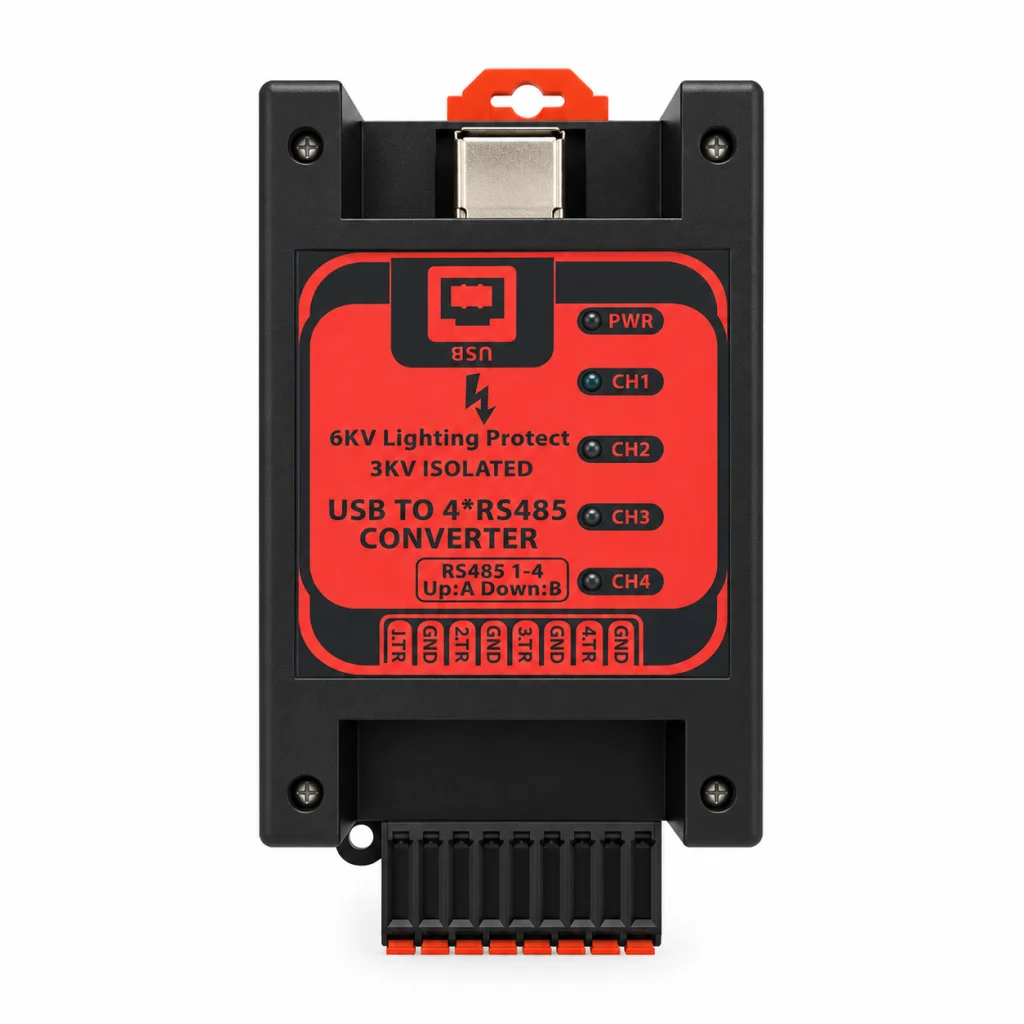

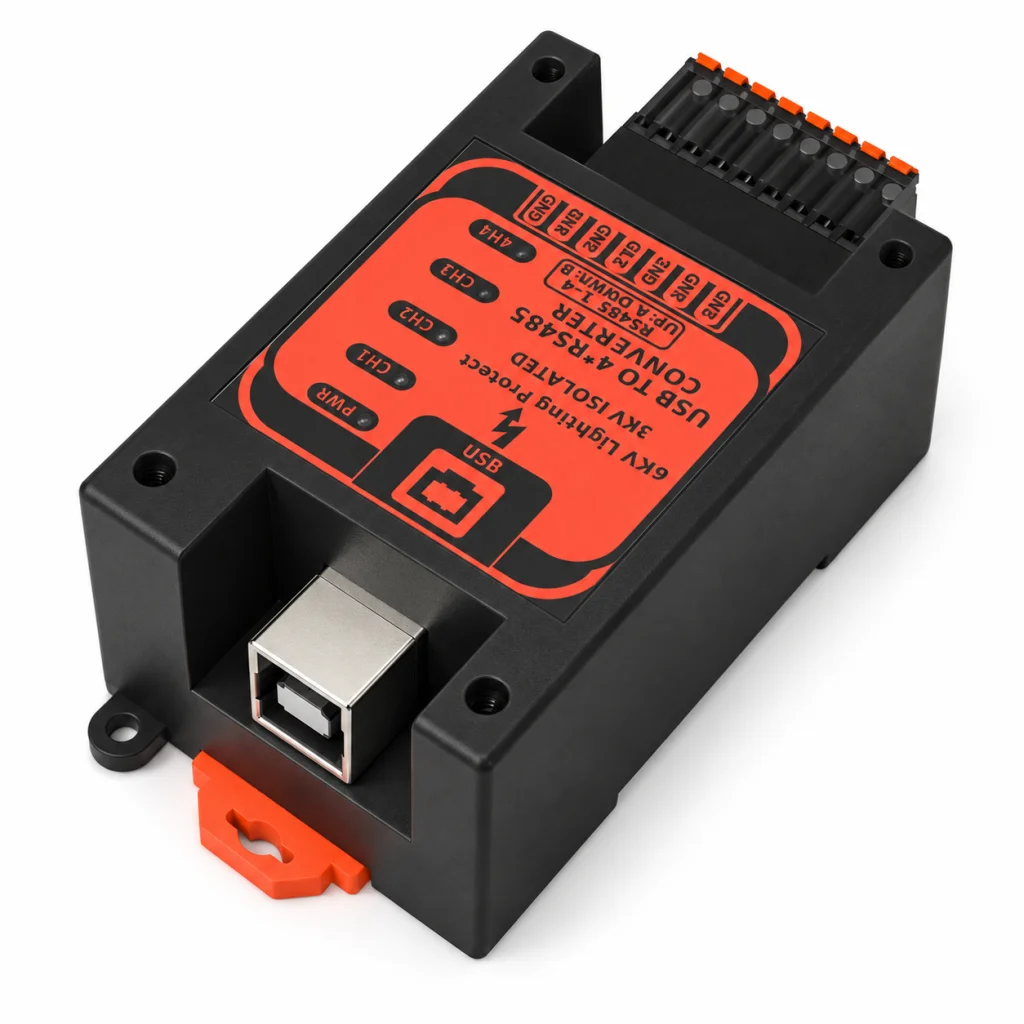

This Industrial USB to 4-Port RS485 Converter transforms a standard USB interface into four isolated RS485 communication channels. Powered directly from a single USB port (no external PSU required), this device delivers reliable serial connectivity in industrial and automation applications.
Key Highlights:
- USB-powered — plug-and-play installation
- 4 isolated RS485 serial channels
- High-level protection against electrical hazards
- Supports multi-point communication networks
- Works with standard serial software and drivers
Why Choose This Converter
Industrial-Grade Performance and voltage protection
- 3 kV galvanic isolation between USB and RS485 interfaces — protects host devices from voltage surges.
- 6 kV three-level lightning protection safeguards RS485 communication lines from transient high-energy events (IEC61000-4-5 standard).
- USB port has built-in TVS protection (±15 kV air, ±8 kV contact).
- Built for tough environments with operating temperatures from -40°C to +85°C, ensuring reliable operation in extreme conditions.
Plug & Play
No external power supply or driver modifications required — simply install the drivers and connect via USB and begin communication. Supports Windows environments natively.
Features at a Glance
- Full-speed USB 2.0 interface (500 kbps – 12 Mbps) compatible with USB v2.0 devices.
- Simulates a standard serial port allowing legacy serial software to interface seamlessly.
- Up to 2 Mbps communication speed on RS485 lines.
- Communication distances up to 3 km (depending on baud rate).
- Supports large networks with up to 128 nodes (and more, depending on load).
- Multiple LED indicators for power status and per-port Rx/Tx activity.
Typical Applications
- Industrial automation systems
- PLC and sensor networks
- Building management systems
- Remote data acquisition equipment
- Multi-node serial communication networks
This converter is ideal for environments that require robust, interference-resistant communication and long-distance fieldbus connections.
Resources
| SPECIFICATIONS |
| Part number |
FC-2007 |
| Operating system |
Windows 11/10/8.1/8/7/VISTA/XP/2000，Server 2025/2022/2019/2016/2012/2008/2003 -32/64bit, Microsoft WHQL/HCK Certified |
| Processor |
CH344 |
| Power |
5VDC provided by USB port |
| Serial interface |
Push-in terminals |
| RS485 |
2 wire half duplex |
| Compatible with |
Modbus RTU/ASCII, BACnet |
| Bias resistors |
Yes |
| Installation method |

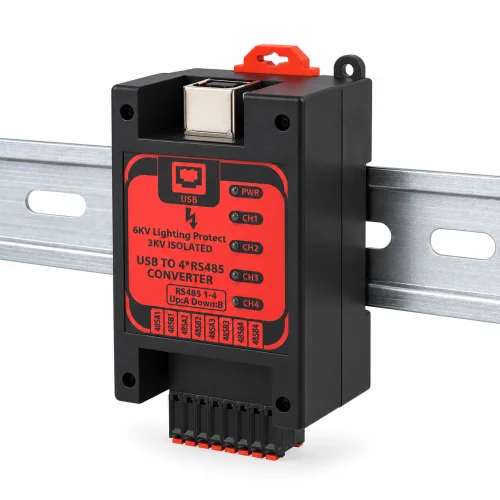

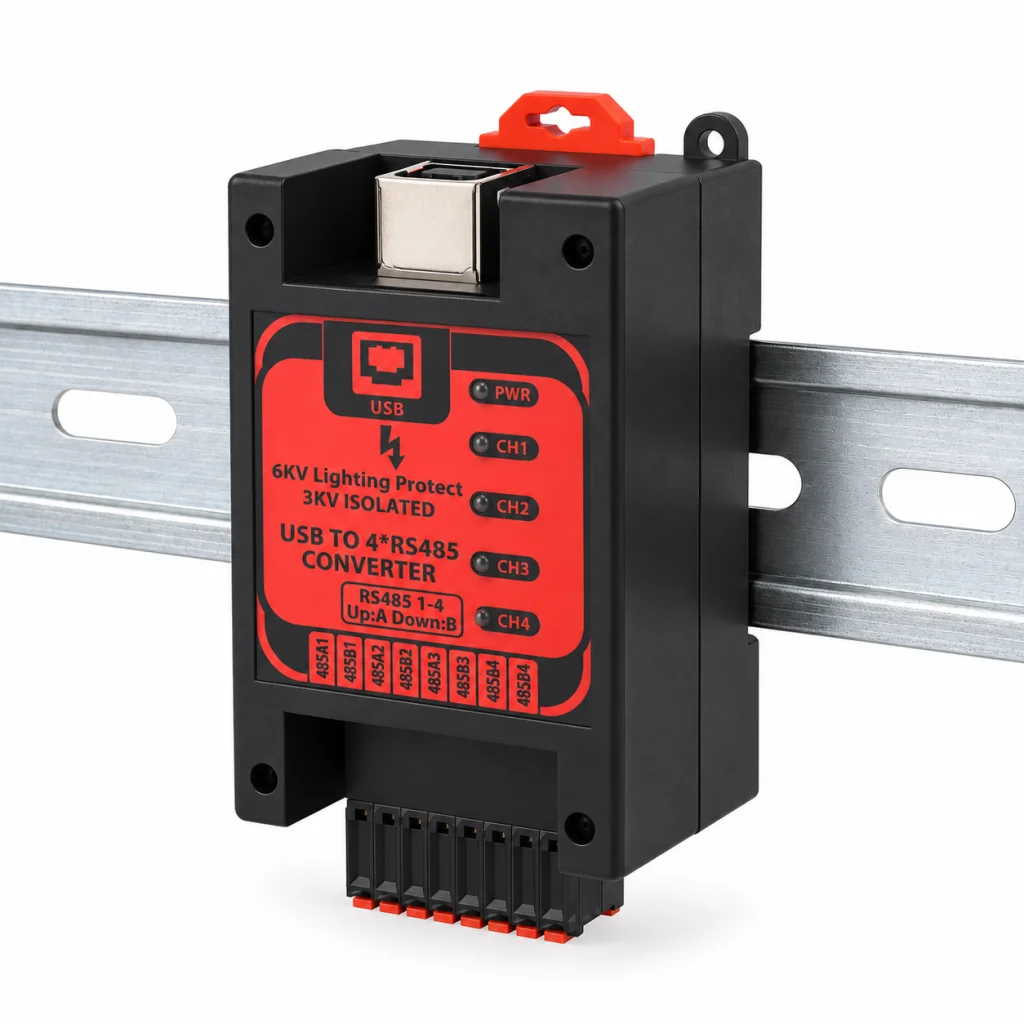

35mm standard DIN rail and screw mount |
| USB interface |
Standard Type B Female. Static protection ±15kV(air), ±8kV(contact), EFT protection 40A(5/50ns), surge 5A(8/20us). 200mA self-recovery fuse (USB) |
| Indication LEDs |
Power, Send and Receive |
| Signals |
RS485: D+, D-, GND |
| Baud rate |
300 to 921600bps |
| Parity |
None, Odd, Even, Mark, Space |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Flow Control |
Hardware automatic control |
| COM port accessible by |
Included virtual COM port drivers |
| Isolation |
RS485 port: GB/T17626.5(IEC61000-4-5), 10/700μs short circuit, 6KV open circuit peak output voltage |
| Electrostatic (ESD) protection |
15KV/ 600W/ms high voltage protection |
| Current draw |
Static: less than 80mA. Dynamic average: less than 150mA |
| Dimensions |
95 × 54 × 32 mm |
| Interface compliance |
USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Regulatory compliance |
FCC, CE and RoHS |
| Operating temp |
-40C to +85C |
| Warranty |
1 year limited warranty |
