The Industrial USB to 4-Port RS232 Converter is a robust interface adapter designed for industrial environments. It converts a single USB connection into four independent RS232 serial ports, each with high-level electrical protection to ensure reliable performance even under harsh conditions.
Powered directly via USB (no external supply required), after installing the drivers the converter is plug-and-play and compatible with standard serial communication software, making it ideal for expanding legacy or automation systems quickly and easily.
Key Features
Industrial-Grade Protection
- 3 kV galvanic isolation on serial interfaces protects against high voltage surges.
- 6 kV three-level lightning protection meets GB/T17626.5 (IEC61000-4-5) standards.
- Built-in TVS protection on the USB port (±15 kV air discharge / ±8 kV contact discharge).
USB & Serial Connectivity
- Full-speed USB 2.0 interface, compatible with USB v2.0 standards.
- Supports Windows (Win2000 → Win11 32/64-bit).
- Emulates a standard serial device — no driver modification required.
Performance & Reliability
- Four RS232 ports with independent isolation.
- Designed for wide temperature range: -40 °C to +85 °C.
- Low operating current (< 30 mA), USB-powered.
- Rugged construction with MTBF > 100,000 hours.
Typical Applications
Perfect for expanding serial connectivity in:
- Industrial automation systems
- PLC / HMI serial communication
- Sensor / actuator networks
- Test & measurement setups
- Legacy equipment integration
Whether you’re adding ports to a PC or extending control systems in harsh environments, this converter delivers reliable serial connectivity with strong electrical protection.
Resources
| SPECIFICATIONS |
| Part number |
FC-2008 |
| Operating system |
Windows 11/10/8.1/8/7/VISTA/XP/2000, Server 2025/2022/2019/2016/2012/2008/2003 -32/64bit, Microsoft WHQL/HCK Certified |
| Processor |
CH344L |
| Serial driver |
SIT3232E |
| Serial interface |
Four ports, RS232 push-in terminals
Protection: GB/T17626.5 (IEC61000-4-5), 10/700μs short circuit, 6KV open circuit peak output voltage |

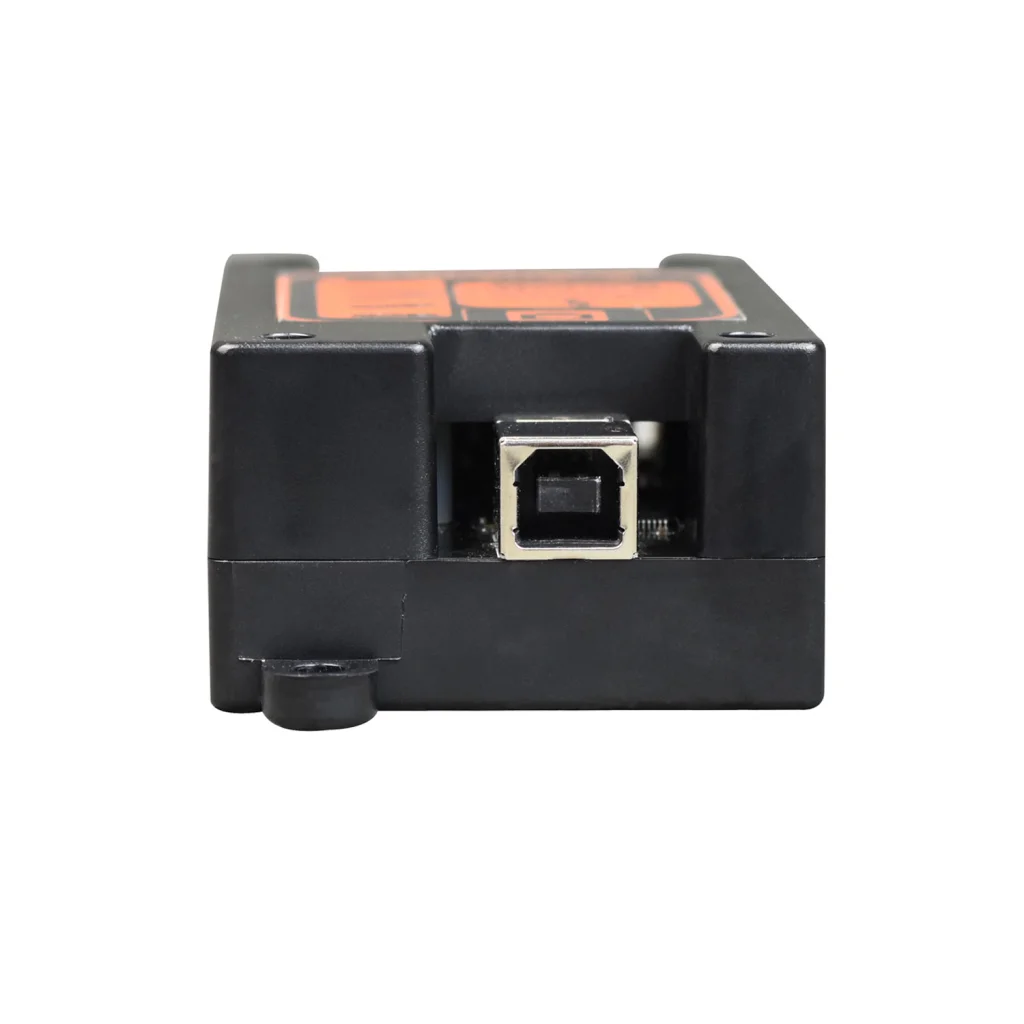

| USB interface |
Standard Type B Female. TVS protection (±15KV-air and ±8kv-contact) |
| Indication LEDs |
TX, RX and Power |
| Signals |
TX, RX, GND |
| Baud rate |
1200bps - 256kbps |
| Parity |
None, Odd, Even, Mark, Space |
| Data Bits |
7, 8 |
| Stop Bits |
1, 2 |
| Electrostatic (ESD) protection |
600W surge protection, 15KV static electricity protection |
| Power |
Port powered from USB port. |
| Housing |
ABS plastic |

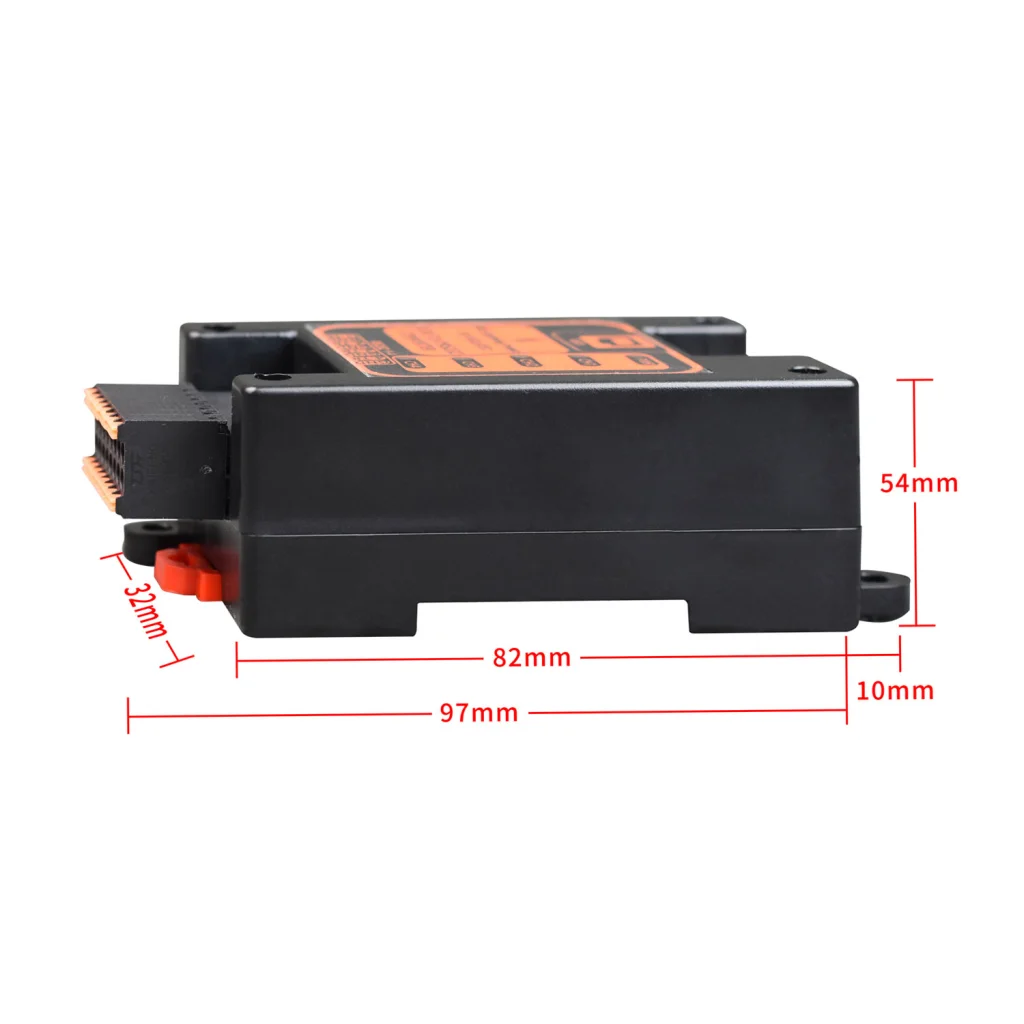

| Dimensions |
97 x 54 x 32 mm |
| Weight |
76g |
| Interface compliance |
USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Regulatory compliance |
FCC, CE and RoHS |
| Operating temp |
-40°C to 85°C, 5% to 85% humidity |
| Warranty |
1 year limited warranty |
