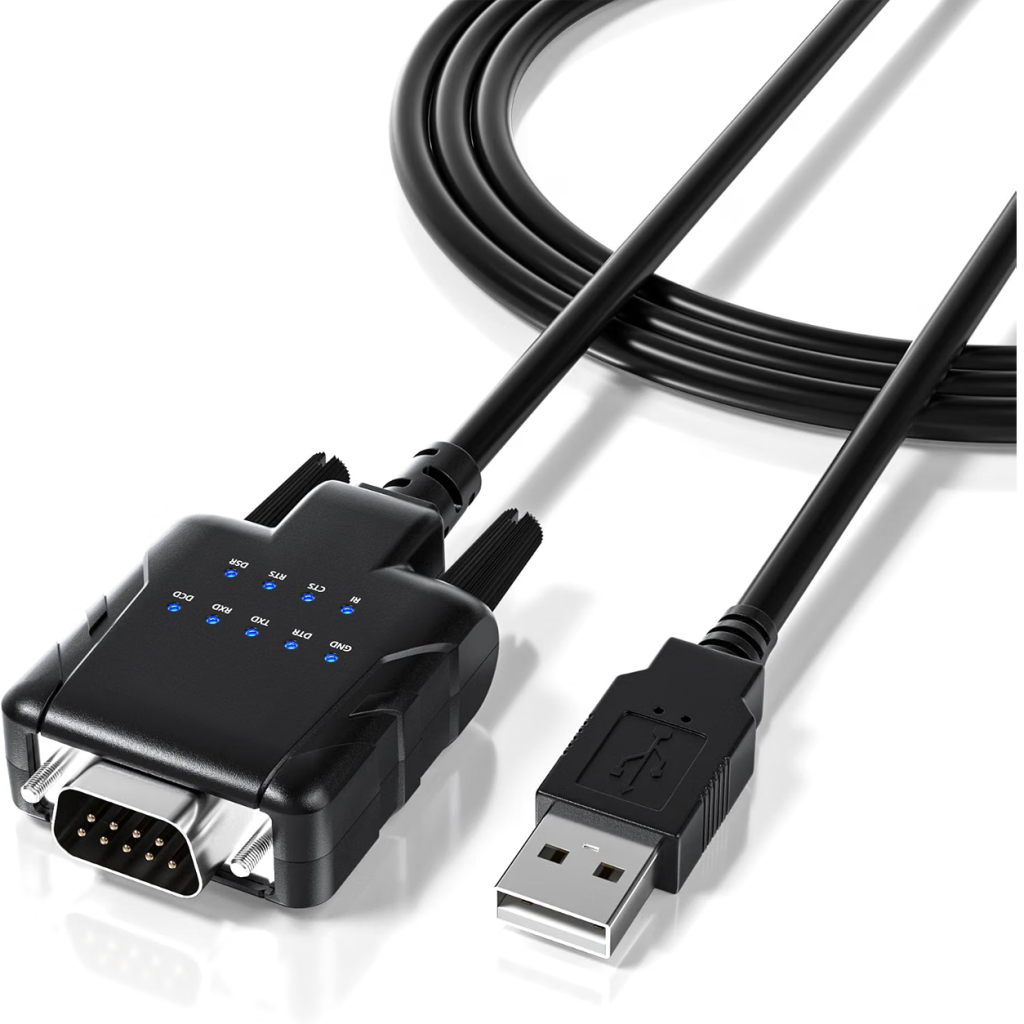

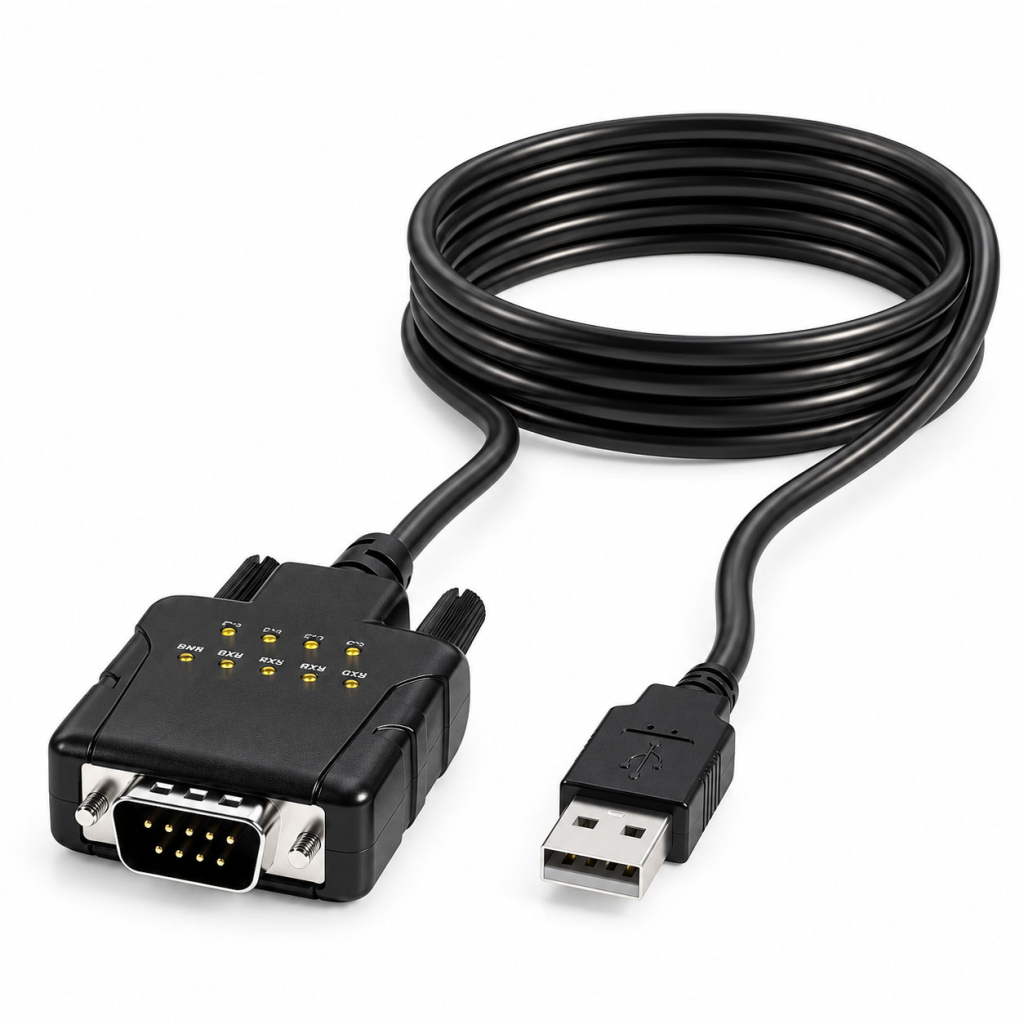

This professional-grade USB to RS232 adapter provides a reliable connection between a computer's USB port and RS232 serial equipment. Designed for industrial, commercial and engineering applications, the adapter combines high-speed serial communication with real-time RS232 signal monitoring and enhanced protection against electrostatic discharge.

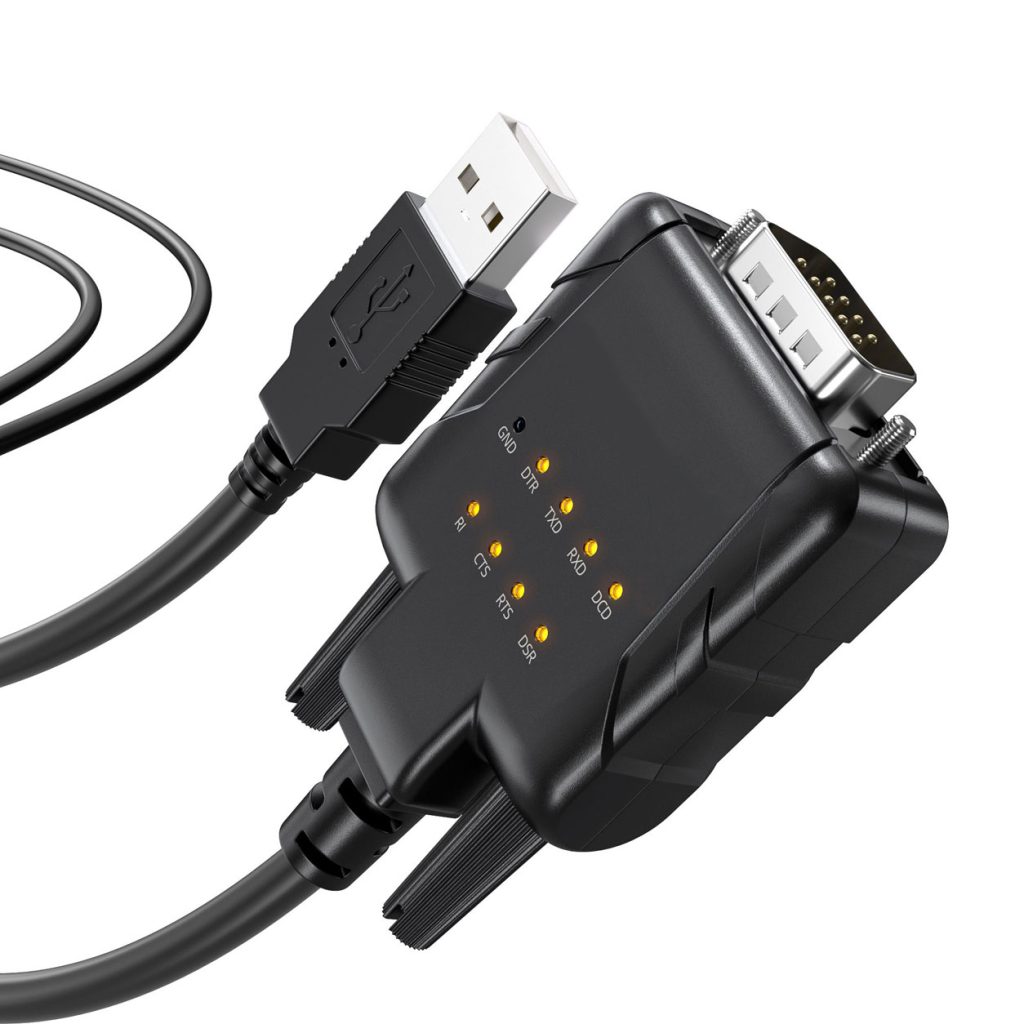

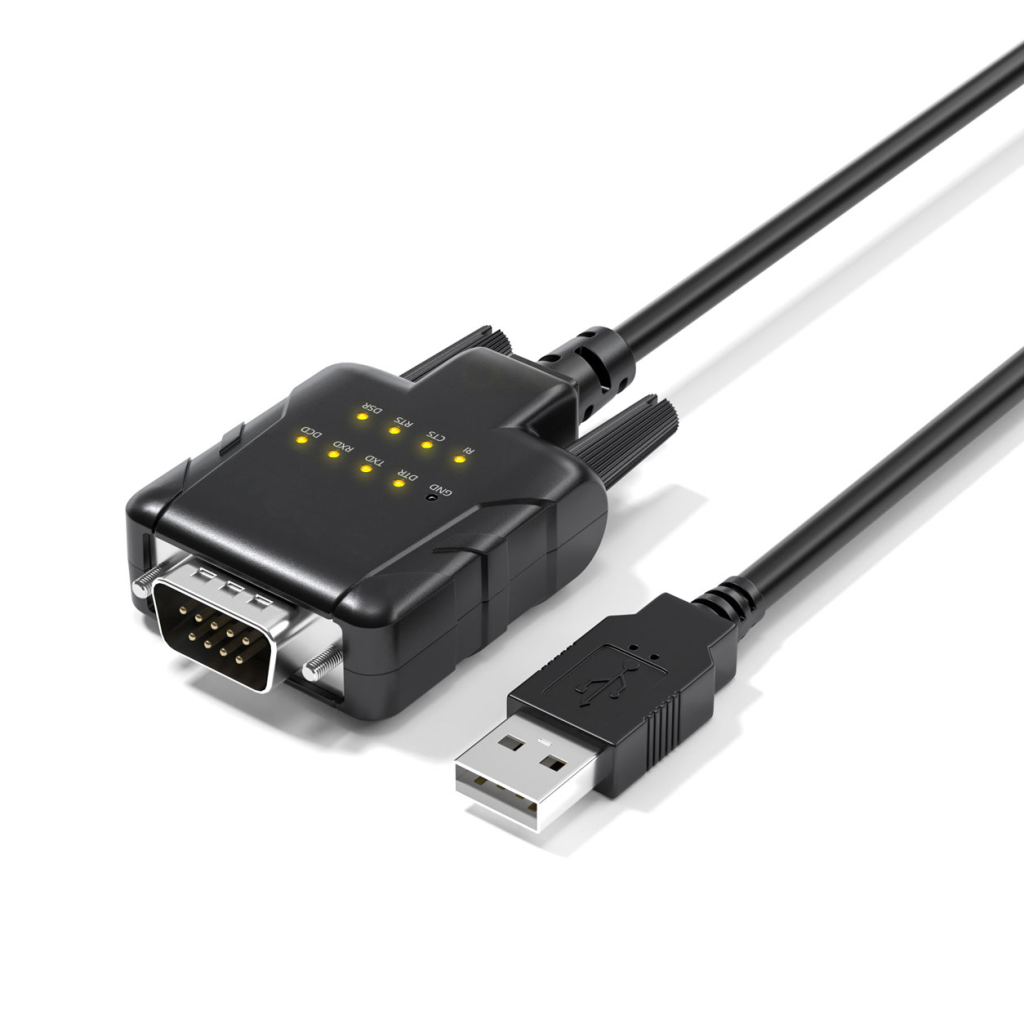

Unlike basic USB serial adapters, this model includes nine individual LED indicators that allow you to visually monitor all RS232 communication signals. TX, RX, RTS, CTS, DSR, DTR, DCD, RI and GND can be observed directly on the adapter, This makes it possible to quickly determine whether data is being transmitted or received and whether hardware flow-control signals are operating correctly.
For technicians and engineers, this can significantly simplify testing and troubleshooting compared with conventional USB-to-serial adapters that only provide basic TX/RX indicators.
The adapter incorporates protection against electrostatic discharge in accordance with IEC 61000-4-2, with protection specified from 8kV up to 15kV.
This additional protection makes the adapter well suited for industrial and electrically sensitive environments where static electricity can cause communication errors or damage electronic equipment.
| SPECIFICATIONS |
| Part number |
USCESD9A |
| Operating system |
- Windows 11, 10, 8.1, 8 (32/64-bit), Windows Server 2016, Windows Server 2012 / R2, Windows 7 (32/64-bit), Windows Server 2008 R2, Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP, Windows Server 2003 (32/64-bit), 2000, (all WHQL compliant). Windows RT as D2XX drivers only.
- Windows CE v4.2 - 5.2, 6.0, 7.0 and 2013 including: Windows Mobile 2003, 2003 SE, Windows Mobile 5, 6, 6.1 and 6.5
- Linux (built into kernel 3.0.0-19 and above)
- Mac OS 8, OS 9, OS X 10.3 to 10.9 and above (since 10.9 the drivers are included in the kernel).
- Android
|
| Processor |
FTDI FT232RL |
| Unique chipID no. |
Yes, each converter has it own unique ID number which can be accessed by the user with the D2XX driver programmers guide. |

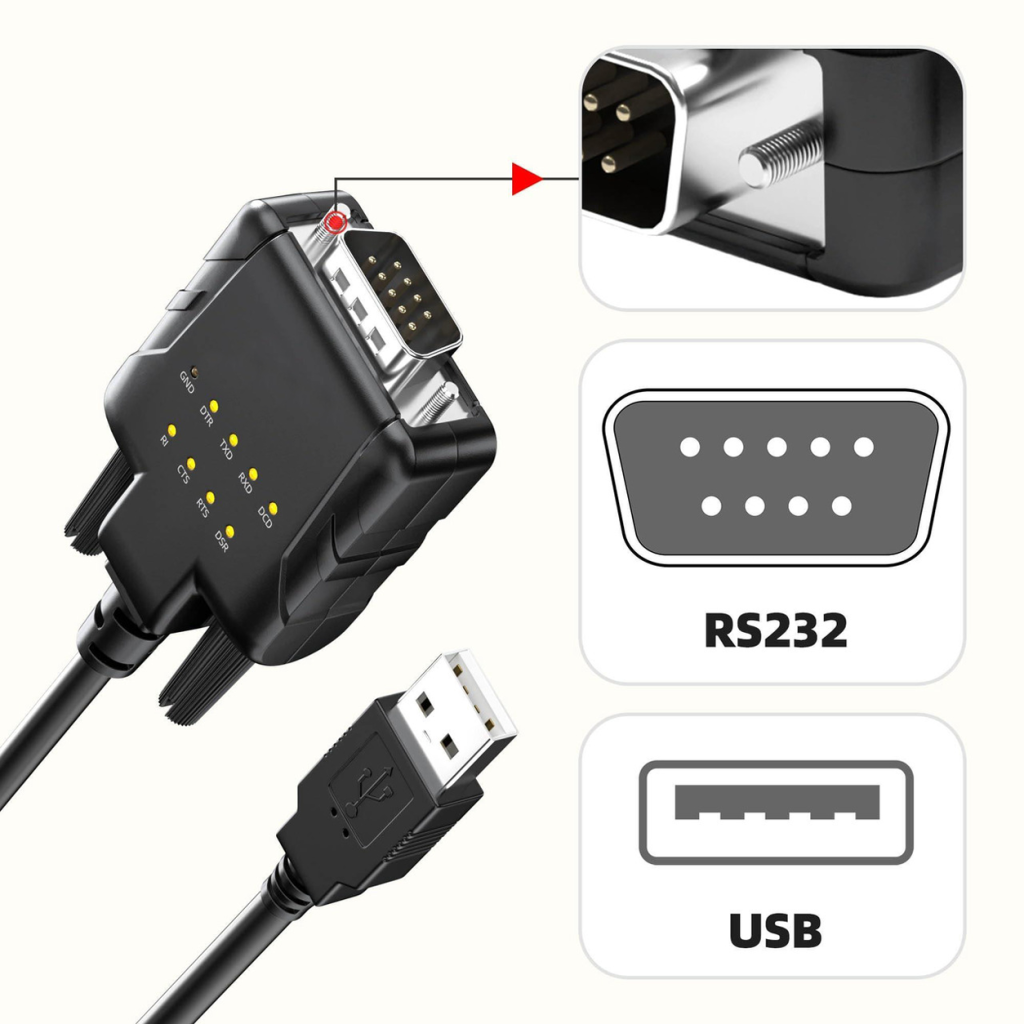

| RS232 Interface |
RS232 DB9 Male |
| RS232 output power |
~5.7VDC |
| Cable length |
3 feet |
| USB interface |
Standard Type A Male |

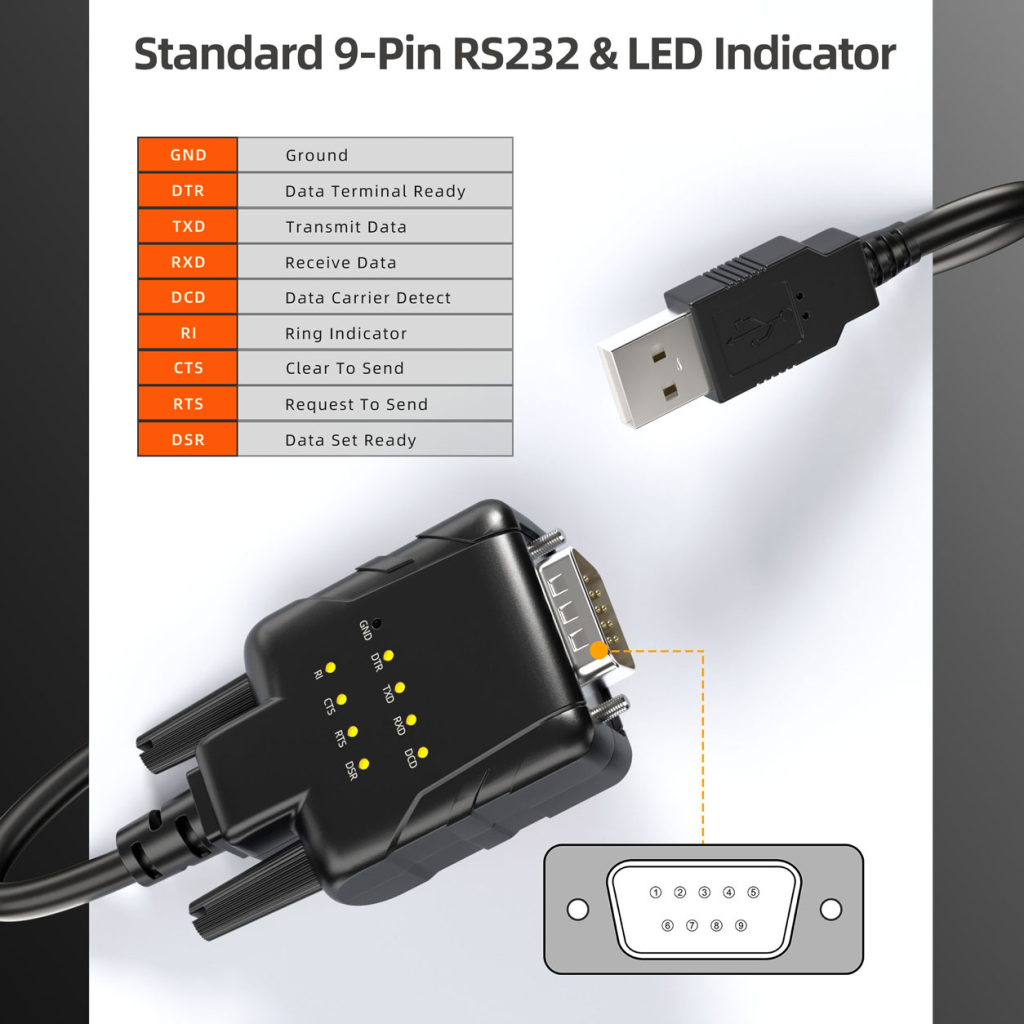

| Indication LEDs |
TX, RX, RTS, CTS, DSR, DTR, DCD, RI and GND |
| Ports |
1-port |
| Power on pin 9 |
No |
| Baud rate |
Guaranteed up to 230.000bps |
| Parity |
None, Odd, Even, Mark, Space |
| Data Bits |
7, 8 |
| Stop Bits |
1, 2 |
| TX / RX buffer size |
256 Byte Transmit Buffer / 128 Byte Receive Buffer |
| Adjustable USB transfer sizes for TX and RX |
From 64 bytes to 4096 bytes |
| Adjustable latency timer |
1 to 255 msec |
| Adjustable read and write timeouts |
0 to 10000 msec |
| Flow Control |
None, Xon/Xoff, Hardware |
| COM port accessible by |
Included virtual COM port drivers or FTD2XX.DLL |
| Special features |
|
| Electrostatic (ESD) protection |
600W surge protection, 15KV static electricity protection |
| Current draw |
Static: less than 80mA. Dynamic average: less than 150mA |
| Interface compliance |
USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Regulatory compliance |
FCC, CE and RoHS |
| Temperatures |
Operating: -13°F to 158°F (-25°C to 70°C)
Storage: -40°F to 185°F (-40°C to 85°C) |
| Weight |
70g |
| Warranty |
1 year limited warranty |
