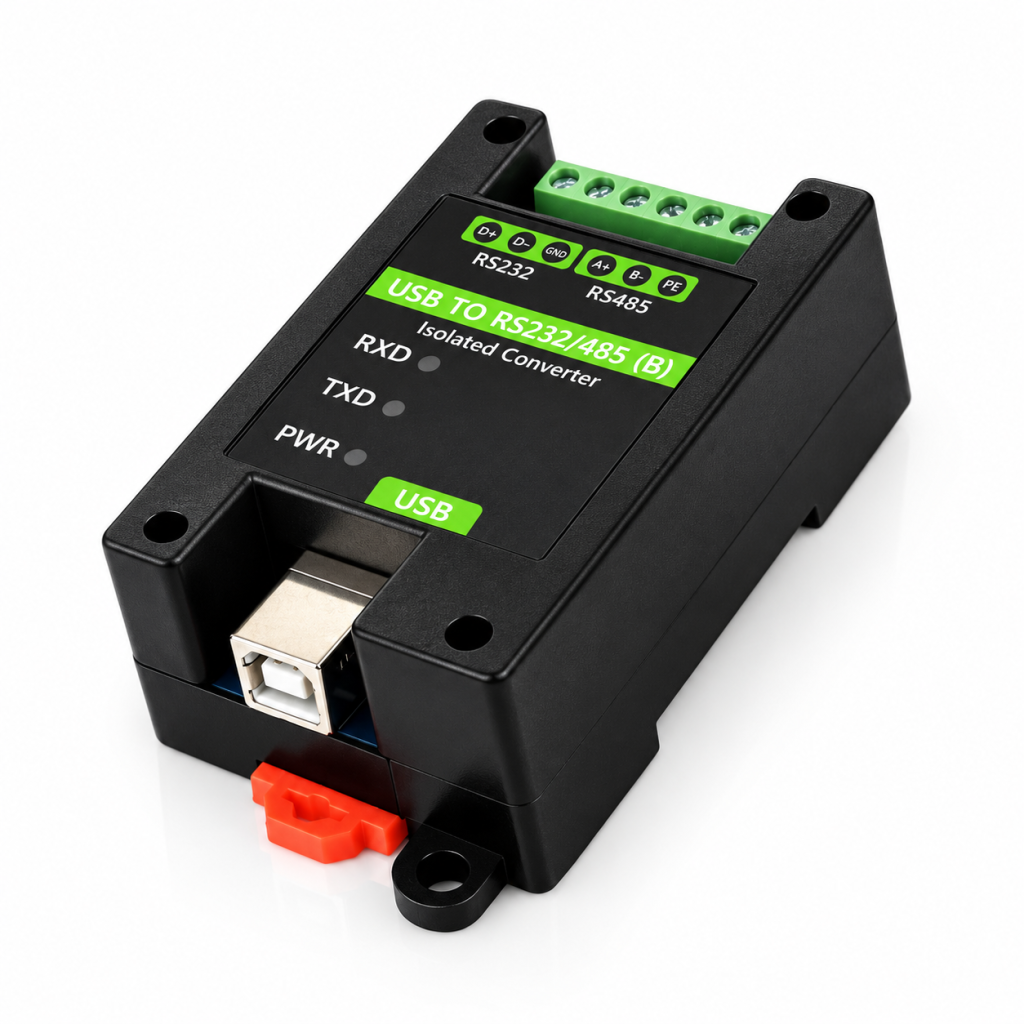

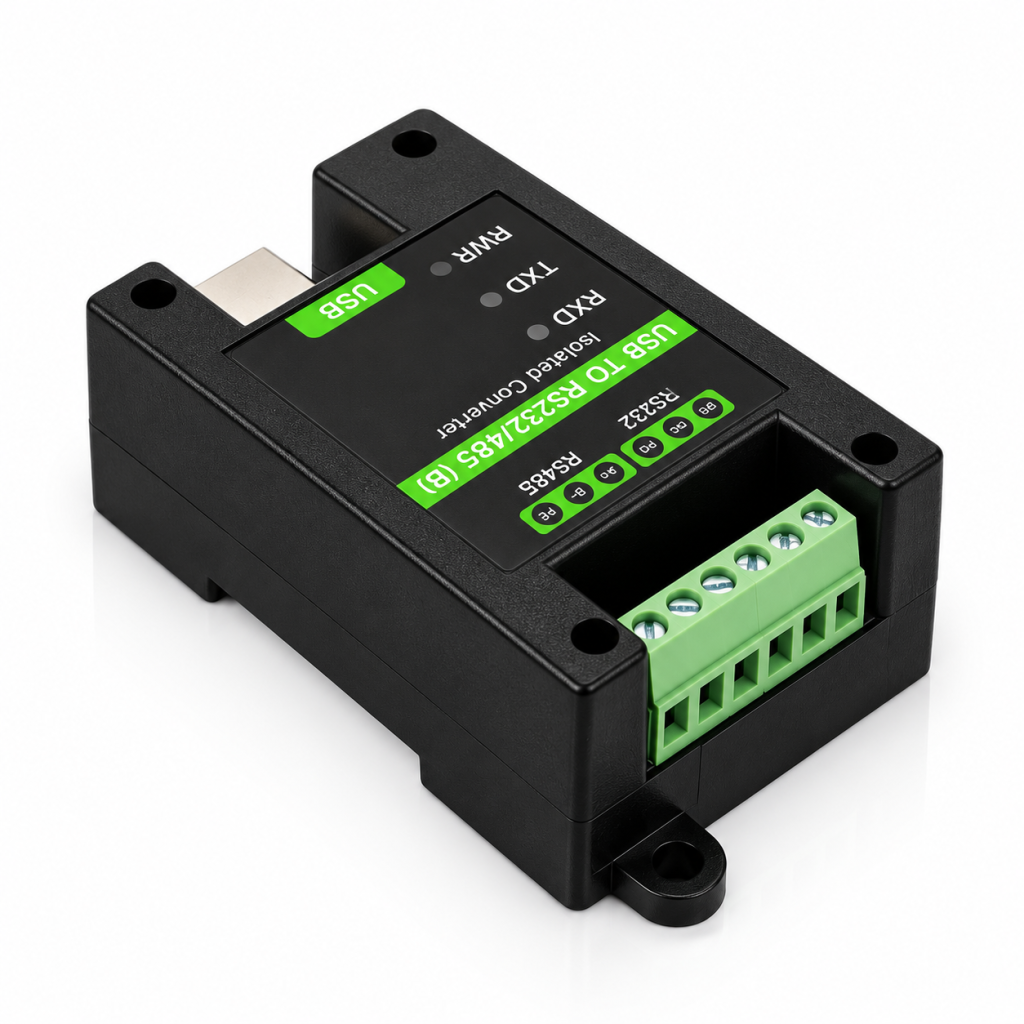

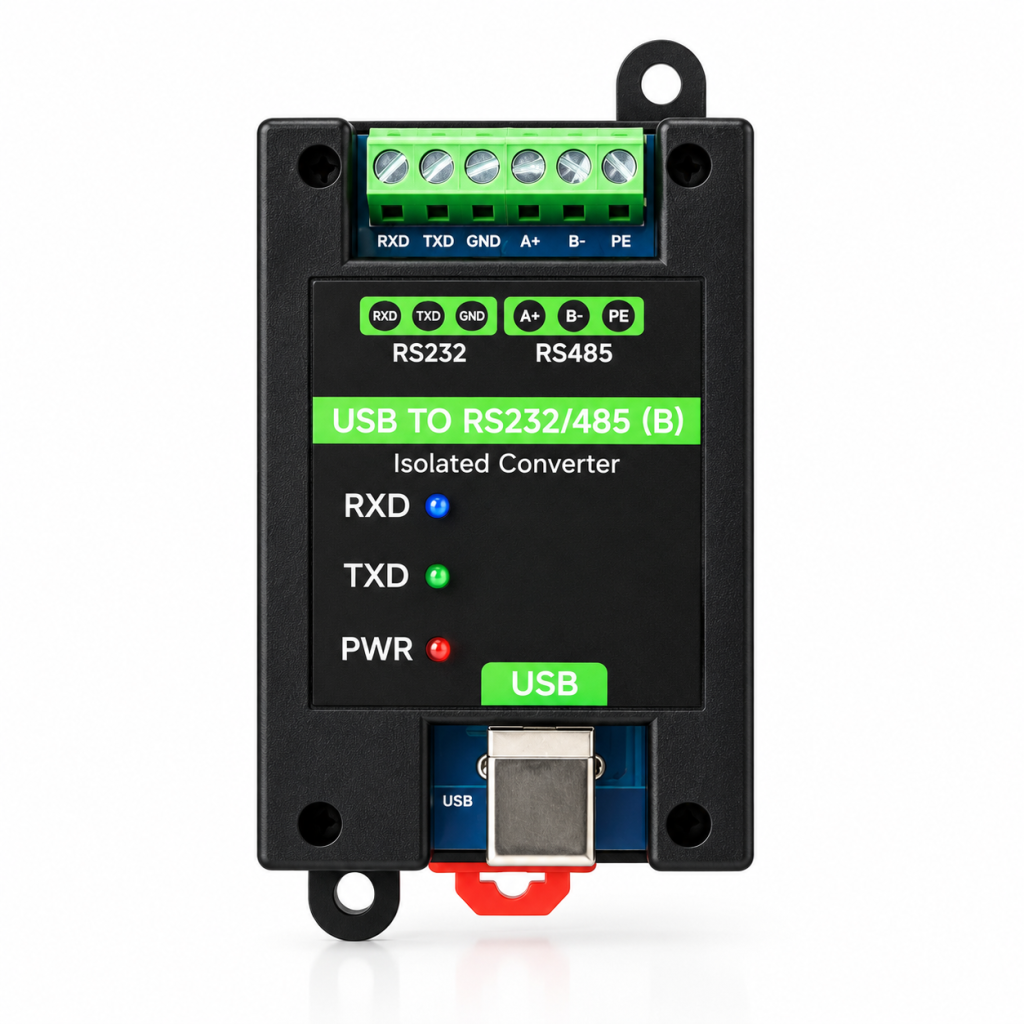

In industrial environments it is often necessary to use a higher grade of quality and toughness to avoid communication issues and to withstand damage by harsh environments. This is where the USC-WUSB232B comes in. This is an industrial grade USB to RS232 / RS485 converter with DIN mount and optional screw mounts. It has screw terminals for the RS232 / RS485 side for easy connection of single wires and a standard female USB type B connector on the USB side. LED indications lights for power, TX and RX makes it easy to see the converter is powered and when data is flowing.

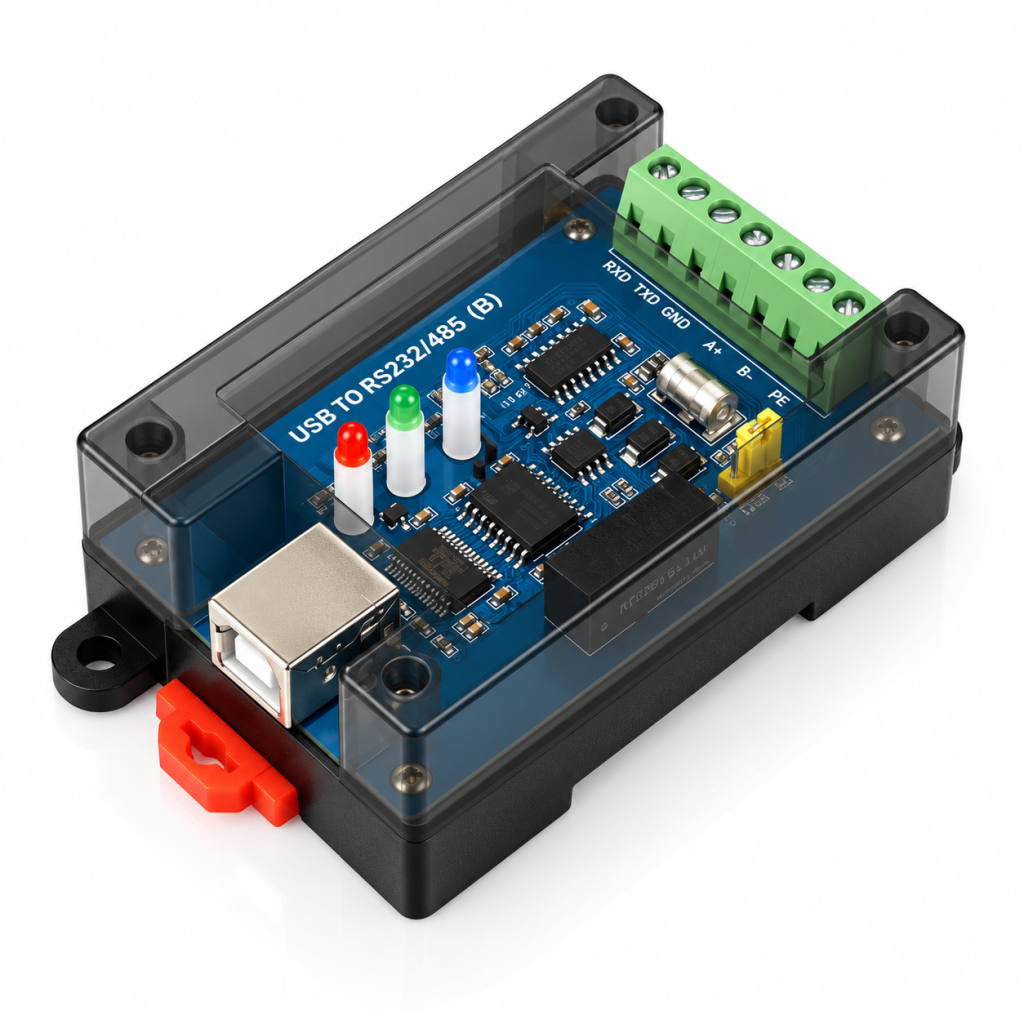

This USB to RS232 / RS485 converter is designed around the reliable FT232RNL processor from FTDI, which makes it a high performance, fast and very reliable converter for most applications.
The converter gets its power from the USB port so no external power is needed. The power provided from the USB port is isolated from the data signals for effective protection of the connected serial device and to prevent data loss. Built-in digital isolation, transient voltage suppressors (TVS), a self-recovering fuse and protection diodes, effectively suppresses voltage surges, transient voltage spikes, static electricity and over voltages/current.
A built-in 120 ohms terminal resistor on the RS485/RS422 ports is configurable by a jumper.
Overall features
- Industrial grade
- Combo RS232 / RS485 converter
- Port powered from USB port
- Fully isolated
- Built-in electrostatic protection
- Screw terminal block
- WHQL compliant COM drivers included
- Auto detection of data speed
- USB cable included
|
Resources
|
| SPECIFICATIONS |
| Part number |
USC-WUSB232B |
| Operating system |
- Windows 11, 10, 8.1, 8 (32/64-bit), Windows Server 2016, Windows Server 2012 / R2, Windows 7 (32/64-bit), Windows Server 2008 R2, Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP, Windows Server 2003 (32/64-bit), 2000, (all WHQL compliant). Windows RT as D2XX drivers only.
- Windows CE v4.2 - 5.2, 6.0, 7.0 and 2013 including: Windows Mobile 2003, 2003 SE, Windows Mobile 5, 6, 6.1 and 6.5
- Linux (built into kernel 3.0.0-19 and above)
- Mac OS 8, OS 9, OS X 10.3 to 10.9 and above
- Android 4.2
|
| Processor |
FT232RNL |
| Power |
5VDC provided by USB port |
| Serial interface |
Screw terminal block |
| RS232 |
2-wire full duplex |
| RS485 |
2 wire half duplex |
| Compatible with |
Modbus RTU/ASCII, BACnet |
| Bias resistors |
Yes (by jumper) |
| Installation method |

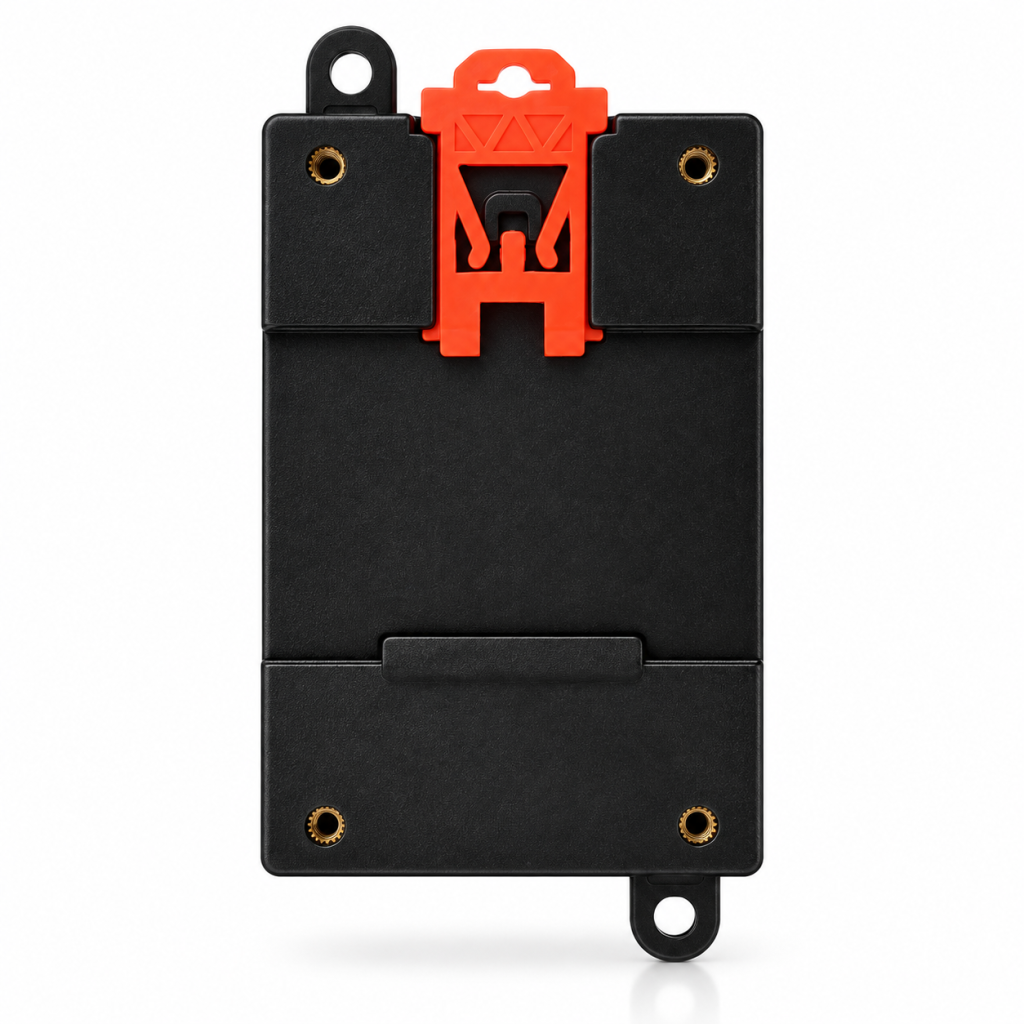

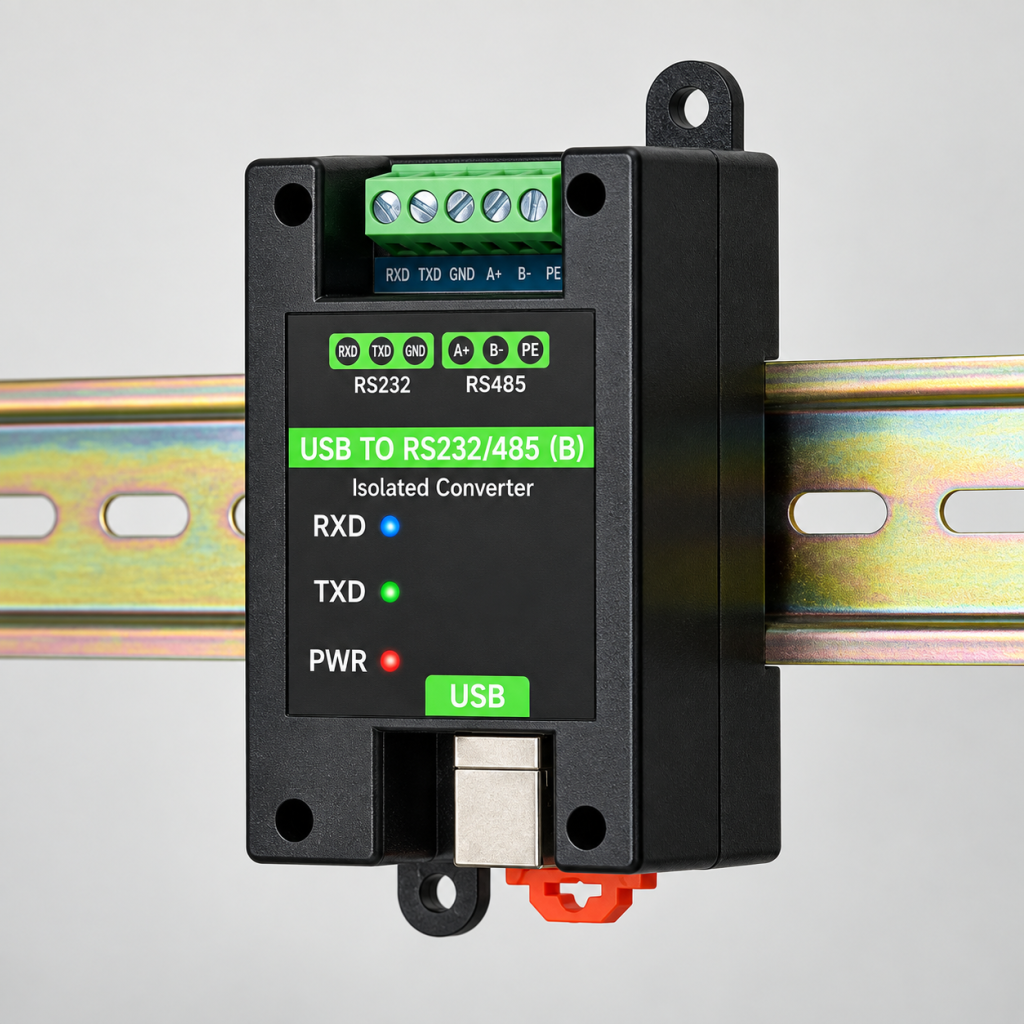

35mm standard DIN rail or screws |
| USB interface |
Standard Type B Female |
| Indication LEDs |
Power, Send and Receive |

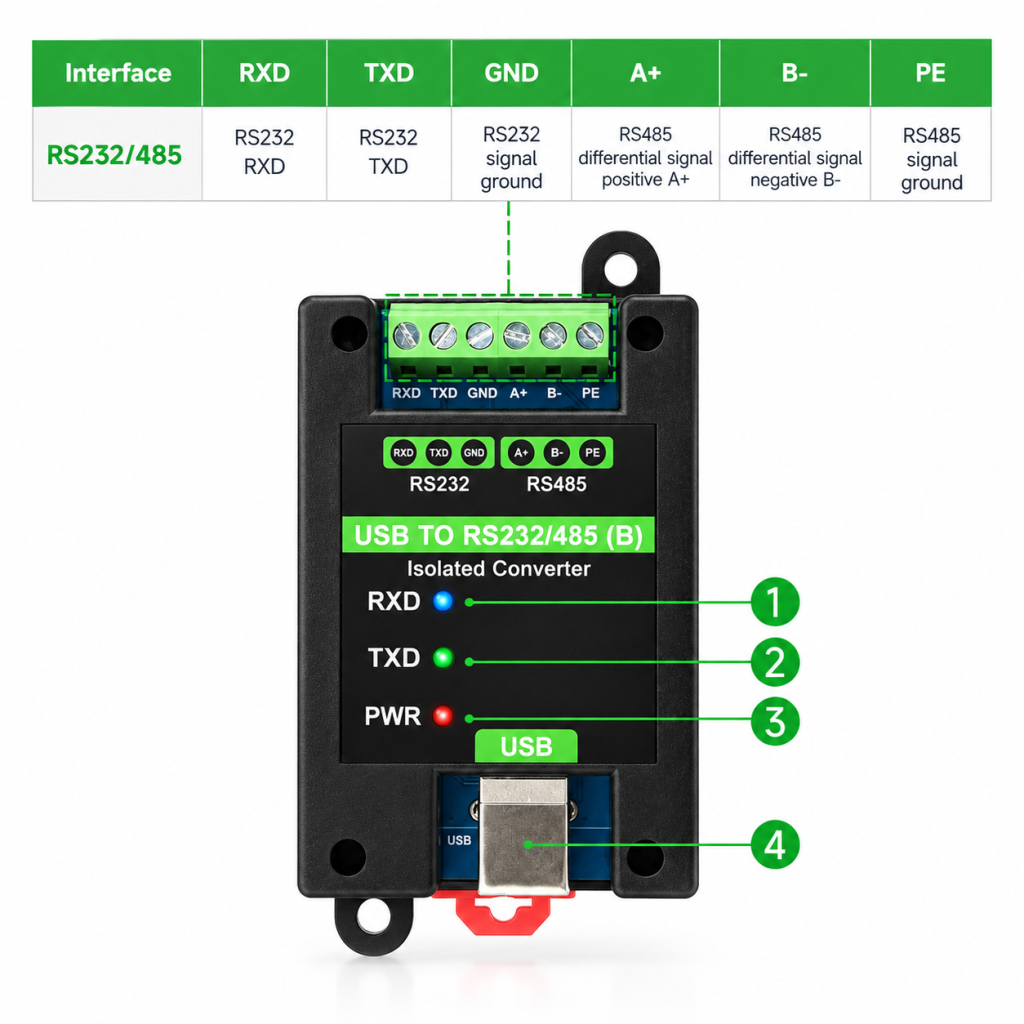

| Signals |
- RS232: TX, RX, GND
- RS485: D+, D-, GND |
| Baud rate |
300 to 921600bps |
| Parity |
None, Odd, Even, Mark, Space |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| TX / RX buffer size |
|
| Flow Control |
Hardware automatic control |
| COM port accessible by |
Included virtual COM port drivers |
| Isolation |
700V continuous and 3500V spike
200mA self-recovery fuse (USB) |
| Electrostatic (ESD) protection |
15KV/ 600W/ms high voltage protection |
| Current draw |
Static: less than 80mA. Dynamic average: less than 150mA |
| Dimensions |

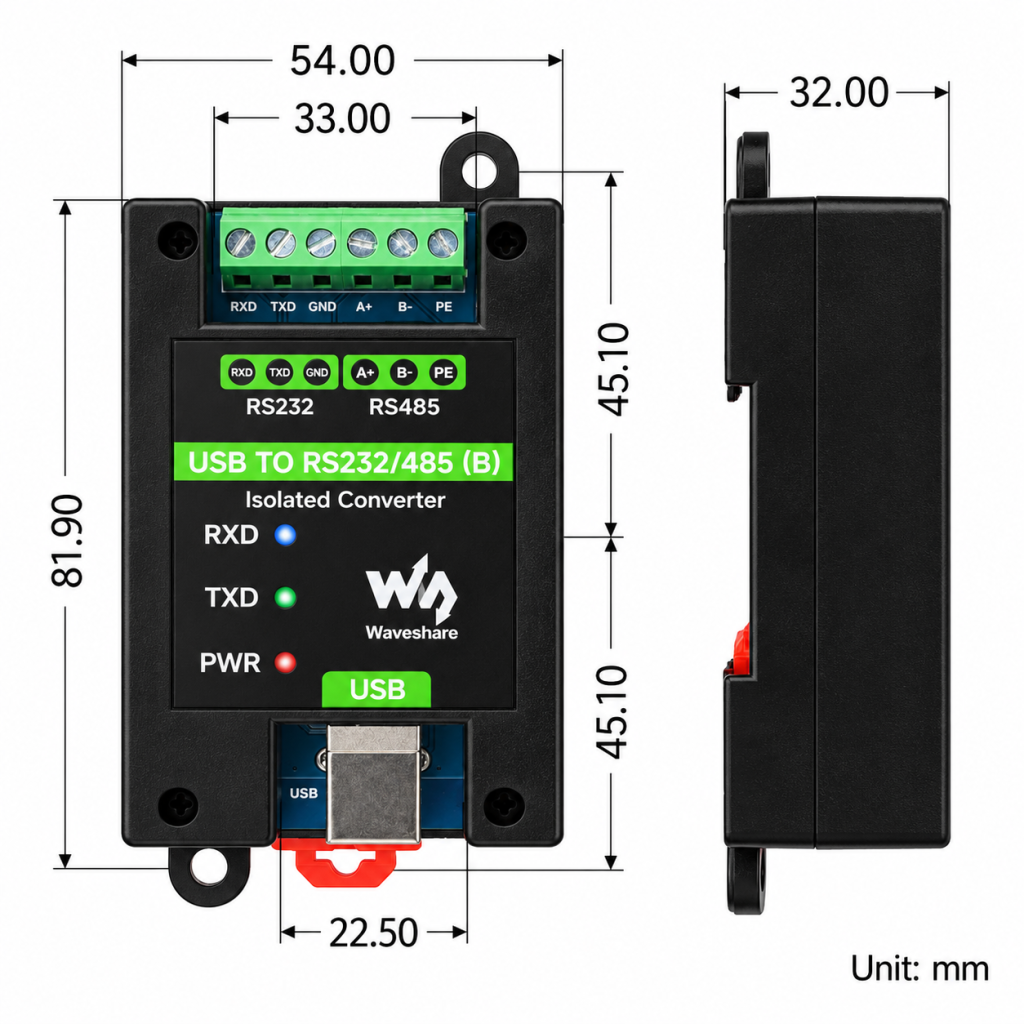

81.9 × 54.0 × 32.0 mm |
| Interface compliance |
USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Regulatory compliance |
FCC, CE and RoHS |
| Operating temp |
-15°C to 70°C |
| Warranty |
1 year limited warranty |
