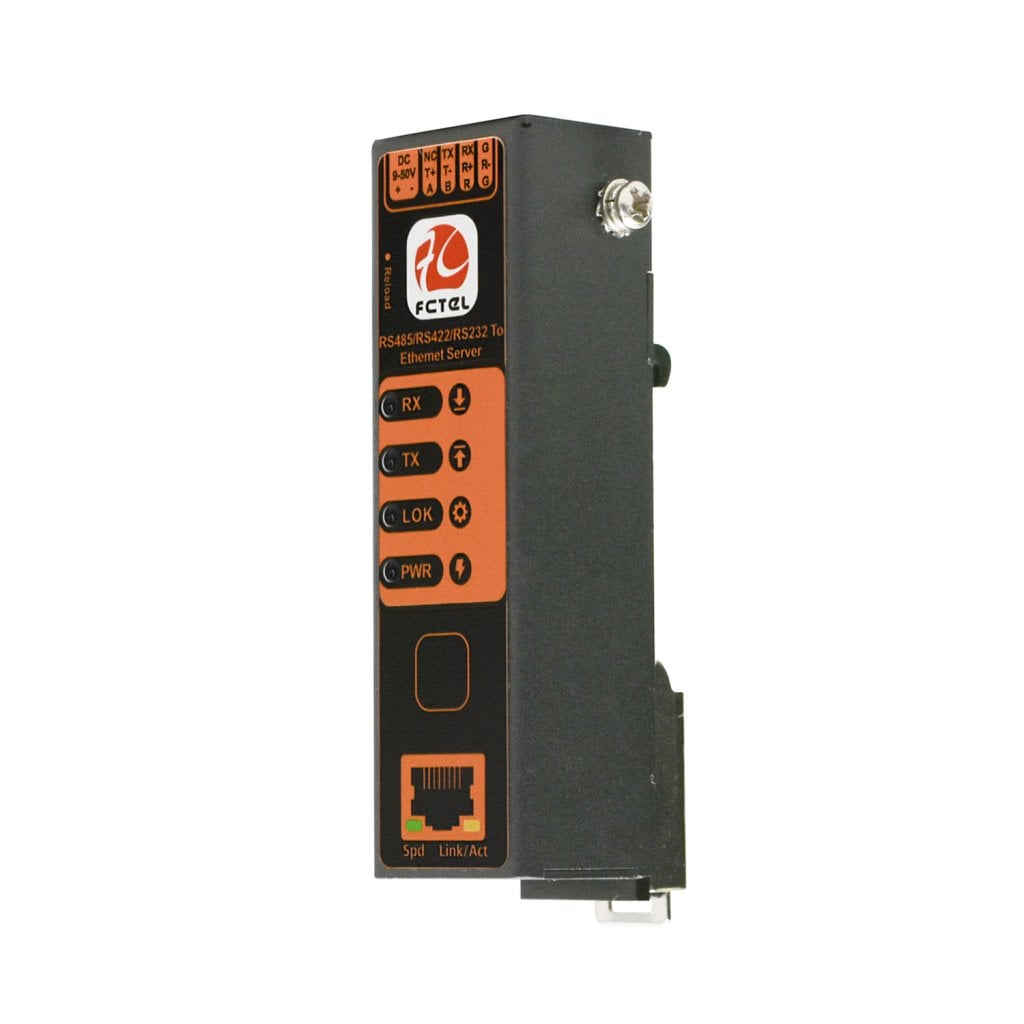

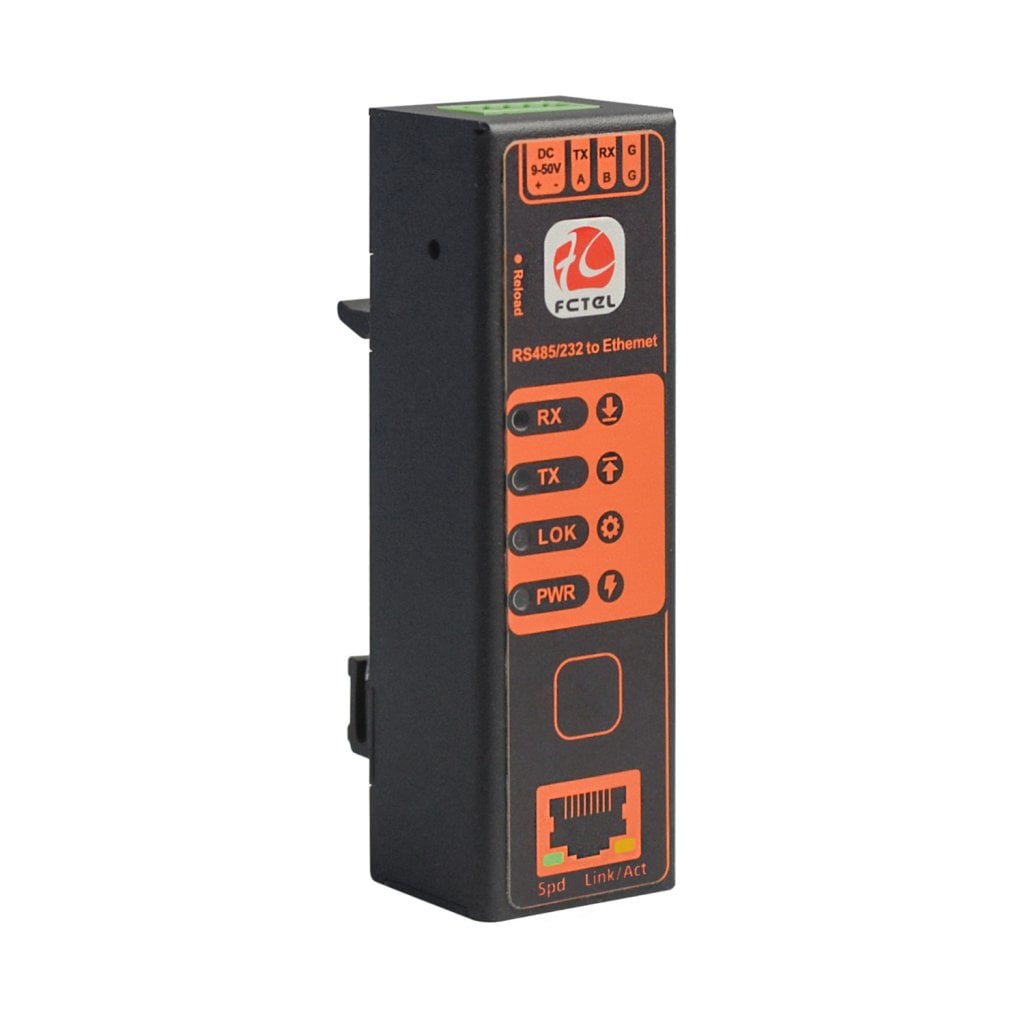

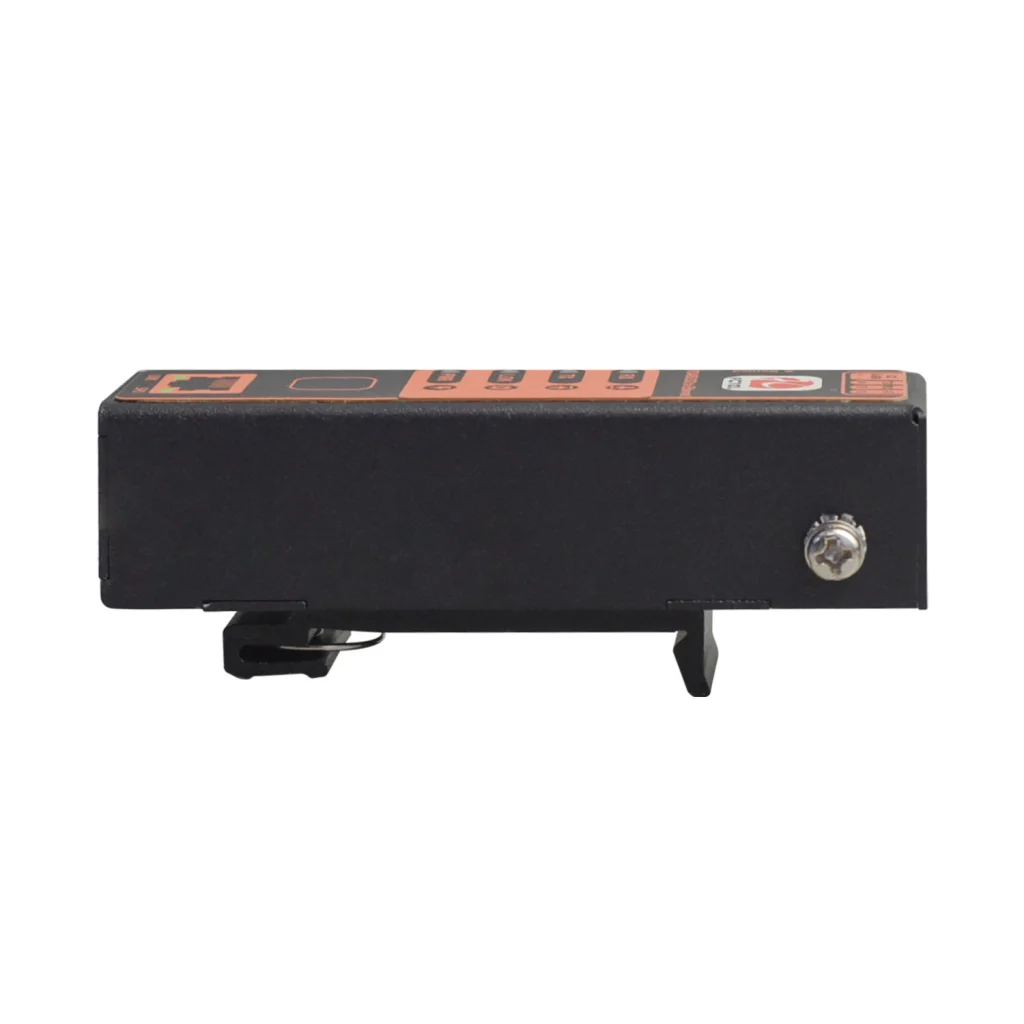

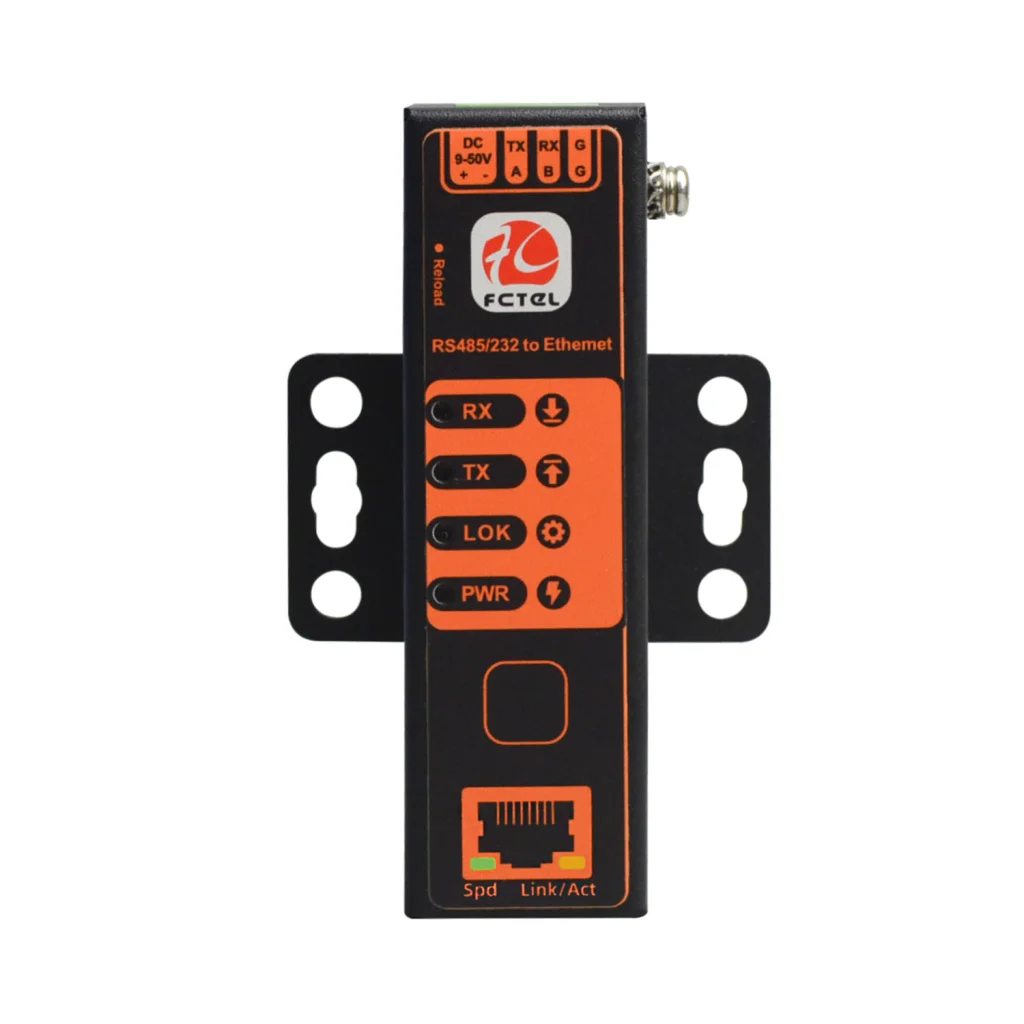

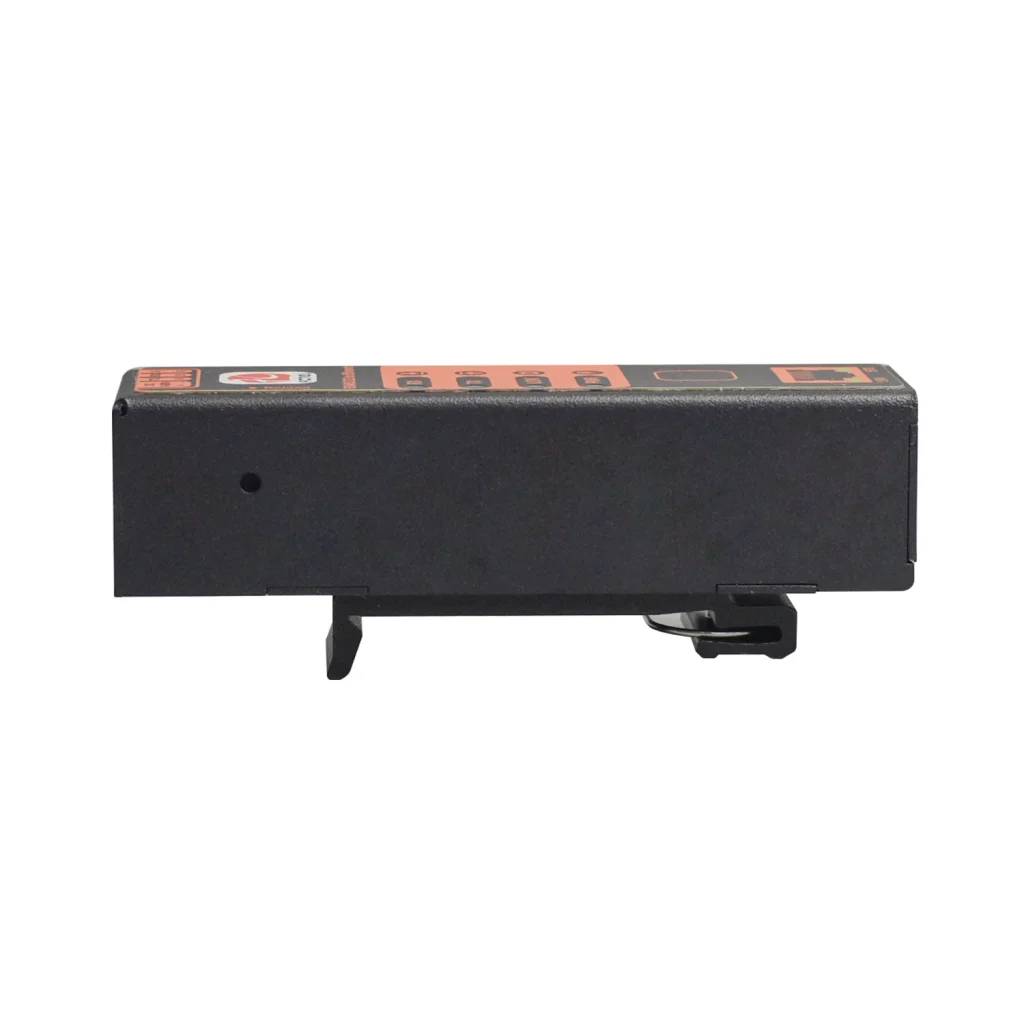

Serial to Ethernet Converter (RS232) - DIN Mount Basic

  • Model: FCT-081217-R1
  • In Stock

$59.00

Add to Cart:

This compact DIN-rail mounted RS485/RS232 to Ethernet server transforms traditional serial communication (RS485/RS232) into high-speed Ethernet network data, enabling industrial systems and legacy devices to communicate over IP networks without hardware redesign. It is ideal for automation, IoT, building control, factory monitoring, and edge networking applications. With support for common industrial network protocols and DHCP, this converter is easy to deploy in both new and existing Ethernet infrastructures.

Key Features

  • Supports RS485 or RS232 serial communication.
  • Converts serial data into Ethernet (TCP/IP) packets.
  • Works as a serial device server for remote network access.

Industrial-Grade Build

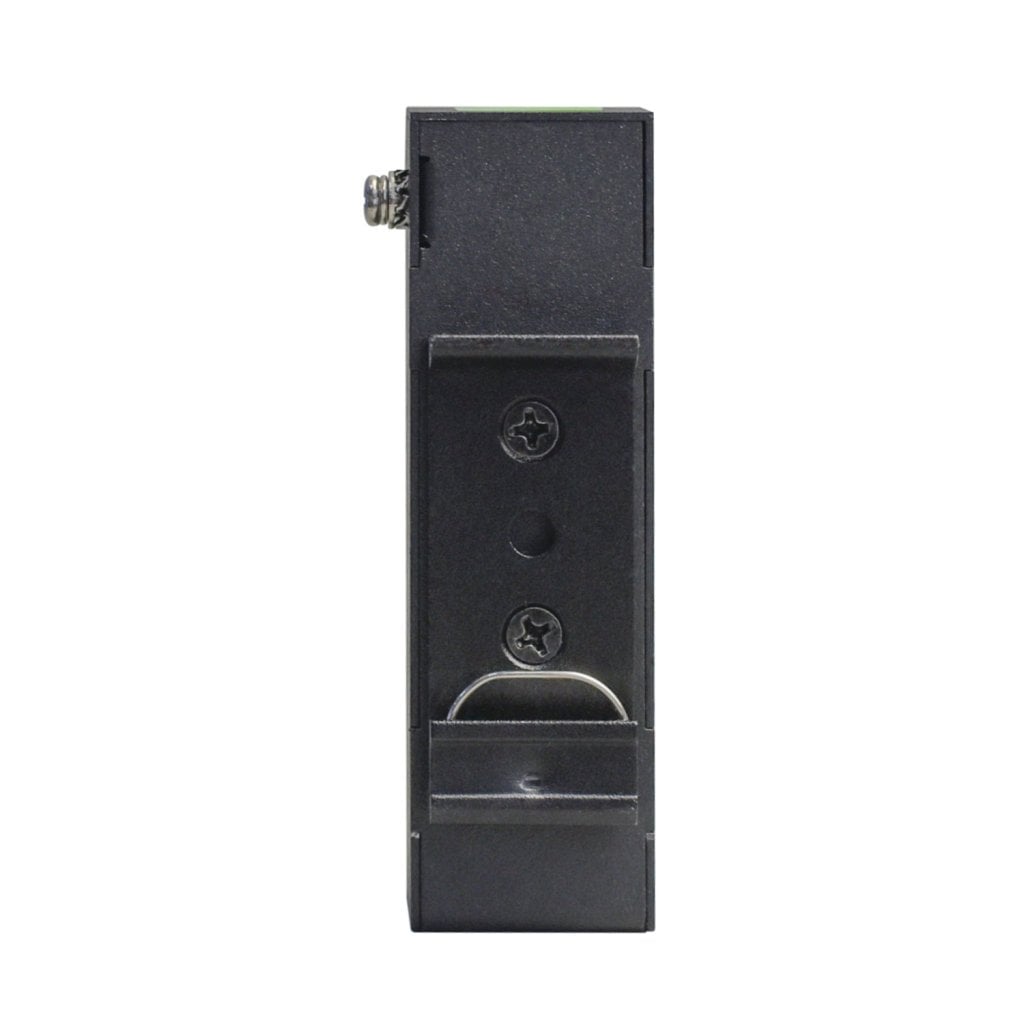

  • DIN-rail mount design for control cabinets and automation racks.
  • Wide operating temperature: suitable for harsh industrial environments.
  • Rugged construction with lightning and surge protection on serial ports.

Protocol Support

  • Modbus TCP, TCP Server/Client, UDP Server/Client.
  • Standard network protocols: DHCP, DNS, HTTP, SNMP, ICMP, ARP.
  • Multiple TCP/UDP sessions for concurrent data streams.

Typical applications

  • Factory and Automation
    Connect PLCs, HMIs, sensors, and field devices over Ethernet without replacing hardware.

  • Building & Facility Management
    Integrate serial HVAC controllers and energy meters into IP-based building systems.

  • Remote Monitoring & Control
    Enable serial equipment monitoring via networked SCADA systems and IoT dashboards.

  • Legacy Equipment Networking
    Bridge RS485/RS232 devices into modern Ethernet environments efficiently and cost-effectively.

Resources



SPECIFICATIONS
Model number FCT-081217-R1 (RS232)
FCT-081217-D1 (RS485)
Operating system
 Virtual COM software included for:
Windows 11 32/64-bit, Windows 10 32/64-bit
Processor ARM Cortex-M4, 192MHz
Serial ports RS232 or RS485
Signals FCT-081217-D1: RS-485 2-wires: D+, D-, GND
FCT-081217-R1: RS-232: RXD, TXD, GND
Flow Control RS232: Hardware (RTS/CTS), Software (XON/XOFF), None
RS485: Automatic Send Control
Serial port settings Up to 300 - 921600 bps (RS485), 256000 bps (RS232)
Non-standard baud rates supported
Parity: None, Odd, Even
Data bits : 8, 9
Stop bits : 1, 2

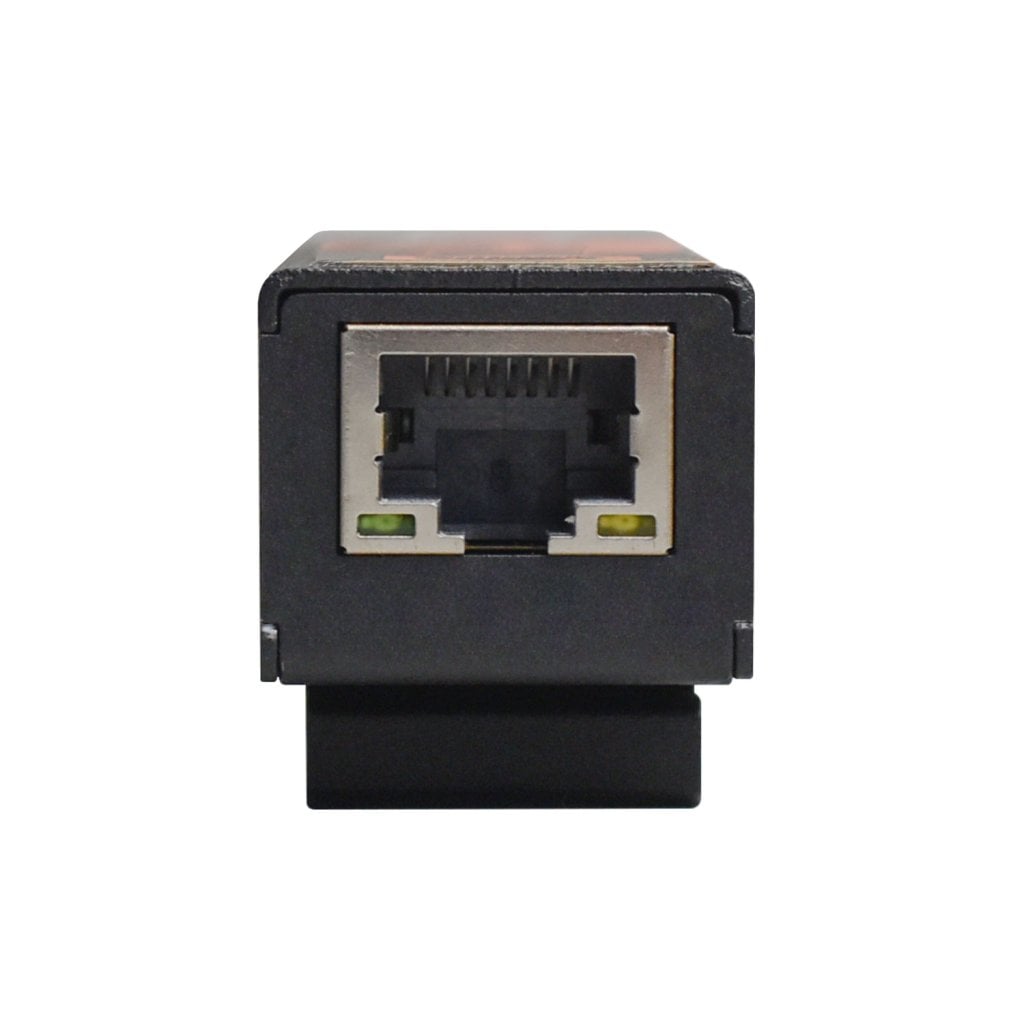

LAN port RJ45, Auto-MDI/MIDX, 2KV isolation
Protocols TCP Server, TCP Client, UDP Server, UDP Client, DHCP, ModBus TCP/RTU
Parameter management Web-browser
Modbus Yes (TCP and RTU)

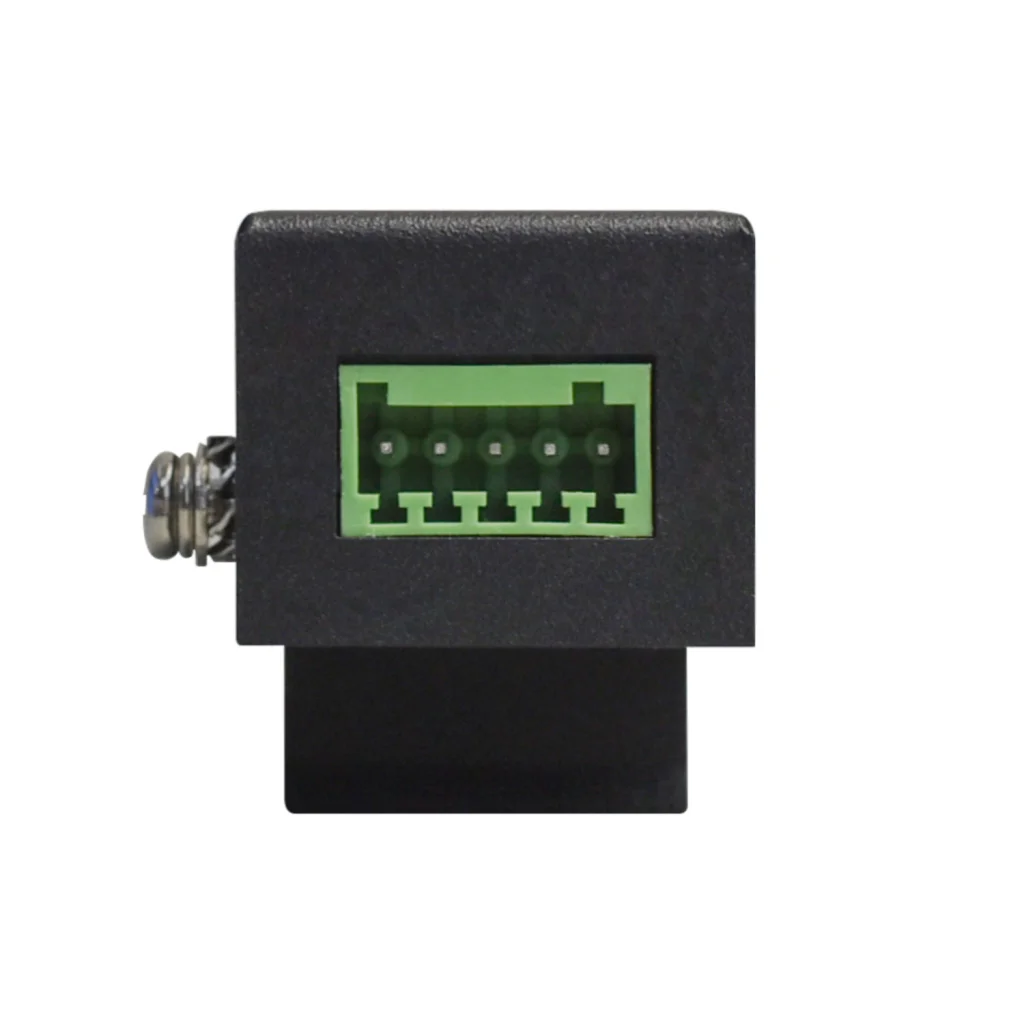

Power Power terminals 9-50 VDC
Current draw <5W
Temprature Working Temperature: -40℃ to +85℃ Storage Temperature: -40℃ to +85℃
MTBF: > 100,000 hours
Dimensions 80mm x 20mm x 24mm
Weight 720g
Approvals CE, FCC, ROHS
Warranty 1 year Limited Warranty
