Long range Data Transmission Radio Micro DIN-rail DTU

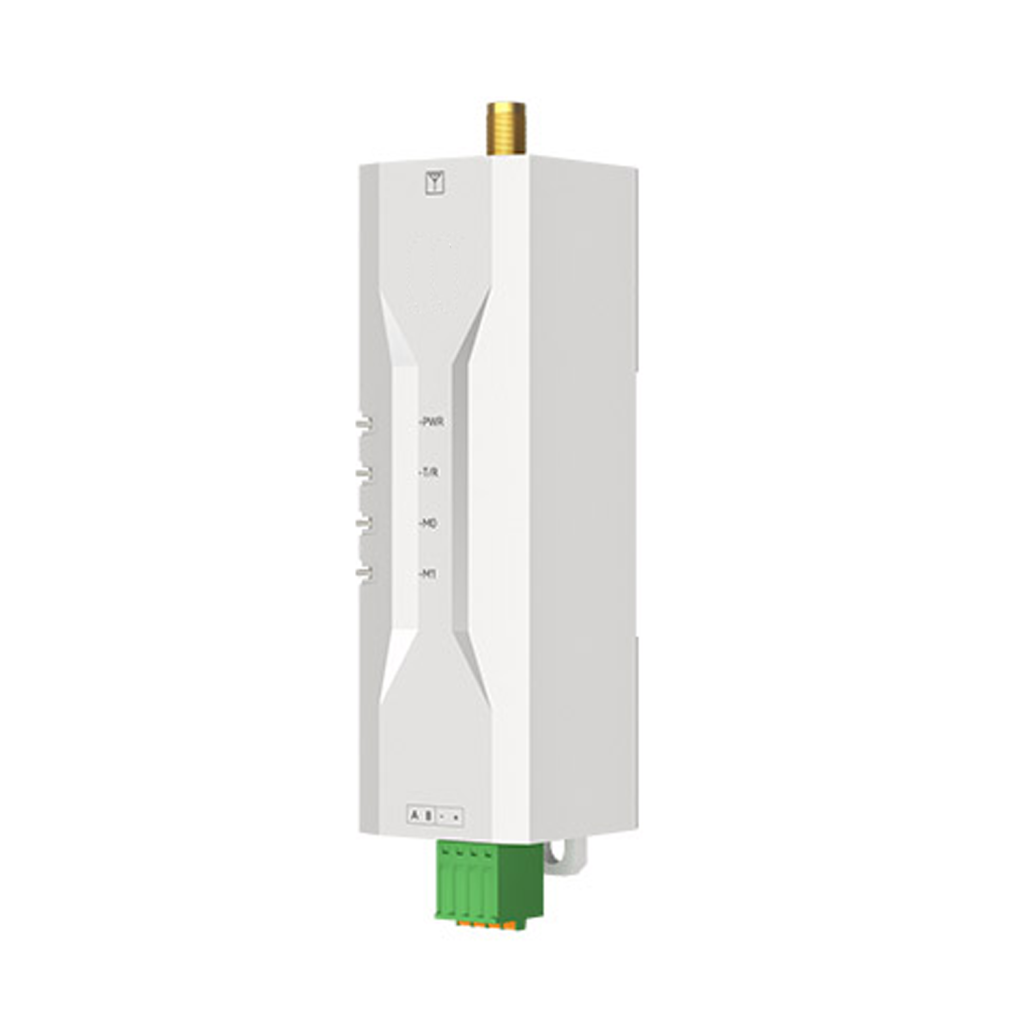

The EWD95M-2G4H27(485) is a compact, industrial-grade wireless digital transmission unit (DTU) designed for reliable, long-range serial data communication over the 2.4 GHz band. Built on a high-performance E34-T series module, it combines strong anti-interference capabilities, automatic frequency hopping, and wide-voltage support for versatile IoT and automation applications.
Wireless Communication
- Operating Frequency: 2.4 – 2.518 GHz (default 2.4 GHz)
- Transmit Power: 27 dBm
- Typical Communication Distance: up to 5 km in open environments
- Automatic Frequency Hopping: enhances anti-interference performance and link reliability
- Transparent Data Transmission: supports raw data pass-through serial communication without protocol overhead
Robust and Reliable Design
- Interfaces Supported: RS485
- Packet Retransmission: automatically handles packet loss to boost data integrity
- Anti-Interference Capability: advanced modulation and frequency hopping improve noise resilience
- Delay-Optimized: minimal communication latency suitable for real-time monitoring systems
Industrial-Ready Build
- DIN-rail Mountable: easy installation in control cabinets and industrial racks
- Wide Voltage Input: 8–28 VDC (ideal for automotive, industrial, and PLC systems)
- Rugged Shell: three-proof coating provides resistance to fungus, humidity and salt spray — perfect for harsh environments

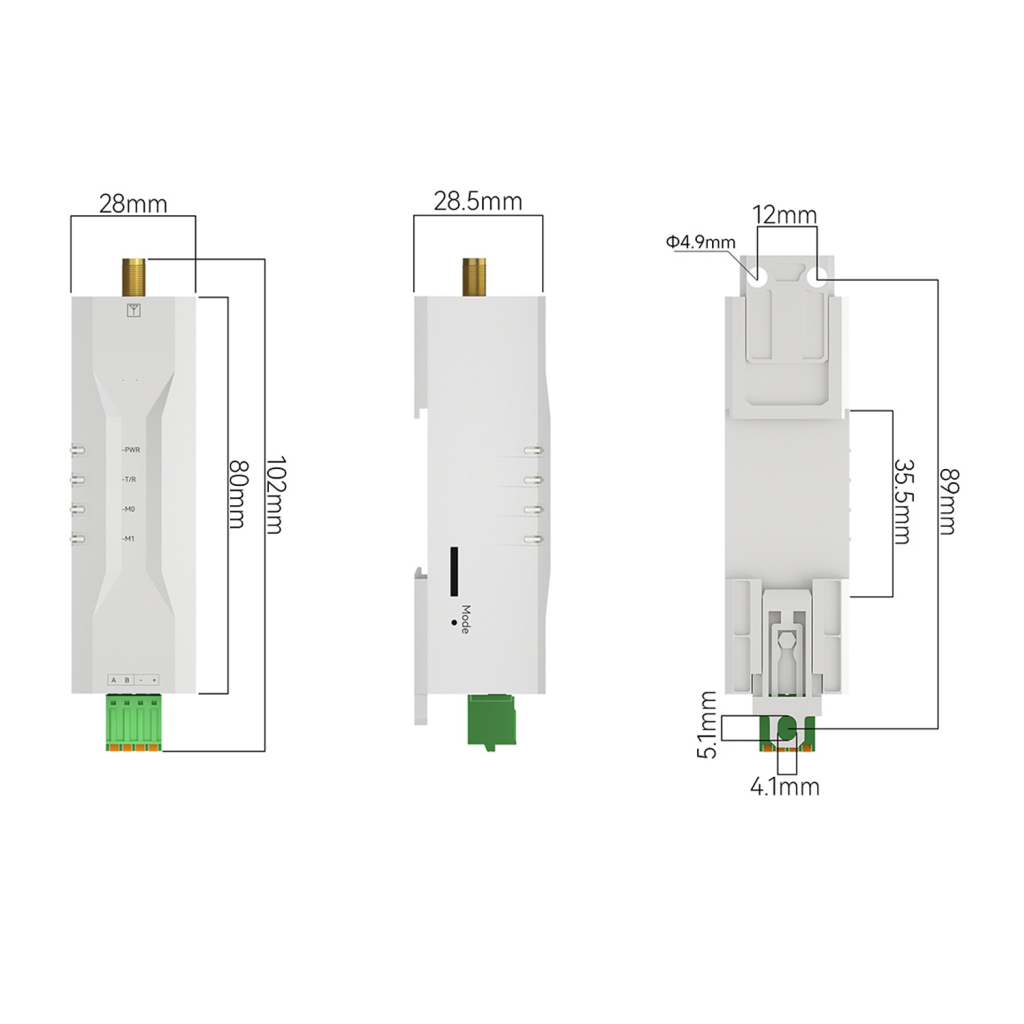

- Compact & Lightweight: 80 × 28 × 28.5 mm at only ~32 g enables flexible placement
Typical Use Cases
✔ Industrial IoT gateways and sensors
✔ Remote data acquisition systems (SCADA / telemetry)
✔ PLC communication and automation networks
✔ Environmental monitoring (weather, water, gas)
✔ Building automation and energy management
This module fits seamlessly into systems where wired infrastructure is costly or impractical — providing a resilient wireless link for serial-based data streams.
Resources
Product information
Configuration utility- Default settings
| TECHNICAL SPECIFICATIONS |
| Model number |
EWD95M-2G4H27485 |
| Operating system |
Configuration utility for Windows 11 32/64-bit, Windows 10 32/64-bit, Windows 8 32/64-bit |
| Serial interface |
| No. of serial ports |
1 port RS485 screw terminals |
| Serial data controls |
- Parity: None, Odd, Even
- Data bits : 5, 6, 7, 8
- Stop bits : 1, 2 |
| Signals |
RS485: D+, D- |
| Communication mode |
Half-duplex |
| Baud rates |
1200 - 115200 bps |
| Wireless interface |
| Transmit power |
max 27 dBm |
| Range |
5 Km (16.000 Ft.) |
| Multi-Channel Support |
12 selectable channels,
1 MHz channel spacing |
| Frequency |
2.4 - 2.48GHz |
| Misc. |
| Parameter management |
Software utility |
| Power |
5 - 28VDC screw terminals |
| Operating Temp. |
-40°C to 85°C |
| Antenna |
di-pole antenna, SMA male (inside threads / center pin) |
| Size |
80 × 28 × 28.5 mm |
| Weight |
32g |
| Approvals |
CE, FCC, ROHS |
| Warranty |
1 year Limited Warranty |
