Serial Ethernet Converter (RS485) - Industrial

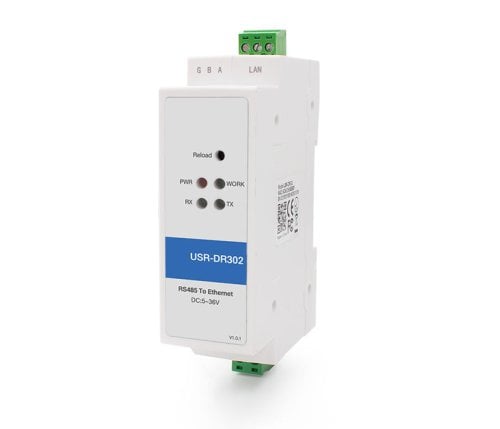

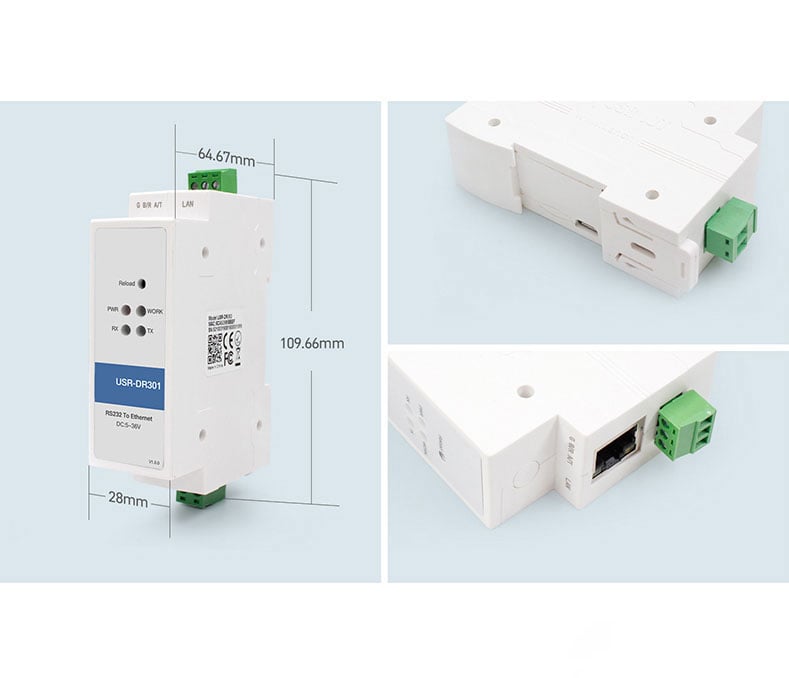

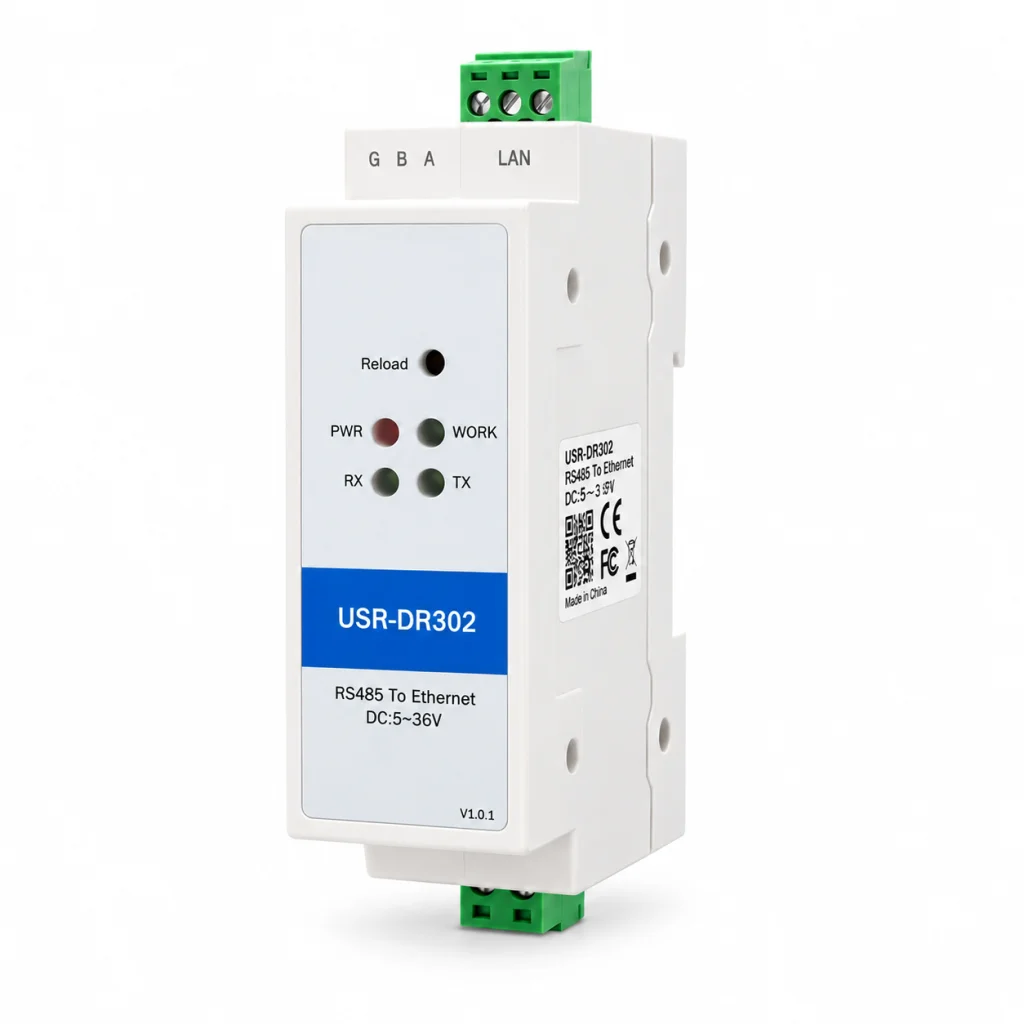

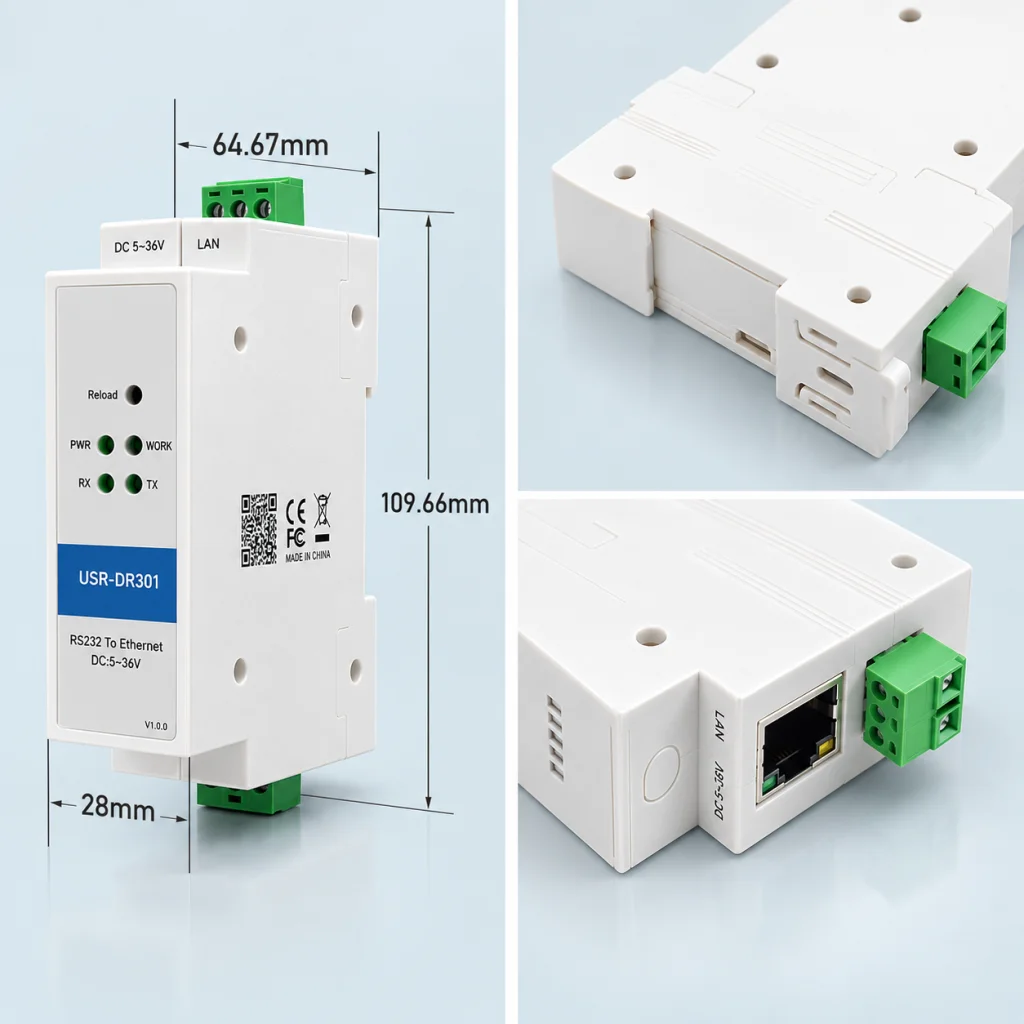

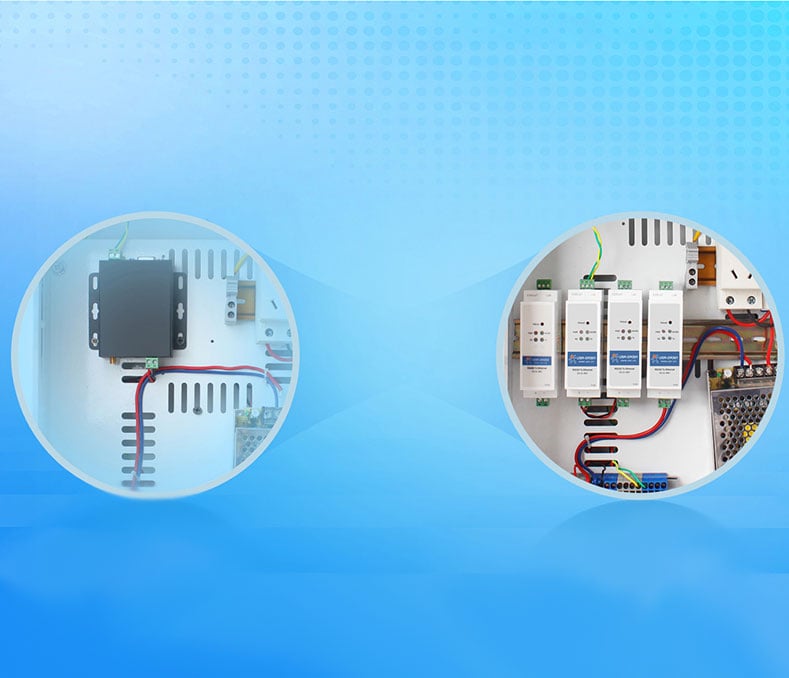

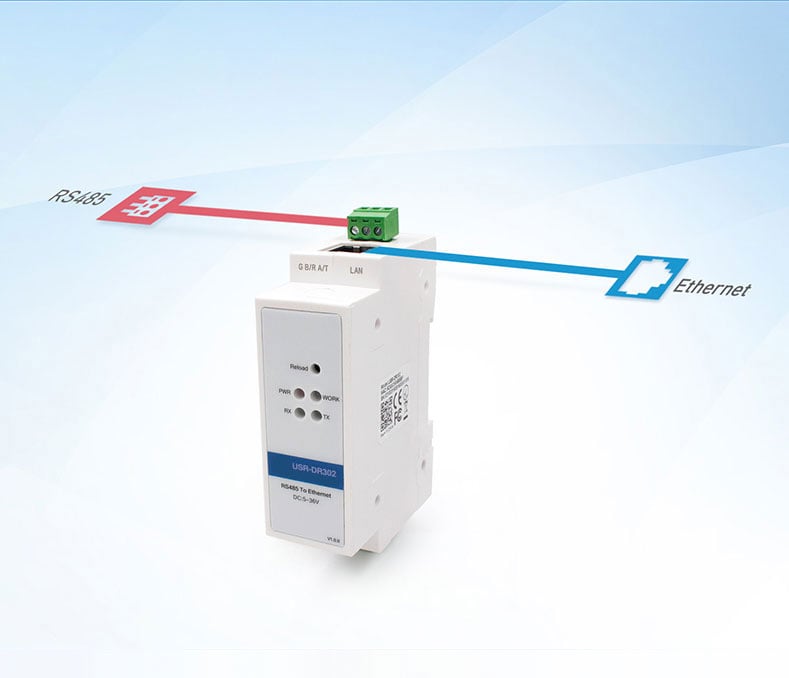

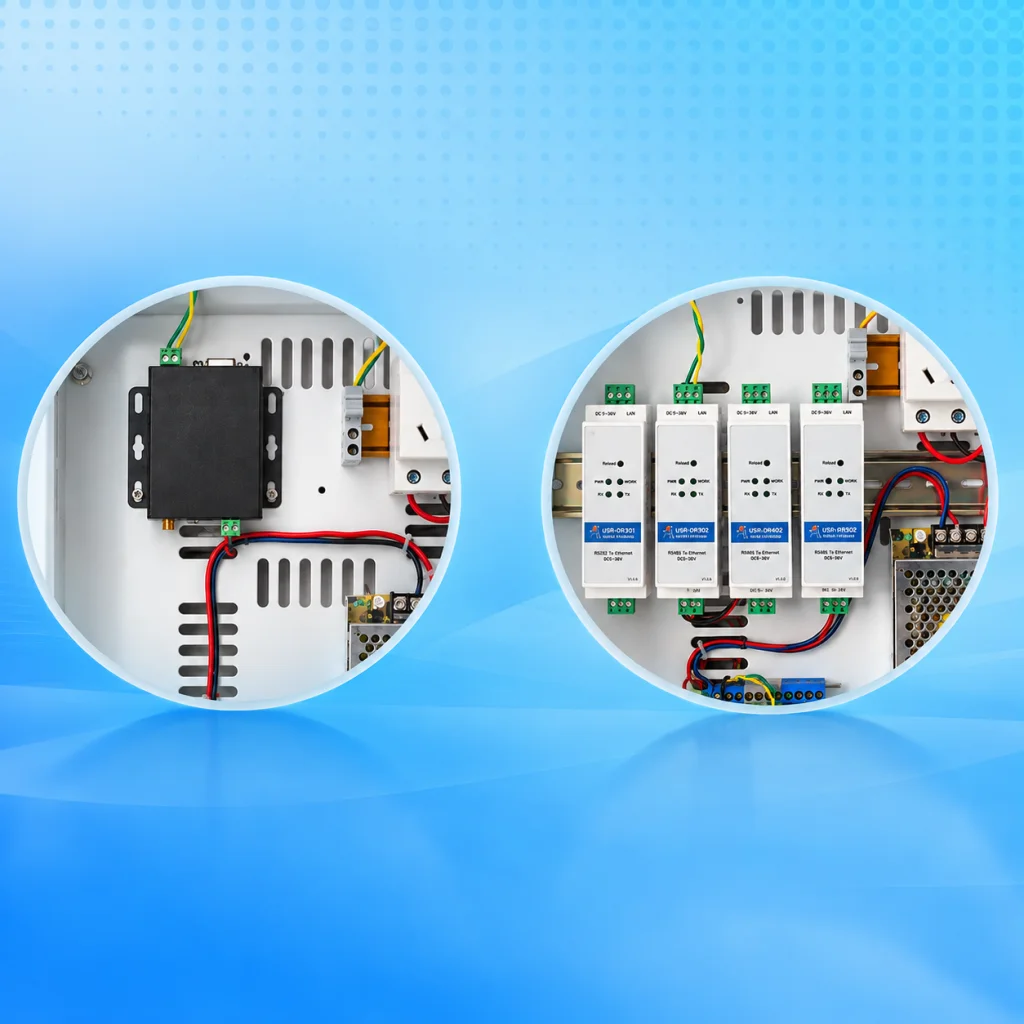

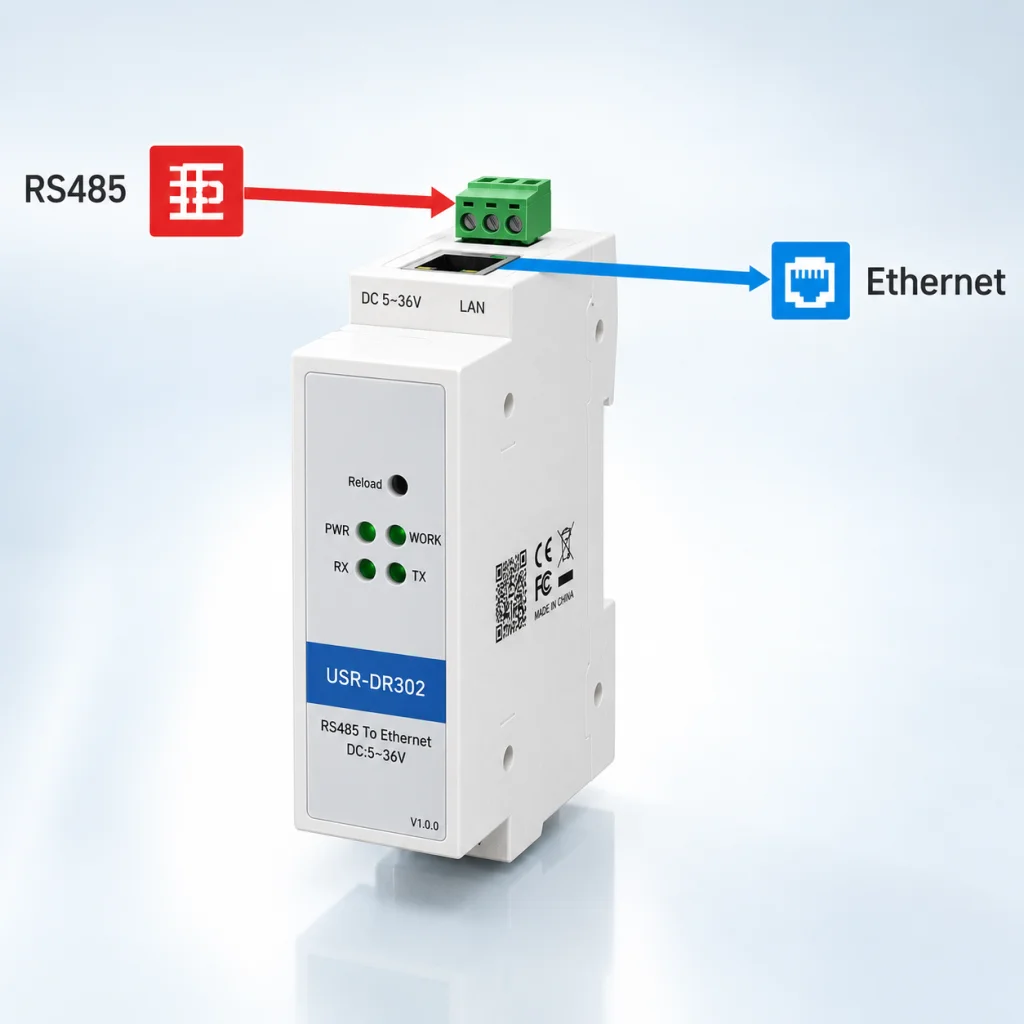

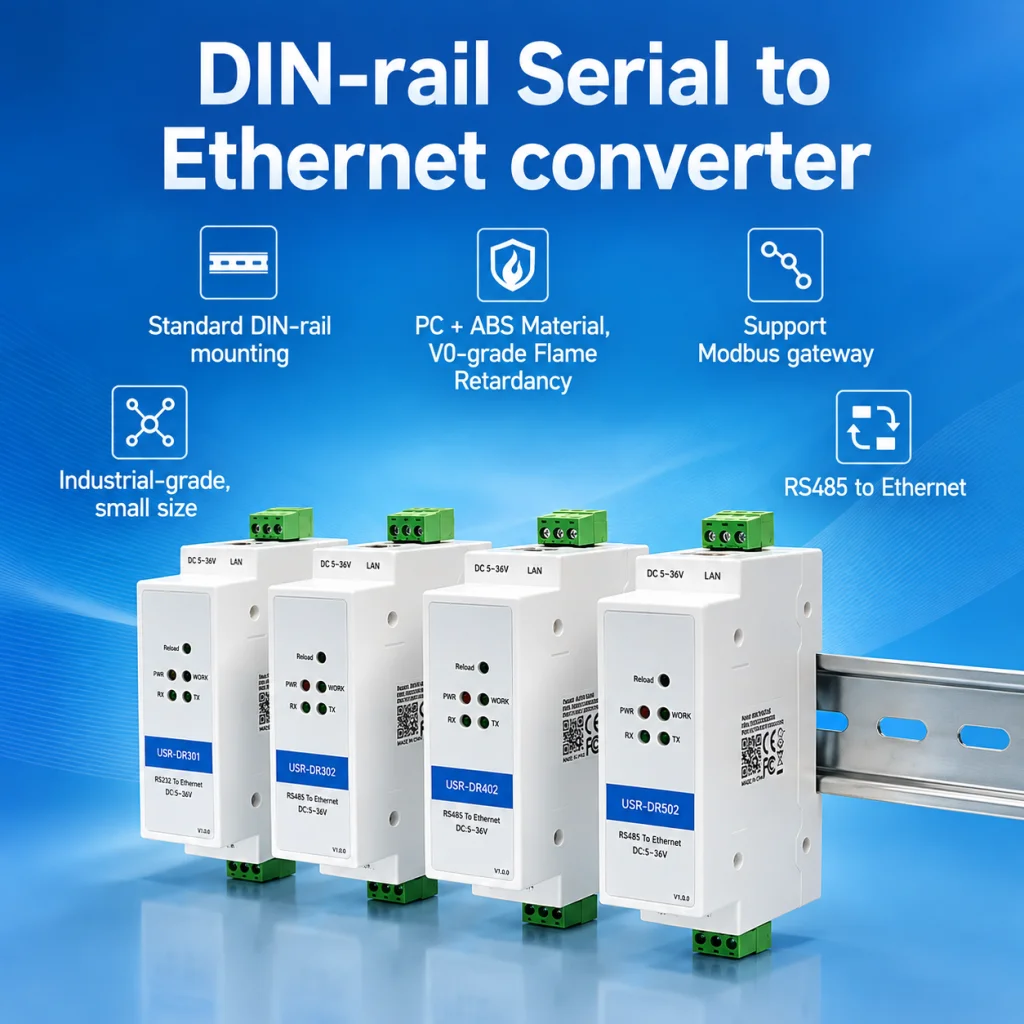

Cutting edge technology and streamlined production lines has made industrial grade converters cheaper without sacrificing quality. With this in mind we here present our new DIN rail mountable Serial RS485 to Ethernet converter. This ethernet converter converts various serial signals (RS232, RS485, RS422) into packet-sized data signals, facilitating access to serial devices over a local LAN or the Internet. These converters enable users to access and control serial devices over a local LAN network, enhancing remote communication capabilities without the need for additional wiring. Perfect for building into electrical control cabinets, racks and enclosures of any kind which has a DIN rail.

In addition, RS232 to Ethernet converters establish a reliable network connection by encapsulating RS232 signals in Ethernet packets, enabling remote access and management of devices while ensuring security and efficiency in data transmission.

ARM® Cortex™-M Processor

This RS485 serial to Ethernet converter is designed around a 32-bit microcontroller (STM32F0) from STMicroelectronics containing a ARM® Cortex®-M processor, which makes this converter a modern high performance, reliable solution with all basic functions and several expanded/advanced functions. Ideal for most industrial and commercial applications and environments.

Basic Features of Serial Ports

All basic functions of a standard serial RS485 to Ethernet converter are supported, which includes the following:

• DHCP and Static IP address.By default the converter is set to have a static IP address, this can be changed to DHCP so your network or computer automatically assigns an IP to the converter.

• Serial port settings.All standard port settings such as baud rate, parity, data bits and stop bits can be set within the standard range.

• Parameter configuration via web-browser.All parameters can easily be changed by logging into the converter using a standard web-browser such as Chrome, Firefox or Internet Explorer. This can be done on a local network, or from a remote location using a 3rd party DNS service.

• Network modes. The converter can be set to the most commonly used network modes which includes: TCP Client, UDP Client, TCP Server, UDP Server or HTTPD Client mode.

• Virtual COM port software.To create a virtual COM port with any serial to Ethernet converter you will need a virtual COM port software. With this converter it is a full function free downloadable software. No extra cost.

The Ethernet serial server plays a crucial role in connecting machines to computers for remote monitoring and control. It supports various serial ports like RS232, RS485, or RS422, making it versatile for both industrial and consumer applications. The ease of setup and the inclusion of virtual COM port re-director software facilitate seamless communication.

Expanded Functions for Ethernet Network

Since this serial to Ethernet converter has been designed with the ARM® Cortex® STM32 microcontroller mentioned earlier it has been possible to incorporate a few expanded/advanced functions, usually not seen in this range of converter, here are some of the functions (please refer to the datasheet for all details):

• Number of connected clients.This function lets you manually select how many clients (max 8) you will allow to connect to the converter simultaneously. Very useful for control and security of the connected devices.

• Modbus support.Many industrial applications communicate by Modbus. This converter supports Modbus RTU and Modbus TCP protocol conversion.

• Heartbeat packet function.A heartbeat packet can be sent to either the TCP port or the serial port to keep the connection open.

• Registration packet function.A registration packet can be sent to the server to identify the data source device or to obtain a password for the server authorization. The package can be sent to establish the connection, when carrying data or both. It can be created by MAC register or self defined register.

• Impersistent connection.If there is no data reception in the serial port or network port within the set time, the connection will be automatically disconnected. Mainly used to save server resources.

• Reset, Link and Index.These are additional functions which manually can be enabled or disabled in the converters administration panel: Reset: if enabled the converter will automatically reset itself if the TCP connection has not been successfully built after a number of tries. Link: TCP connection status, connected or not connected. A pin on the PCB goes low if the connection is successful and high when unsuccessful. This function is only available on the PCB. Index: This function can be used to identify the server and client of the sent data if there are multiple servers and clients on the network.

• Other (lesser used) expanded functions:

• TCP kick-off old connection

• Buffer data before connected

• UART set parameter

• Reset timeout

• Synchronous baud rate RFC2217

• Please see datasheet and user manual for more details.

Most serial device servers are used in both industrial and consumer applications for connecting machines to computers, allowing remote monitoring and control. They are easy to configure and often come with software for creating virtual COM ports, enhancing functionality for users.

Besides the features mentioned above this converter is also fully capable of handling more complex setups such as Serial Tunneling mode, communication without virtual COM software, access over Internet and more. A typical device server is frequently employed in both industrial and consumer settings for monitoring and controlling various electronic devices. These servers establish remote connections between machines or devices and computers, enabling effective control and monitoring over local and internet networks.

Useful optional accessories (not included)

Null modem adapter

DB9 - RJ45 adapter

Gender Changer

For alternative serial to Ethernet solutions please see our full selection of serial Ethernet converters.

Introduction to Serial Ethernet Converters

Serial Ethernet converters are devices that enable the connection of serial devices to an Ethernet network, allowing for remote management and communication. These converters play a crucial role in various industries, including industrial automation, healthcare, and transportation, where serial devices are widely used. By converting serial signals into packet-sized data signals, Ethernet converters facilitate seamless integration of legacy serial devices into modern Ethernet networks. In this article, we will explore the world of serial Ethernet converters, their applications, benefits, and differences from serial device servers.

What is a Serial Ethernet Converter?

A serial Ethernet converter is a device that converts a serial signal to a packet-sized data signal for transmission over an Ethernet network. Also known as a serial device server or serial gateway, this converter enables the connection of serial devices, such as printers, scanners, and sensors, to an Ethernet network, allowing for remote access and management. Serial Ethernet converters come in various forms, including desktop, panel mount, and DIN rail mount, making them suitable for different applications and environments. By bridging the gap between serial and Ethernet networks, these converters ensure that serial devices can be easily integrated into modern network infrastructures.

Industrial Applications

Serial Ethernet converters are widely used in industrial applications, such as factory automation, process control, and monitoring. They enable the connection of serial devices, such as sensors, actuators, and controllers, to an Ethernet network, allowing for real-time monitoring and control. Industrial serial Ethernet converters are designed to withstand harsh environments and are often equipped with features such as rugged housing, wide temperature range, and high MTBF rates. These converters ensure reliable communication and data transfer in demanding industrial settings, enhancing operational efficiency and reducing downtime.

Ethernet Converter vs. Serial Device Server

While both serial Ethernet converters and serial device servers enable the connection of serial devices to an Ethernet network, there are key differences between the two. A serial device server is a more advanced device that provides additional features, such as protocol conversion, data logging, and security. Serial device servers are often used in applications where multiple serial devices need to be connected to an Ethernet network, and advanced features are required. On the other hand, serial Ethernet converters are simpler devices that provide a basic conversion function and are often used in applications where a single serial device needs to be connected to an Ethernet network. Understanding these differences helps in selecting the right device for specific network requirements.

Benefits of Using Serial Ethernet Converters

Serial Ethernet converters offer several benefits, including:

• Remote access and management of serial devices: These converters allow for easy remote monitoring and control of serial devices over an Ethernet network.

• Increased flexibility and scalability: They enable the integration of serial devices into existing Ethernet networks, providing flexibility in network design and expansion.

• Improved reliability and reduced downtime: With features like rugged housing and wide temperature range, industrial-grade converters ensure reliable operation in harsh environments.

• Simplified installation and configuration: Serial Ethernet converters are easy to install and configure, often requiring minimal setup time.

• Cost-effective solution: They provide a cost-effective way to connect serial devices to an Ethernet network, eliminating the need for extensive rewiring or replacement of legacy equipment.

In addition, serial Ethernet converters enable real-time monitoring and control, making them ideal for use in various industrial applications. Their robust design and advanced features ensure reliable performance, even in challenging conditions, making them a valuable addition to any network infrastructure.
