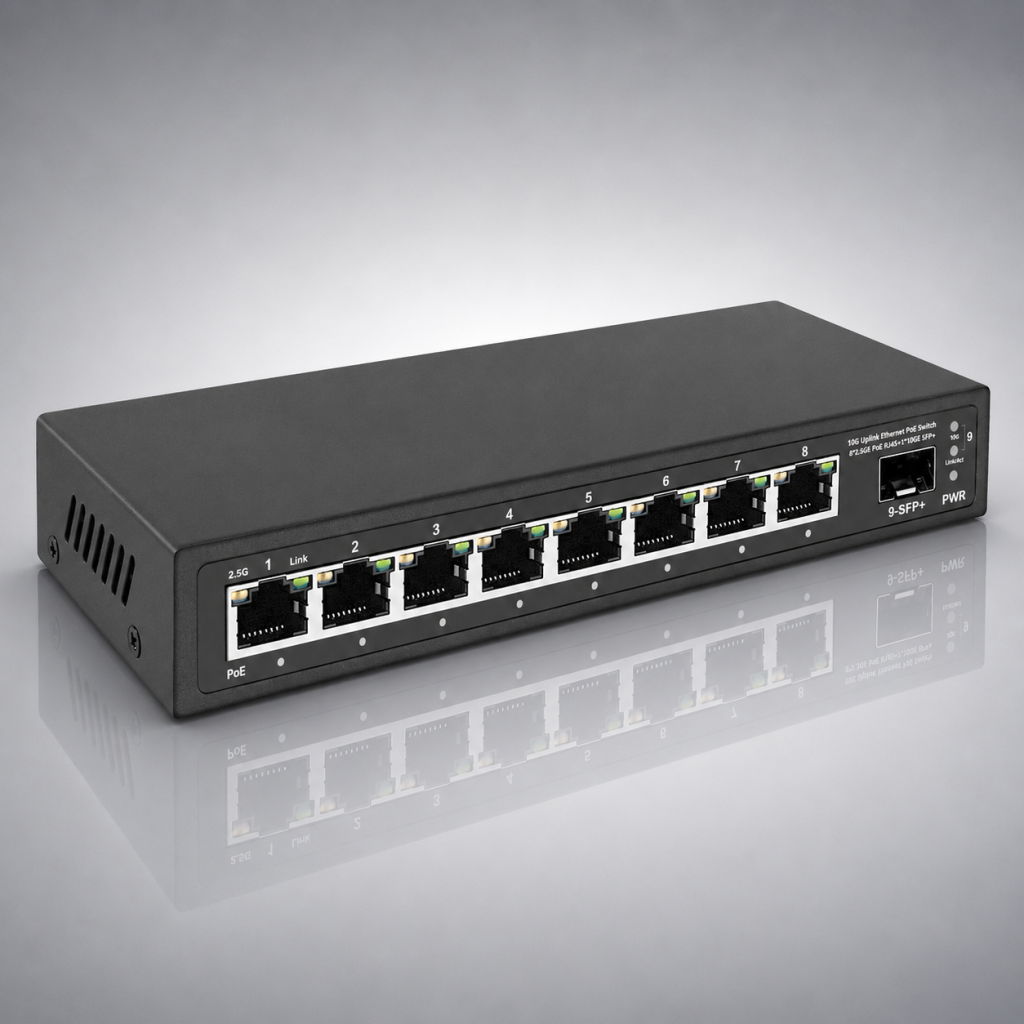

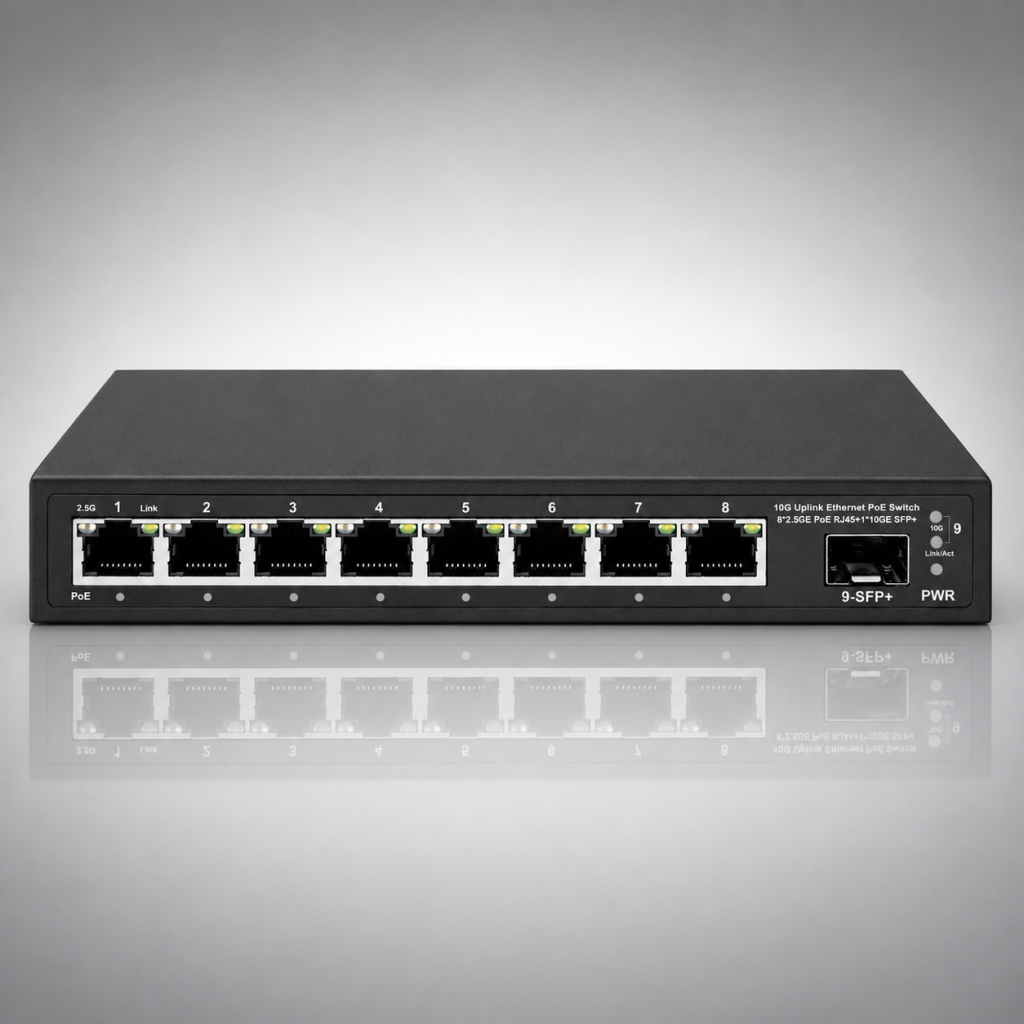

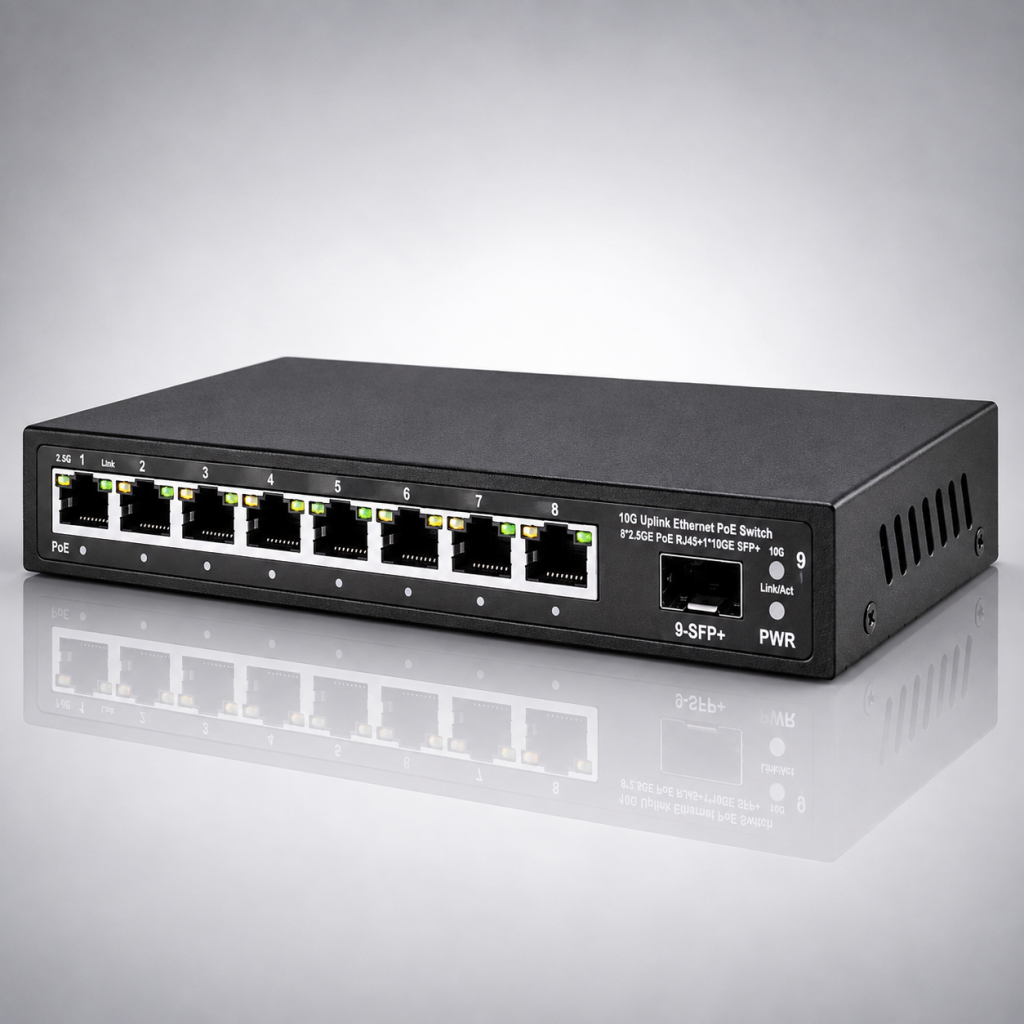

The USCX1500P-8GT1X is a high-performance unmanaged 2.5 Gigabit PoE Ethernet switch designed for modern business networks that demand higher bandwidth than traditional Gigabit Ethernet. Featuring eight 2.5GbE RJ45 ports with Plug & Play installation, it delivers up to 2.5 x faster network performance without the complexity of managed switches, including one fiber 10G SFP+ port.
Ideal for Wi-Fi 6/6E access points, high-resolution IP surveillance, NAS storage, workstations, and other bandwidth-intensive applications, this network switch combines Multi-Gigabit performance with intelligent PoE technology for reliable, maintenance-free operation.
2.5 Gigabit Multi-Gigabit Performance
- Eight 2.5G RJ45 Ethernet ports
- Up to 2.5 Gbps per port
- High-speed switching for bandwidth-intensive applications
- Backward compatible with 10/100/1000 Mbps devices
Intelligent PoE Technology
- Power and data over a single Ethernet cable
- Supports IEEE 802.3af/at compliant powered devices
- Simplifies installation and reduces cabling costs
- Automatic PoE device detection
Plug & Play Installation
- No software or configuration required
- Unmanaged operation
- Auto MDI/MDIX
- Auto-negotiation on every port
Network Optimization
- Intelligent traffic forwarding
- Automatic performance optimization
- Stable data transmission
- Reliable operation for demanding networks
Business-Class Reliability
- Metal industrial-grade housing
- Fanless silent operation
- Low maintenance
- CE, FCC and RoHS certified
|
Applications |
Benefit |
| Wi-Fi 6 / Wi-Fi 6E Access Points |
Full 2.5GbE backhaul speeds |
| IP Surveillance Cameras |
High-bandwidth video transmission with PoE |
| NAS Storage |
Faster file transfers |
| Desktop Workstations |
Multi-Gigabit network connectivity |
| Video Production |
High-speed media transfers |
| Small Business Networks |
Simple, reliable deployment |
Why Choose 2.5 Gigabit?
Traditional Gigabit Ethernet is increasingly becoming the bottleneck in modern networks. This Ethernet switch provides the additional bandwidth needed for today's high-performance devices while allowing you to continue using existing Cat5e or better Ethernet cabling in many installations.
Perfect for organizations upgrading to:
- Wi-Fi 6 & Wi-Fi 7 wireless networks
- High-resolution IP camera systems
- Faster NAS backups
- Media production workflows
- High-performance office networking
Datasheet
| Technical Specifications |
| Model |
USCX1500P-8GT1X |
| Ethernet Ports |
8 × 2.5G RJ45 Ethernet |
| Fiber port |
10G SFP+ |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Switch Type |
Unmanaged POE |
| Installation |
Plug & Play |
| Housing |
Industrial Metal |
| Protection Rating |
IP40 |
| Cooling |
Fanless |
| Mounting |
Desktop |
| Operating Temperature |
-40°C to +85°C |
| Certifications |
CE, FCC, RoHS |
