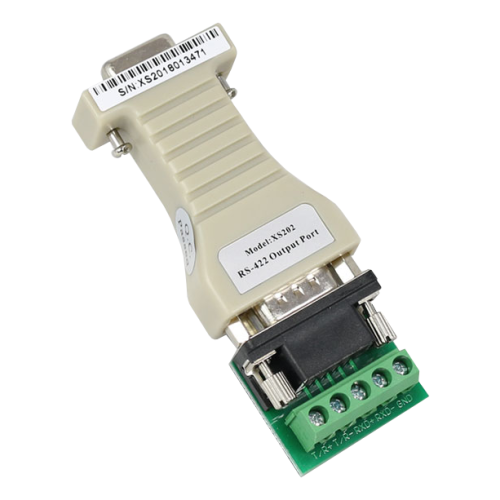

RS232 Repeater


  • Model: XS202
  • In Stock

$14.90

Add to Cart:

Add Accessories:



Description

The recommended maximum length for RS232 cables is 50 feet. These RS232 repeaters / RS232 extenders, also called line drivers, can extend your standard RS232 line up to 4000 feet.

These extenders work in pairs only, one is connected at each end of the RS232 line you wish to extend. They communicate in bi-directional full-duplex (meaning they can send and receive at the same time) and converts the connected RS232 signal into RS422 and back again to RS232.

These particular RS232 repeaters / RS232 extenders are suitable for most applications, including industrial, commercial and any general office computer device. They are a cost-effective and effective way of extending a standard RS232 line.

The extenders are (in most cases) powered from the RS232 port so no external power supply, flow control, drivers or any other external interference is needed.

These extenders are used in pairs only, one unit at each end of your data line, so in order to establish a communication link you will need to order two units.

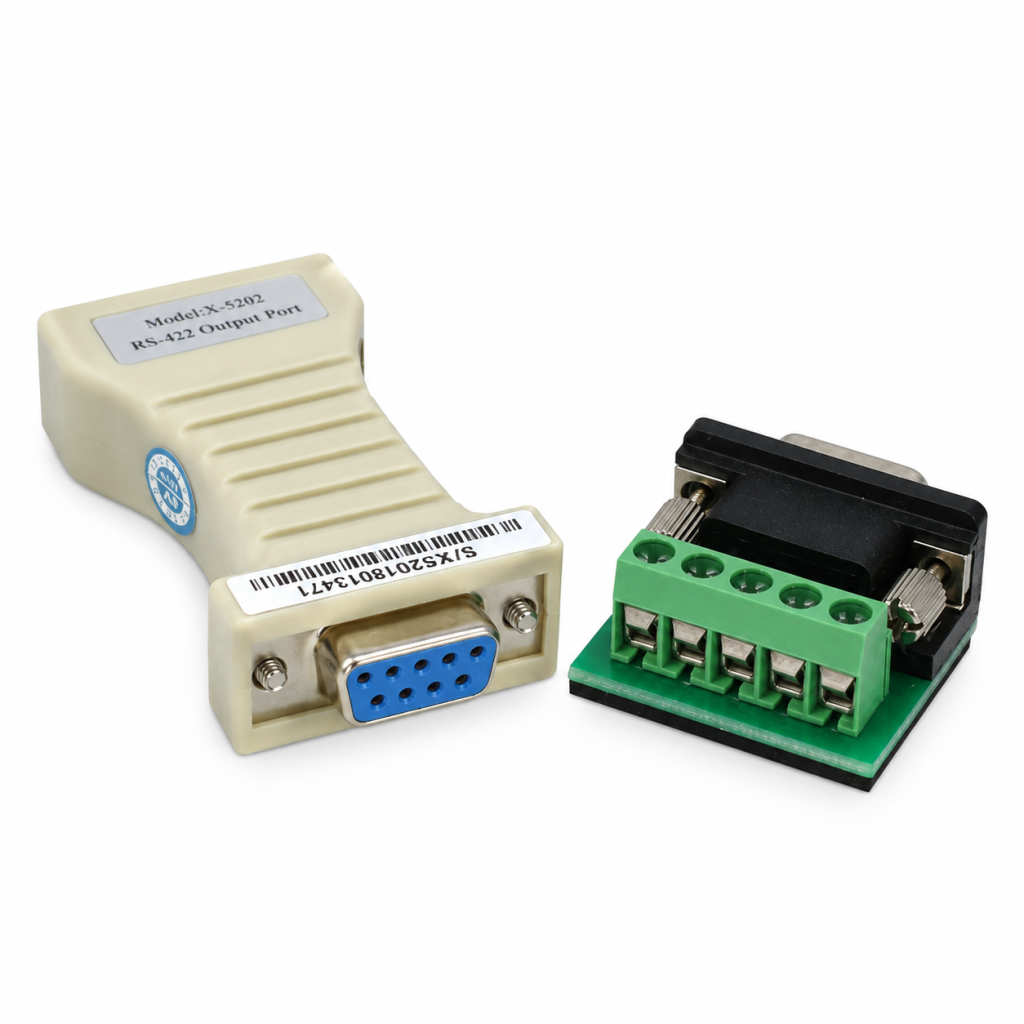

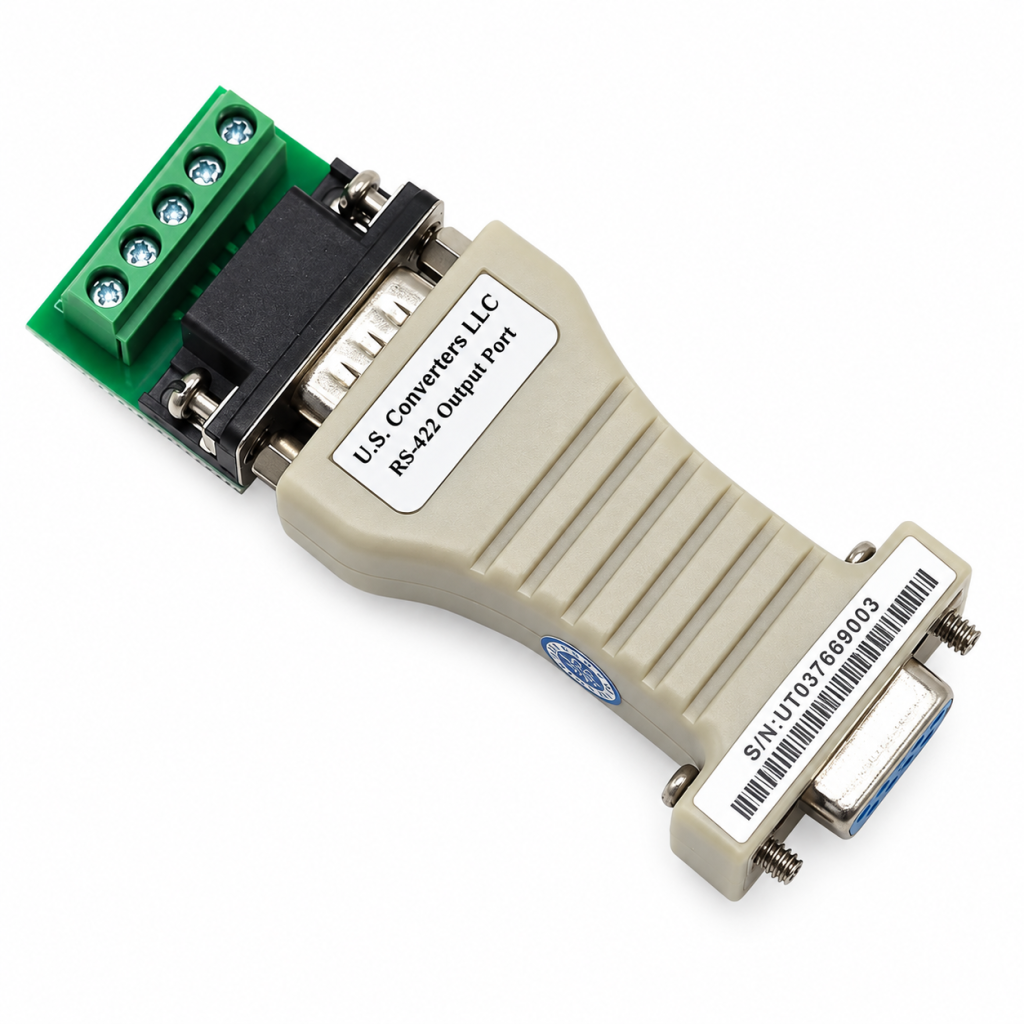

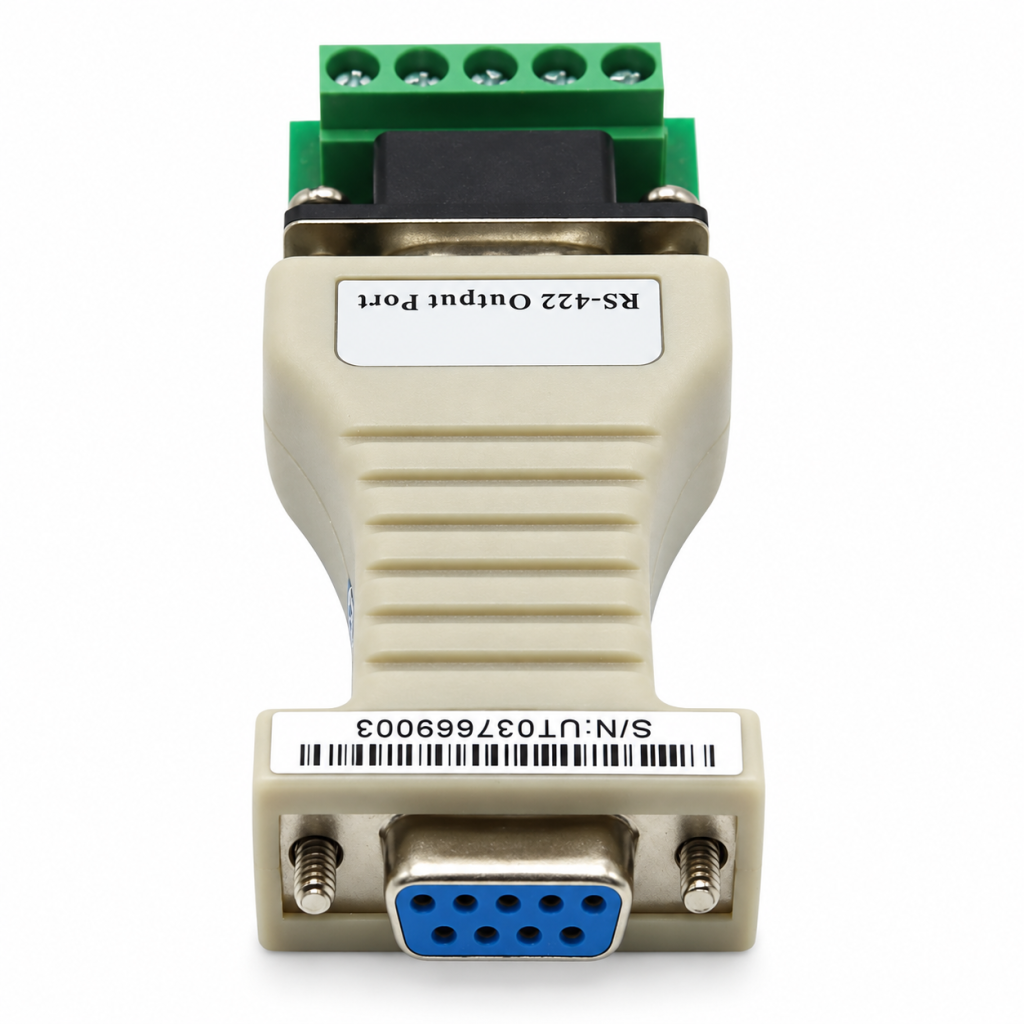

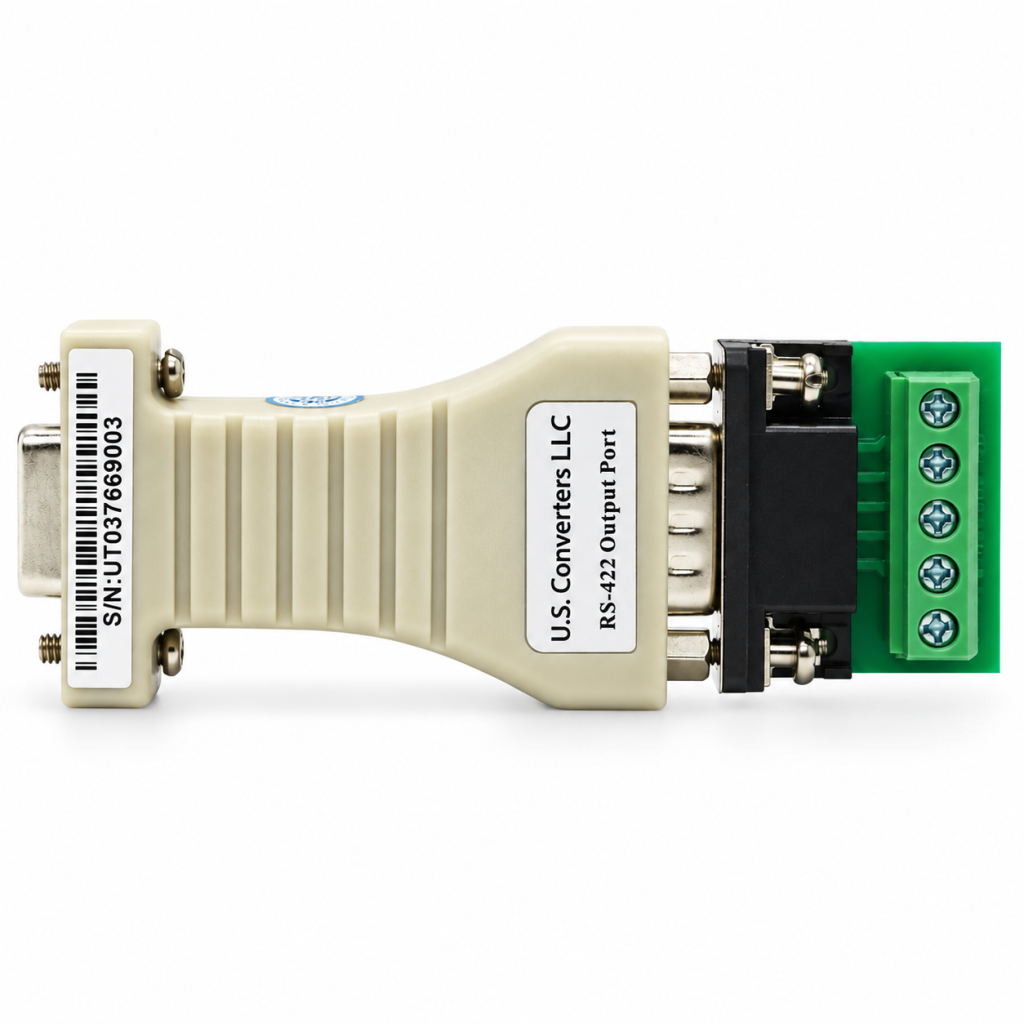

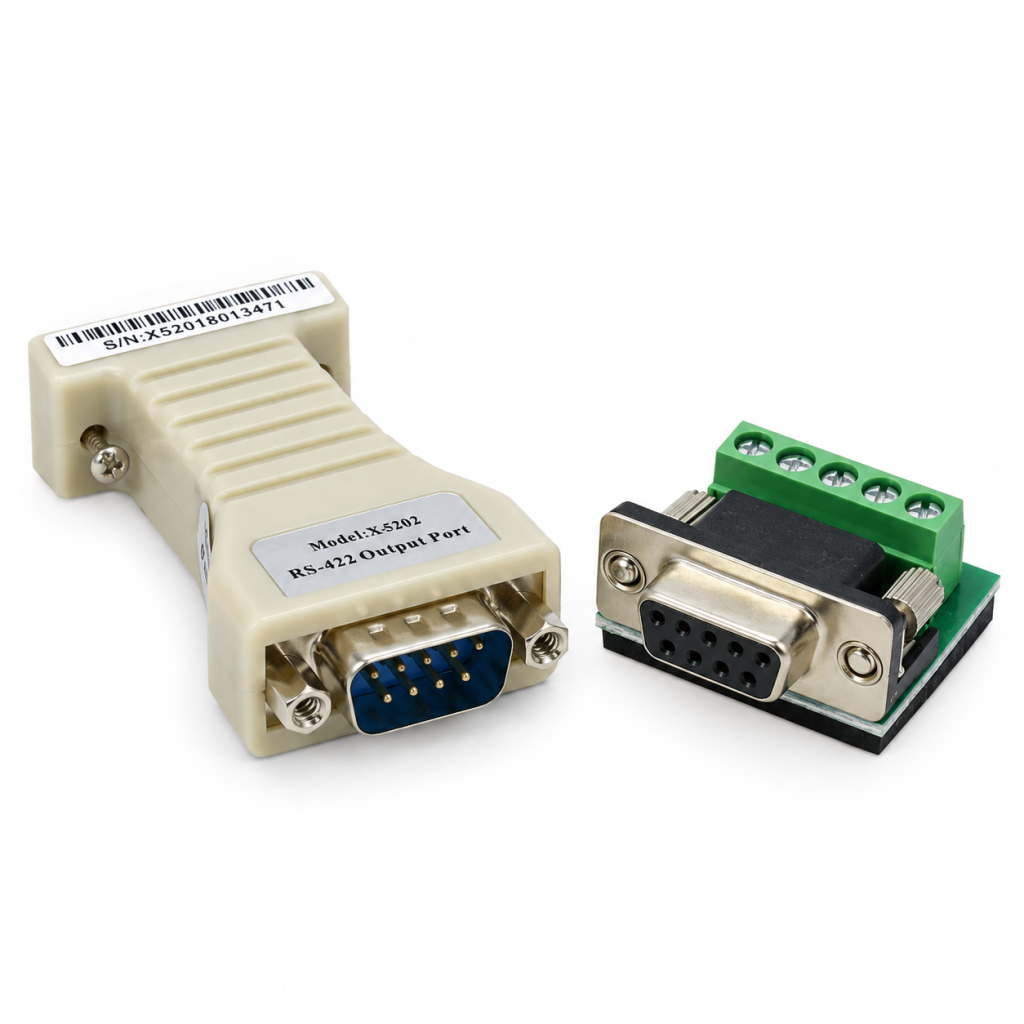

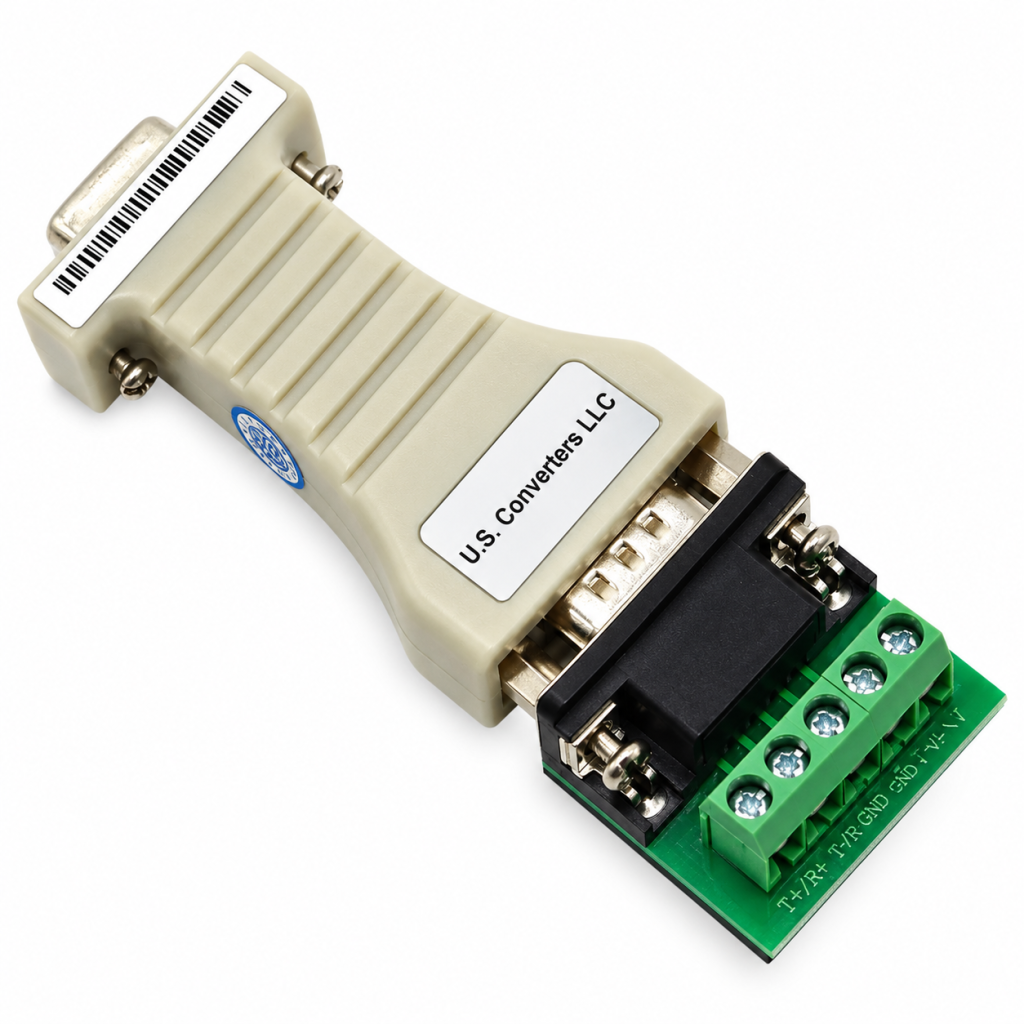

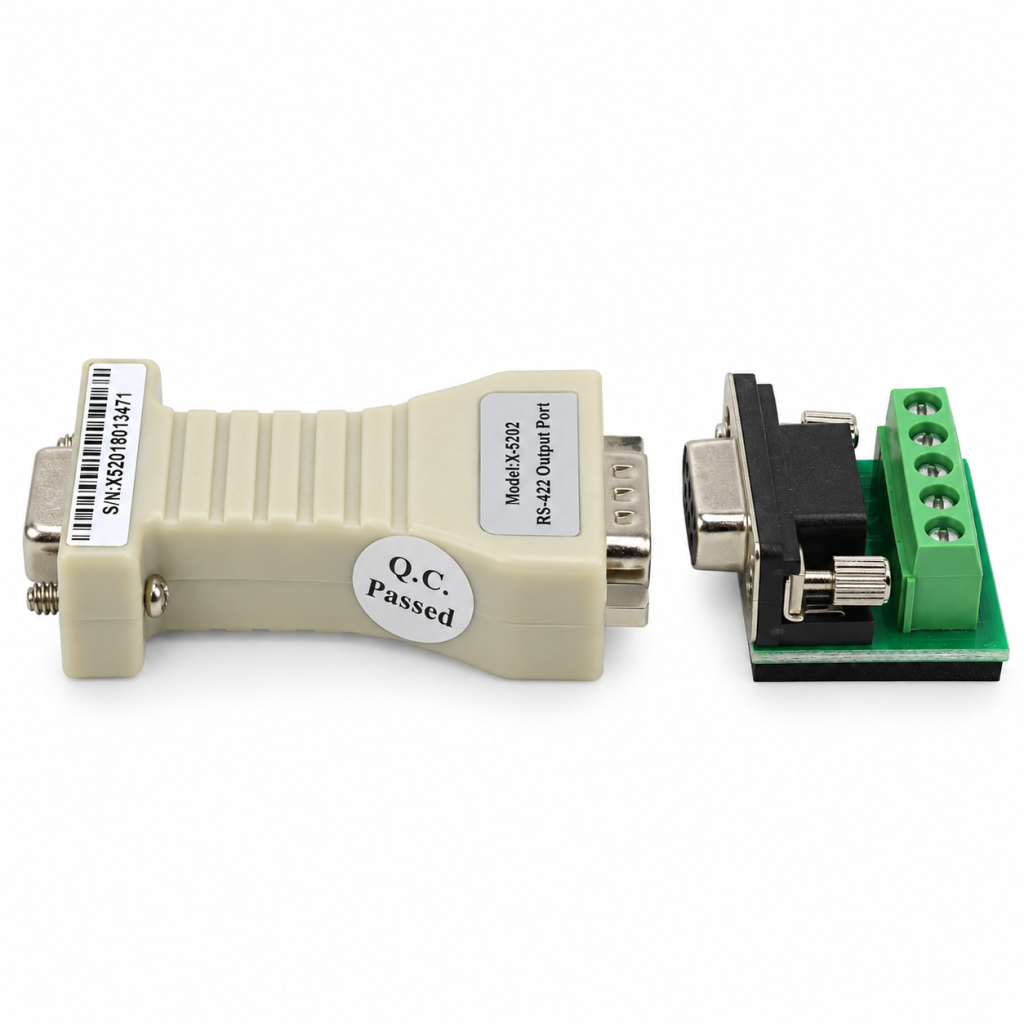

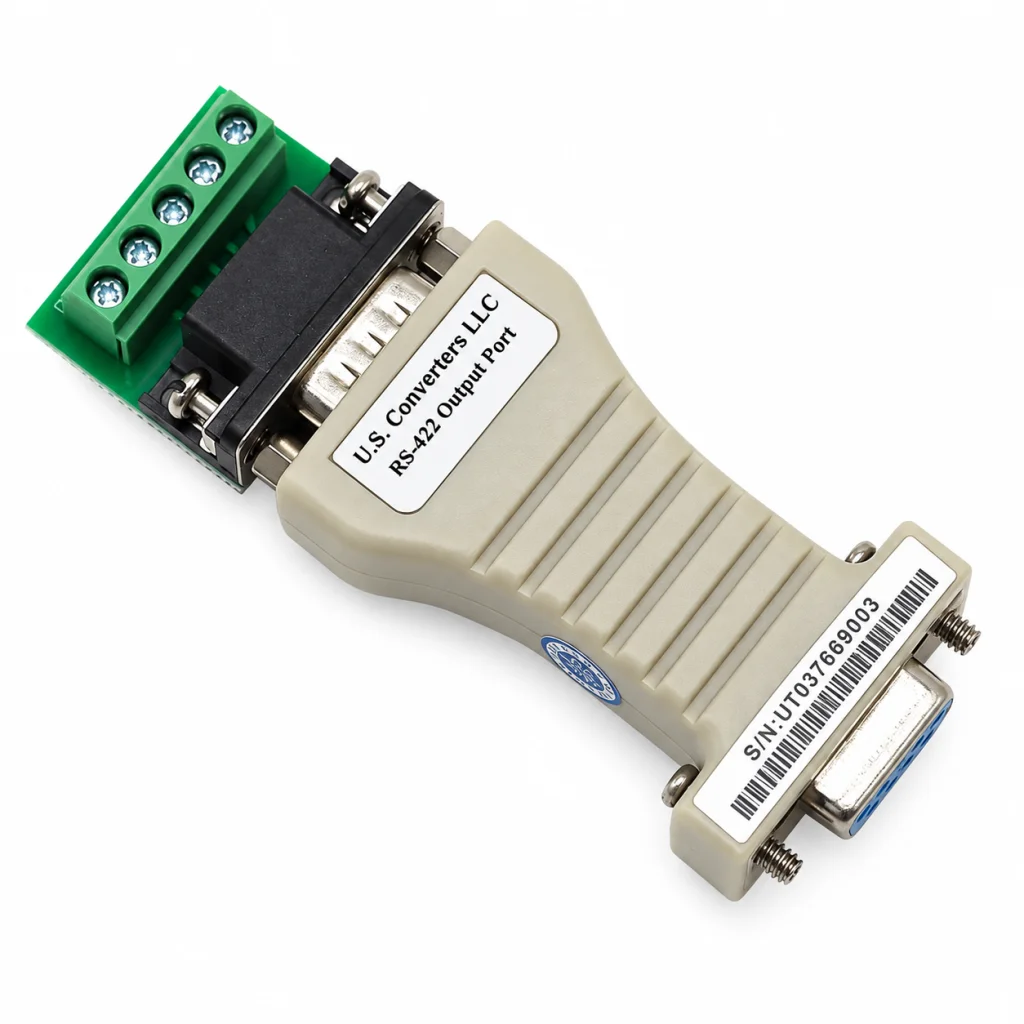

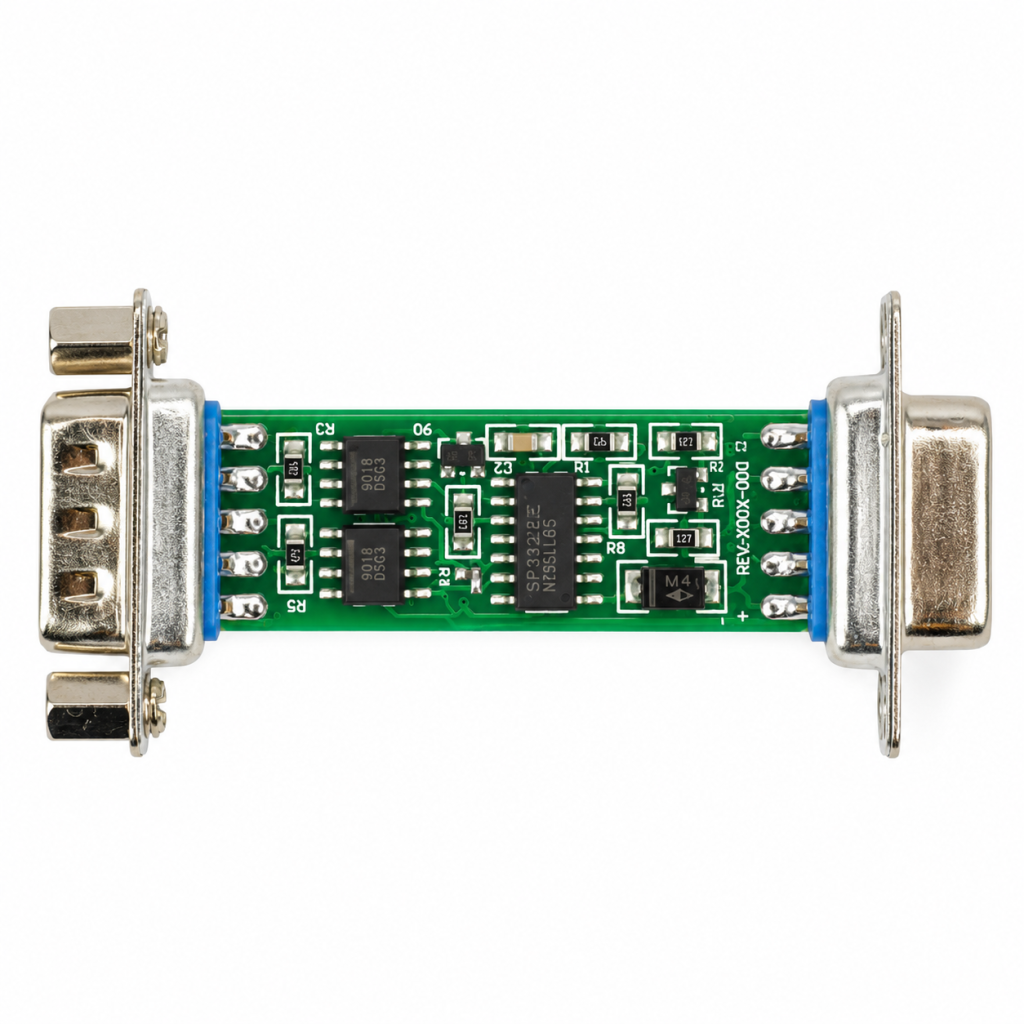

Each RS232 Repeater / RS232 extender has a standard DB9 female connector on one side and a DB9 male connector on the other side, which allows for easy connection of and standard serial cable. Optional 6-screw terminal headers for connecting individual wires are also available (not included).
These repeaters are powered from the RS232 port, however only if your particular RS232 port can provide sufficient power to the repeater. If your RS232 port cannot provide sufficient power then these repeaters needs to be powered externally by a 5 to 12VDC supply through the screw terminals.

Optional: by using a DB9 to RJ45 adapter you can extend any serial RS232 signal using a standard CAT5 cable.

Application example with CAT 5 cable:
RS232 Extender setup

Application example with 4-wire serial cable:
rs232 repeater setup

Overall features
  • Extends RS232 up to: 4000FT
  • RS232 port powered
  • Option for external power supply
  • Optional external power: 5 - 12VDC
  • Supported lines: 5 (RXD, TXD, RTS, CTS, GND)
  • Transfer rate: 300-115200bps
  • 1500W surge and static protection
Resources


Useful optional accessories
(not included)

Null modem adapter
Null modem adapter


DB9 to RJ45 adapter
DB9 - RJ45 adapter


DB9 gender changer
Gender Changer


5V power supply
5V Power supply
SPECIFICATIONS
Model number XS202
Baud rate 300 - 115200bps
Power Port-powered from RS232 (RTS, DTR, TXD). Optional external power: 5 - 12VDC
Processor MAX491 / Philips HEF4093
Current consumption Less than 10mA
Interface RS232 DB9 female connector
Interface RS422 DB9 Male and terminal board
Working mode 4-wire RS232 to RS422 asynchronous, full-duplex differential
Standards EIA/TIA RS232 / RS422 converter
Transmission distance RS232: Typical: 15 FT (5m)
RS422: Typical 4000FT (1200m)
Electro-static/surge protection 1500W / 600W/ms
Housing ABS plastic
DB9 sockets and shields Electroplated steel
DB9 pins Stainless steel
Operating Temp. -13°F to 158°F (-25°C to 70°C)td>
Operating humidity 5% to 95% - No Condensation
Dimensions 2.47" x 1.33" x 0.70" (62.8 mm x 33.8 mm x 17.8 mm)
Compliance CE, FCC, RoHS, ISO 9001
Warranty 1-year Limited Warranty

For alternative serial solutions please see our full selection of serial converters and isolators.





Quick Tip!

Extention by a RS232 Repeater / RS232 Extender

The most effective and efficient way of extending a RS232 line is by using a RS232 repeater / extender in the form of a RS232 to RS422 converter. At one end the data line is converted from RS232 to RS422 and the data line is run to the remote end where the RS422 signal is converted back to RS232. This way you will keep all the original data signals at the remote end and effectively reduce noise in the transmission line.

A RS232 repeater / extender can easily be converted into CAT5 simply by using a DB9 to RJ45 adapter at each end of the data line. This approach is ideal if you plan to use existing CAT5 cabling which is widely used in many office and industrial buildings.

Since this RS232 repeater / extender is port powered no external power supply in needed, repeater simply draws it power from the RS232 interface without interfering with the communication interface.

Keep in mind that when using a RS232 extender like this, the devices at each end of the extended line usually have to provide power to the extenders. However, if your device does not provide power, then this extender can optionally be powered by an external power supply.
