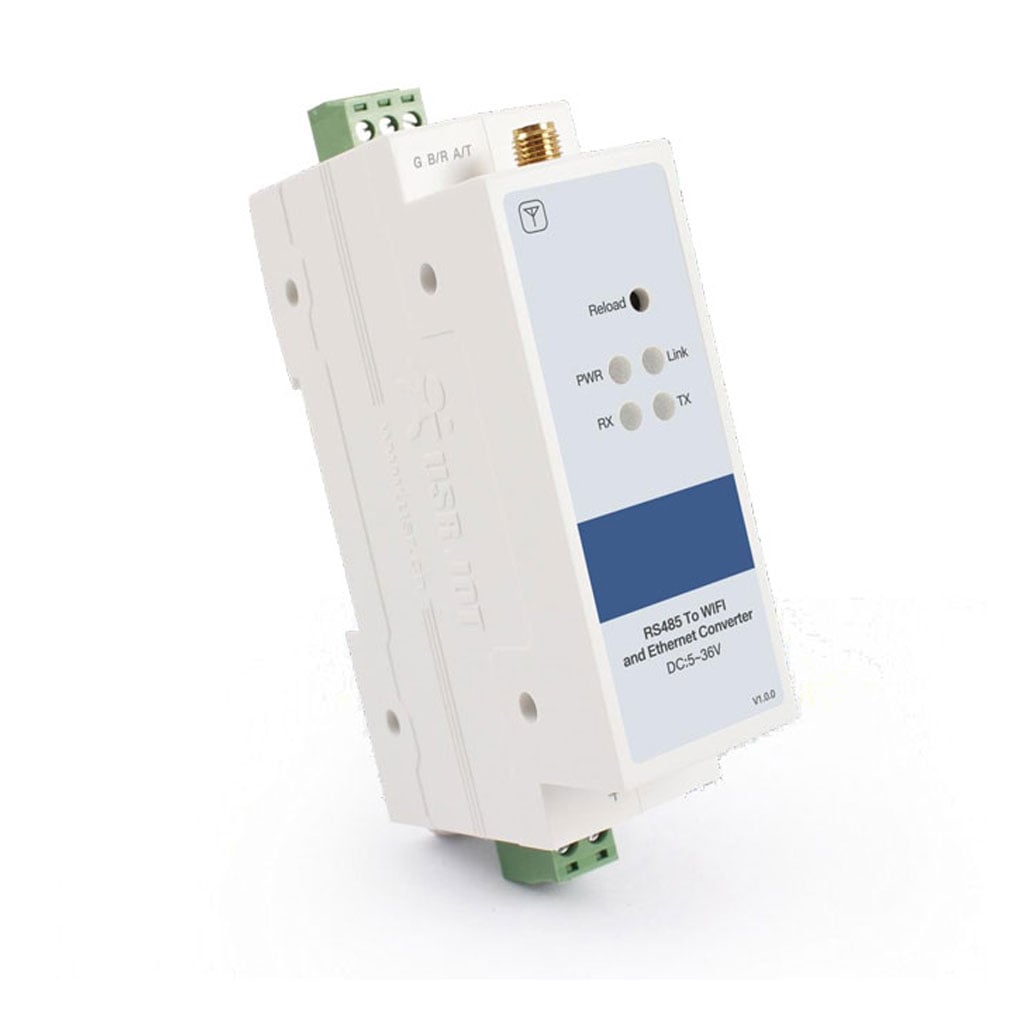

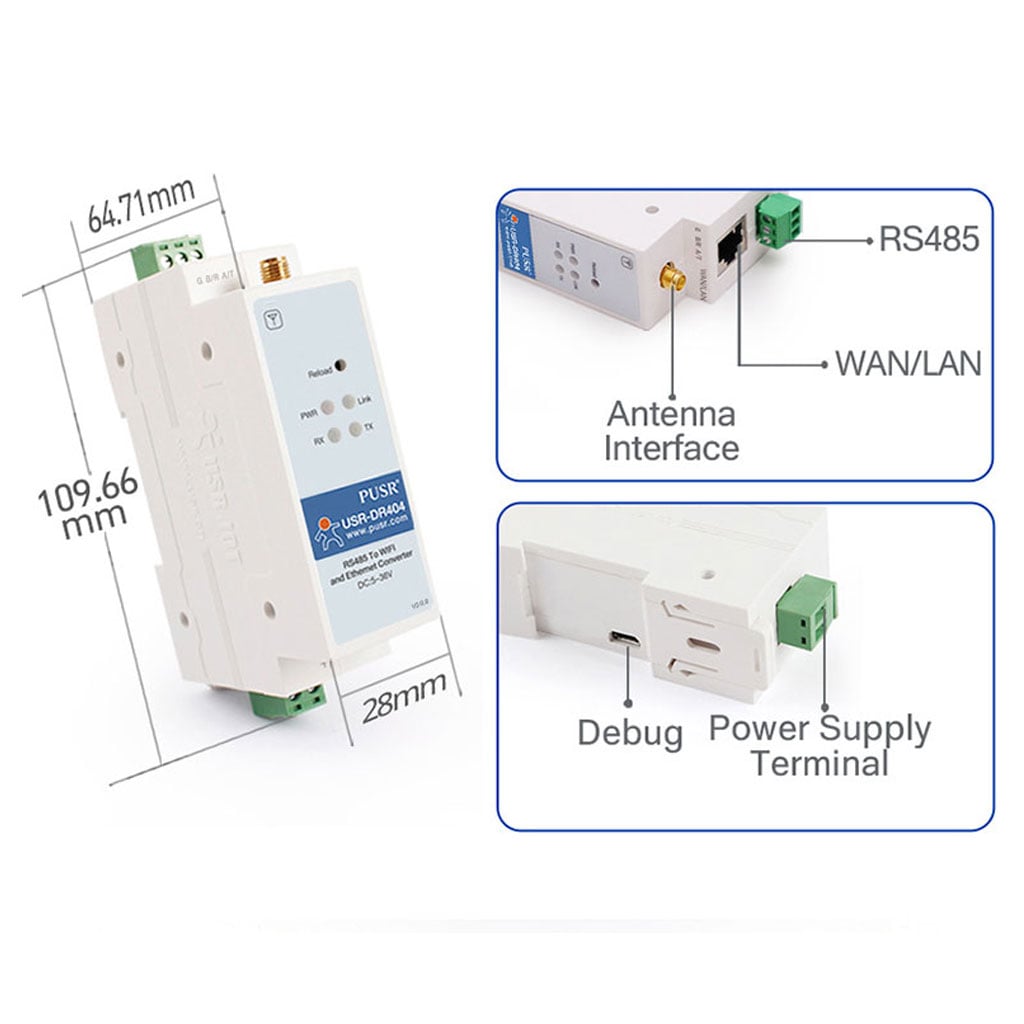

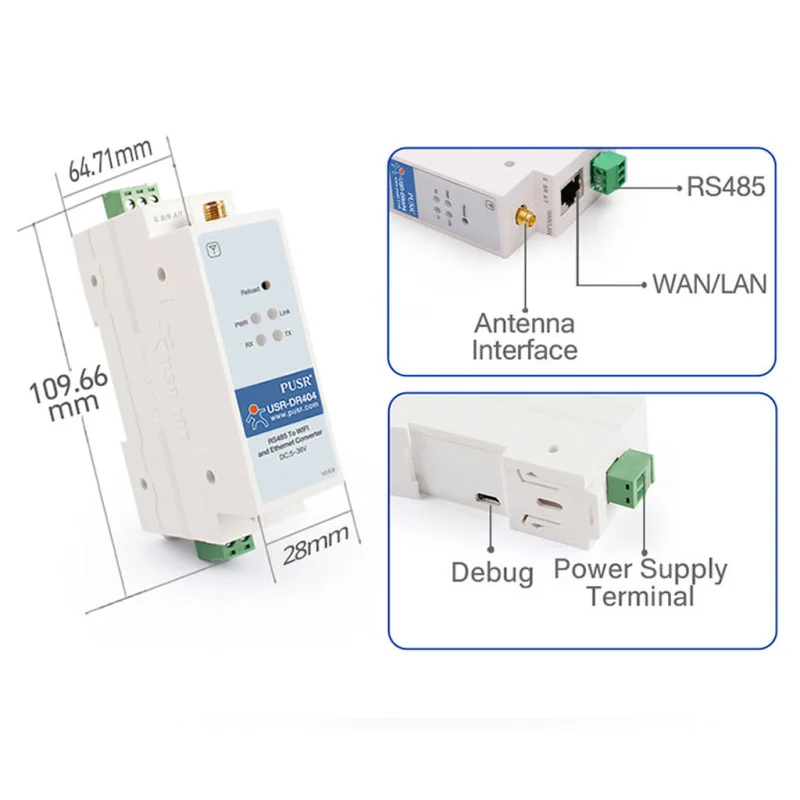

Serial RS485 to WiFi and Ethernet Converter - DIN Mount


  • Model: USCDR404
  • In Stock

$89.00

Add to Cart:

Description

USCDR404 is a combined bidirectional serial RS485 to WiFi / Ethernet converter. It can convert one RS485 signal to either WiFi or Ethernet, working in both directions. With standard DIN rail mount it is suitable for installation in industrial environments and with a wide voltage range of 5 to 36VDC it will work with most typical industrial power supplies and applications.

This RS485 to WiFi / Ethernet converter is a cutting-edge device designed to bridge the gap between serial port devices and modern WiFi networks. This versatile converter allows for seamless data communication, making it an ideal solution for remote monitoring and control of various industrial applications. The processor in this serial to Wi-Fi / Ethernet converter supports 802.11b/g/n technologies for longer range and better throughput. Whether you're working with CNC machines, laboratory equipment, or factory automation systems, this converter ensures reliable and efficient connectivity. Supporting multiple networking protocols such as TCP, UDP, and HTTP, and offering flexible configuration options in both STA and AP modes, this WiFi converter is a robust tool for any industrial setup.

Besides supporting all standard basic functions such as baud rates between 300 and 460800bps, AP and STA network modes, RS485, DHCP support, AES security it also supports more advanced functions. Here are some of the advanced functions (please refer to the datasheet for all details):

Two ports - WiFi and Ethernet
This converter can be accessed and communicate either over Wi-Fi or over the built-in Ethernet port. The wired Ethernet port can for example be used as a backup connection if the Wi-Fi link for some reason goes down.

Modbus compatible
Industrial applications often use the Modbus protocol to communicate with serial devices. This converter can convert between Modbus RTU and Modbus TCP devices.

Multiple Clients Support.
Each serial port supports up to 24 simultaneous clients in TCP mode, meaning that 24 computers can connect to the converter at the same time. This is a nice feature to have if you have a large network with many clients.

Configuration over serial, WiFi or Ethernet
The converter's parameters can be configured through the serial RS232 port using AT commands. Useful if configuration through Wi-Fi or Ethernet is not an option. Alternatively over WiFi or Ethernet using a web browser.

Two ports - WiFi and Ethernet
This converter can be accessed and communicate either over Wi-Fi or over the built-in Ethernet port. The wired Ethernet port can for example be used as a backup connection if the Wi-Fi link for some reason goes down.

Modbus compatible
Industrial applications often use the Modbus protocol to communicate with serial devices. This converter can convert between Modbus RTU and Modbus TCP devices.

Multiple Clients Support.
Each serial port supports up to 24 simultaneous clients in TCP mode, meaning that 24 computers can connect to the converter at the same time. This is a nice feature to have if you have a large network with many clients.

Configuration over serial, WiFi or Ethernet
The converter's parameters can be configured through the serial RS232 port using AT commands. Useful if configuration through Wi-Fi or Ethernet is not an option. Alternatively over WiFi or Ethernet using a web browser.

Other Special Functions
Just to mention a few of the minor features:

  • Wide power range 5 - 36VDC
  • HTTPD Client mode support
  • UART autoframe
  • Registred Package type
  • Adjustable TCP socket Keep Alive
  • Adjustable TCP socket Timeout
  • Hardware flow control RTS/CTS
  • Adjustable buffer size and gap time
  • Configurable MAC address
  • Adjustable TCP timeout counter
  • Please see the datasheet and user manual for more details.

Besides the features mentioned above this converter is also fully capable of handling more complex setups such as Serial Tunneling mode, communication without virtual COM software, access over Internet and more.

serial to rs485 wifi and ethernet setup

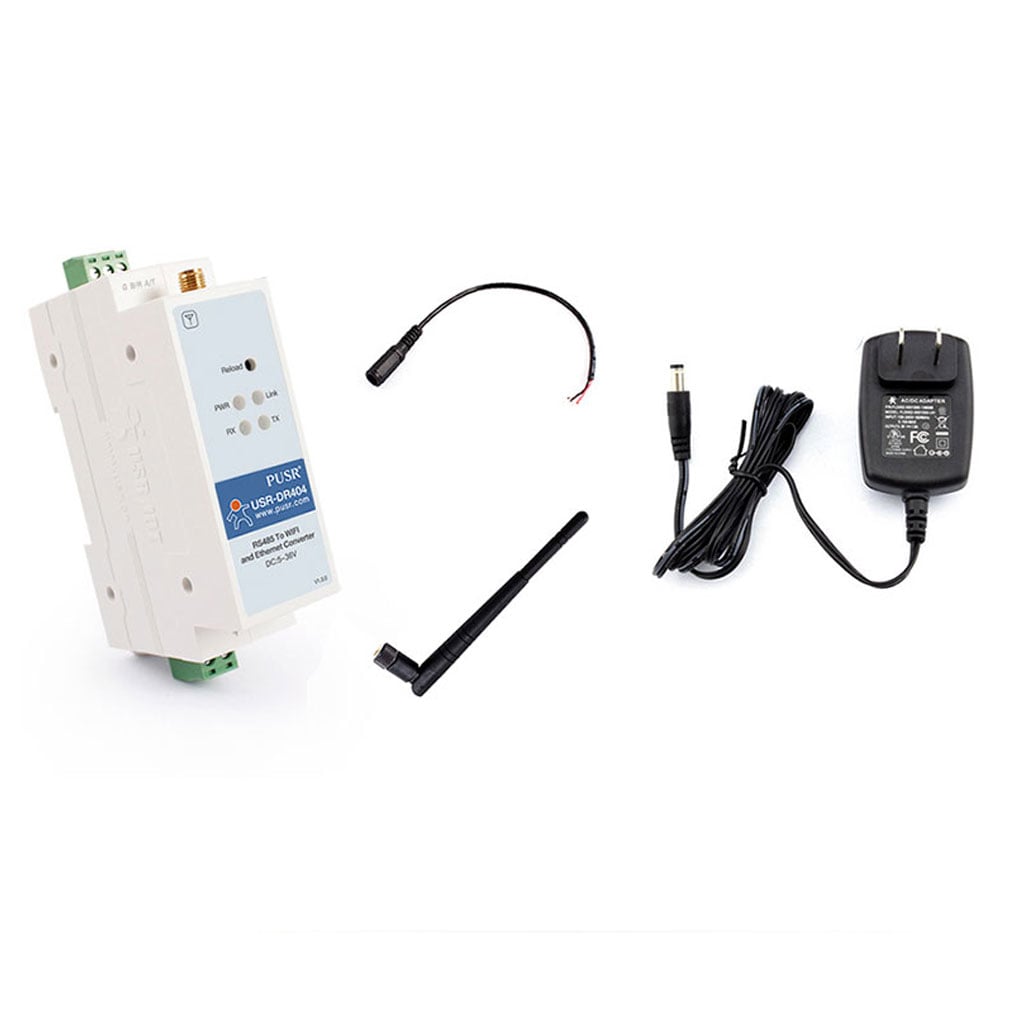

Included items

  • Converter module
  • Antenna
  • 100-240VAC/5VDC 1A power supply
  • DC barrel to stripped wire pigtail
Resources


Useful optional accessories
(not included)

Null modem adapter
Null modem adapter


DB9 to RJ45 adapter
DB9 - RJ45 adapter


DB9 gender changer
Gender Changer


TECHNICAL SPECIFICATIONS
Model number USCDR404
Operating system
Virtual COM software for:
Windows 11 32/64-bit, Windows 10 32/64-bit, Windows 8 32/64-bit, Windows 7 32/64-bit
Serial interface
No. of serial ports 1 port RS485 screw terminals
Serial data controls - Parity: None, Odd, Even
- Data bits : 5, 6, 7, 8
- Stop bits : 1, 2
Flow Control RS485: Automatic Send Control, None
RS-485 Signals Data+ , Data-, GND
Baud rates 300 - 460800 bps
Serial buffer size
Ethernet interface
Ethernet port RJ45, 10/100 Base-T Auto-Negotiation, 8KV isolation
Number of Ethernet ports 1
Protocols TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client, MQTT, DHCP, ModBus TCP / RTU
Wi-Fi interface
Standard 802.11 b/g/n
Frequency 2.412GHz-2.484GHz
Network Mode STA/AP/STA+AP
Security Protocols OPEN, SHARED, WPAPSK, WPA2PAK
Tx Power 802.11b: +20dBm (Max.)
802.11g: +18dBm (Max.)
802.11n: +15dBm (Max.)
Rx Sensitive 802.11b: -89dBm
802.11g: -81dBm
802.11n: -71dBm
Works with hidden SSIDs/networks Yes
Max number of clients. This is how many computers that can access the converter simultaneously 24 clients for each port in TCP mode.
Misc.
Parameter management Web-browser, software utility (over WiFi / Ethernet), AT commands (through RS232 port)
Power 5 - 36VDC (<700mW) (Center +)
Operating Temp. -13°F to 176°F (-25°C to 80°C)
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation)
Working Current ~200mA
Antenna 3dBi di-pole antenna
Approvals CE, FCC, ROHS
Warranty 1 year Limited Warranty

For alternative serial to Ethernet solutions please see our full selection of serial WiFi converters.



General Information about Serial Convertion

Serial Port Configuration

The RS485 to WiFi Converter offers extensive serial port configuration options to suit diverse application needs. Users can set the baud rate up to 460800bps, choose from 5, 6, 7, or 8 data bits, and select 1 or 2 stop bits. Additionally, the converter supports various parity settings, including None, Even, or Odd, and offers both hardware and software flow control options. This flexibility ensures that the converter can be tailored to meet specific communication requirements, providing reliable and efficient data transmission.

RS485 to WiFi Conversion

The RS485 to WiFi / Ethernet Converter excels in converting RS485 serial data to WiFi or Ethernet data, facilitating wireless communication between serial devices and WiFi / Ethernet networks. The device supports multiple conversion modes to cater to different needs:

  • Transparent Mode: Converts RS485 data to WiFi data in real-time, ensuring seamless and immediate data transmission.

  • Serial Command Mode: Utilizes serial commands to convert RS485 data to WiFi data, offering precise control over the conversion process.

  • HTTP Mode: Converts RS485 data to WiFi data using the HTTP protocol, enabling easy integration with web-based applications.

These conversion modes provide versatile solutions for various industrial communication challenges.

Serial Data Transmission

The RS485 to WiFi / EThernet Converter supports efficient serial data transmission over WiFi / Ethernet networks, enabling remote monitoring and control of serial devices. The device offers multiple transmission modes to suit different application needs:

  • TCP Client Mode: Sends serial data to a remote server using the TCP protocol, ensuring reliable and secure data transmission.

  • UDP Mode: Utilizes the UDP protocol to send serial data to a remote server, offering a faster, connectionless communication option.

  • HTTP Mode: Sends serial data to a remote server using the HTTP protocol, facilitating easy integration with web-based monitoring and control systems.

These transmission modes ensure that the RS485 to WiFi Converter can meet the diverse needs of industrial applications, providing reliable and flexible data communication solutions
