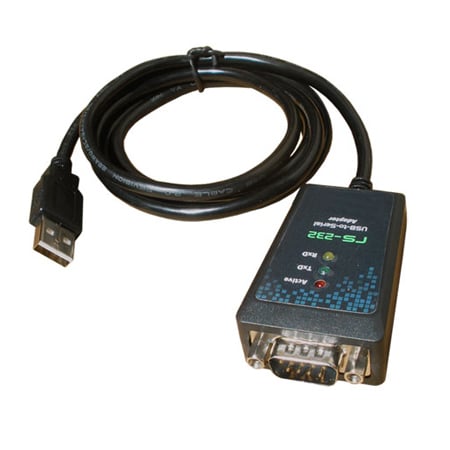

What we have here is a USB to serial RS232 adapter designed around an American made CY7C64225 chipset from Cypress Semiconductors.
The Cypress chipset has a reliable and solid architecture with all basic features, however it does not have some of the more advanced port features seen in some of our other adapters.
For the reason described above this USB serial adapter is ideal for most general applications requireing a simple and reliable adapter without any advanced features.
It will work with
Windows XP, Vista, 7 and 8, including Win CE, Mac, Linux and Android.
This adapter is not recommended for complex applications requiring manual parameter adjustments or custom programming.
The adapter is powered from your computer's USB port so no additional external power source is needed. The RS232 end is a standard 9-pin D-sub connector for easy connection of all standard serial cables.
After installing the included drivers and connecting the Serial to USB adapter to your computer, it will show up as a virtual serial COM port in Windows Device Manager where you can manage and configure it as if it was a standard built-in serial COM port.
Overall features
- Port powered USB to serial adapter
- Reliable and solid Cypress chipset
- Indication LED lights for TX and RX activity
- WHQL compliant COM drivers included
- Hexagonal nut stand-offs for connecting thumbscrews
- Auto detection of data speed
- Built-in electrostatic protection
|
Resources
|
SPECIFICATIONS |
Part number |
SY-ADA15039 |
Operating system |
- Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, (WHQL compliant)
- Linux
- Mac OS 9, OS X
- Windows CE.NET (Version 4.2 and greater)
- Android
|
Processor |
Cypress Semiconductors CY7C64225 |
RS232 Interface |
RS232 DB9 Male |
Cable length |
3 feet |
USB interface |
Standard Type A Male |
Indication LEDs |
TX, RX and Power |
Ports |
1-port |
Signals |
TX, RX, CTS,RTS,DTR, DSR and GND |
Power on pin 9 |
No |
Baud rate |
300 to 230400bps |
Parity |
None, Odd, Even |
Data Bits |
8 |
Stop Bits |
1 |
Adjustable TX/RX buffer |
Yes |
Flow Control |
None, Xon/Xoff, Hardware |
COM port accessible by |
Included virtual COM port drivers or FTD2XX.DLL |
Electrostatic (ESD) protection |
600W surge protection, 15KV static electricity protection |
Current draw |
Static: less than 80mA. Dynamic average: less than 150mA |
Interface compliance |
USB1.1,2.0,3.0, EIA/TIA RS-232 |
Regulatory compliance |
FCC, CE and RoHS |
Working temp |
-20°C to 60°C |
Warranty |
1 year limited warrenty |
