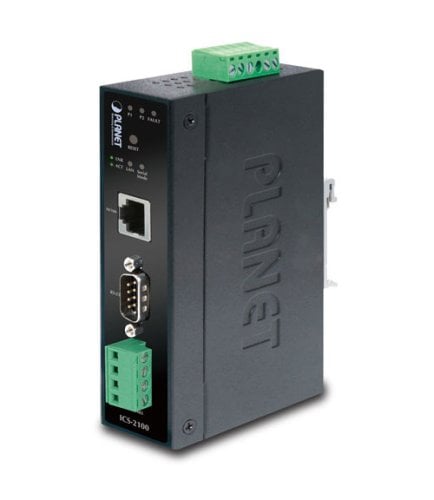

Serial Ethernet Converter (RS232, 485, 422) - Industrial

  • Part: ICS-2100
  • In Stock

$99.00

Add to Cart:


Description

The ICS-2100 is a strong industrial grade serial to Ethernet converter with many features. Usually this type of industrial grade converter is priced much higher, however the manufacturer of this converter has managed to make a surprisingly good and reliable industrial converter with many functions and features and at the same time keep the price at a reasonable level.

This serial to Ethernet converter has one RS232 port, and one RS485 / RS422 port which will work with baud rates of up to 921600bps. It will allow you to connect any standard RS232, RS485 or RS422 serial device to your computer over a standard Ethernet network. It can also be setup to communicate in pairs between two serial devices. The included Virtual COM port software is Windows based and will work with all recent versions of Windows.
Here are some of the key features:

Redundant power supply

As with any true industrial grade device this converter has two individual inputs for two separate power sources. In case one of the power supplys fails the converter will automatically switch to the alternative power source and an alarm can be set to alert the user that the power supply has failed.

Alarm function with email support

The alarm not only detects if he power supplies fails but can also detect and alert the user if the port link fails, in which case an email can be sent to a specified email address.

Remote Management by web-browser or telnet

The parameters of this converter can be configured remotely via any standard web-browser or telnet. Using a web-browser for configuring the converter is fast and easy and can easily be done remotely from any computer and even over the Internet.

IP30 case and DIN mounts or screw mount

This serial to Ethernet converter's enclosure is made of metal and is rated IP30. It can be mounted on any standard DIN rail with the built-in DIN clip on the back of the enclosure; alternatively it can be screw-mounted with the included screw mounts.

ESD protection and wide operating temperature

Since this converter is intended mainly for commercial and industrial environments it is effectively protected against most electromagnetic interference, voltage surges and voltage spikes. The EFT (Electrical Fast Transient) protection for the power line is 6000VDC and ESD (Electrostatic discharge) protection for the data lines is also up to 6000VDC which effectively protects your equipment and the converter itself against damage.
An operating temperature of -10 to 60 degrees Celsius will allow you to use this converter in most environments.

Regulatory and stability tested

The importance of regulatory compliance and standards cannot be underestimated. This converter is in compliance with FCC, CE, RoHS, IEEE 802.3 and also stability tests IEC60068 which ensures that this unit will work reliable within the specified documentation.

Overall features
  • 1-port RS232, RS485, RS422 device server
  • Ideal for industrial use
  • IP30 rated metal housing
  • Redundant power supply with alarm
  • Enhanced surge and interference protection
  • DIN or screw mount
  • Many advanced features and functions
  • Compliant with multiple regulatory specifications
  • Virtual COM management software included
Resources


Useful optional accessories
(not included)

Null modem adapter
DB9 Terminal header block


Null modem adapter
Null modem adapter


DB9 to RJ45 adapter
DB9 - RJ45 adapter


DB9 gender changer
Gender Changer


SPECIFICATIONS
Part number ICS-2100
Serial Ethernet controller IC+ IP210S
Memory Microchip SST39VF040 with 5124K x8CMOS Multi-Purpose Flash including SST proprietary and high performance CMOS SuperFlash technology.
Windows Real COM Drivers Windows 8 32/64, Windows 7 32/64, Server 2012, Vista 32/64, Server 2008 32/64, XP, Server 2003 32/64
Serial interface RS232: DB9 Male
RS485 / RS422: screw terminals
Serial signals RS232: TXD, RXD, DCD, RI, GND
RS485 2-wire: Data+, Data-, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
RS-485 Data Direction Control Aautomatic data direction control
Baud rate 300 to 921.600bps
Parity None, Even, Odd, Space, Mark
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Flow control Hardware, None
Network Protocols ARP, ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet
Configuration Options Web-browser, Software utility
Power input surge protection 6000VDC
Serial port Electrostatic (ESD) protection 6000VDC
Magnetic Isolation Protection (Ethernet port) 1.5 KV built-in
Power 12 to 48 VDC
Housing Metal, IP30 protection
Regulatory compliance
  • EMC: CE Class A, FCC Class A
  • RoHS
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6
Installation method Standard DIN rail or screw mounts
Dimensions 135 x 97 x 32 mm
Weight 425 g
Operating temperature -10 to 60°C
Ambient Relative Humidity 10 to 90% (non-condensing)
Warranty 1 year limited warranty

For alternative serial to Ethernet solutions please see our full selection of serial Ethernet Converters.
