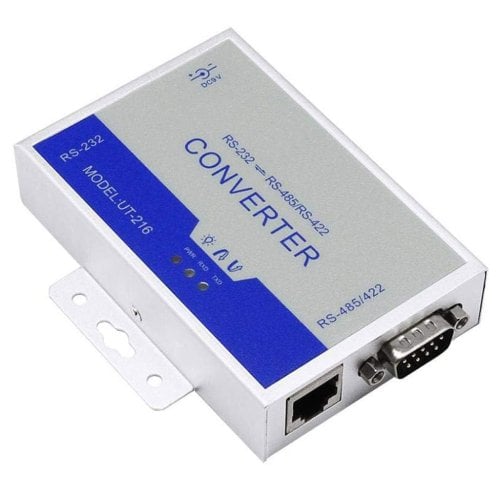

RS232 - RS485 / RS422, Surge Protected


  • Model: XS216
  • In Stock

$45.75

Add to Cart:

Add Accessories:



Description

This bi-directional combined RS-232 to RS-485 / RS-422 converter is a solid commercial and industrial grade converter. It converts RS-232 signals to half-duplex RS-485 balanced differential signals or RS-422 full-duplex.

With its surge protected interfaces to protect your equipment, data and the converter itself against high voltage surges, this converter is suitable for most industrial, commercial, office, lab and network applications, even i tough environments.
It uses an external 9 to 30VDC power supply, (a 110/240VAC to 12VDC power supply adapter is included with the converter).

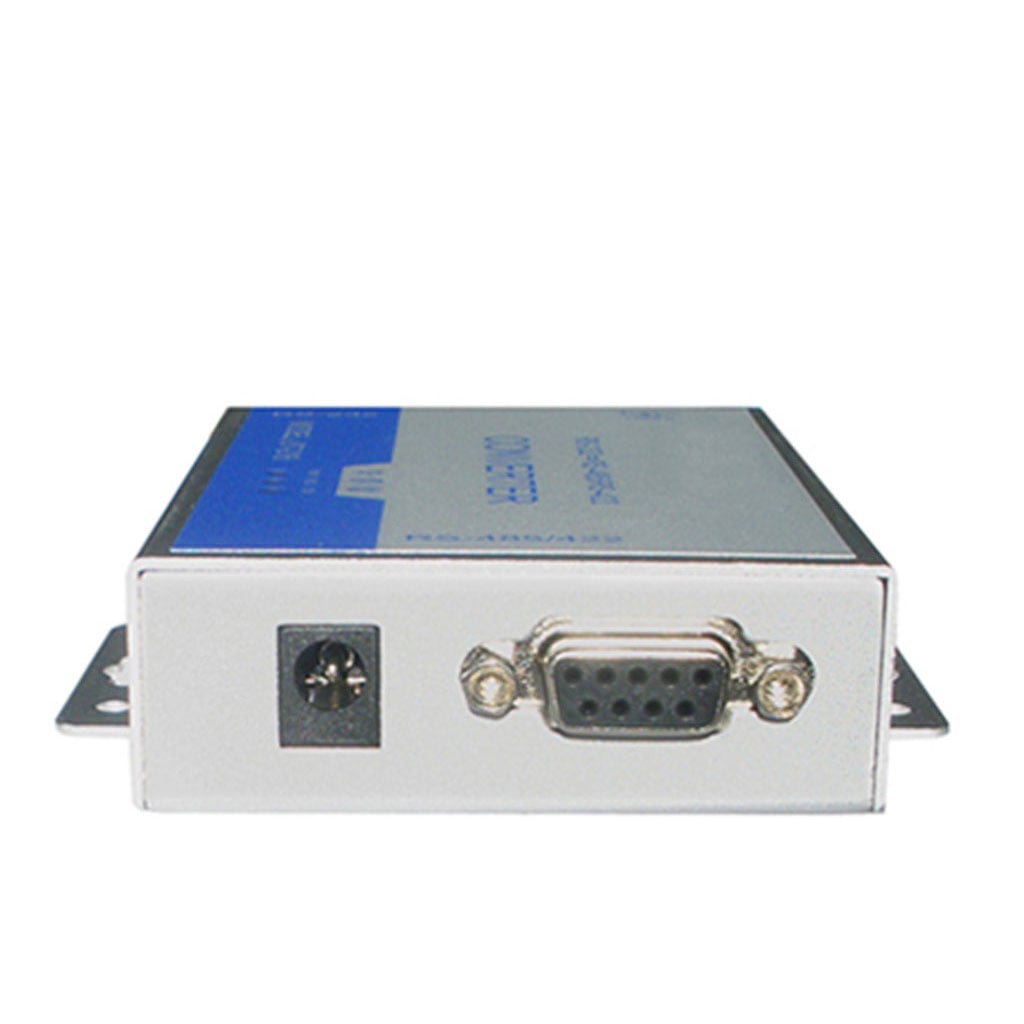

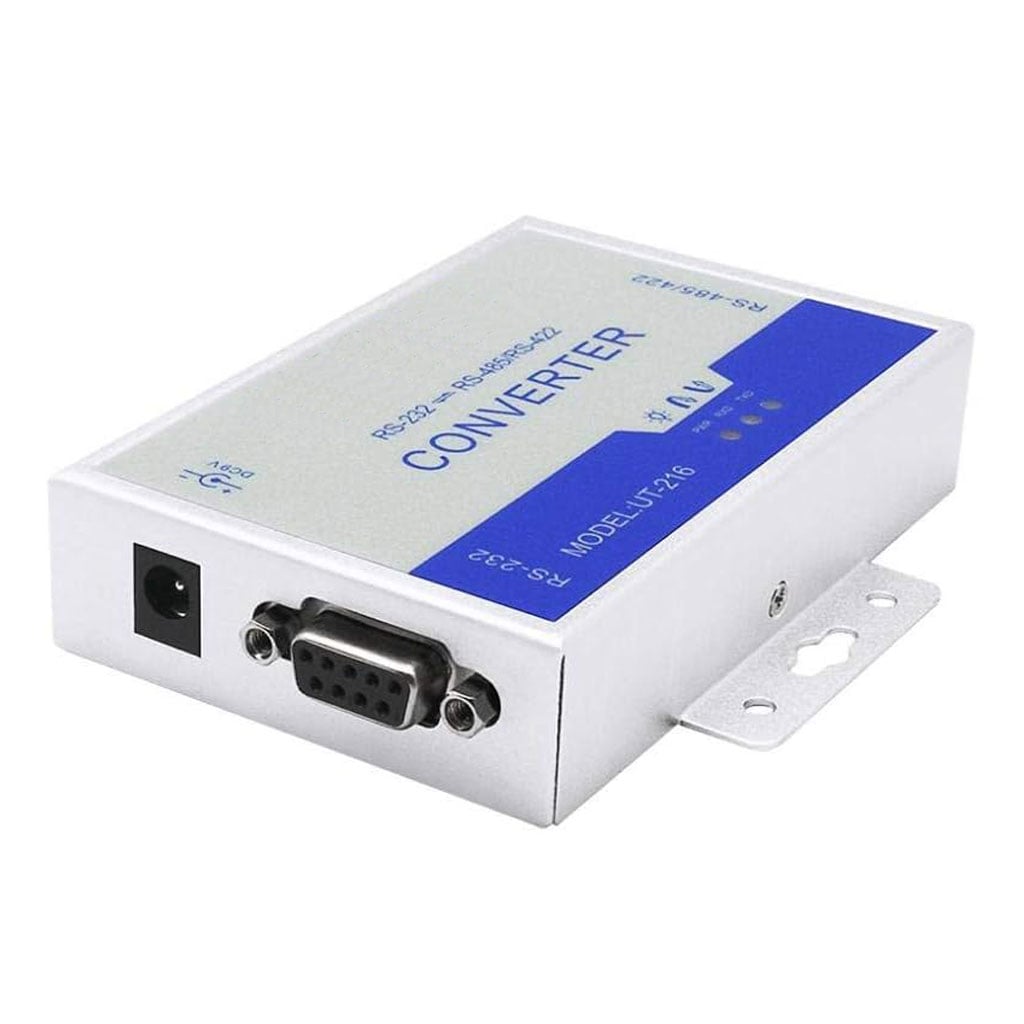

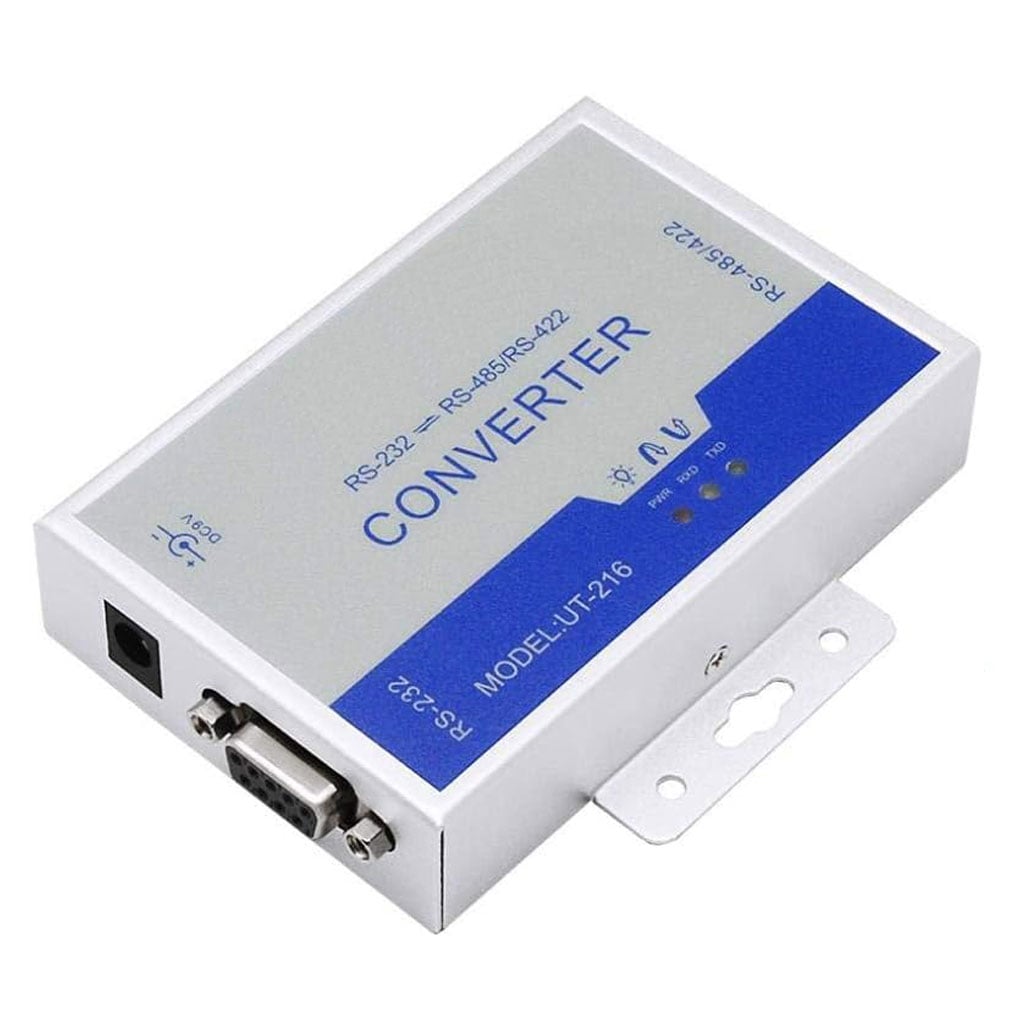

A great feature of this converter is that it offers multiple interfaces. The RS-232 interface is a standard DB9 female connector and the RS-485 / RS-422 side offers three different interfaces to chose from:

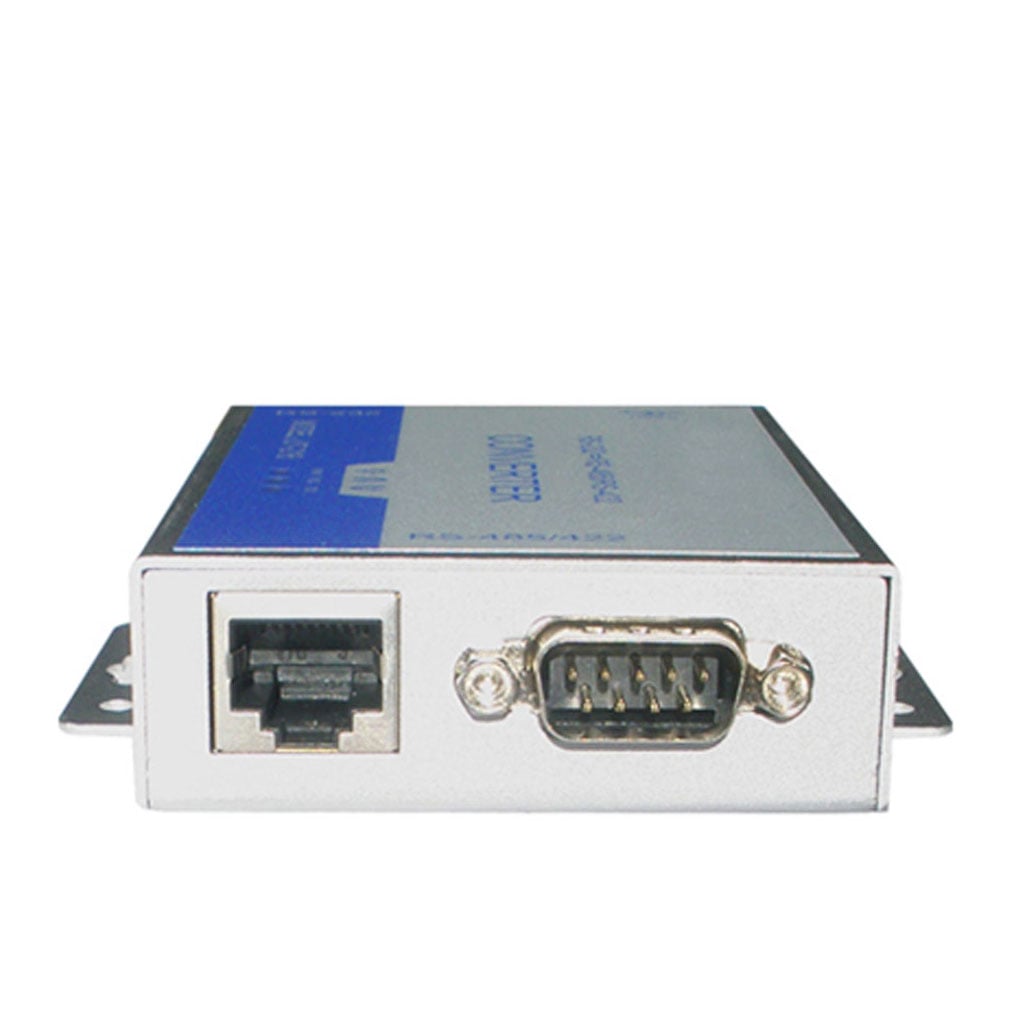

  • RJ45
  • DB9 Male connector
  • Screw terminals (optional)

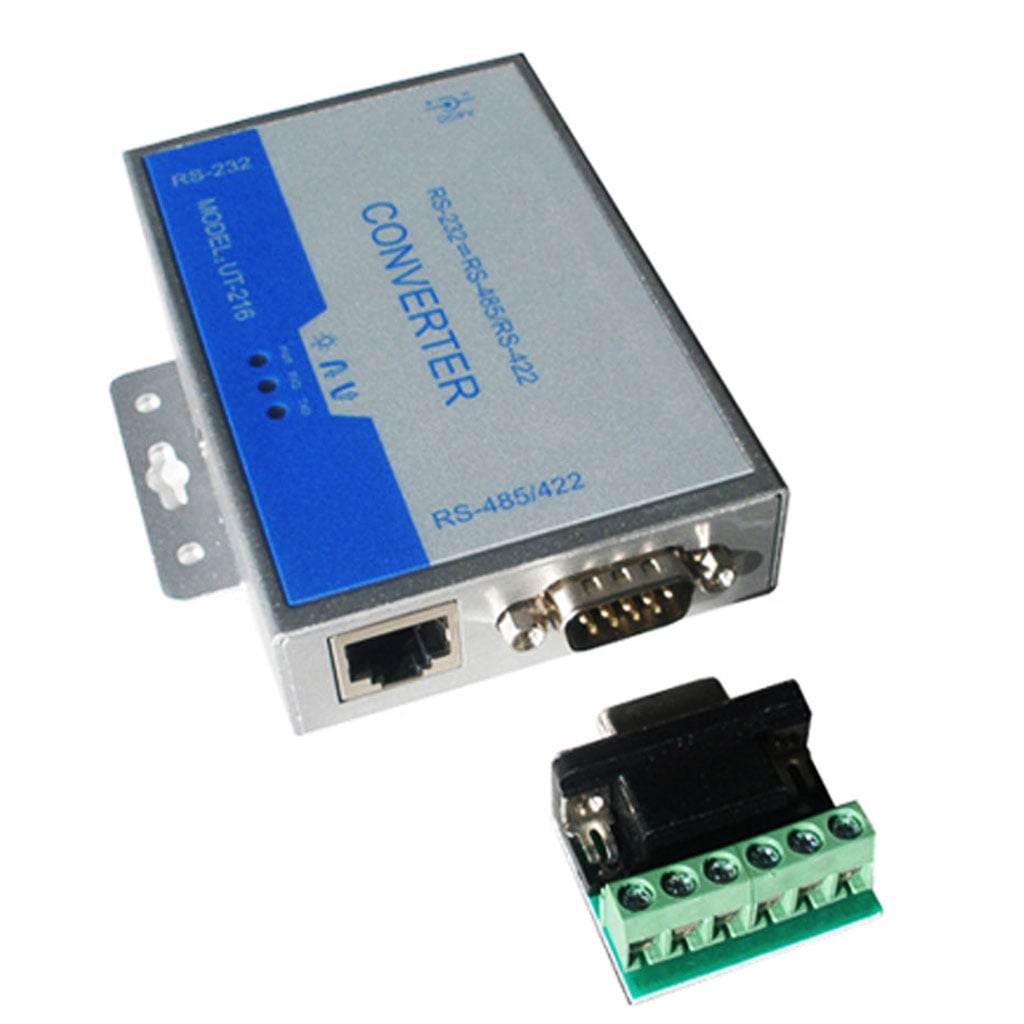

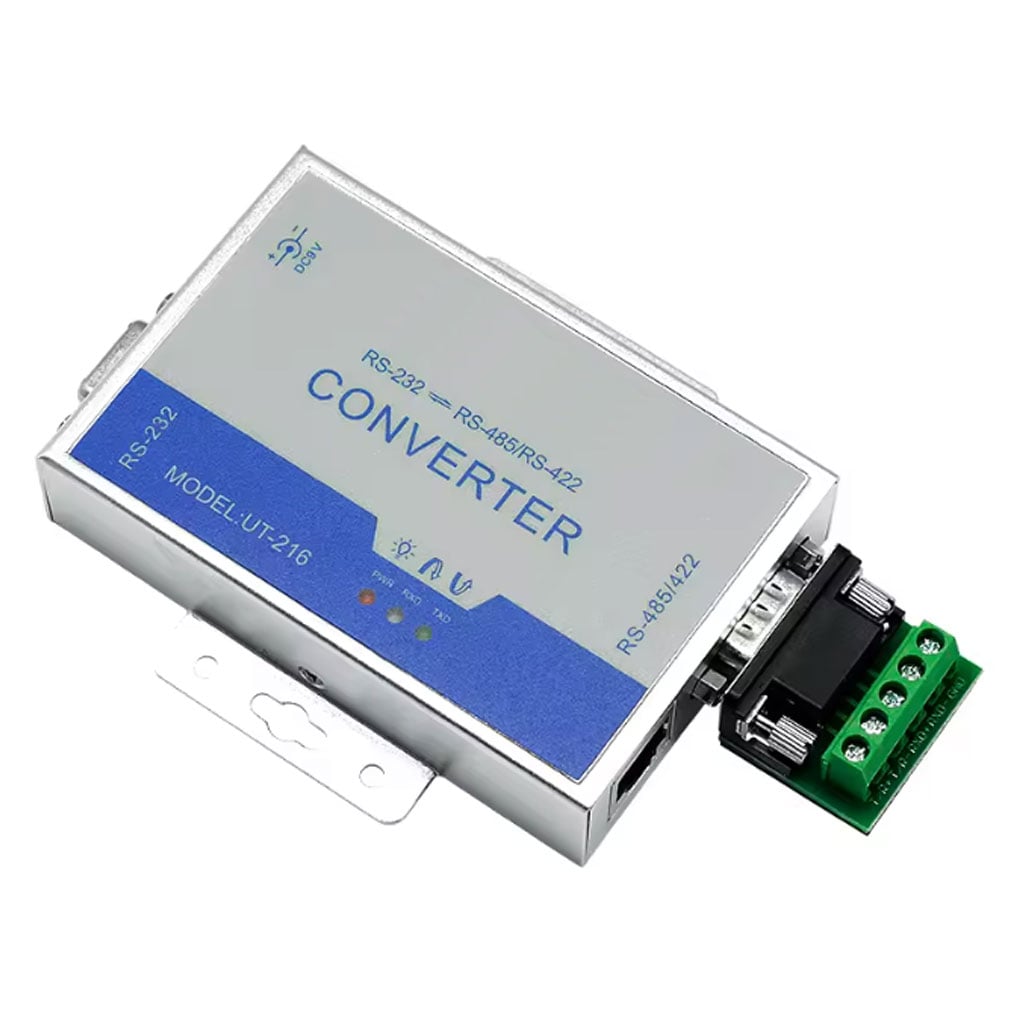

A DB9 to 5-pin screw terminal board is included with the converter. If you need to power the converter through the DB9 port via screw terminals then we have a 6-pin screw terminal board here.

Automatic Send Data Control is enabled which means no control software or drivers are needed for the converter to work. Easy to incorporate in any point-to-point and point-to-multipoint network.
The converter can be mounted on a standard DIN rail with a DIN rail mounting clip (not included).

Overall features
  • Industrial grade strength
  • Surge protected up to +/-15KV, 600W for RS485/RS422
  • Fail-safe bias resistors
  • DB9, RJ45 and screw terminal connectors in same converter
  • Automatic Send Data Control
  • Control LEDs for TX, RX and power
  • Compatible with Modbus RTU/ASCII, BACnet

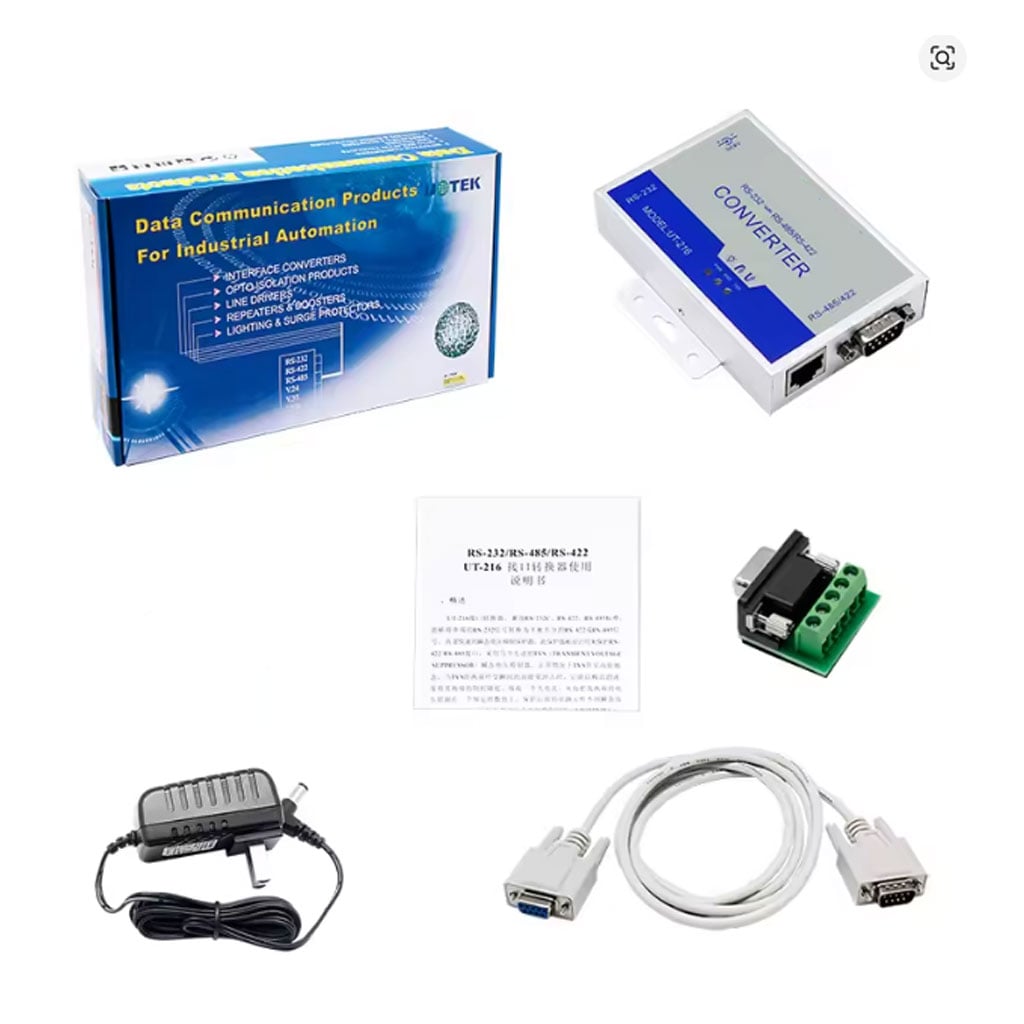

  • 5-pin terminal board included
  • 110/240VAC to 12VDC power supply included
  • Straight-through serial RS-232 cable included (M/F)
Resources


Useful optional accessories
(not included)

Null modem adapter
Null modem adapter


DB9 to RJ45 adapter
DB9 - RJ45 adapter


DB9 gender changer
Gender Changer


5V power supply
9V Power supply
SPECIFICATIONS
Model number XS216
Baud rate 300 - 115200bps
Interface RS232 DB9 female connector. Pin 7 (RTS) and 8 (CTS) are tied together.
Pin 4 (DTR), 6 (DSR), and 1 (CD) are tied together.
Interface RS422 / RS485 DB9 male, RJ45 and terminal board
Signals RS485, 2-wire, D+ and D-
  RS42, 4-wire, TX+, RX+, TX-, RX-
Transmission distance RS232: Typical: 15 FT (5m)
RS422: Typical: 4000 FT (1200m)
Power Externally powered by 9 - 30VDC.
110/240VAC to 12VDC power supply is included
Current consumption less than 20mA
ESD protection 1500W / 600W/ms
Operating Temp. -13°F to 158°F (-25°C to 70°C)td>
Operating humidity 5% To 95% - No Condensation
Measurements 97 x 65 x 22 (enclosure only, without flaps)
Weight 99g
Standards EIA/TIA RS-232C / RS-422 / RS485
Compliance CE, FCC, RoHS, ISO 9001
Warranty 1 year limited warranty

For alternative RS232 to RS485 / RS422 solutions please see our full selection of serial converters.
