This product has been replaced
with part
USBLE232C which has
better performance and stability.

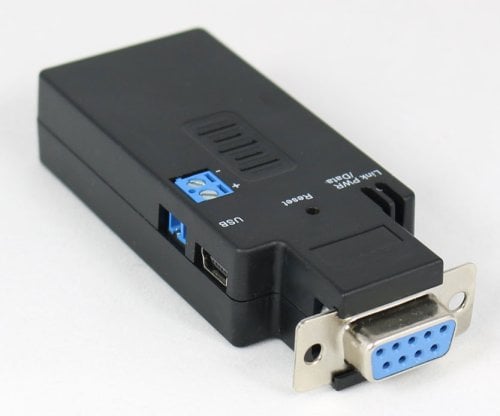

This serial RS232 Bluetooth adapter is a Bluetooth V4.1 Low Energy (BLE) adapter, also commonly called Bluetooth Smart®. It will allow you to communicate with most serial RS232 devices using a Bluetooth Smart® enabled device such as an iPad/iPhone, Android, Windows tablet or any other Bluetooth Smart enabled device.
Notice that this adapter REQUIRE a Bluetooth Smart® compatible device / application to be able to connect and transfer data with iOS, Android and Windows.
If you don't have a Bluetooth Smart® / Bluetooth BLE device then you can use one of our standard SPP (Serial Port Profile) v2.0 Bluetooth serial adapters instead.
Bluetooth Low Energy 4.0 (BLE) / Bluetooth Smart® is supported by most newer (2015) tablets, phones, computers and other Bluetooth enabled devices, including the following devies: Android 4.3+, iPad 3+, iPhone 4S+ and iPad Mini.
The following operating systems support
Bluetooth Smart®: iOS 5 and later,
Windows Phone 8.1,
Windows 8 and later,
Android 4.3 and later, BlackBerry 10,
Linux 3.4 and later through BlueZ 5.0.
This Bluetooth Smart® wireless serial adapter has a maximum communication range of up to 160 feet (50m) and applications includes automation, home applications, automotive, laboratory, office use and many more, only your imagination is the limit.
The adapter can be configured as a central or peripheral (master or slave) device. It also has multiple other port parameters and functions such as baud rate, flow control, parity, data bits and status request which can be configured/requested by DIP switches or through the COM port using AT commands and a terminal program.
Alternatively the parameters can also be configured using a free downloadable app for either iOS or Android.
Overall features
- Bluetooth Smart® compatible
- Supports Bluetooth Low Energy 4.1 (BLE)
- DIP switches for most settings
- iOS and Android app available for configuration
- Can be configured via COM port with AT commands
- Works as a peripheral or central device
- Can be powered by: included micro USB cable
- Internal antenna
- Communication range up to 160 feet (50m)
- DCE/DTE controlled by switch
- LED control lights
- Supports CTS/RTS flow control
- Works with most serial RS232 devices
|
Included items
- Serial Bluetooth adapter
- USB cable (for power)
- Screws and nuts for DB9
- Datasheet
Resources
|
| SPECIFICATIONS |
| Part number |
BLE232V2 |
| Operating systems |
iOS 5 and later,
Windows Phone 8.1,
Windows 8 and later,
Android 4.3 and later, BlackBerry 10,
Linux 3.4 and later through BlueZ 5.0. |
| Processor |
Cypress CYBLE-012012-10 |
| Application |
Short data transmission |
| Data payload |
27 bytes |
| Interface type |
RS232 |
| Mode |
Central or Peripheral (Master or Slave) |
| Works with iPad/iPod? |
Yes |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 |
| Parity |
None, even, odd |
| Stop bits |
1, 1,5, 2 |
| Data bits |
7, 8 |
| Flow control |
None, CTS/RTS |
| Operating distance |
Up to 160 feet (50m) in open space |
| LED lights |
TX, RX, Bluetooth and Power |
| DEC/DTE |
Manual switch |
| Parameters configurable by |
- Over the air by iOS and Android app
- Via COM port by AT commands
- DIP switches |
| RS232 Signals |
TX, RX, CTS, RTS, GND |
| Works with NMEA 0183 |
Yes |
| Serial port |
1-port female D-sub 9-pin |
| Bluetooth version |
V4.1 |
| Programming interfaces |
GATT / UUID |
| Frequency range |
2.4GHz ISM ( 2.40000 – 2.4835GHz) |
| TX Power |
Max. 3 dBm |
| RX Sensitivity |
-89 dBm typical |
| TX current consumption |
15.6 mA (radio only, 0 dbm) |
| Antenna |
Internal |
| Antenna Gain |
max. 2 dB |
| Power supply |
Mini USB, screw terminals or DB9 pin 9: 5 - 27VDC |
| Operating temp. |
-40C to 70C |
| Dimensions |
81.6mm x 31.75mm x 17mm mm |
| Certifications |
CE, FCC |
For alternative wireless serial solutions please see our full selection of wireless RS232 adapters.
